Introduzzjoni
This user manual provides essential information for the safe and effective operation, setup, maintenance, and troubleshooting of your GOOSKY S1 RC Helicopter BNF (Bind-N-Fly) Version. Please read this manual thoroughly before operating the helicopter to ensure proper usage and to prevent damage or injury.
Informazzjoni dwar is-Sigurtà
WARNING: Operating remote-controlled aircraft requires caution. Failure to operate safely and responsibly could result in injury or property damage.
- Always operate in open areas, away from people, animals, and obstacles.
- Keep hands, face, and loose clothing away from rotating parts.
- Kun żgur li l-batterija tkun iċċarġjata kompletament u installata sew qabel kull titjira.
- Tħaddimx f'riħ qawwi jew f'kundizzjonijiet ħżiena tat-temp.
- This product is not a toy and is intended for adult users or under direct adult supervision. Recommended minimum age is 18 years.
- Store the helicopter and battery in a cool, dry place, away from direct sunlight and heat sources.
- The manufacturer states that no specific safety warnings apply beyond general RC model safety.
Kontenut tal-Pakkett
Iċċekkja li l-oġġetti kollha elenkati hawn taħt huma inklużi fil-pakkett tiegħek:
Image showing the standard equipment included in the BNF package.
- GOOSKY S1 Helicopter (x1)
- EPP Box (x1) - Dimensions: 31.5 x 13 x 8 cm
- Battery (x1) - Pre-installed in the helicopter
- Spare Screws (x1 set)
- Bluetooth Module (x1)
- Charging Conversion Cable (x1)
Speċifikazzjonijiet
Detailed specifications for the GOOSKY S1 RC Helicopter:
Ġenb view of the GOOSKY S1 helicopter illustrating body length (278mm) and main rotor diameter (290mm).

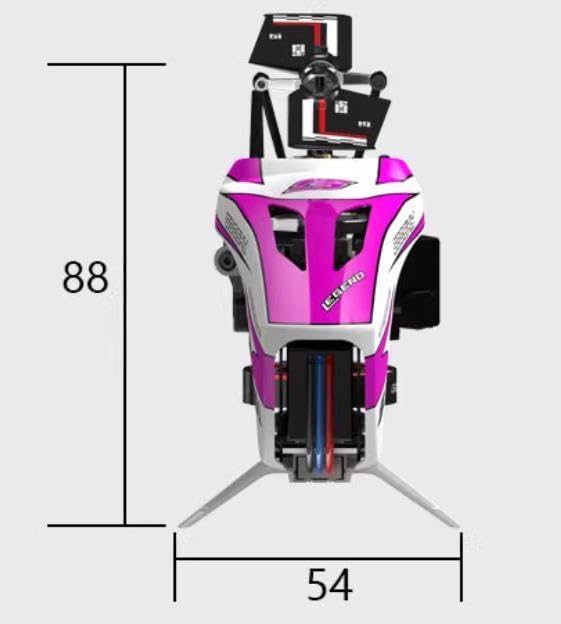

Quddiem view of the GOOSKY S1 helicopter illustrating body height (88mm) and width (54mm).
| Karatteristika | Speċifikazzjoni |
|---|---|
| Brand | GOOSKY |
| Mudell | S1 |
| Tul tal-Korp | 278 mm |
| Għoli tal-Korp | 88 mm |
| Wisa' | 54 mm |
| Dijametru tar-Rotor Prinċipali | 290 mm |
| Dijametru tar-Rotor tad-Denb | 53 mm |
| Piż tat-Tlugħ | Appross. 107 g |
| Ħin tat-Titjira | Appross. 8 minuti |
| Ħin tal-Iċċarġjar | Appross. 30 minuti |
| Tip ta' Materjal | Plastik |
| Tema | Mudell RC |
| Kulur (Varjant Attwali) | Blu |
Setup
Follow these steps to prepare your GOOSKY S1 for its first flight:
- Iċċarġja l-batterija: Although the battery is pre-installed, ensure it is fully charged before the first flight. Use the provided charging conversion cable with a compatible charger (not included, typically a USB charger). Refer to your charger's instructions for safe charging practices.
- Preparazzjoni tat-Trasmettitur: Ensure your RC transmitter (sold separately) is fully charged or has fresh batteries.
- Irbit: The GOOSKY S1 is a BNF (Bind-N-Fly) model, meaning it comes without a transmitter. You will need to bind it to a compatible S-FHSS or DSMX/2 transmitter. Consult your transmitter's manual for the specific binding procedure. Generally, this involves putting the helicopter into bind mode (often by connecting the battery while holding a button or using a bind plug) and then initiating bind mode on your transmitter. The included Bluetooth module may be used for advanced setup or firmware updates via a mobile application.
- Kontroll ta' qabel it-Titjira: Before each flight, inspect the helicopter for any loose screws, damaged blades, or wires. Ensure all moving parts operate freely. Confirm the main and tail rotors are securely attached.
- Verifika tal-wiċċ tal-kontroll: After binding, power on the helicopter and transmitter. Carefully check that all control surfaces (cyclic, collective, rudder) respond correctly to your transmitter inputs. Ensure the swashplate moves smoothly and in the correct direction.
Operazzjoni
Operating your GOOSKY S1 RC Helicopter requires practice. Start with basic maneuvers in a safe, open environment.
- Agħżel Post Sikur: Select an outdoor area free from people, animals, power lines, buildings, and other obstacles. A large, open field is ideal.
- Qawwa Mixgħul: Turn on your transmitter first, then connect the battery to the helicopter. Wait for the helicopter to initialize and the receiver to establish a connection with the transmitter.
- Tlugħ: Slowly increase the throttle. The helicopter should lift off smoothly. Make small, precise adjustments to the cyclic (forward/backward, left/right) and rudder (yaw) to maintain a stable hover.
- Titjira Bażika: Once comfortable with hovering, practice gentle forward, backward, and sideways movements. Always maintain visual line of sight with the helicopter.
- Inżul: Gently reduce the throttle while maintaining control over the cyclic and rudder. Aim for a soft, controlled descent. Once on the ground, immediately reduce throttle to zero.
- Itfi: Disconnect the helicopter battery first, then turn off your transmitter.
Tip: For beginners, consider using a flight simulator to practice controls before flying your actual helicopter.
Manutenzjoni
Regular maintenance ensures the longevity and performance of your GOOSKY S1 helicopter.
- Wara Kull Titjira: Inspect the main and tail blades for cracks or damage. Check for any loose screws, especially on the rotor heads and frame.
- Tindif: Uża drapp artab u niexef biex tnaddaf il-qafas tal-ħelikopter. Evita li tuża solventi jew kimiċi ħarxa.
- Lubrikazzjoni: Periodically apply a small amount of silicone lubricant to moving parts like the main shaft and tail rotor shaft to ensure smooth operation.
- Kura tal-batterija: Do not overcharge or over-discharge the battery. Store batteries at a storage voltage (typically around 3.8V per cell) if not used for extended periods.
- Spezzjoni tal-Komponent: Regularly check wires and connectors for wear or damage. Ensure the motor and ESC (Electronic Speed Controller) are free from debris.
- Sostituzzjoni tal-Parti: Replace any damaged or worn parts immediately with genuine GOOSKY S1 spare parts to maintain flight performance and safety.
Dettaljati view of the GOOSKY S1 helicopter's internal components, useful for maintenance and part identification.
Issolvi l-problemi
Hawn huma soluzzjonijiet għal kwistjonijiet komuni li tista' tiltaqa' magħhom:
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Il-ħelikopter ma jixgħelx. | Battery not connected, discharged battery, faulty wiring. | Ensure battery is connected correctly. Charge battery fully. Check for loose or damaged wires. |
| Helicopter does not bind to transmitter. | Incorrect binding procedure, incompatible transmitter, transmitter too far. | Follow binding instructions carefully. Ensure transmitter is compatible (S-FHSS/DSMX/2). Bring transmitter closer to helicopter during binding. |
| Il-ħelikopter jitbiegħed waqt li jkun qed jittajjar. | Trim settings incorrect, unbalanced blades, wind interference. | Adjust trim on transmitter. Check blades for damage or imbalance. Fly in calm conditions. |
| Loss of control during flight. | Low battery (helicopter or transmitter), radio interference, damaged components. | Ensure all batteries are fully charged. Fly away from sources of interference. Inspect for damaged parts. |
| Il-mutur ma jdurx jew huwa dgħajjef. | Motor damage, ESC issue, loose motor wires. | Check motor connections. Replace motor or ESC if damaged. |
Garanzija u Appoġġ
For warranty information and technical support, please refer to the documentation provided with your purchase or contact the retailer where you purchased the GOOSKY S1 RC Helicopter. Keep your proof of purchase for any warranty claims.
For general inquiries or further assistance, you may also visit the official GOOSKY website or community forums for additional resources and user tips.
