StarAndDaisy G401 Convertible Baby Car Seat Instruction Manual

1. Introduzzjoni u Fuqview

Thank you for choosing the StarAndDaisy G401 Convertible Baby Car Seat. This car seat is designed to provide safety and comfort for your child from birth up to 12 years of age, accommodating various growth stages with its versatile design. Please read this manual thoroughly before installation and use to ensure proper operation and maximum safety for your child.

2. Informazzjoni dwar is-Sigurtà

Is-sigurtà tat-tifel/tifla tiegħek hija importanti ħafna. Dejjem segwi l-linji gwida tas-sigurtà li ġejjin:

• Always secure your child using the 5-point safety belt system. Ensure the harness straps are snug against your child's body and the chest clip is at armpit level.
• Never install the car seat on a front passenger seat with an active airbag.
• For infants (0-15 months), the car seat must be installed in the rear-facing position.
• For toddlers and older children, the car seat can be installed in the forward-facing position, provided they meet the minimum weight and height requirements.
• Ensure the car seat is securely fastened to your vehicle using either the universal seat belt fastening or the hard interface fixed system, as applicable.
• Regularly check all straps and buckles for wear and tear. Replace the car seat if it has been involved in a crash, even if there is no visible damage.
• Do not modify the car seat in any way. Use only original StarAndDaisy parts and accessories.

3. Karatteristiċi tal-prodott

• Convertible Design (0-12 Years): Adapts to your child's growth from newborn to 12 years.
• 5-Point Safety Belt System: Advanced harness system for secure positioning and minimal movement.
• 2 Facing Mode Positions: Supports rear-facing for infants (0-15 months) and forward-facing for toddlers and older children.
• 3-Level Reclining Position: Adjustable recline for sitting, relaxing, or sleeping comfort during rides.
• Comfort & Breathability: Soft padded seat with ventilated fabric for maximum comfort.
• U-Shaped Headrest Protection: Provides firm support and gently absorbs vibrations for head safety.
• Pressure-Resistant Buffer & Anti-Collision Module: Strong internal structure with HDPE material for shock absorption and heat insulation.
• Hard Interface Fixed System & Universal Seat Belt Fastening: Offers multiple secure installation options.
• Fixed Position Stability: Golden point positioning with seat belt 2-angle positioning and LATCH system for steady, reliable safety.

4. Setup u Installazzjoni

Proper installation is crucial for safety. Refer to the diagrams below and follow these steps carefully.

4.1 Rear-Facing Installation (0-15 months)

Position the car seat on the vehicle's rear seat. Ensure the recline angle is appropriate for an infant. Route the vehicle's seat belt through the designated rear-facing belt path and buckle it. Press down firmly on the car seat while tightening the seat belt to remove slack. Verify the seat is secure and does not move more than one inch side-to-side or front-to-back at the belt path.

Image: Diagram illustrating the benefits of reverse installation for infants (0-4 years), which firmly supports the head, neck, hips, and back, significantly reducing impact in emergency situations.

4.2 Forward-Facing Installation (15 months - 12 years)

Position the car seat on the vehicle's rear seat in the forward-facing orientation. Route the vehicle's seat belt through the designated forward-facing belt path and buckle it. Press down firmly on the car seat while tightening the seat belt. Attach the top tether strap to the vehicle's tether anchor point and tighten it. Verify the seat is secure and does not move more than one inch side-to-side or front-to-back at the belt path.

Image: The image displays the car seat's dual installation methods: a hard interface fixed system for trusted safety and universal seat belt fastening, compatible with most car models for secure installation.

Image: This image highlights the fixed position stability of the car seat, featuring seat belt 2-angle positioning and a LATCH system for steady and reliable safety during travel.

5. Istruzzjonijiet Operattivi

5.1 Is-Sigurtà tat-Tifel/Tifla Tiegħek

1. Poġġi lit-tifel/tifla tiegħek fis-siġġu tal-karozza.
2. Bring the shoulder straps over your child's shoulders and buckle the crotch strap.
3. Connect the two buckle tongues into the buckle until you hear a click.
4. Slide the chest clip up to armpit level.
5. Pull the harness adjustment strap to tighten the harness until it is snug against your child's body. You should not be able to pinch any slack in the harness straps at the shoulder.

5.2 Adjusting Recline Position

The car seat offers 3 recline positions. Locate the recline adjustment lever, typically at the front or side of the base. Squeeze the lever and adjust the seat to the desired recline angle. Ensure the seat locks securely into place before placing your child in it.

5.3 Adjusting Headrest and Shoulder Straps

The headrest and shoulder straps can be adjusted simultaneously to fit your growing child. Locate the headrest adjustment lever, usually at the top of the headrest. Squeeze the lever and slide the headrest up or down until the shoulder straps are at or just below your child's shoulders for rear-facing, or at or just above your child's shoulders for forward-facing.

Image: This image demonstrates how the car seat supports a baby's natural sleeping posture. It shows the scientifically positioned headrest for head shape correction, added shoulder straps for neck and shoulder protection, and a C-shaped seat cushion to disperse sitting pressure.

Image: This image highlights the U-shaped headrest protection feature, providing firm support to gently absorb vibrations and protect a newborn's delicate head, especially important as the fontanelle closes.

6. Manutenzjoni

6.1 Istruzzjonijiet għat-Tindif

• Kisi tad-drapp: The fabric covers can be removed for cleaning. Hand wash with mild soap and cold water, or machine wash on a gentle cycle with cold water. Do not bleach, iron, or tumble dry. Air dry completely before reattaching.
• Ċineg tal-Arness: Imsaħ iċ-ċineg tal-arness b'reklamaramp cloth and mild soap. Do not immerse in water or machine wash, as this can weaken the webbing.
• Bokkla: Clean the buckle by rinsing it with warm water. Do not use detergents or lubricants.
• Partijiet tal-plastik u tal-metall: Imsaħ il-partijiet tal-plastik u tal-metall b'reklamaramp drapp u sapun ħafif.

6.2 Ħażna

When not in use, store the car seat in a cool, dry place away from direct sunlight to prevent material degradation.

7 Issolvi l-problemi

• Is-Seat tal-Karozza Jħoss Maħlul Wara l-Installazzjoni: Ensure the vehicle's seat belt is fully tightened and all slack is removed. For hard interface systems, ensure connectors are fully engaged. Re-read the installation section and try again.
• Harness Straps Are Difficult to Tighten/Loosen: Check for any twists in the harness webbing. Ensure the harness adjustment strap is not obstructed. Clean the buckle if necessary.
• It-Tifel Jidher Skomdu: Verify the recline angle is appropriate for your child's age and weight. Adjust the headrest and shoulder straps to the correct height. Ensure no clothing or accessories are interfering with the harness fit.

If you encounter issues not covered here, please contact StarAndDaisy customer support.

8. Speċifikazzjonijiet

Image: The overall dimensions of the StarAndDaisy G401 Baby Car Seat, with a height of 630mm and a width of 465mm. Suitable for ages 0-4 years.

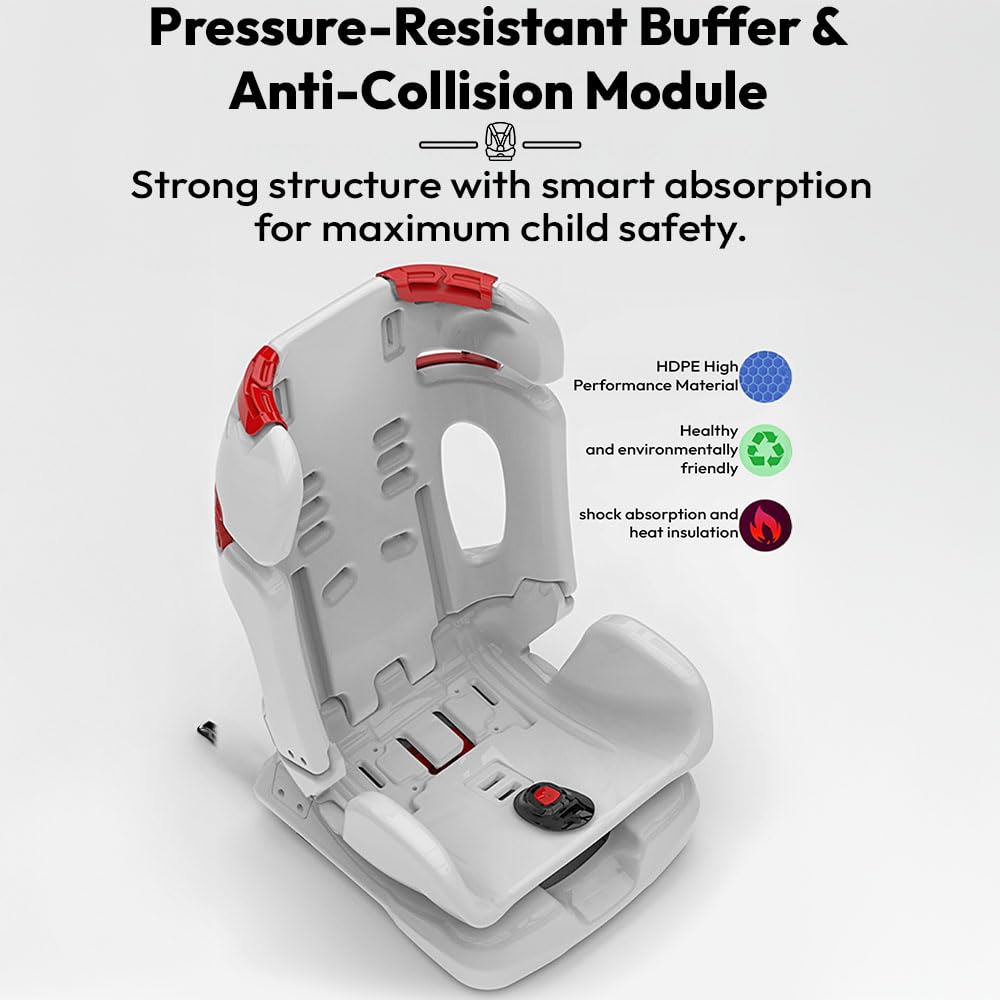

Immaġni: Interna view of the car seat's base, illustrating the pressure-resistant buffer and anti-collision module. It features HDPE High Performance Material for shock absorption and heat insulation, ensuring robust child safety.

9. Garanzija u Appoġġ

StarAndDaisy products come with a manufacturer's warranty against defects in materials and workmanship. For specific warranty details, claims, or technical support, please contact our customer service team.

Appoġġ għall-Klijent:

• Email: care@staranddaisy.in
• Website: Visit the official StarAndDaisy websit għal aktar informazzjoni u riżorsi ta’ appoġġ.
