1. Introduzzjoni
Thank you for choosing the LEDLUX 52" Ceiling Fan with Light. This manual provides detailed instructions for the safe installation, operation, and maintenance of your new ceiling fan. Please read this manual thoroughly before installation and keep it for future reference.
Image 1.1: The LEDLUX 52" Ceiling Fan with Light installed in a bedroom setting.

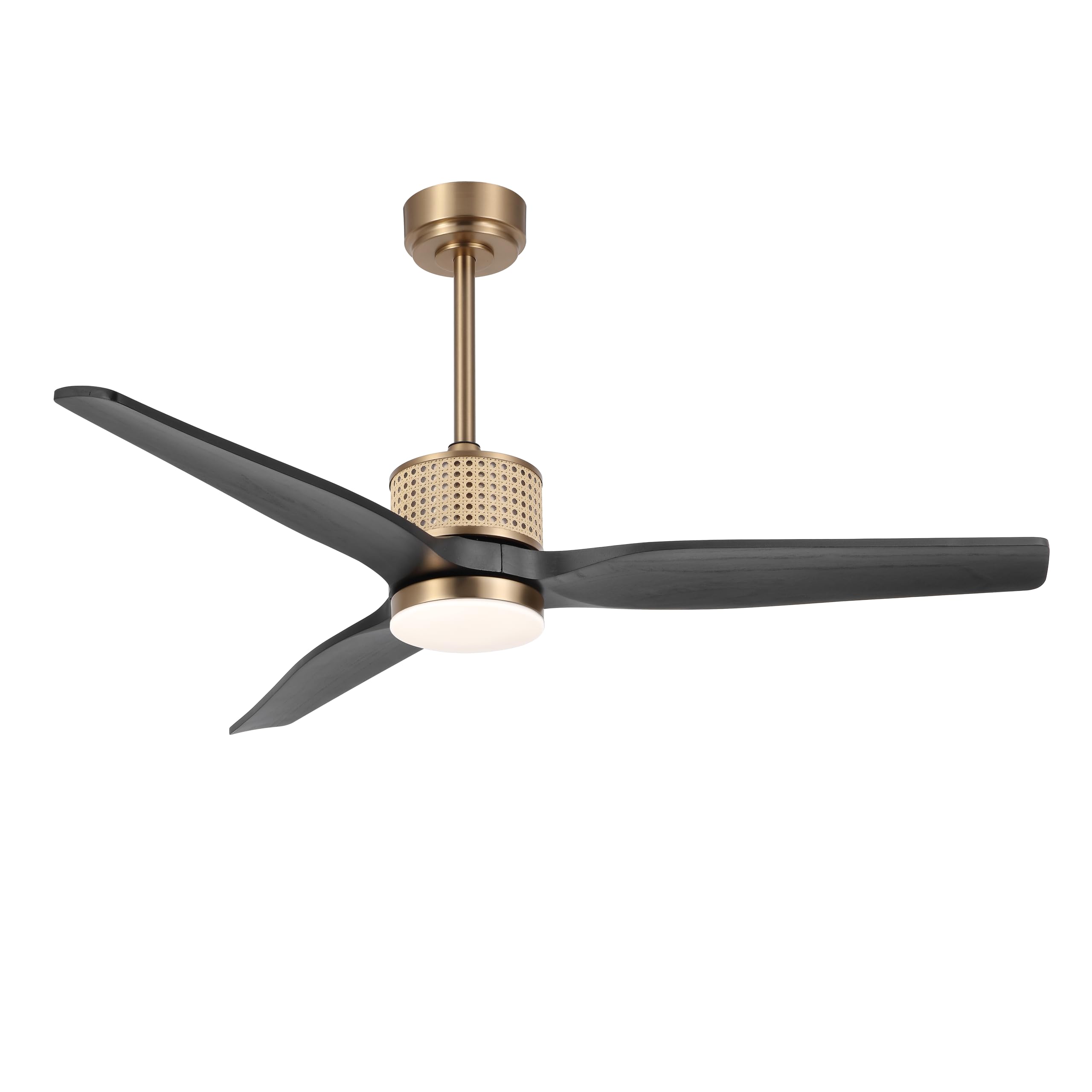

This ceiling fan features a unique rattan design, solid wood blades, a quiet reversible DC motor, and an integrated LED light with three color temperature options. It is designed for both indoor and covered outdoor use, providing comfort and style to your living space.
2. Informazzjoni dwar is-Sigurtà
Biex tnaqqas ir-riskju ta’ xokk elettriku, nar, jew korriment personali, dejjem segwi dawn il-prekawzjonijiet bażiċi ta’ sigurtà:
- Aqra l-istruzzjonijiet kollha qabel ma tinstalla l-fann.
- Ensure the installation site is structurally sound and can support the fan's weight (at least 35 lbs).
- Il-wajers kollha għandhom ikunu skont il-kodiċijiet elettriċi nazzjonali u lokali. Ikkonsulta elettriċista kwalifikat jekk m'intix ċert.
- Itfi l-enerġija mis-circuit breaker qabel tibda l-installazzjoni jew tagħmel xi manutenzjoni.
- Do not operate the fan with damaged blades or any other damaged parts.
- Żomm idejk, ħwejjeġ, u oġġetti oħra 'l bogħod mix-xfafar tal-fann meta l-fann ikun qed jaħdem.
3. Kontenut tal-Pakkett
Ivverifika li l-komponenti kollha huma preżenti qabel tibda l-installazzjoni. Jekk xi partijiet huma neqsin jew bil-ħsara, ikkuntattja l-appoġġ għall-klijenti.
- Assemblea tad-Djar tal-Mutur
- Fan Blades (Solid Wood)
- Downrods (4.5" and 12")
- Bracket tal-Immuntar
- Kanupew
- Kontroll mill-bogħod bil-Wall Mount
- Kitt tad-Dawl LED
- Pakkett tal-Ħardwer (viti, woxers, ġewż tal-wajer)
- Manwal ta' Istruzzjoni
4. Setup u Installazzjoni
Segwi dawn il-passi bir-reqqa għal installazzjoni xierqa. Installazzjoni professjonali hija rakkomandata jekk m'intix familjari mal-wajers elettriċi.
4.1 Qabel l-Installazzjoni
- Itfi l-enerġija mill-circuit breaker prinċipali.
- Kun żgur li l-kaxxa tal-elettriku hija mmuntata sew u kklassifikata għall-appoġġ tal-fann tas-saqaf.
- Iftaħ il-komponenti kollha mill-pakkett u poġġihom fuq wiċċ artab biex tevita l-grif.
4.2 Għażliet ta 'Immuntar
The fan supports both flat and sloped ceiling installations (up to 15 degrees).
Image 4.1: Product dimensions and available mounting options for flat and sloped ceilings.
4.3 Downrod and Wiring Installation
Choose the appropriate downrod (4.5" or 12") for your ceiling height. Securely attach the downrod to the motor housing and feed the electrical wires through it. Mount the hanging bracket to the electrical box, then lift the fan assembly and hang it from the bracket.
4.4 Konnessjonijiet elettriċi
Connect the fan's electrical wires to the household wiring according to the wiring diagram provided in the full manual. Ensure all connections are secure with wire nuts.
4.5 Blade and Light Kit Attachment
Attach the solid wood fan blades to the motor housing using the provided screws. Install the LED light kit by connecting the wires and securing the light cover.
4.6 Gwida bil-Vidjo għall-Installazzjoni
Għal gwida viżwali dwar il-proċess tal-installazzjoni, jekk jogħġbok irreferi għall-filmat uffiċjali hawn taħt:
Video 4.2: Official LEDLUX guide on how to install the ceiling fan.
5. Istruzzjonijiet Operattivi
Your LEDLUX ceiling fan is operated using the included remote control.
Image 5.1: The remote control for the LEDLUX ceiling fan, highlighting its various functions.
5.1 Funzjonijiet ta' Kontroll mill-bogħod
- Power On/Off: Press to turn the fan and light on or off.
- Veloċità tal-fann: Adjusts fan speed through 6 levels.
- Kontroll tad-Dawl: Turns the light on/off and cycles through color temperatures.
- Timer: Sets the fan to turn off automatically after a specified duration (e.g., 1 hour, 4 hours).
- Funzjoni Reverse: Changes the direction of blade rotation for summer or winter mode.
5.2 Light Color Temperature Adjustment
The integrated LED light offers three fixed color temperatures:
- 3000K: Warm light, ideal for a cozy atmosphere.
- 4000K: Natural light, suitable for general illumination.
- 6000K: White light, bright and clear for task lighting.
Image 5.2: The three adjustable color temperatures of the LED light.
5.3 Funzjoni Riversibbli tal-Mutur
The reversible DC motor allows for year-round use:
- Summer Mode (Counterclockwise): Joħloq fluss tal-arja 'l isfel, u jipproduċi effett ta' tkessiħ.
- Modalità tax-Xitwa (Lejn l-Arloġġ): Joħloq fluss tal-arja 'l fuq, u jiċċirkola arja sħuna maqbuda ħdejn is-saqaf.
Image 5.3: Illustration of summer (counterclockwise) and winter (clockwise) fan modes.
5.4 Tħaddim Kwiet
The DC motor ensures whisper-quiet performance, making it suitable for bedrooms and other quiet spaces.
Image 5.4: The fan's quiet operation, ideal for undisturbed sleep.
6. Manutenzjoni
Manutenzjoni regolari tgħin biex tiżgura l-lonġevità u l-prestazzjoni ottimali tal-fann tas-saqaf tiegħek.
- Tindif: Naddaf ix-xfafar tal-fann u l-housing tal-mutur perjodikament b'drapp artab u dry.amp drapp. Tużax tindif jew solventi li joborxu.
- Spezzjoni tax-xafra: Iċċekkja x-xfafar tal-fann għal xi xquq jew ħsara. Ibdel ix-xfafar bil-ħsara immedjatament.
- Verifika tal-Issikkar: Annually check all screws and fasteners for tightness.
- Kit tad-Dawl: The LED light source is designed for long life and is not user-serviceable.
7 Issolvi l-problemi
If you encounter issues with your fan, refer to the following common troubleshooting steps:
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Fan ma jibda | No power to fan; Loose wire connections; Remote control battery low. | Iċċekkja s-circuit breaker; Ivverifika li l-konnessjonijiet tal-wajers kollha huma sikuri; Ibdel il-batterija tal-kontroll remot. |
| Id-dawl ma jaħdimx | Loose wire connection; LED driver issue. | Check light kit wiring; Contact customer support if issue persists. |
| Fan wobbles | Xfafar jew ħardwer tal-immuntar maħlul; Xfafar mhux ibbilanċjati. | Kun żgur li l-viti tax-xafra u l-viti tal-immuntar kollha huma ssikkati; Uża kit tal-ibbilanċjar (mhux inkluż) jekk meħtieġ. |
| Operazzjoni storbjuża | Loose screws; Motor issue. | Check all screws for tightness; If noise persists, contact customer support. |
If these steps do not resolve the issue, please contact LEDLUX customer support for further assistance.
8. Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Brand | LEDLUX |
| Numru tal-Mudell | SYCF5201 |
| Daqs | 52 pulzieri |
| Kulur | Deheb/Iswed |
| Materjal | Wood (Blades) |
| Tip ta' Mutur | Mutur DC |
| Sors tal-Enerġija | DC |
| Metodu ta' Kontroll | Kontroll mill-bogħod |
| Numru ta 'Livelli ta' Qawwa | 6 Veloċitajiet tal-fann |
| Karatteristika Ħafifa | Integrated LED Light (3000K/4000K/6000K) |
| Użu fuq ġewwa/barra | Ġewwa, Mgħottija Barra |
| Dimensjonijiet tal-Prodott | 52"D x 20"W x 52"H |
9. Informazzjoni dwar Garanzija
LEDLUX stands behind the quality of its products with a comprehensive warranty:
- Garanzija tal-Mutur ta' 10 Snin: The fan's DC motor is covered by a 10-year free replacement warranty.
- 3-Year Full Warranty: All other parts of the ceiling fan are covered by a full 3-year warranty.
This warranty covers defects in materials and workmanship under normal use. For warranty claims or further details, please contact LEDLUX customer support.
10. Appoġġ għall-Klijent
If you have any questions, require assistance with installation, or need to report a problem, please contact LEDLUX customer support. Our team is dedicated to providing prompt and helpful service.
- Refer to the contact information provided with your purchase or visit the official LEDLUX websit għall-għażliet ta 'appoġġ.
