MECHEN M33 Hi-Res MP3 Player User Manual

1. Introduzzjoni

Thank you for choosing the MECHEN M33 Hi-Res MP3 Player. This device is designed to provide a high-fidelity audio experience with support for various lossless formats, Bluetooth 5.3 connectivity, and a user-friendly touchscreen interface. This manual will guide you through the setup, operation, and maintenance of your new MP3 player.

2. Kontenut tal-Pakkett

Jekk jogħġbok ivverifika li l-oġġetti kollha elenkati hawn taħt huma inklużi fil-pakkett tiegħek:

• MECHEN M33 Hi-Res MP3 Player
• Kejbil tad-Dejta USB-C
• Kaxxa tal-Ġilda Protettiva
• 128GB External Memory Card (pre-installed or separate)
• Manwal għall-Utent (dan id-dokument)

3. Prodott Aktarview

The MECHEN M33 features a compact design with a durable zinc alloy body and a 2.8-inch HD touchscreen for intuitive navigation. It supports high-resolution audio formats and offers versatile connectivity options.

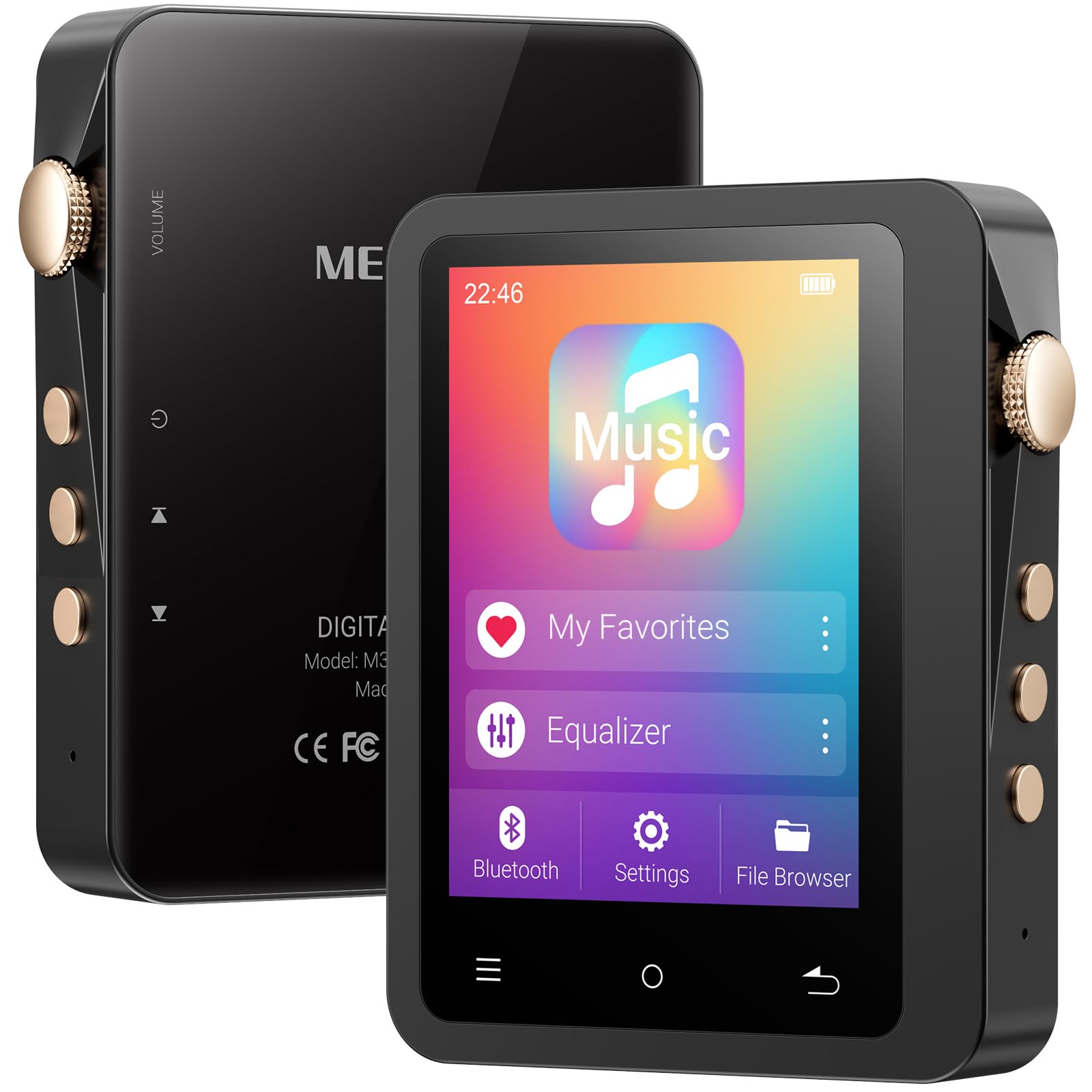

Image: The MECHEN M33 Hi-Res MP3 Player, showcasing its 2.8-inch touchscreen and compact form factor, often accompanied by its protective leather case.

Karatteristiċi ewlenin:

• Kwalità tal-Ħoss Hi-Fi: Built-in DAC decoding chip supports DSD (DSF/DFF), FLAC, APE, ALAC, MP3, AAC, and other formats.
• Bluetooth 5.3: Stable wireless connection for headphones and speakers.
• Ħajja twila tal-batterija: 2000mAh battery provides up to 60 hours of continuous playback.
• Ħażna espansibbli: Standard 128GB external memory card, expandable up to 512GB (TF card not included for expansion).
• Skrin tattili HD ta' 2.8 pulzieri: Simple UI design for easy navigation and song categorization.
• Bini Durabbli: Solid zinc alloy shell, scratch-resistant and wear-resistant.

4. Setup

4.1 Iċċarġjar tal-Apparat

Before first use, fully charge the MP3 player. Connect the provided USB-C data cable to the player's USB-C port and the other end to a USB power adapter (not included) or a computer's USB port. The charging indicator will show the charging status. A full charge typically takes a few hours.

4.2 Power On/Off

• Biex Tixgħel: Press and hold the Power button (usually located on the side) for a few seconds until the screen lights up.
• Biex Tifi: Press and hold the Power button for a few seconds. A power-off prompt will appear on the screen. Select 'Power Off' to shut down the device.

4.3 Inserting/Removing MicroSD Card

The device comes with a 128GB external memory card. If you wish to use a different card or expand storage further (up to 512GB), follow these steps:

• Biex Daħħal: Locate the MicroSD card slot on the device. Gently push the MicroSD card into the slot until it clicks into place. Ensure the card is oriented correctly.
• Biex tneħħi: Gently push the MicroSD card inward until it springs out slightly. Then, pull it out of the slot. Always ensure the device is powered off before removing the card to prevent data loss.

5. Operazzjoni Bażika

5.1 Navigazzjoni tal-Interfaċċja

The MECHEN M33 features a 2.8-inch touchscreen. Swipe left, right, up, or down to navigate through menus and options. Tap on icons to select them. The user interface is designed for simplicity and ease of use.

5.2 Daqq tal-Mużika

• From the main menu, tap on 'Music' or 'Player'.
• Browse your music library by artist, album, genre, or folder.
• Tap on a song to begin playback.
• During playback, you can control volume, skip tracks, pause/play, and access playback settings from the screen.

5.3 Tqabbil tal-Bluetooth

To connect your MECHEN M33 to Bluetooth headphones or speakers:

1. Kun żgur li l-apparat awdjo Bluetooth tiegħek jinsab fil-modalità ta' tqabbil.
2. On the MP3 player, go to 'Settings' and then 'Bluetooth'.
3. Turn Bluetooth 'On'. The player will scan for available devices.
4. Select your desired device from the list to pair. Once paired, audio will be routed wirelessly.

6. Karatteristiċi Avvanzati

6.1 Hi-Fi Audio Playback

The MECHEN M33 supports various high-resolution lossless audio formats including DSD (DSF/DFF), FLAC, APE, and ALAC, in addition to common formats like MP3 and AAC. For the best audio experience, use high-quality headphones and lossless audio files.

6.2 Ekwalizzatur

The device includes an equalizer function to customize your audio output. Access the equalizer settings during music playback or through the 'Settings' menu to adjust sound profiles according to your preference.

6.3 OTG Functionality

The MECHEN M33 supports OTG (On-The-Go) functionality, allowing it to act as a host to connect other USB devices, such as USB flash drives, for direct file transfer or playback. A compatible OTG adapter (not included) may be required.

7. File Ġestjoni

Biex tittrasferixxi l-mużika files to your MECHEN M33:

1. Connect the MP3 player to your computer using the provided USB-C data cable.
2. Il-plejer se jidher bħala disk drive li jista' jitneħħa fuq il-kompjuter tiegħek.
3. Iddreggja u qiegħed l-awdjo tiegħek files into the appropriate folders on the player's internal storage or the MicroSD card.
4. Darba fileLadarba l-fajls jiġu trasferiti, oħroġ l-apparat mill-kompjuter tiegħek b'mod sigur qabel ma skonnettja l-kejbil USB.

8. Manutenzjoni

8.1 Tindif tal-Apparat

Wipe the device with a soft, dry, lint-free cloth. Do not use abrasive cleaners, alcohol, or solvents, as these may damage the surface or internal components.

8.2 Kura tal-Batterija

• Avoid exposing the device to extreme temperatures (hot or cold) as this can reduce battery life.
• Għal ħajja ottimali tal-batterija, evita li tbattalha kompletament ta' spiss.
• Jekk taħżen l-apparat għal perjodu estiż, iċċarġjah sa madwar 50% qabel ma taħżnu.

9 Issolvi l-problemi

• Apparat mhux qed jixgħel: Kun żgur li l-batterija hija ċċarġjata. Qabbad ma' sors ta' enerġija u erġa' pprova.
• Ebda ħoss: Check volume levels. Ensure headphones are properly connected or Bluetooth is paired correctly. Verify audio file kompatibilità tal-format.
• Problemi bil-konnessjoni Bluetooth: Ensure both devices are in pairing mode and within range. Try unpairing and re-pairing the device.
• Filemhux rikonoxxut: Żgura l-awdjo files are in a supported format. Check if the MicroSD card is properly inserted and formatted.
• Apparat iffriżat: Agħfas u żomm il-buttuna tal-Power għal madwar 10-15-il sekonda biex terġa' tibda.

10. Speċifikazzjonijiet

11. Garanzija u Appoġġ

This product includes a 30-day unconditional return policy and a 1-year exchange service. For any questions, technical support, or warranty claims, please contact MECHEN customer support. We aim to reply to all inquiries within 24 hours.
