Pioneer Quantum Ultra 24000 BTU Mini-Split Air Conditioner Heat Pump

1. Prodott Aktarview

The Pioneer Quantum Ultra 24000 BTU 23 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump is designed to provide efficient cooling and heating for your space. This full set includes both indoor and outdoor units, along with essential accessories for installation and operation. Featuring inverter technology, it offers energy-efficient performance and quiet operation.

Figure 1: Pioneer Quantum Ultra Indoor Unit

Karatteristiċi ewlenin:

• Kapaċità ta' 24,000 BTU: Suitable for cooling and heating larger rooms.
• 23 SEER2 Energy Efficiency: Provides significant energy savings.
• Teknoloġija tal-inverter: Ensures precise temperature control and reduced energy consumption.
• High-Wall Ductless Design: Flexible installation without extensive ductwork.
• Funzjonalità tal-Pompa tas-Sħana: Offers both cooling and heating capabilities.
• WiFi Ippermettiet: Jippermetti kontroll intelliġenti permezz ta' applikazzjoni mobbli.
• Intelligent Self-Defrosting: Enhances performance in cold conditions.
• Factory-Installed Chassis Heater: Improves low-ambient heating performance.

Figura 2: Aktarview of Pioneer Quantum Ultra features including WiFi, self-defrosting, and year-round operation.

2. Setup u Installazzjoni

This mini-split system is provided as a full set, including the indoor unit, outdoor unit, wireless remote control, remote control wall holder, remote control batteries, customizable length copper lines, and customizable length electrical wire. Professional installation by a licensed HVAC technician is highly recommended to ensure proper setup, refrigerant handling, and warranty validity.

Komponenti Inklużi:

• Unità ta' ġewwa
• Unità ta' barra
• Kontroll mill-bogħod mingħajr fili
• Remote Control Wall Holder
• Batteriji tal-Kontroll mill-bogħod
• Customizable Length Copper Lines
• Customizable Length Electrical Wire
• WiFi Enabled USB Module

Figure 3: Pioneer Quantum Ultra Outdoor Unit

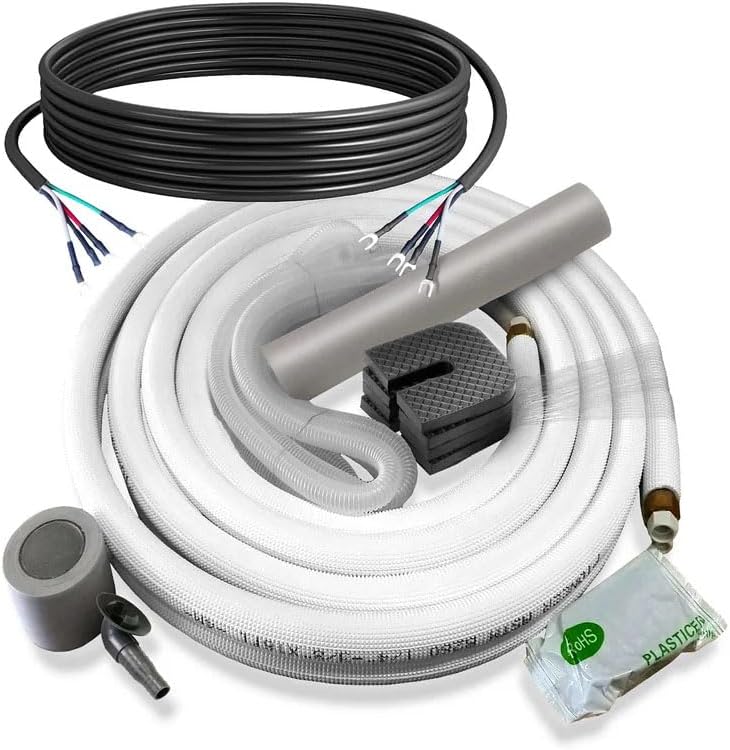

Figure 4: Included installation components such as copper lines and electrical wire.

Rekwiżiti elettriċi:

The system operates on 230 Volts. Ensure your electrical system can support this requirement. Consult a qualified electrician for any necessary electrical upgrades or connections.

Installazzjoni tal-Modulu WiFi:

The system includes a WiFi enabled USB module for smart control. Insert the module into the designated port on the indoor unit as per the detailed instructions in the complete user manual. Download the compatible mobile application to connect and control your unit remotely.

Figure 5: WiFi USB module for smart control.

Prodott Ġenerali Overview Vidjow:

3. Istruzzjonijiet Operattivi

The Pioneer Quantum Ultra mini-split system can be operated using the included wireless remote control or via the mobile application once the WiFi module is installed and configured.

Using the Wireless Remote Control:

The remote control provides full functionality to manage your unit. Ensure batteries are inserted correctly. Point the remote towards the indoor unit when operating.

Figure 6: Wireless remote control for the Pioneer Quantum Ultra mini-split.

• Power On/Off: Agħfas il-buttuna tal-enerġija biex tixgħel jew titfi l-unità.
• Għażla tal-Modalità: Cycle through modes like Cool, Heat, Fan, Dry, and Auto.
• Aġġustament tat-temperatura: Uża l-vleġeġ 'il fuq/'l isfel biex tissettja t-temperatura mixtieqa tiegħek.
• Veloċità tal-fann: Adjust the fan speed (Low, Medium, High, Auto).
• Funzjoni Swing: Control the vertical airflow direction.
• Timer: Set a timer for automatic on/off operation.
• Modalità Sleep: Optimizes settings for comfortable sleep and energy saving.
• Modalità ECO: Jattiva l-operazzjoni li tiffranka l-enerġija.
• Modalità Turbo: Jipprovdi tkessiħ jew tisħin rapidu.
• Wiri LED: Turn the indoor unit's display on or off.
• Funzjoni Nadifa: Initiates a self-cleaning cycle for the indoor unit.

Smart Control via Mobile App:

With the WiFi module installed, download the compatible Pioneer mobile application from your device's app store. Follow the in-app instructions to pair your device with the mini-split unit. The app allows for remote control of all functions, scheduling, and monitoring.

4. Manutenzjoni

Regular maintenance ensures optimal performance and longevity of your Pioneer mini-split system. Always turn off the power to the unit before performing any maintenance.

Tindif tal-filtru:

The air filters in the indoor unit should be cleaned regularly (e.g., monthly, or more frequently depending on usage and air quality). Refer to the full manual for detailed instructions on how to access and clean the filters.

Figure 7: Indoor unit showing potential filter access area.

Intelligent Self-Defrosting:

The outdoor unit is equipped with intelligent self-defrosting to prevent ice buildup on the coils during heating operation in cold weather. This process is automatic and helps maintain heating efficiency.

Tindif Ġenerali:

Wipe the exterior of both indoor and outdoor units with a soft, damp drapp. Tużax kimiċi ħarxa jew tindif li joborxu.

5 Issolvi l-problemi

If you encounter issues with your mini-split system, refer to the comprehensive troubleshooting guide in your full user manual. Common issues and their solutions are typically covered there. For persistent problems or complex repairs, contact a qualified HVAC technician.

Common Issues May Include:

• L-unità ma tixgħelx.
• Tkessiħ jew tisħin insuffiċjenti.
• Ħsejjes mhux tas-soltu.
• Tnixxija tal-ilma.
• Error codes displayed on the indoor unit.

Always ensure the power supply is stable and filters are clean before troubleshooting.

6. Speċifikazzjonijiet

7. Garanzija u Appoġġ

For detailed information regarding the product warranty, please refer to the official warranty documentation included with your Pioneer Quantum Ultra mini-split system. It is crucial to register your product and adhere to all installation guidelines, including professional installation by a licensed HVAC technician, to ensure warranty validity.

For technical support, service inquiries, or to obtain replacement parts, please consult the contact information provided in your product manual or visit the official Pioneer website. Always provide your model number (WYT024GLSI24RL-16) and purchase date when seeking support.
