Provirtec MistGrove Humidifier HC-02 Instruction Manual

1. Introduzzjoni

Thank you for choosing the Provirtec MistGrove Humidifier HC-02. This advanced 6L self-cleaning humidifier is designed to provide optimal humidity for large rooms, offering both warm and cool mist options. Its no-leak design, top-fill convenience, and quiet ultrasonic operation ensure a comfortable and healthy environment for your home or office. This manual provides essential information for safe and efficient operation.

Image: Provirtec MistGrove Humidifier showcasing dual protected mist for a healthier home environment.

2. Informazzjoni dwar is-Sigurtà

• Dejjem poġġi l-umidifikatur fuq wiċċ sod, ċatt u li ma jgħaddix ilma minnu mill-inqas 15 ċm 'il bogħod mill-ħitan u l-apparat.
• Tgħaddix l-umidifikatur fl-ilma jew likwidi oħra.
• Use only distilled or purified water to prevent mineral buildup and white dust. Avoid tap water, well water, or other water with high mineral content.
• Do not add essential oils directly into the water tank or mist tube. Use only the designated aroma box.
• Unplug the humidifier before cleaning, filling, or moving it.
• Żomm fejn ma jintlaħaqx mit-tfal u l-annimali domestiċi.
• Timblokkax il-ventijiet tal-ħruġ taċ-ċpar jew tad-dħul tal-arja.
• If the unit produces unusual sounds, smells, or smoke, unplug it immediately and contact customer support.

3. Setup

Follow these steps to set up your Provirtec MistGrove Humidifier HC-02:

1. Ħoll u Spezzjona: Carefully remove all packaging materials and inspect the humidifier for any damage. Ensure all components are present: main unit, mist tube, power ring, remote control, cleaning brush, and user manual.
2. Check Mist Tube: Ensure the mist tube is properly secured within the main unit.
3. Install Power Ring: The power ring must be placed into the mist tube with the side marked "THIS SIDE UP" facing upwards. This improves mist output efficiency. If not installed correctly, mist may be greatly reduced or absent.
4. Imla t-Tank tal-Ilma: Remove the top cover. Fill the water tank with distilled or purified water. Ensure the water level is higher than the MIN line and lower than the MAX line. Do not add water through the mist tube.
5. Żid Żjut Essenzjali (Mhux obbligatorju): If desired, gently press to remove the aroma box located at the back of the unit. Add a few drops of essential oil onto the pad inside the aroma box. Reinsert the aroma box.
6. Place and Connect: Place the humidifier on a stable, flat surface. Plug the power cord into a suitable electrical outlet.

Image: The 6L integrated tank of the Provirtec MistGrove Humidifier being filled from the top, highlighting its no-leak design compared to split tanks.

4. Istruzzjonijiet Operattivi

Your humidifier can be operated using the touch panel on the unit or the included remote control.

Kontrolli tal-Panel tat-Touch:

• ON/OFF: Agħfas biex tixgħel jew titfi l-umidifikatur.
• LIVELL: Press to turn Manual Mode on. Press again to cycle through mist levels 1-5.
• AUTO: Press to turn Auto Mode on. The humidifier will automatically maintain the ideal humidity level (40%-60% RH). Press again to cycle through target humidity levels (40%-60%).
• Rqad: Press to turn Sleep Mode on. This turns off all lights and operates at a near-silent level. Press again to cycle through sleep levels 1-3.
• SĦUN: Press to turn the warm mist function on/off. Warm mist reaches approximately 95°F in about 30 minutes (at room temperature 77°F).
• TIMER: Press to set a timer (0-12 hours) for automatic shut-off.

Kontroll mill-bogħod:

The remote control offers all the same functions as the touch panel for convenient operation from a distance. Aim the remote at the control panel for best results.

Direzzjoni taċ-Ċpar:

The humidifier features 360° dual mist outlets. Freely rotate and adjust the outlets to direct the mist in any desired direction for even coverage.

Image: User interacting with the touch panel and remote control of the Provirtec MistGrove Humidifier, showing various function buttons.

Image: The humidifier providing 360° mist coverage in a room, with an inset showing the rotatable mist outlets.

5. Manutenzjoni

Regular cleaning is crucial for optimal performance and hygiene. The Provirtec MistGrove Humidifier features a seamless one-piece tank design for easy cleaning.

1. Manutenzjoni ta 'Kuljum: Vojta u laħlaħ it-tank tal-ilma kuljum.
2. Tindif ta 'kull ġimgħa: Unplug the unit. Remove the top cover and the mist tube. Use the provided cleaning brush and a soft cloth to wipe down the interior of the water tank and the mist tube. The wide opening and lack of hard-to-reach corners make cleaning quick and easy. Rinse thoroughly.
3. Tneħħija tal-Ġebla: If mineral deposits accumulate, fill the tank with a solution of equal parts white vinegar and water. Let it soak for 30 minutes, then scrub with the cleaning brush. Rinse thoroughly until the vinegar smell is gone.
4. Aroma Box Cleaning: Clean the aroma box and replace the essential oil pad as needed.

Image: Visual guide demonstrating the simple two-step self-cleaning process: empty the tank and wipe clean, emphasizing the integrated tank design.

6 Issolvi l-problemi

• Humidifier is noisy: This humidifier is designed to operate quietly. You may hear a soft 'white noise' from the ultrasonic atomization, as well as a gentle humming sound from the heating in warm mist mode. Both sounds indicate that the unit is functioning correctly. For best quiet operation, place it on a flat, hard surface and keep the water level between MAX and MIN.
• White dust around the unit: This is typically caused by hard water. We strongly recommend using distilled or purified water to avoid white dust issues and mineral buildup inside the device.
• Humidity fluctuation near the unit: Slight humidity fluctuation near the unit may occur due to running or heat dissipation. This is completely normal. The mist is released from one point and needs time to circulate and spread throughout the room. For more even humidity, place your humidifier on a flat surface in a central location.
• Warm mist not reaching 95°F quickly: The mist heating speed is affected by ambient temperature. At room temperature of 77°F, it takes about 30 minutes for the mist to approximately 95°F. It is recommended to close doors and windows when using the warm mist function.

7. Speċifikazzjonijiet

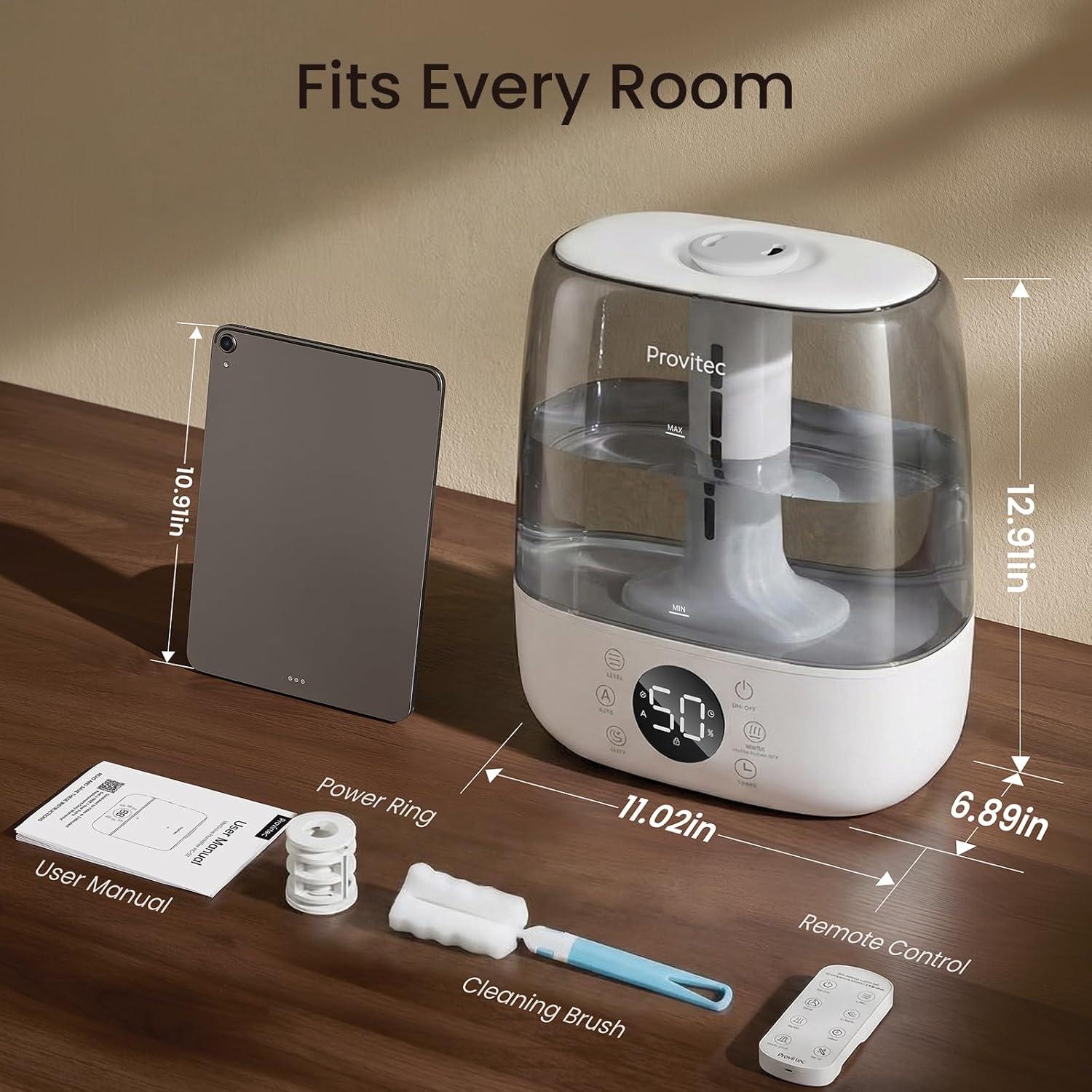

Image: The humidifier displayed with its dimensions and all included accessories: user manual, power ring, cleaning brush, and remote control.

8. Garanzija u Appoġġ

For warranty information, technical support, or any questions regarding your Provirtec MistGrove Humidifier HC-02, please refer to the contact details provided in your user manual or visit the official Provirtec websit.
