Carrier XCEL EDGE Fxi 2 Ton 3 Star Split Inverter AC User Manual

1. Introduzzjoni

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Carrier XCEL EDGE Fxi 2 Ton 3 Star Split Inverter AC. Please read this manual thoroughly before using the appliance and keep it for future reference.

2. Istruzzjonijiet Importanti dwar is-Sigurtà

Always follow basic safety precautions to reduce the risk of fire, electric shock, or injury. Failure to do so may result in serious injury or property damage.

• Ensure the AC is installed by a qualified and certified technician.
• Do not operate the AC with wet hands or when standing in water.
• Daħħalx oġġetti fid-daħla jew l-iżbokk tal-arja.
• Turn off the main power supply to the unit before performing any cleaning or maintenance.
• Keep children and pets away from the unit, especially the outdoor unit.
• Use only the specified refrigerant (R32) as indicated on the unit's nameplate.
• Tippruvax issewwi l-unità int stess. Ikkuntattja persunal tas-servizz awtorizzat.

3. Prodott Aktarview

The Carrier XCEL EDGE Fxi is a 2-ton, 3-star rated split inverter air conditioner designed for efficient cooling in residential spaces. It features advanced inverter technology, Wi-Fi smart connectivity, and multiple cooling modes for personalized comfort.

Karatteristiċi ewlenin:

• Teknoloġija tal-inverter: Adjusts compressor speed based on heat load, ensuring energy-efficient operation.
• Wi-Fi Smart Connect: Allows control via smartphone applications and voice commands for enhanced convenience.
• Tkessiħ Konvertibbli 6 f'1: Offers six different cooling modes to adjust capacity according to room occupancy and weather conditions.
• Copper Condenser: Ensures efficient heat transfer, rapid cooling, and extended durability.
• Refriġerant R32: Utilizes an environmentally friendly refrigerant with lower global warming potential.
• Wirja Moħbija: Features a sleek, concealed digital display for a modern aesthetic.
• High Ambient Cooling: Designed to deliver effective cooling even at ambient temperatures up to 55°C.
• Operazzjoni ta' Ħoss Baxx: Operates as low as 32dB, providing a quiet environment.

Figura 1: Indoor unit highlighting 6-in-1 Convertible Cooling and Wi-Fi Smart Connect capabilities.

Figura 2: Smart features including Wi-Fi Smart Connect with voice control, sleek design with a hidden display, and energy-efficient operation as low as 0.8KW.

Figura 3: The indoor unit's quiet operation (as low as 32dB) and suitability for medium-sized rooms (121-155 sq. ft.).

Figura 4: Energy efficiency details, including the 3-star rating, R32 refrigerant, 100% copper condenser, and annual power consumption of 952.68 KWH.

Figura 5: Features for instant cooling, PM 2.5 & Top HD Filter, and high ambient temperature operation up to 55°C.

4. Setup u Installazzjoni

Proper installation is crucial for the performance and longevity of your air conditioner. It is highly recommended that installation be performed by a certified Carrier service technician to ensure safety and compliance with local regulations.

4.1 Spakkjar u Spezzjoni:

• Carefully unpack all components: Indoor Unit, Outdoor Unit, Remote Control, and User Manual.
• Inspect all items for any signs of shipping damage. Contact your dealer immediately if any damage is found.

4.2 Għażla tal-Post:

• Unità ta 'ġewwa: Choose a location that allows for even air distribution throughout the room, away from direct sunlight, heat sources, or obstacles that may block airflow. Ensure sufficient space around the unit for maintenance.
• Unità ta 'barra: Select a well-ventilated area, free from obstructions, and with adequate clearance for proper airflow. Avoid locations where noise might disturb neighbors.

Figura 6: Dimensions of the outdoor unit for installation planning (790mm W x 540mm H x 270mm D).

4.3 Electrical Requirements:

• Ensure the electrical power supply matches the specifications of the unit (220 Volts, 3000 Watts).
• A dedicated circuit breaker for the air conditioner is strongly recommended to prevent electrical overloads.

4.4 Wi-Fi Smart Connect Setup:

Your AC supports Wi-Fi connectivity for remote control and smart features. Refer to the separate Wi-Fi setup guide provided with your unit or the Carrier Home app for detailed instructions on connecting your unit to your home network and integrating with voice assistants.

5. Istruzzjonijiet Operattivi

Your Carrier XCEL EDGE Fxi AC can be operated using the included remote control or via the Wi-Fi Smart Connect feature through a smartphone application.

5.1 Tħaddim tal-Kontroll mill-Bogħod:

The remote control allows you to adjust various settings. Ensure the remote is pointed towards the indoor unit when transmitting commands for proper communication.

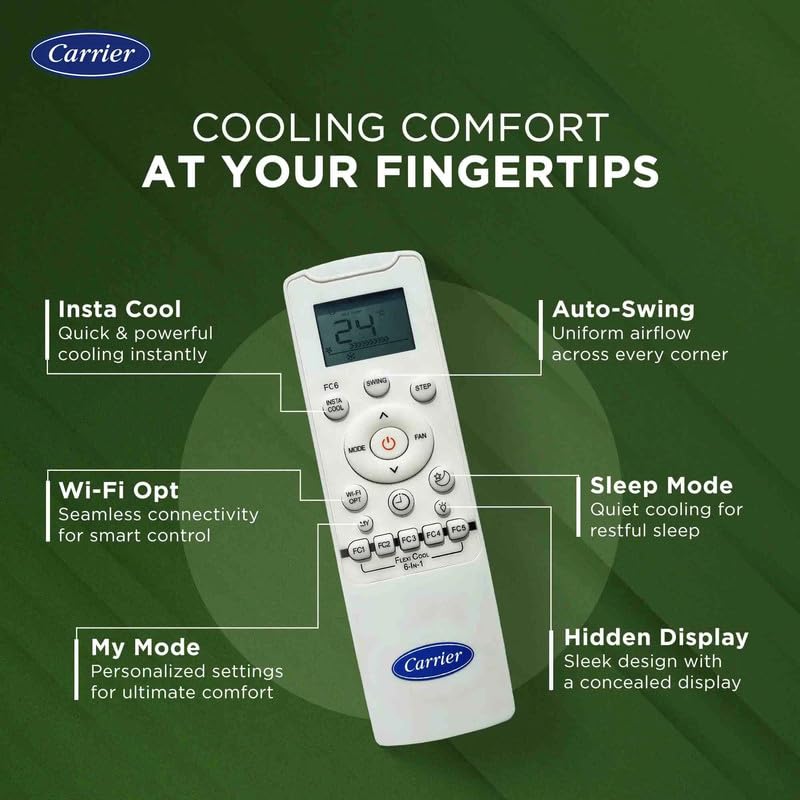

Figura 7: Remote control layout and key functions, including Insta Cool, Auto-Swing, Wi-Fi Opt, Sleep Mode, My Mode, and Hidden Display activation.

Funzjonijiet Ewlenin tal-Kontroll mill-Bogħod:

• Buttuna tal-Qawwa: Ixgħel jew jitfi l-unità.
• Buttuna tal-Modalità: Cycles through available operating modes: Cooling, Fan, Dry, and Auto.
• Aġġustament tat-temperatura: Użu ▲ (Fuq) u ▼ (Down) buttons to set your desired room temperature.
• Veloċità tal-fann: Adjusts the fan speed (Low, Medium, High, Auto) for airflow control.
• Buttuna Swing: Controls the vertical movement of the louver for uniform air distribution.
• Insta Cool: Activates a rapid cooling function for quick comfort.
• Tkessiħ Konvertibbli 6 f'1: Press this dedicated button to cycle through different tonnage modes (e.g., 1.6T, 1.4T, 1.2T, 1.0T, 0.8T, 0.6T) to optimize energy saving or enhance cooling based on your needs.
• Modalità Sleep: Optimizes temperature and fan speed settings during sleep for comfort and energy conservation.
• Wi-Fi Opt: Initiates the Wi-Fi pairing mode for connecting to your smart device.
• Il-Modalità Tiegħi: Allows you to save and recall your preferred operating settings.

5.2 6-in-1 Convertible Cooling:

This feature allows you to adjust the cooling capacity of the AC to match your specific needs, saving energy when full capacity is not required. Use the dedicated button on the remote to select from various tonnage options, effectively reducing power consumption while maintaining comfort.

5.3 Wi-Fi Smart Connect and Voice Control:

Once connected to your home Wi-Fi network, you can control your AC using the Carrier Home smartphone application. This includes turning the unit on/off, adjusting temperature, changing modes, and setting schedules from anywhere. Voice control is also supported through compatible smart home assistants (e.g., Google Assistant, Amazon Alexa).

6. Manutenzjoni

Regular maintenance ensures optimal performance, energy efficiency, and extends the lifespan of your AC unit. Always disconnect power to the unit before performing any maintenance tasks.

6.1 Tindif tal-Filtru tal-Arja:

• The air filters should be cleaned every two weeks or more frequently depending on usage and local air quality.
• Iftaħ il-pannell ta 'quddiem tal-unità ta' ġewwa.
• Neħħi l-filtri tal-arja bir-reqqa.
• Wash them with lukewarm water and a mild detergent. Rinse thoroughly to remove all soap residue.
• Allow filters to dry completely in a shaded area before reinserting them into the unit. Do not expose to direct sunlight.

6.2 Indoor Unit Cleaning:

• Imsaħ il-wiċċ tal-unità ta' ġewwa b'ċarruta ratba u damp drapp.
• Do not use harsh chemicals, abrasive cleaners, or solvents, as these can damage the unit's finish.

6.3 Tindif tal-Unità ta' Barra:

• Periodically clear any debris such as leaves, dust, or dirt from around the outdoor unit to ensure proper airflow.
• Ensure the condenser coils are clean for efficient heat exchange. This may require professional cleaning by a qualified technician.

6.4 Seasonal Checks:

• Before the start of each cooling season, check for any unusual noises, odors, or visible damage.
• Consider scheduling a professional service check annually to ensure the unit is operating at peak efficiency.

7 Issolvi l-problemi

Before contacting customer service, refer to the following table for common issues and their potential solutions. This may help you resolve minor problems quickly.

8. Speċifikazzjonijiet

Detailed technical specifications for the Carrier XCEL EDGE Fxi 2 Ton 3 Star Split Inverter AC (Model CAI24CE3R35F0).

9. Garanzija u Appoġġ

For detailed warranty information, please refer to the warranty card included with your product packaging or visit the official Carrier India website. For technical assistance, service requests, or inquiries regarding spare parts, please contact Carrier customer support through the channels listed below.

Carrier Customer Service: Please refer to your purchase documentation or the official Carrier websit għad-dettalji ta' kuntatt l-aktar aġġornati, inklużi n-numri tat-telefon u l-appoġġ bl-email.

Riżorsi onlajn: www.carrierindia.com
