Midea 2000W PTC Ceramic Heater User Manual

1. Introduzzjoni

Thank you for choosing the Midea 2000W PTC Ceramic Heater. This manual provides detailed instructions for the safe and efficient operation of your heater. Please read this manual thoroughly before use and keep it for future reference.

Figure 1: Midea 2000W PTC Ceramic Heater (Model NT20-20AR)

2. Istruzzjonijiet Importanti dwar is-Sigurtà

TWISSIJA: Biex tnaqqas ir-riskju ta’ nar, xokk elettriku, jew korriment, osserva dan li ġej:

• Dejjem poġġi l-ħiter fuq wiċċ sod u livellat.
• Tgħattix il-ħiter jew timblokkax id-daħliet/ħruġ tal-arja.
• Keep flammable materials (furniture, curtains, paper, clothing) at least 1 meter (3 feet) from the front, sides, and rear of the heater.
• Do not use the heater in bathrooms, laundry areas, or similar damp postijiet ġewwa.
• Ensure the power cord is not damaged and is properly plugged into a suitable outlet.
• This heater is equipped with a 45° tip-over protection switch, V-0 flame-retardant materials, and overheat protection. If the heater tips over or overheats, it will automatically shut off.
• The heater features a 24-hour automatic shut-off for added safety.
• Do not insert any objects into the ventilation or exhaust openings.
• Qabbad il-heater meta ma tkunx qed tużah.

Figure 2: Enhanced Safety Features

3. Prodott Aktarview

3.1 Karatteristiċi ewlenin

• Efficient PTC Ceramic Heating: Provides rapid and effective warmth.
• Kumdità personalizzabbli: Temperature adjustable from 5°C to 35°C in 1°C increments.
• Operazzjoni kwieta: Jopera f'livell baxx ta 'ħoss ta' 42 dB.
• Timer ta' 24 siegħa: Allows scheduled heating.
• Modalità ECO: Jottimizza l-konsum tal-enerġija.
• Sigurtà Avvanzata: 45° tip-over protection, V-0 flame-retardant materials, overheat protection, and 24-hour automatic shut-off.
• Disinn portabbli: Lightweight (1.46 kg) and compact for easy relocation.

3.2 Komponenti

The Midea PTC Ceramic Heater consists of the following main components:

• Panel tal-Kontroll b'Display LED
• Gradilja tad-Dħul tal-Ajru
• Grilja tal-Ħruġ tal-Ajru
• Kurdun tal-Enerġija u Ipplaggja
• Tip-over Switch (located at the base)

Figure 3: Instant Heating Feature

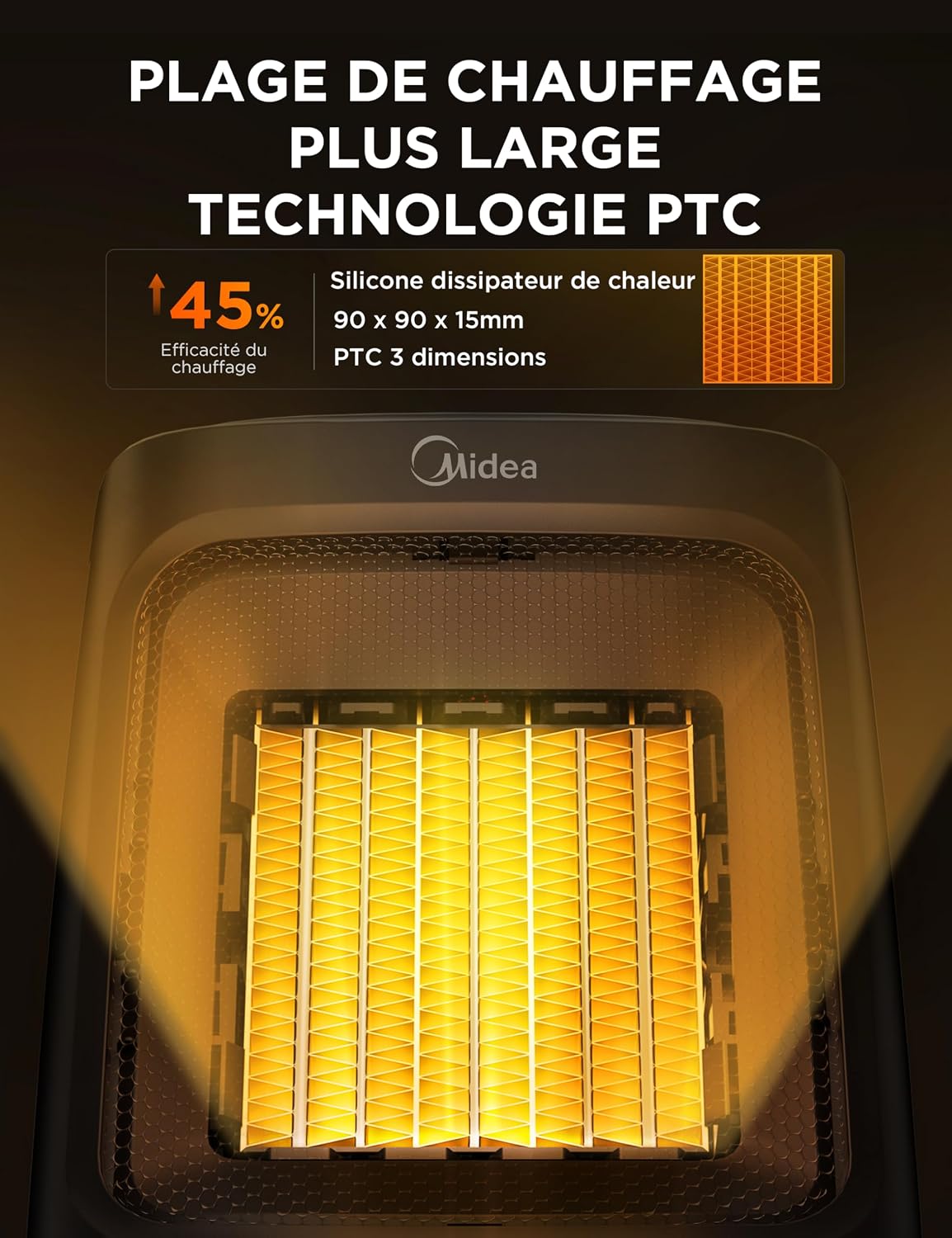

Figure 4: PTC Ceramic Heating Technology

4. Setup

1. Ippakkja: Neħħi l-ħiter mill-imballaġġ tiegħu bir-reqqa. Żomm l-imballaġġ għall-ħażna jekk meħtieġ.
2. Pjazzament: Place the heater on a stable, flat, and heat-resistant surface. Ensure there is at least 1 meter (3 feet) of clear space around the heater from any walls, furniture, or other objects.
3. Konnessjoni tal-Enerġija: Ipplaggja l-korda tal-enerġija f'sokit elettriku standard ta' 230V AC. Kun żgur li s-sokit ikun f'kundizzjoni tajba u mhux mgħobbi żżejjed.

5. Istruzzjonijiet Operattivi

5.1 Panel tal-Kontroll

The heater features a touch-sensitive control panel with an LED display on the top. The display shows the current temperature and mode settings.

Figura 5: Pannell tal-Kontroll u Wiri LED

5.2 Power On/Off

Agħfas il- Buttuna tal-qawwa on the control panel to turn the heater on or off.

5.3 Għażla tal-Modalità

The heater offers 4 operating modes:

• Sħana Għolja (HI): Jipprovdi l-ogħla qawwa ta' tisħin.
• Low Heat (Lo): Provides reduced heating power.
• ECO Mode (Eco): Automatically adjusts heating power to maintain the set temperature while optimizing energy consumption.
• Fan Only (CL): Jiċċirkola l-arja mingħajr ma jissaħħan.

Agħfas il- Buttuna tal-modalità to cycle through the available modes.

Figure 6: ECO Mode Operation

5.4 Issettjar tat-Temperatura

In heating modes (HI, Lo, ECO), you can set the desired temperature between 5°C and 35°C. Use the Temperature Up (+) u Temperature Down (-) buttons to adjust the temperature in 1°C increments.

The heater will automatically turn on or off to maintain the set temperature.

Figure 7: Customizable Temperature Settings

5.5 Funzjoni Timer

The 24-hour timer allows you to set a specific duration for the heater to operate before automatically shutting off. Press the Buttuna tat-tajmer u uża l- Temperature Up (+) u Temperature Down (-) buttons to set the desired operating time in hours.

Figure 8: Quiet Operation and Timer

6. Manutenzjoni

Manutenzjoni regolari tiżgura prestazzjoni ottimali u lonġevità tal-ħiter tiegħek.

1. Tindif:
   • Dejjem aqla’ l-heater u ħallih jiksaħ kompletament qabel ma tnaddfu.
   • Imsaħ l-uċuħ ta 'barra b'artab, damp drapp. Tużax tindif jew solventi li joborxu.
   • Uża vacuum cleaner b'aċċessorju ta' pinzell biex tneħħi t-trab mill-gradilji tad-dħul u tal-ħruġ tal-arja.
2. Ħażna:
   • Jekk se taħżen il-heater għal perjodu twil ta' żmien, naddfu sewwa.
   • Aħżen il-heater fl-imballaġġ oriġinali tiegħu f'post frisk u niexef.

7 Issolvi l-problemi

Jekk il-problema tippersisti wara li tipprova dawn is-soluzzjonijiet, jekk jogħġbok ikkuntattja l-appoġġ għall-klijenti ta' Midea.

8. Speċifikazzjonijiet

9. Garanzija u Appoġġ

Midea products are manufactured to the highest quality standards. For warranty information, please refer to the warranty card included with your product or visit the official Midea websit.

For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact Midea customer service:

• Websit: www.midea.com
• Servizz tal-Klijent: Refer to your regional Midea contact information.
