Chipolino Aqua 2-in-1 Bathtub and Changing Table Instruction Manual

1. Introduzzjoni

Thank you for choosing the Chipolino Aqua 2-in-1 Bathtub and Changing Table. This versatile product is designed to provide a practical and safe solution for bathing and changing your baby from birth up to 12 months (maximum weight 11 kg). It combines a comfortable baby bathtub with an integrated changing mat, supported by a sturdy, foldable stand for convenience and space-saving storage.

Please read this manual carefully before assembly and use to ensure proper operation and the safety of your child. Keep these instructions for future reference.

Image 1.1: The Chipolino Aqua 2-in-1 Bathtub and Changing Table in its fully assembled configuration, showing the bathtub, changing mat, accessory organizer, and foldable stand.

2. Informazzjoni dwar is-Sigurtà

TWISSIJA: In-nuqqas ta' segwitu ta' dawn it-twissijiet u l-istruzzjonijiet jista' jirriżulta fi korriment serju jew mewt.

• QATT leave your child unattended in the bathtub or on the changing table, even for a moment. Drowning can occur quickly and in very shallow water.
• Always keep your child within arm's reach.
• Before each use, ensure the product is stable and all locking mechanisms (if any) are securely engaged.
• Do not use this product if any parts are broken, torn, or missing.
• The maximum recommended weight for this product is 11 kg (approximately 12 months of age). Do not exceed this weight limit.
• Always check the water temperature before placing your child in the bathtub. The ideal water temperature for bathing a baby is between 37°C and 38°C (98.6°F and 100.4°F).
• Keep all bathing accessories and toiletries out of your child's reach.
• Do not use the changing table as a sleeping surface.
• Ensure the changing mat is securely positioned over the bathtub when in use.
• Żomm it-tfal 'il bogħod mill-prodott waqt l-assemblaġġ u ż-żarmar.

3. Komponenti tal-Prodott

The Chipolino Aqua 2-in-1 Bathtub and Changing Table includes the following main components:

• Stand li jintrewa: Provides stable support for the bathtub and changing mat.
• Baby Bathtub: Features an anatomical seat for comfortable bathing.
• Waterproof Changing Mat: Soft and easy to clean, with an integrated measuring tape.
• Accessory Organizer: Attaches to the side for convenient storage of toiletries.
• Drainage Tube with Plug: For easy water drainage from the bathtub.
• Xkaffa tal-Ħażna: Located under the bathtub for additional storage.

Image 3.1: The baby bathtub component, featuring an anatomical design for infant comfort.

Image 3.2: The soft, waterproof changing mat with raised sides for safety.

4. Istruzzjonijiet ta' Setup

Follow these steps to assemble your Chipolino Aqua 2-in-1 Bathtub and Changing Table:

1. Iftaħ l-Istand: Carefully unfold the robust support stand until it is fully extended and stable. Ensure all locking mechanisms click into place. The stand features non-slip rubber caps on the feet for added stability.
2. Attach the Bathtub: Place the baby bathtub securely onto the designated supports on the stand. Ensure it is firmly seated and does not wobble.
3. Install Drainage Tube: Connect the flexible drainage tube to the outlet at the bottom of the bathtub. Ensure the connection is tight to prevent leaks.
4. Attach Accessory Organizer: Hook the accessory organizer onto the side of the stand, next to the bathtub, for easy access to bathing essentials.
5. Position Storage Shelf: Place the storage shelf onto the lower supports of the stand. This provides additional space for towels or other items.
6. Prepare Changing Mat: When using the changing function, place the waterproof changing mat securely over the bathtub. Ensure it is centered and stable. The changing mat can be folded laterally when not in use to save space.

Immaġni 4.1: Mill-qrib view of the drainage tube connected to the bathtub outlet.

Image 4.2: The storage shelf positioned beneath the bathtub for convenience.

5. Istruzzjonijiet Operattivi

5.1. Using the Bathtub

1. Ensure the changing mat is folded to the side or removed, exposing the bathtub.
2. Close the drain plug at the bottom of the bathtub.
3. Fill the bathtub with water to an appropriate level for your child, ensuring it is not too full.
4. Always check the water temperature with a thermometer or your elbow before placing your child in the tub. The water should be comfortably warm, not hot.
5. Gently place your child into the bathtub. Always keep one hand on your child and never leave them unattended.
6. After bathing, remove your child from the tub.
7. Open the drain plug to allow water to flow through the drainage tube into a suitable receptacle or drain.
8. Clean and dry the bathtub as per the maintenance instructions.

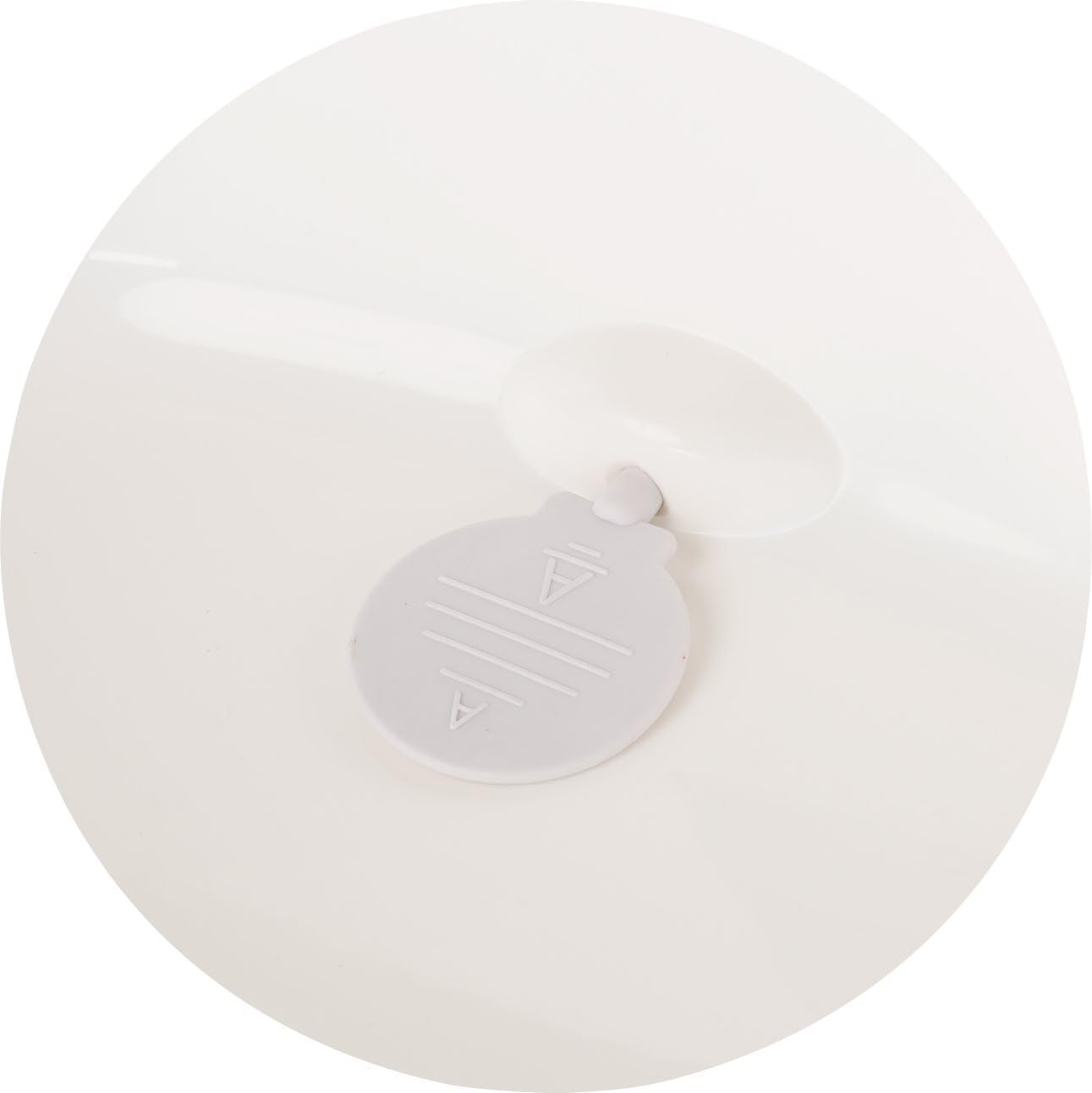

Image 5.1: Detail of the drain plug at the bottom of the bathtub.

5.2. Using the Changing Table

1. Ensure the changing mat is securely positioned over the bathtub.
2. Gather all necessary changing supplies (diapers, wipes, cream, fresh clothes) and place them within easy reach, for example, in the accessory organizer or on the storage shelf.
3. Gently place your child on the changing mat. Always keep one hand on your child and never leave them unattended.
4. Use the integrated measuring tape on the changing mat to monitor your child's growth.
5. After changing, remove your child from the mat.
6. Clean the changing mat as per the maintenance instructions.

Image 5.2: The changing mat featuring an integrated measuring tape for tracking baby's length.

5.3. Tiwi għall-Ħażna

1. Ensure the bathtub is empty and dry, and the changing mat is clean.
2. Remove any items from the accessory organizer and storage shelf.
3. Carefully disengage any locking mechanisms on the stand.
4. Fold the stand inwards until it is compact.
5. The changing mat can be folded laterally to reduce the overall footprint.

Image 5.3: The product in its folded configuration, demonstrating its compact storage capability.

6. Manutenzjoni u Kura

• Tindif: After each use, clean the bathtub and changing mat with mild soap and warm water. Rinse thoroughly and wipe dry with a soft cloth.
• Tnixxif: Ensure all components are completely dry before folding and storing to prevent mold or mildew growth.
• Ħażna: Store the product in a clean, dry place away from direct sunlight and extreme temperatures.
• Spezzjoni: Regularly inspect all parts for wear, damage, or loose connections. Discontinue use if any damage is found and contact customer support for replacement parts or advice.
• Do not use abrasive cleaners, bleach, or harsh chemicals, as these can damage the materials.

7 Issolvi l-problemi

• Product feels unstable: Ensure the stand is fully unfolded and all locking mechanisms are engaged. Check that the non-slip rubber caps on the feet are intact and making full contact with the floor.
• Water not draining properly: Check that the drainage tube is correctly attached and not kinked. Ensure the drain plug is fully open. Clear any potential blockages in the drain opening.
• Changing mat does not stay in place: Verify that the changing mat is correctly positioned over the bathtub and its supports are engaged.
• Difficulty folding the stand: Ensure all components are clear of the folding mechanism and that any safety latches are disengaged. Do not force the folding action.

8. Speċifikazzjonijiet

9. Garanzija u Appoġġ

For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. If you have any questions, require assistance with assembly, or need replacement parts, please contact Chipolino customer support or your local distributor.

Contact details can typically be found on the product packaging or the official Chipolino websit.
