Vinsetto 6-Point Vibrating Massage Office Chair

1. Informazzjoni dwar is-Sigurtà

Jekk jogħġbok aqra l-istruzzjonijiet kollha bir-reqqa qabel l-assemblaġġ u l-użu. Żomm dan il-manwal għal referenza futura.

• Kapaċità massima tal-piż: Do not exceed the maximum weight of 120 kg (265 lbs). Exceeding this limit may cause damage to the chair or personal injury.
• Assemblea: Follow all assembly instructions precisely to avoid risks and ensure the chair's stability.
• Użu: Uża s-siġġu biss għall-iskop maħsub tiegħu bħala siġġu tal-uffiċċju jew tal-iskrivanija.
• Tfal: Keep children away from the chair during assembly. Do not allow children to play on or with the chair.
• Komponenti elettriċi: Ensure the massage function's power cord is not pinched or damaged. Disconnect from power when not in use or before cleaning.

2. Setup u Assemblea

The Vinsetto 6-Point Vibrating Massage Office Chair requires assembly. Simple assembly instructions are included with the product. Ensure all components are present before beginning assembly.

2.1. Spakkjar

Neħħi l-partijiet kollha mill-imballaġġ bir-reqqa. Poġġihom fuq wiċċ nadif u artab biex tevita l-grif.

2.2. Passi tal-Assemblea

Refer to the detailed assembly instructions provided in the product packaging for step-by-step guidance. Typically, assembly involves:

1. Twaħħil tar-roti mal-bażi tas-siġġu.
2. Daħħal iċ-ċilindru tal-irfigħ tal-gass fil-bażi.
3. It-twaħħil tal-mekkaniżmu tas-sedil mal-kuxxin tas-sedil.
4. Twaħħil tad-dahar tas-serħan mal-kuxxin tas-sedil.
5. Connecting the armrests.
6. Placing the assembled seat onto the gas lift cylinder.

Image: Fully assembled Vinsetto office chair in a modern office environment.

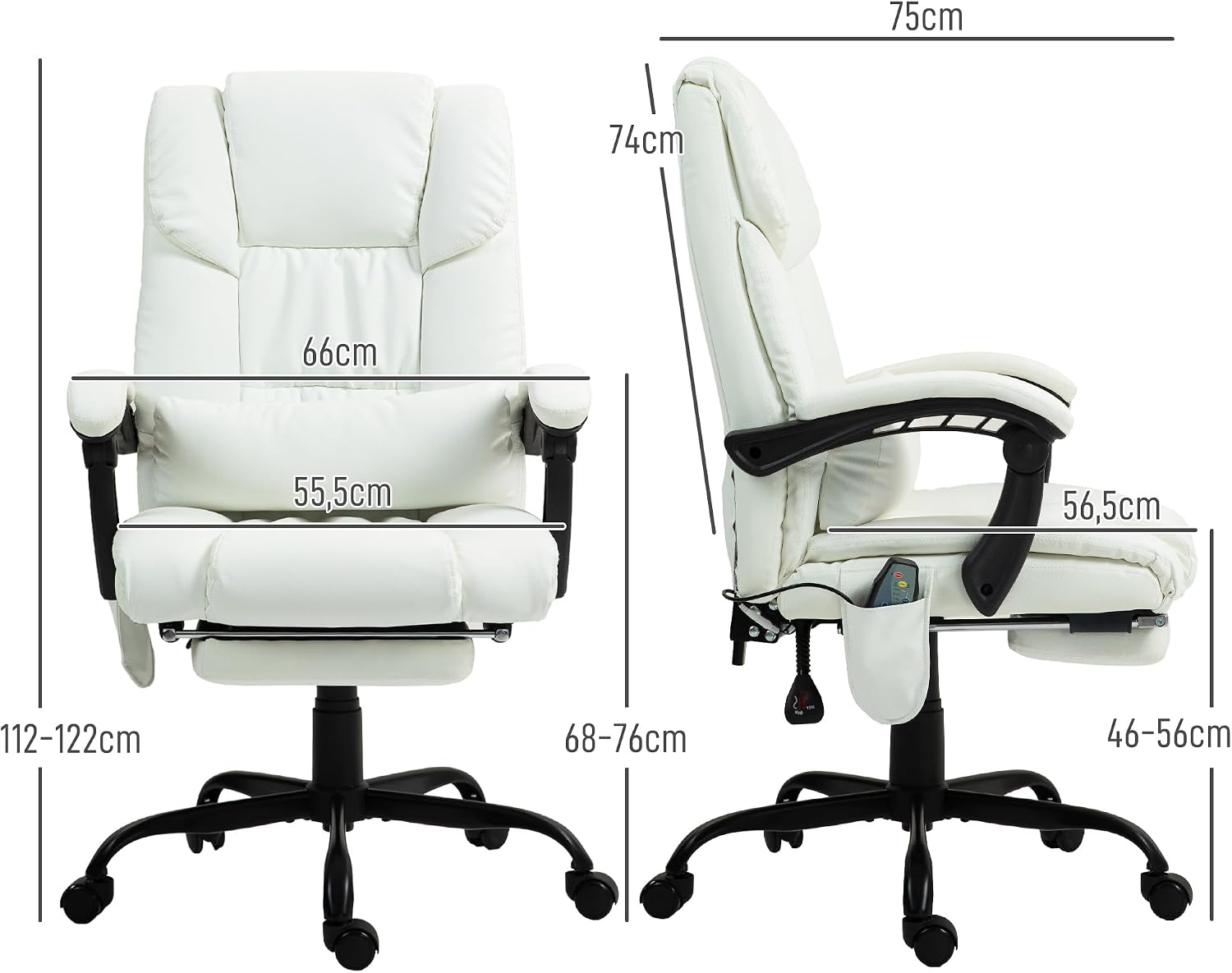

Image: Detailed dimensions of the office chair, including height, width, and depth measurements.

3. Istruzzjonijiet Operattivi

3.1. Aġġustament tal-Għoli

To adjust the seat height, locate the lever under the seat on the right side. Pull the lever upwards while taking your weight off the seat to raise it. To lower the seat, pull the lever upwards while remaining seated. Release the lever to lock the height.

Image: Illustration showing the adjustable height mechanism and lever for the chair.

3.2. Funzjoni ta' Mimdud

The backrest can recline up to 130 degrees. To recline, pull the lever located under the seat on the left side. Lean back to your desired angle and release the lever to lock the position. To return to an upright position, pull the lever again and lean forward.

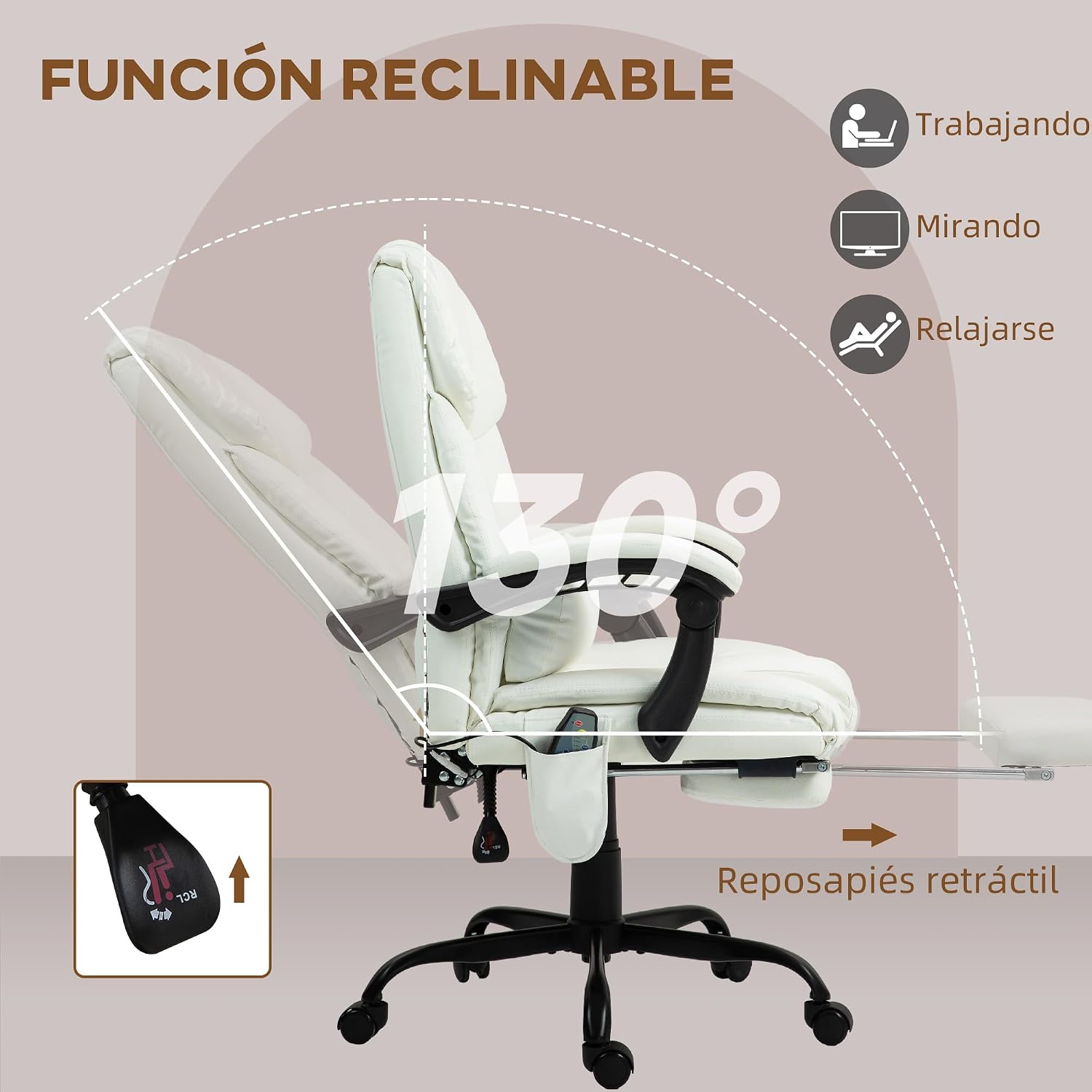

Image: Diagram illustrating the chair's reclining function up to 130 degrees, with the footrest extended.

3.3. Tħaddim tas-Serħan tas-Saqajn

To extend the footrest, pull it out from under the seat. To retract, push it back until it is fully stored under the seat.

3.4. Vibrating Massage Function

The chair features a 6-point vibrating massage system (4 points in the backrest, 2 in the seat) with five adjustable modes. Connect the chair to a power source. Use the included remote control to activate and select massage modes and intensity.

Image: Close-up of the chair's massage points and the remote control for operating the vibrating massage function.

3.5. Lumbar Cushion Adjustment

The additional lumbar cushion can be adjusted vertically to provide optimal support for your lower back. Position it to your comfort.

Image: Diagram showing the adjustable lumbar cushion feature on the chair's backrest.

3.6. Funzjoni ta' Dawwar

The chair is designed to swivel 360 degrees, allowing for easy movement and access within your workspace.

Image: Illustration highlighting the 360-degree swivel capability of the chair.

4. Manutenzjoni

4.1. Tindif

Imsaħ nadif b'artab, damp cloth. Do not use harsh chemicals or abrasive cleaners, as these may damage the synthetic leather or other materials. Ensure the chair is disconnected from power before cleaning.

4.2. Spezzjoni

Periodically check all screws and bolts to ensure they are tight. Re-tighten if necessary. Inspect the casters for smooth movement and the gas lift for proper function.

Immaġni: Close-up views of the chair's construction, showing PU leather, gas lift, thick padding, and robust base.

5 Issolvi l-problemi

• Is-siġġu ma jaġġustax l-għoli: Kun żgur li l-lieva tal-gass lift hija kompletament attivata. Jekk il-problema tippersisti, iċ-ċilindru tal-gass lift jista' jkollu bżonn jiġi mibdul.
• Ir-roti ma jdurux bla xkiel: Check for debris (hair, dust) caught in the casters. Clean them thoroughly. If damaged, casters may need replacement.
• Il-funzjoni tal-massaġġi ma taħdimx: Verify the power cord is securely plugged into both the chair and a working power outlet. Check the remote control for battery issues if applicable (this model uses a wired remote).
• Is-siġġu qed jitriegħed: Re-tighten all assembly screws and bolts. Ensure the chair is on a flat, even surface.

6. Speċifikazzjonijiet

7. Garanzija u Appoġġ

Disponibbiltà ta' Spare Parts: Spare parts for this product are available in the EU for a period of 3 years from the date of purchase.

For further assistance, troubleshooting, or to inquire about spare parts, please contact your retailer or the manufacturer directly. Contact information can typically be found on the product packaging or the retailer's websit.
