Nexgrill 720-0958HE 4-Burner Dual Fuel Gas Grill Instruction Manual

Informazzjoni Importanti dwar is-Sigurtà

Before operating your Nexgrill 720-0958HE gas grill, read and understand all safety warnings and instructions in this manual. Failure to follow these instructions could result in fire, explosion, or burn hazard, which could cause property damage, personal injury, or death. Keep this manual for future reference.

• Dejjem ħaddem il-grill barra f'żona ventilata tajjeb.
• Taħżinx jew tużax gażolina jew fwar u likwidi oħra li jaqbdu fil-viċinanza ta' dan jew kwalunkwe apparat ieħor.
• Żomm it-tfal u l-annimali domestiċi 'l bogħod mill-grill il-ħin kollu.
• Qatt tħalli l-grill waħdu waqt li tkun qed tuża.
• Kun żgur li l-konnessjonijiet kollha tal-gass huma ssikkati u mingħajr tnixxija qabel l-operazzjoni.

Setup

Assembly of the Nexgrill 720-0958HE is required. Follow the detailed assembly instructions provided in the separate assembly guide. Once assembled, ensure the grill is placed on a stable, level surface away from combustible materials.

Konnessjoni tat-Tank tal-propan

1. Kun żgur li l-valv tat-tank tal-propan ikun magħluq.
2. Place the propane tank securely in the designated double-door cabinet storage area beneath the grill.
3. Connect the regulator hose to the propane tank valve, tightening it by hand. Do not use tools.
4. Perform a leak test on all connections using a soapy water solution. Bubbles indicate a leak. Tighten connections and retest. Do not operate the grill if a leak is detected.

Image: The Nexgrill 720-0958HE grill, highlighting its 4 main burners, searing side burner, 59,000 BTU total cooking power, and dual fuel capability. The enclosed storage for the propane tank is visible.

Istruzzjonijiet Operattivi

Ixgħel il-Berners Prinċipali

1. Iftaħ l-għatu tal-grill.
2. Kun żgur li l-pumi kollha tal-kontroll tal-berner huma fil-pożizzjoni 'MITFI'.
3. Iftaħ il-valv tat-tank tal-propan bil-mod.
4. Push and turn one main burner control knob to the 'HIGH' position.
5. Immediately press and hold the electric ignition button until the burner ignites.
6. Once ignited, release the ignition button and the control knob.
7. Repeat for other main burners as needed. Adjust heat settings as desired.

Bl-użu tal-Burner tal-Ġenb

The 15,000 BTU searing side burner is ideal for preparing sauces or sautéing. To light:

1. Iftaħ l-għatu tal-berner tal-ġenb.
2. Kun żgur li l-pum tal-kontroll tal-berner tal-ġenb ikun fil-pożizzjoni 'MITFI'.
3. Imbotta u dawwar il-pum tal-kontroll tal-berner tal-ġenb għall-pożizzjoni 'GĦOLJA'.
4. Immediately press and hold the electric ignition button until the side burner ignites.
5. Once ignited, release the ignition button and the control knob. Adjust heat as needed.

Immaġni: Close-up view of the 15,000 BTU searing side burner, ready for use.

Using the Griddle Insert

The included cast iron griddle insert provides 280 square inches of additional cooking space, perfect for items like eggs, bacon, or hibachi-style dishes. Place the griddle insert directly onto the main cooking grates over the desired burners. Ensure it is stable before heating.

Image: Various foods, including steak, vegetables, and ribs, cooking on the grill, demonstrating the versatility of the 4-in-1 cooking system with both grill grates and a griddle.

Manutenzjoni

Regular cleaning and maintenance will extend the life of your Nexgrill and ensure optimal performance.

Tindif tal-Gradilji tat-Tisjir

The porcelain-coated cast iron cooking grates are designed for easy cleaning. After each use, once the grill has cooled, use a grill brush to remove any food residue. For deeper cleaning, wash with warm soapy water and rinse thoroughly.

Tindif tat-Trej tax-Xaħam

The grill features a removable grease tray. Regularly check and clean the grease tray to prevent flare-ups and maintain hygiene. Remove the tray, empty its contents, and wash with warm soapy water.

Tindif ta' barra

Wipe down stainless steel surfaces with a soft cloth and a stainless steel cleaner. For painted surfaces, use mild soap and water. Avoid abrasive cleaners or pads that can scratch the finish.

Issolvi l-problemi

If you encounter issues with your grill, consult the following common troubleshooting tips:

Speċifikazzjonijiet

• Ditta: Nexgrill
• Isem tal-Mudell: 720-0958HE
• Dimensjonijiet tal-Prodott: 52.64"D x 22.87"W x 47.6"H
• Piż tal-oġġett: 118.61 Liri
• Tip ta' Fjuwil: Gas (Propane/Natural Gas Convertible)
• Għadd ta' Burners Prinċipali: 4 (11,000 BTU kull wieħed)
• Għadd ta' Burners tal-ġenb: 1 (15,000 BTU Searing Side Burner)
• Ħruġ Totali ta' BTU: 59,000 BTUs
• Erja tal-wiċċ tat-tisjir: 626 Square Inches Total (462 sq in Primary, 164 sq in Warming Rack)
• Komponenti Inklużi: User Manual, Cast Iron Griddle Insert
• Materjal: Alloy Steel, Stainless Steel (Frame), Porcelain-Coated Cast Iron (Cooking Grates)
• Karatteristika Speċjali: Removable Grease Tray, One-Button Electric Ignition, Lid-Mounted Thermometer, Double-Door Cabinet Storage, 4 Smooth-Rolling Casters

Image: A diagram illustrating the height, width, depth, and weight of the Nexgrill 720-0958HE grill.

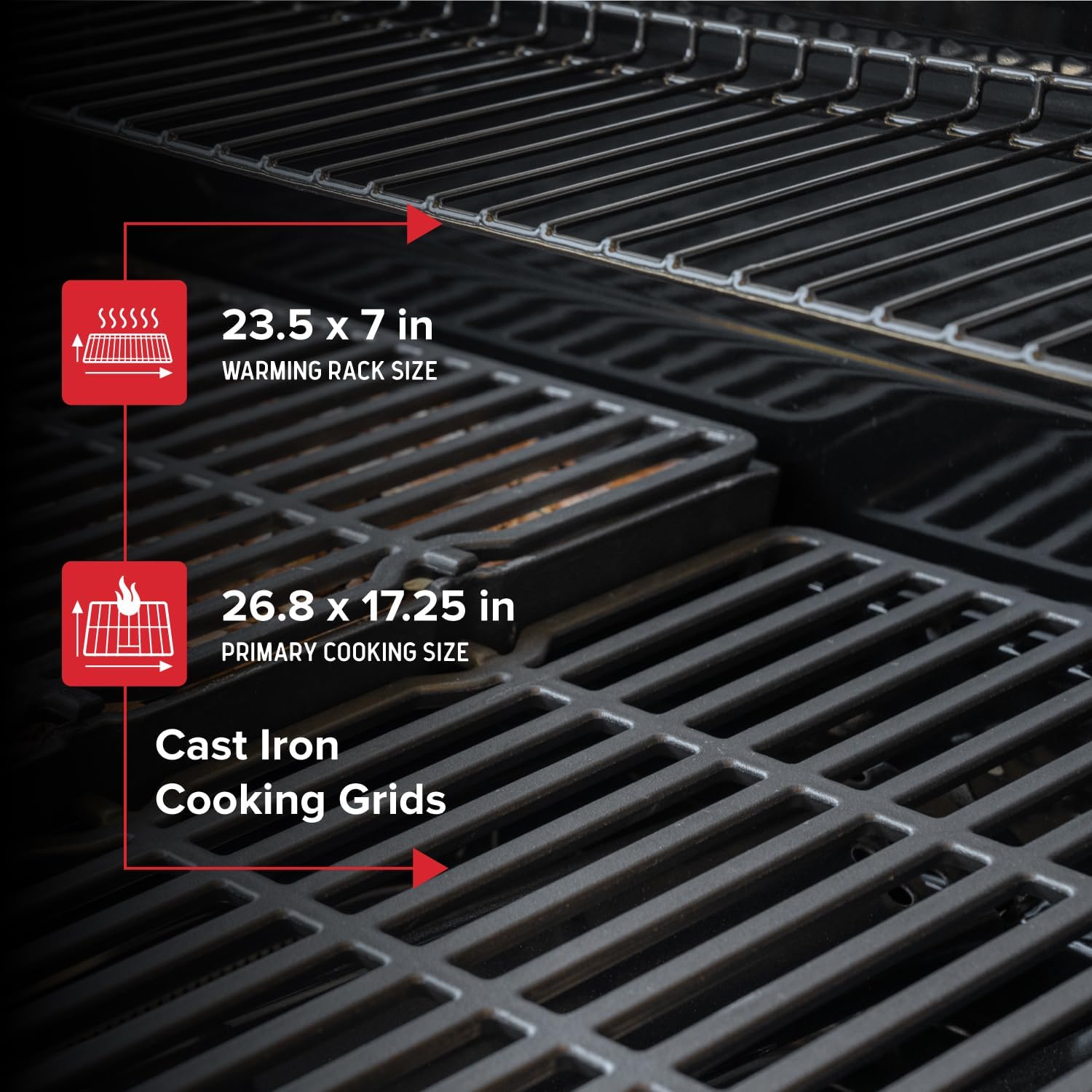

Image: A close-up of the cast iron cooking grids, showing the primary cooking size (26.8 x 17.25 inches) and warming rack size (23.5 x 7 inches).

Immaġni: View of the stainless steel main burners, accompanied by a badge indicating a 5-year warranty on these components.

Garanzija u Appoġġ

Nexgrill provides a 5-year warranty on the main burners of this grill. For specific warranty details, claims, or technical support, please refer to the contact information provided in your product packaging or visit the official Nexgrill websit.
