Introduzzjoni
The XDUOO XD05 BASIC2 is a versatile desktop and portable HiFi DAC (Digital-to-Analog Converter) and headphone amplifier. It features Bluetooth 5.4 connectivity, supports DSD256 and MQA 8X audio formats, and is designed to deliver high-quality audio performance for various devices. This manual provides instructions for its setup, operation, and maintenance.
X'hemm fil-Kaxxa
- XDUOO XD05 BASIC2 Unit x 1
- Kejbil USB tat-Tip C x 1
- Type-C to C OTG cable x 1
- 6.35 to 3.5 Converter x 1
- Saqajn tal-Gomma x 1
- Manwal għall-Utent x 1
Prodott Overview
Figura 1: B'mod ġenerali view of the XDUOO XD05 BASIC2 unit. This image displays the compact, rectangular design with a dark gray finish and the 'X' logo on the top surface.

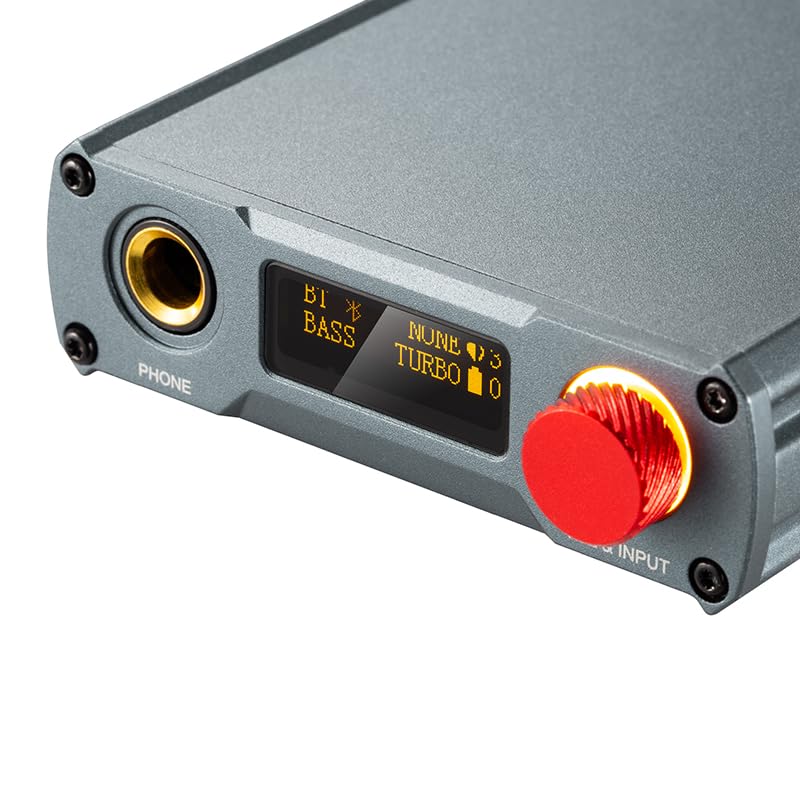

Figura 2: Close-up of the front panel, showing the 6.35mm headphone output (PHONE), the OLED display, and the combined volume and input selection knob (VOL & INPUT) with an orange illuminated ring.

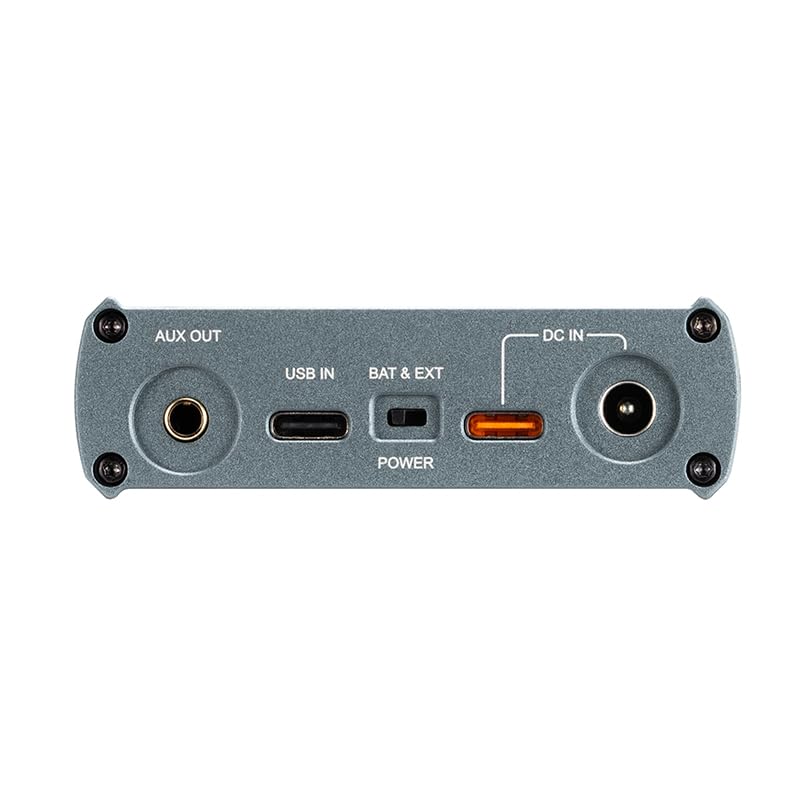

Figura 3: Rear panel connections, including AUX OUT, USB IN (Type-C), BAT & EXT switch, POWER indicator, and DC IN port.
Setup
1. Iċċarġjar tal-Apparat
Before first use, fully charge the XD05 BASIC2. Connect the provided Type-C USB cable to the USB IN port on the rear panel and the other end to a USB power adapter (not included) or a computer USB port. The POWER indicator will show charging status. A full charge takes approximately 3 hours with fast charging or 5 hours with slow charging.
2. Konnessjoni ta' Sorsi Awdjo
- Konnessjoni USB: Use the provided Type-C USB cable to connect the XD05 BASIC2 to a computer (Windows/Linux/Mac OSX), smartphone (iOS/Android), or tablet. The device will function as an external DAC.
- Konnessjoni Bluetooth: Refer to the 'Bluetooth Connectivity' section for pairing instructions.
3. Konnessjoni tal-headphones
Plug your headphones into the 6.35mm PHONE output on the front panel. If your headphones have a 3.5mm plug, use the included 6.35 to 3.5 converter.
Istruzzjonijiet Operattivi
1. Tixgħil / Mitfi
Press and hold the VOL & INPUT knob on the front panel to power the device on or off.
2. Għażla tal-Input
Short press the VOL & INPUT knob to cycle through available input sources (USB, Bluetooth). The selected input will be displayed on the OLED screen.
3. Kontroll tal-Volum
Rotate the VOL & INPUT knob clockwise to increase volume and counter-clockwise to decrease volume. Adjust to a comfortable listening level.
4. Aġġustament tal-gwadann
The device features high and low gain settings. Access this setting through the menu on the OLED screen. Adjusting the gain can help match the amplifier's output to the sensitivity of your headphones.
5. Bass Boost
The XD05 BASIC2 includes a bass boost function. This can be enabled or disabled via the menu settings on the OLED screen. The bass boost offers 0dB or +6dB options.
Konnettività Bluetooth
The XD05 BASIC2 supports Bluetooth 5.4 with LE Audio, including LC3, aptx_Lite, and aptx_AD codecs, as well as classic audio codecs like SBC, AAC, aptX, aptX_HD, and aptX_Adaptive.
Proċedura ta' Tqabbil:
- Ensure the XD05 BASIC2 is powered on and set to Bluetooth input mode. The Bluetooth icon on the OLED screen will blink, indicating it is in pairing mode.
- On your source device (smartphone, tablet, etc.), enable Bluetooth and search for available devices.
- Select "XDUOO XD05 BASIC2" from the list of found devices to pair.
- Once paired, the Bluetooth icon on the XD05 BASIC2's screen will become solid, indicating a successful connection.
Manutenzjoni
- Tindif: Uża drapp ratba u niexfa biex tnaddaf in-naħa ta 'barra tal-apparat. Evita li tuża kimiċi ħarxa jew materjali li joborxu.
- Ħażna: Aħżen l-apparat f'post frisk u niexef 'il bogħod mix-xemx diretta u minn temperaturi estremi.
- Kura tal-batterija: Biex ittawwal il-ħajja tal-batterija, evita li tiċċarġja kompletament il-batterija ta' spiss. Jekk taħżinha għal perjodu estiż, iċċarġja l-batterija sa madwar 50% u erġa' ċċarġjaha kull ftit xhur.
Issolvi l-problemi
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| L-ebda ħoss mill-headphones | Incorrect input selected; Volume too low; Headphones not properly connected; Source device not playing audio. | Verify input selection; Increase volume; Ensure headphones are fully plugged in; Check audio playback on source device. |
| Tqabbil Bluetooth ifalli | Device not in pairing mode; Source device Bluetooth off; Interference. | Ensure XD05 BASIC2 is in Bluetooth pairing mode (blinking icon); Turn Bluetooth on your source device; Move closer to the device and away from other wireless devices. |
| Apparat mhux jiċċarġja | Cable faulty; Power source insufficient; USB port issue. | Try a different Type-C USB cable; Use a different USB power adapter or computer USB port; Ensure the power source provides sufficient current. |
| Awdjo mgħawweġ | Volume too high; Source audio quality poor; Incorrect gain setting. | Reduce volume; Check source audio file quality; Adjust gain setting to match headphones. |
Speċifikazzjonijiet
| Parametru | Valur |
|---|---|
| Batterija | 3.7V/3000mAh |
| Skrin | 0.91 pulzier OLED |
| OS konformi | Windows/Linux/Mac OSX/iOS/Android |
| Frequency Response (USB/BT) | 20Hz~20kHz(±0.5dB) |
| Rispons tal-Frekwenza (AMP) | 10Hz~80kHz(±0.5dB) |
| Sampling Rate Support (PCM) | 16-32Bit/44.1k-384kHz |
| Sampling Rate Support (DSD) | DSD64-256 |
| Sampling Rate Support (MQA) | 8x |
| Codecs Bluetooth | LE Audio: LC3, aptx_Lite, aptx_AD; Classic Audio: SBC, AAC, aptX, aptX_HD, aptX_Adaptive (aptX_Low Latency, aptX_High Quality, aptX_Lossless), LDAC |
| Gwadan | +0dB/6dB |
| Boost Boost | 0 / + 6dB |
| Qawwa tal-Ħruġ tal-Headphone | 750mW (tagħbija 32Ω) |
| Headphone Out THD+N | 0.0006%@1kHz |
| Headphone Out S/N | 124dB |
| Headphone Out Crosstalk | ≥74dB |
| AUX OUT Level | 2.0Vrms |
| AUX OUT THD+N | 0.0003%@1kHz |
| AUX OUT SNR | 124dB |
| AUX OUT Crosstalk | ≥107dB |
| Battery Life (USB IN) | 11 sigħat |
| Battery Life (BT IN) | 15 sigħat |
| Ħin tal-Iċċarġjar (Mgħaġġel) | 3 sigħat |
| Charging Time (Slow) | 5 sigħat |
| Daqs | 13.9 x 7.5 x 2.3 ċm |
| Piż | 0.30 kg |
Garanzija u Appoġġ
For warranty information and technical support, please refer to the documentation included with your purchase or visit the official Fanmusic/XDUOO websit. It-termini speċifiċi tal-garanzija jistgħu jvarjaw skont ir-reġjun u l-bejjiegħ bl-imnut.
