CUSHYBITE RY40HPST01K 40V HP Brushless 16-inch Cordless String Trimmer User Manual

1. Introduzzjoni

Thank you for choosing the CUSHYBITE RY40HPST01K 40V HP Brushless 16-inch Cordless String Trimmer. This manual provides essential information for the safe assembly, operation, and maintenance of your new tool. Please read this manual thoroughly before first use and keep it for future reference. This string trimmer is designed for cutting grass and light weeds in residential outdoor environments.

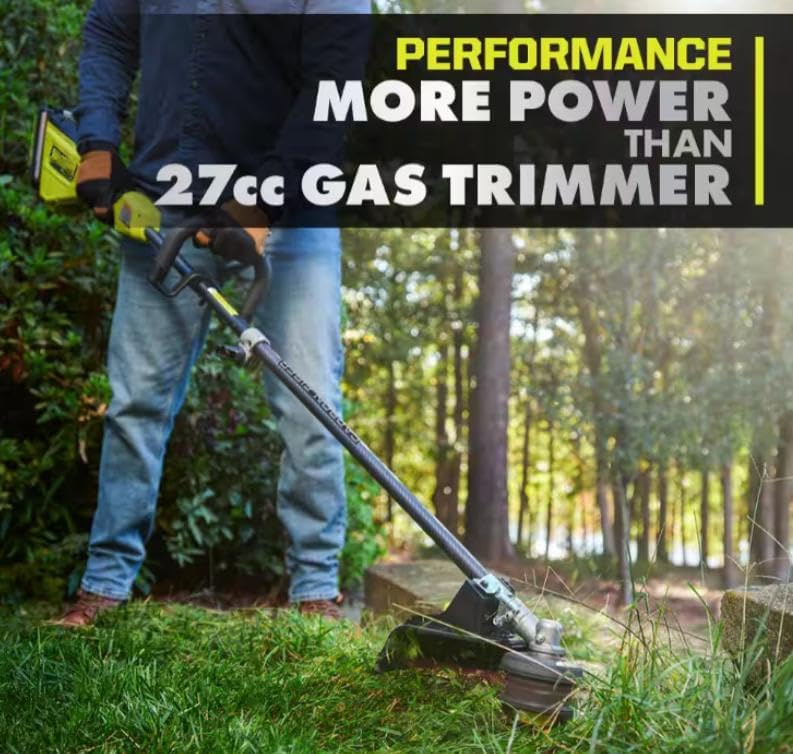

Image 1.1: The CUSHYBITE 40V HP Brushless 16-inch Cordless String Trimmer in operation.

2. Informazzjoni dwar is-Sigurtà

Always observe basic safety precautions to reduce the risk of fire, electric shock, and personal injury when operating power tools. Failure to follow these instructions may result in serious injury or property damage.

Twissijiet ta' Sigurtà Ġenerali:

• Aqra l-istruzzjonijiet kollha: Iffamiljarizza ruħek mal-kontrolli u l-użu xieraq tal-għodda.
• Ilbes tagħmir protettiv personali (PPE) xieraq: Always wear eye protection (safety glasses), hearing protection, long pants, and sturdy footwear.
• Żomm lil dawk li jkunu fil-qrib 'il bogħod: Do not allow children or untrained individuals to operate the trimmer. Maintain a safe distance from others during operation.
• Spezzjona ż-żona tax-xogħol: Before starting, clear the area of any objects that could be thrown by the cutting line, such as rocks, broken glass, or wire.
• Evita ambjenti perikolużi: Tużax it-trimmer f'postijiet imxarrbin jew ħfief.amp conditions. Operate only in good daylight or artificial light.
• Sigurtà tal-batterija: Use only the specified battery pack and charger. Do not charge the battery in damp jew postijiet imxarrba.
• Maintain balance and footing: Always ensure stable footing, especially on slopes. Do not overreach.
• Skonnettja l-batterija: Always remove the battery pack before cleaning, servicing, or when the tool is not in use.

3. Kontenut tal-Pakkett

Carefully unpack all items and ensure you have received everything listed below. If any items are missing or damaged, please contact customer service.

• 40V HP Brushless 16-inch Cordless String Trimmer
• Batterija tal-jone tal-litju 4.0 Ah
• Ċarġer tal-batterija
• Manwal tal-Operatur (dan id-dokument)

Image 3.1: Included components of the CUSHYBITE RY40HPST01K package.

4. Setup u Assemblea

4.1 Iċċarġjar tal-batterija

1. Connect the charger to a standard household power outlet.
2. Slide the 4.0 Ah battery pack into the charger until it clicks into place.
3. Allow the battery to charge fully. The indicator light on the charger will show the charging status. Refer to the charger's specific instructions for light indications.
4. Ladarba tkun iċċarġjata kompletament, neħħi l-batterija mill-ċarġer.

4.2 Assembling the Trimmer Shaft

The trimmer features an attachment-capable carbon fiber shaft. Align the arrows on the upper and lower shafts, then push them together until the spring-loaded button locks into the hole. Tighten the coupling knob securely.

4.3 Aġġustament tal-Manku Awżiljarju

Loosen the knob on the auxiliary handle. Adjust the handle to a comfortable operating position that allows for good balance and control. Retighten the knob firmly.

4.4 Adjusting the Cutting Width

The trimmer's cutting width can be adjusted from 14 inches to 16 inches using the sliding guard. This allows for customization based on performance needs (wider for faster cutting) or runtime needs (narrower for extended battery life).

1. Kun żgur li l-batterija tneħħiet mit-trimmer.
2. Locate the sliding guard mechanism near the trimmer head.
3. Adjust the guard to the desired cutting width (14" or 16"). No tools are required for this adjustment.
4. Ensure the guard is securely in place before operation.

Image 4.1: Detail of the adjustable cutting swath mechanism.

5. Istruzzjonijiet Operattivi

5.1 Tibda t-Trimmer

1. Ensure the battery pack is fully charged and securely inserted into the trimmer.
2. Żomm it-trimmer sew biż-żewġ idejn.
3. Press and hold the safety lock-out button, then squeeze the trigger switch to start the trimmer.
4. Release the safety lock-out button once the trimmer is running.

5.2 Tekniki tat-Tqattigħ

• Mozzjoni ta' Knis: Uża moviment ta' knis minn naħa għal naħa, waqt li żżomm ir-ras tat-trimmer ftit 'il fuq mill-art.
• Borduri: For edging, tilt the trimmer head to a vertical position and guide the cutting line along the edge of the lawn or pathway.
• Għoli tal-Qtugħ: Adjust your body position to achieve the desired cutting height. Avoid scalping the lawn.
• Evita tagħbija żejda: Do not force the trimmer through thick vegetation. Take smaller passes to prevent motor strain and ensure efficient cutting.

5.3 Attachment Capable Feature

This trimmer is designed to be attachment capable, compatible with EXPAND-IT and other universal attachments. To attach an accessory:

1. Neħħi l-pakkett tal-batterija mit-trimmer.
2. Loosen the coupling knob on the trimmer shaft and press the spring-loaded button to separate the lower shaft.
3. Insert the attachment into the upper shaft, aligning the button with the hole, and tighten the coupling knob.
4. Refer to the specific attachment's manual for detailed operating instructions.

6. Manutenzjoni

Regular maintenance ensures optimal performance and extends the life of your string trimmer. Always remove the battery pack before performing any maintenance.

6.1 Tindif

• After each use, clean the trimmer head and guard of any grass clippings, dirt, or debris. Use a dry cloth or soft brush.
• Do not use water, solvents, or abrasive cleaners, as these can damage the tool.
• Kun żgur li l-fetħiet tal-ventilazzjoni jkunu ħielsa minn ostakli biex tevita li s-sħana tisħon iżżejjed.

6.2 Sostituzzjoni tal-Linja

When the cutting line becomes too short or breaks, it needs to be replaced. Refer to the trimmer head's specific instructions for line replacement. Use only the recommended diameter and type of cutting line.

6.3 Kura u Ħażna tal-Batterija

• Aħżen il-pakkett tal-batteriji f'post frisk u niexef, 'il bogħod mix-xemx diretta u minn temperaturi estremi.
• Taħżinx il-batterija fi stat skarikat għal perjodi twal. Iċċarġjaha perjodikament jekk ma tkunx qed tużaha.
• Tesponix il-batterija għall-ilma jew l-umdità.

6.4 Ħażna

Store the trimmer in a dry, secure location out of reach of children. If storing for an extended period, remove the battery pack.

7 Issolvi l-problemi

If you encounter issues with your string trimmer, refer to the following common problems and solutions.

If the problem persists after attempting these solutions, please contact CUSHYBITE customer support.

8. Speċifikazzjonijiet

9. Garanzija u Appoġġ

For warranty information or technical support, please refer to the warranty card included with your product or visit the official CUSHYBITE website. If you have any questions or require assistance, please contact CUSHYBITE customer service directly.
