Generic K50-P1125 Freezer Temperature Control Switch Thermostat User Manual

1. Introduzzjoni

This manual provides essential instructions for the installation, operation, and maintenance of your Generic K50-P1125 Freezer Temperature Control Switch Thermostat. This thermostat is designed as a replacement part for various freezer models, including A10-1052 and A10-1053. Please read this manual thoroughly before installation and use to ensure proper function and safety.

2. Informazzjoni dwar is-Sigurtà

TWISSIJA: Electrical shock hazard. Always disconnect power to the appliance before installing, servicing, or removing this thermostat. Failure to do so can result in serious injury or death.

• Kun żgur li l-konnessjonijiet elettriċi kollha huma siguri u jikkonformaw mal-kodiċijiet elettriċi lokali.
• This product should only be installed by a qualified technician or individual with experience in appliance repair.
• Do not operate the freezer if the thermostat or any electrical component is damaged.
• Keep children away from the appliance during installation and repair.

3. Prodott Aktarview

The K50-P1125 thermostat is a critical component for regulating the temperature within your freezer. It features a capillary tube that senses temperature changes and a switch mechanism to control the compressor's operation, maintaining desired cold levels.

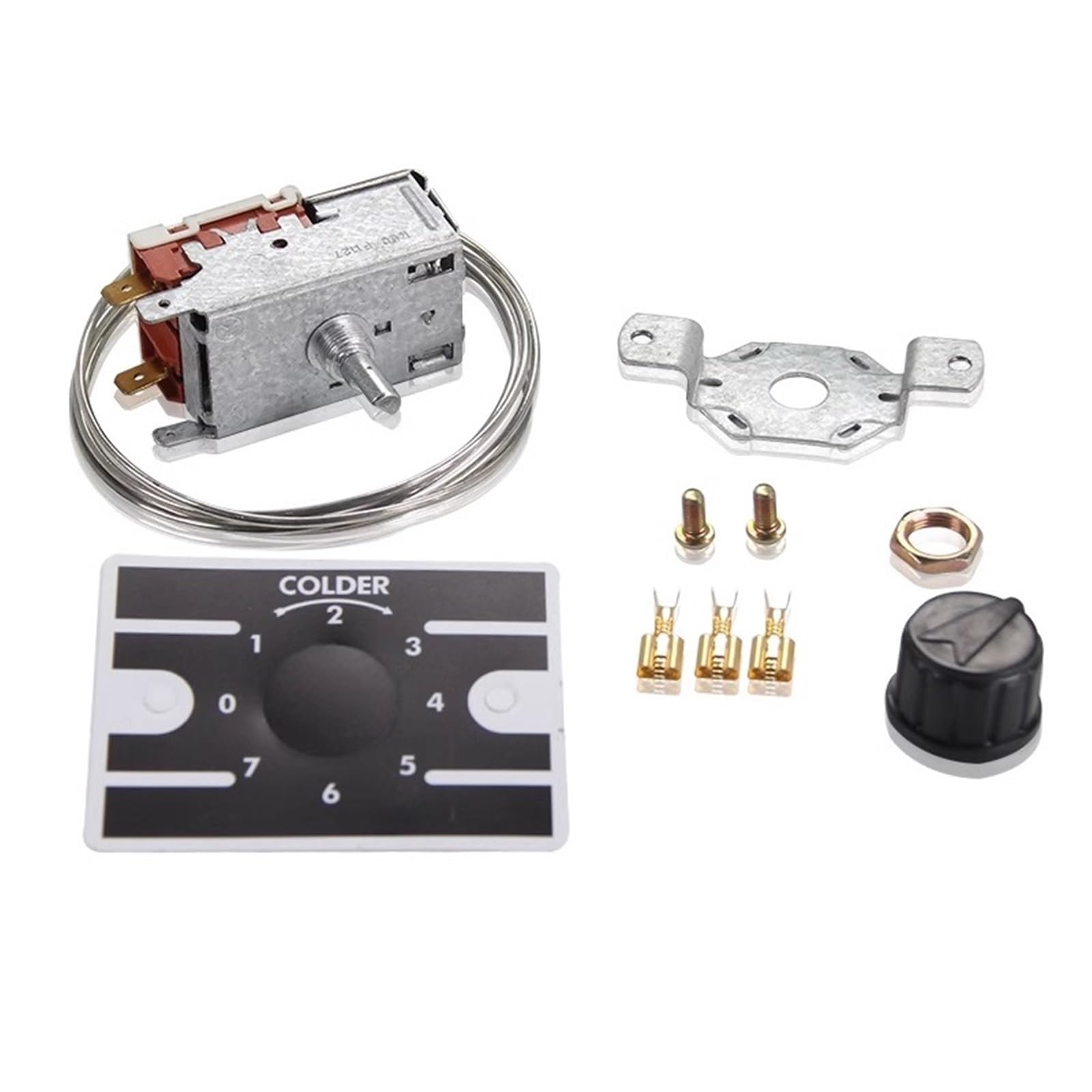

Figura 3.1: Ġenerali view of the K50-P1125 thermostat with its coiled capillary tube. This image shows the overall design and the temperature-sensing element.

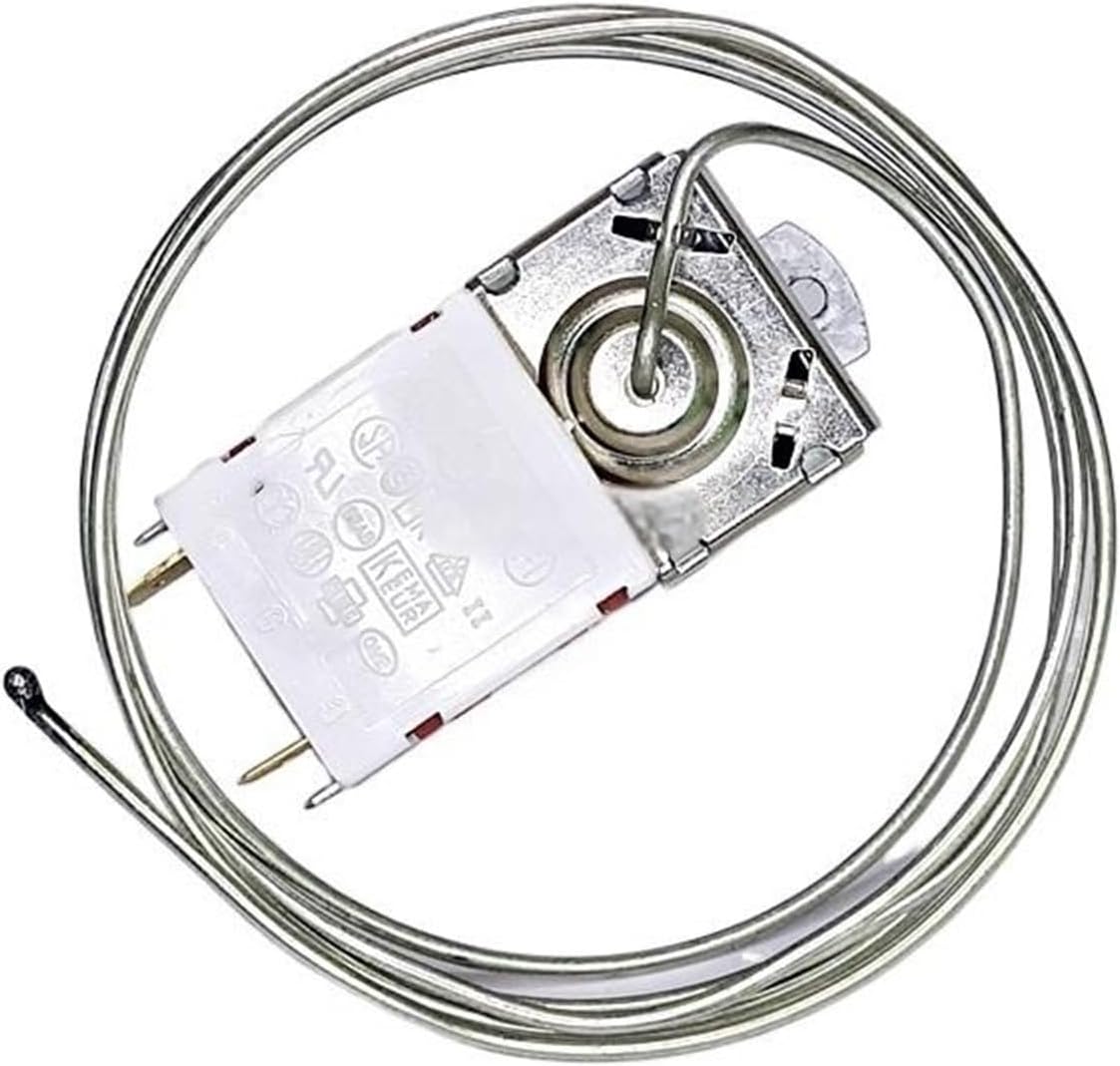

Figura 3.2: A dettaljata view of the thermostat's electrical connection pins and the main housing. This highlights the two-pin configuration for electrical wiring.

4. Speċifikazzjonijiet

5. Konfigurazzjoni u Installazzjoni

This thermostat is a direct replacement part. Before proceeding with installation, ensure the new thermostat's specifications and physical appearance match the damaged product you are replacing. Incorrect installation can lead to appliance malfunction or safety hazards.

5.1 Kontrolli ta' qabel l-installazzjoni

• Skonnettja l-Enerġija: Aqla 'l-friża mill-iżbokk ta' l-elettriku.
• Termostat tal-Aċċess: Locate and access the existing thermostat within your freezer. This typically involves removing control panels or access covers.
• Ivverifika l-Kompatibbiltà: Compare the new K50-P1125 thermostat with the old unit. Pay close attention to the capillary tube length, pin configuration, and mounting points.

Figura 5.1: The K50-P1125 thermostat shown with a control knob and integrated mounting brackets, illustrating how it might be secured within the appliance.

5.2 Passi ta' Installazzjoni

1. Neħħi Termostat Qadim: Carefully disconnect the wiring from the old thermostat and unmount it. Note the position and routing of the capillary tube.
2. Installa Termostat Ġdid: Mount the new K50-P1125 thermostat in the same location as the old one. Ensure it is securely fastened.
3. Rotta tat-Tubu Kapillari: Route the capillary tube of the new thermostat exactly as the old one was routed. The placement of the capillary tube is crucial for accurate temperature sensing. Avoid kinking or damaging the tube.
4. Qabbad il-Wiring: Connect the electrical wires to the 2-pin terminals of the new thermostat. Ensure connections are tight and correct according to the freezer's wiring diagram (refer to your freezer's service manual if unsure).
5. Erġa' arma: Replace any removed control panels or access covers.
6. Irrestawra l-Enerġija: Plug the freezer back into the electrical outlet.

Figura 5.2: Pro tal-ġenbfile of the K50-P1125 thermostat, highlighting the control shaft where a temperature knob would attach, and the capillary tube extending from the unit.

6. Operazzjoni

Once installed, the K50-P1125 thermostat automatically regulates the freezer's temperature. The temperature settings are typically adjusted via a control knob connected to the thermostat's shaft (if your freezer model includes one).

• Firxa tat-Temperatura: The thermostat is designed to cycle the compressor to maintain temperatures within its specified range.
• Aġġusta tat-Temperatura: If your freezer has an external temperature control knob, rotate it to the desired setting. Turning the knob towards 'colder' settings will lower the freezer's temperature, while turning it towards 'warmer' settings will raise it.
• Istartjar Inizjali: After installation, allow the freezer several hours to reach the set temperature before storing perishable items.

7. Manutenzjoni

The K50-P1125 thermostat is a sealed unit and requires no internal maintenance. However, proper care of your freezer can extend the life of all its components, including the thermostat.

• Tindif regolari: Keep the freezer interior clean and free of excessive ice buildup, which can affect temperature sensing.
• Spezzjona l-Wiring: Periodically check the thermostat's wiring connections for any signs of wear or looseness. Ensure power is disconnected before inspection.
• Capillary Tube Protection: Ensure the capillary tube is not bent, kinked, or damaged, as this can impair its ability to sense temperature accurately.

8 Issolvi l-problemi

If your freezer is not maintaining the correct temperature after replacing the thermostat, consider the following common issues:

Jekk il-passi għas-soluzzjoni tal-problemi ma jsolvux il-problema, huwa rakkomandat li tikkuntattja tekniku kwalifikat għat-tiswija tal-apparat.

9. Garanzija u Appoġġ

This K50-P1125 thermostat is provided as a replacement part. For specific warranty information, please refer to the terms and conditions provided by your original seller or retailer at the time of purchase. Generic products typically carry a limited warranty against manufacturing defects.

For technical support or further assistance, please contact the seller from whom you purchased this product. Ensure you have your purchase details and the product model number (K50-P1125) available when seeking support.
