Element ta' Tisħin Ġeneriku għall-Forn tal-Bake: Gwida għall-Installazzjoni u l-Manutenzjoni

Introduzzjoni

This manual provides detailed instructions for the safe installation, operation, and maintenance of your new Generic Range Oven Bake Heating Element. This replacement part is designed to restore proper baking function to your oven. Please read all instructions carefully before beginning installation.

Informazzjoni Importanti dwar is-Sigurtà

TWISSIJA: Riskju ta' Xokk Elettriku jew Korriment.

Always disconnect power to the oven at the circuit breaker or fuse box before attempting any installation, maintenance, or repair. Failure to do so can result in serious injury or death.
Wear appropriate personal protective equipment, including gloves and eye protection, during installation.
Ensure the new heating element is correctly seated and all electrical connections are secure before restoring power.
If you are unsure about any part of the installation process, consult a qualified appliance technician.
Żomm it-tfal u l-annimali domestiċi 'l bogħod miż-żona tax-xogħol waqt l-installazzjoni.

Compatible Oven Models

This Generic Range Oven Bake Heating Element is compatible with a wide range of models from various brands, including but not limited to:

Gibson Models:

CEC1M1WXA, CEC1M1WXB, CEC1M1WXC, CEC1M1WXD, CEC1M1WXE
CEC1M2WXA, CEC1M2WXB, CEC1M2WXC, CEC1M2WXD
CEC2M4WXA, CEC2M4WXB, CEC2M4WXC, CEC2M4WXD, CEC2M4WXE
CEC3M2WXA, CEC3M2WXB
CEC3S5WXA, CEC3S5WXB, CEC3S5WXC, CEC3S5WXD
CEC4M4WXA, CEC4M4WXB, CEC4M4WXC, CEC4M4WXD, CEC4M4WXE
CEC4M6WXA, CEC4M6WXB, CEC4M6WXC, CEC4M6WXD
CEC4S6DXE, CEC4S6WXA, CEC4S6WXB, CEC4S6WXC, CEC4S6WXD, CEC4S6WXE
CEC4S8DXC, CEC4S8WXA, CEC4S8WXB, CEC4S8WXC
CGEF310FSA, CGEF310GSA, CGEF312FSA, CGEF312FSB, CGEF312GSA, CGEF312GSB
GEF3015KWA, GEF305PJSA, GEF305PJSB, GEF351FSA, GEF351FSB, GEF352BHDB, GEF352BHWB, GEF352CHSB
CD302VP3D02, CD302VP3W02, CD302VP3W1, CE301SP2Y1, CE302BP2D1, CE302BP2H1, CE302BP2W1, CE303VC3D1, CE303VC3W1, CE303VP2D01, CE303VP2H01, CE303VP2W01, CE305WP2W1, CE307SP2D1, CE307SP2W1, CD302VP3D1

Mudelli Kenmore:

79093767001, 79093768000, 79093768001, 79093771100, 79093772100, 79093777100, 79093778100, 79094032702, 79094034702, 79094038702, 79094039702, 79094102701, 79094102702, 79094102703, 79094142310, 79094142311, 79094142312, 79094143310, 79094143312, 79094144310, 79094144311, 79094144312, 79094149310, 79094149311, 79094149312, 79094149313, 79095261990, 79095261991, 79095262990, 79095262991, 79095267990, 79095267991, 79095268990, 79095268991, 79095622001, 79095651000, 79095651001, 79095652000, 79095657000, 79095657001, 79095658000, 79095658001, 79095711890, 79095711891, 79095711892, 79095711893, 79095711894, 79095715890, 79095715891, 79095715893, 79095715894, 79095716890, 79095716891, 79095716893, 79095716894, 79095718890, 79095718891, 79095718892, 79095718893, 79095718894, 79095721990, 79095722990, 79095727990, 79095728990, 79095731890, 79095731891, 79095731892, 79095738890, 79095738891, 79095738892, 79095741990, 79095741991, 79095741992, 79095742990, 79095742991, 79095742992, 79095745890, 79095745891, 79095745892, 79095746890, 79095746892, 79095747990, 79095747991, 79095747992, 79095748990, 79095748991, 79095748992, 79095751990, 79095758990, 79095761000, 79095761001, 79095762990, 79095767990, 79095768000, 79095768001, 79096002602, 79096002603, 79096002604, 79096002605, 79096004602, 79096004603, 79096004604, 79096004605, 79096008801, 79096008802, 79096008803, 79096008804, 79096008805, 79096008806, 79096009602, 79096009603, 79096009604, 79096009605, 79097471790, 79097475790, 79097476790, 79097478790, 7916262190, 7916262890, 7916272190, 7916272890, 7916412190, 7916412890, 7919338913, 7919338983, 79091106891, 79091106892, 79091107000, 7909115892, 7909116892, 79091106890, 79091105892

Crosley Models:

CCRE312GWWA, CCRE350GBBA, CCRE350GWWA, CCRE360GBBA, CCRE360GSSA, CCRE360GWWA, CRE3510LWF, CRE3530PBB, CRE3530PWB, CRE3580QSB, CRE3580QWB, CRE3860LBA, CRE3860LBB, CRE3860LWA, CRE3860LWB, CRE3870LWA, CRE3870LWB, CREF366FBA, CREF366FCA, CREF366FCB, CREF366FSA, CRE3500GWBA, CRE3500GWBC, CRE3520GWWA, CRE3520GWWB, CRE3540GWWA, CRE3540GWWB, CRE3540GWWC, CRE3580GWWA, CRE3860GBBA, CRE3860GBBB, CRE3860GQBA, CRE3860GQBB, CRE3860GWBA, CRE3860GWBB, CRE3860GWWA, CRE3860GWWB, CRE3880GBBA, CRE3880GBBB, CRE3880GQQA, CRE3880GQQB, CRE3880GSSB, CRE3880GWWA, CRE3880GWWB, CRE3880HSSF, CCRE3530LWG, CRE3580QWC, CCRE312GWWC, CCRE350GBBB, CCRE350GBBC, CCRE350GWWB, CCRE350GWWC, CCRE3530LBB, CCRE3530LBD, CCRE3530LWB, CCRE3530LWD, CCRE3530LWE, CCRE3530LWF, CCRE360GBBB, CCRE360GBBD, CCRE360GSSB, CCRE360GWWB, CCRE360GWWD, CCRE3860LBA, CCRE3860LBB, CCRE3860LBE, CCRE3860LWA, CCRE3860LWB, CCRE3860LWE, CCRE3860LWF, CCRE3860LWG, CCRE3870MBA, CCRE3870MSA, CCRE3870MSC, CCRE3870MWA, CCRE3870MWB, CRE3500GWBB, CRE3500GWBD, CRE3500GWBE, CRE3500KWBA, CRE3510LWA, CRE3510LWB, CRE3510LWC, CRE3510LWD, CRE3510LWE, CRE3510LWG, CRE3510LWH, CRE3510LWJ, CRE3510PWA, CRE3520GWWC, CRE3530LBA, CRE3530LBB, CRE3530LBC, CRE3530LBD, CRE3530LBE, CRE3530LWA, CRE3530LWB, CRE3530LWC, CRE3530LWD, CRE3530LWE, CRE3530PBA, CRE3530PBC, CRE3530PBD, CRE3530PBE, CRE3530PWA, CRE3530PWC, CRE3530PWD, CRE3530PWE, CRE3580GWWB, CRE3580GWWC, CRE3580GWWD, CRE3580LSA, CRE3580LSB, CRE3580LWA, CRE3580LWB, CRE3580LWC, CRE3580LWD, CRE3580LWE, CRE3580PSA, CRE3580PWA, CRE3580QSA, CRE3580QWA, CRE3580QWD, CRE3580SSA, CRE3580SSB, CRE3860GBBC, CRE3860GWWC, CRE3860LBC

Kelvinator Models:

KEF355DSA, KEF355DSB, KEF355DSC, KEF355ESC, KEF355ESD, KEF355ESE, KEF355ESH
CD302VP3D02, CD302VP3D1, CD302VP3W02, CD302VP3W1, CE301SP2Y1, CE302BP2H1, CE302BP2W1, CE303VC3D1, CE303VC3W1, CE303VP2D01, CE303VP2H01, CE303VP2W01, CE305WP2W1, CE307SP2D1, CE307SP2W1, CE302BP2D1

Admiral Models:

485340A, 486640A, 486840A

White-Westinghouse Models:

WWEF3000LWA, WEF326GSA, WEF303PHDB, WEF303PHWB, WEF311SHDA, WEF311SHWA
CD302VP3D1, CD302VP3W1, CE301SP2Y1, CE302BP2D1, CE302BP2H1, CE302BP2W1, CE303VC3D1, CE303VC3W1, CE303VP2D01, CE303VP2H01, CE303VP2W01, CE305WP2W1, CE307SP2D1, CE307SP2W1

Please verify your oven's model number before purchasing and installing to ensure compatibility.

Istruzzjonijiet għall-installazzjoni

Follow these steps carefully to replace your oven's bake heating element. It is recommended to take photos of the existing wiring before disconnecting anything for easier reassembly.

Skonnettja l-Enerġija: Locate your oven's circuit breaker in your home's electrical panel and turn it OFF. Verify power is off by attempting to turn on the oven.
Aċċess għall-Intern tal-Forn: Open the oven door. Depending on your model, you may need to remove oven racks to gain better access to the bake element.
Neħħi l-Element Qadim:
- Locate the screws holding the bake element in place at the back of the oven cavity. Remove these screws.
- Carefully pull the element forward a few inches. This will expose the electrical terminals.
- Disconnect the wires from the terminals of the old element. It is advisable to use needle-nose pliers to gently pull the wire connectors off. Do not let the wires retract into the back wall of the oven. You may need to temporarily secure them with tape or clips.
Installa Element Ġdid:

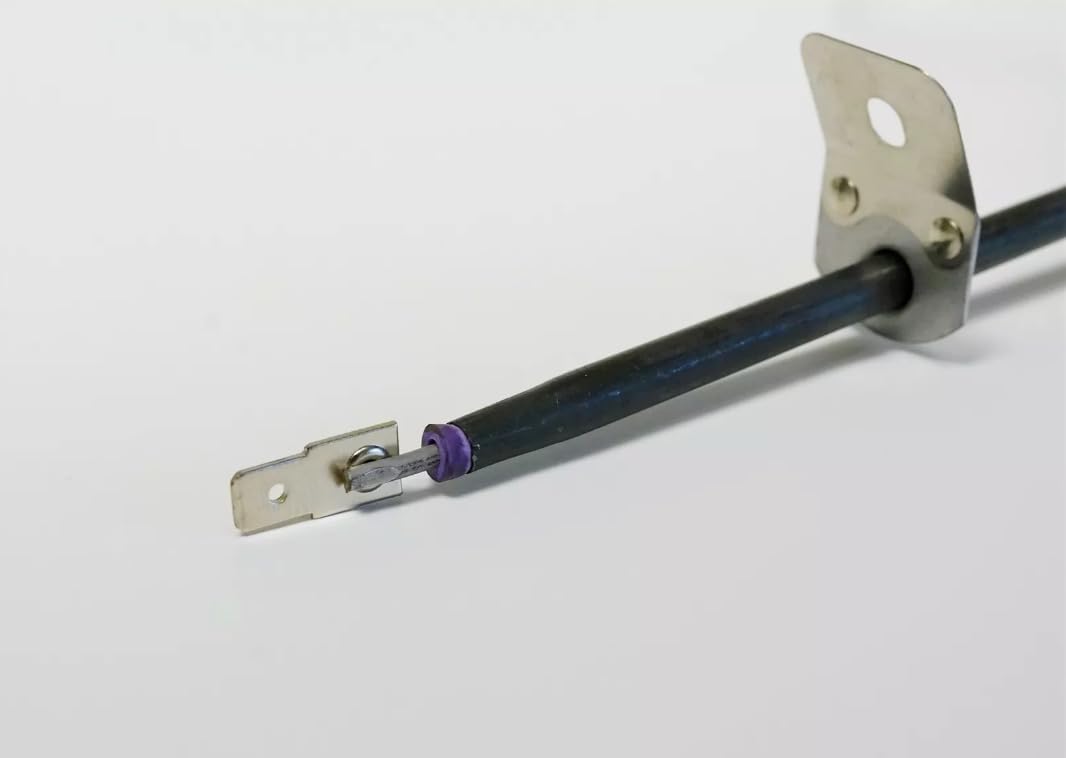

Image: Close-up of the heating element's terminal end, showing the metal spade connector and purple ceramic insulator. This is where the electrical wires connect.
- Connect the electrical wires to the terminals of the new heating element. Ensure connections are firm and secure.
- Carefully push the new element into position, ensuring the terminals slide into their respective openings in the back wall of the oven.
- Align the mounting bracket of the new element with the screw holes.
Immaġni: Ġenb view of the heating element, highlighting the metal mounting clip that secures the element within the oven cavity.
- Secure the element with the screws removed earlier. Do not overtighten.
Installazzjoni tat-test: Restore power to the oven at the circuit breaker. Set the oven to a bake cycle and observe the element. It should begin to heat and glow red.
Kontroll Finali: Once the element is confirmed to be working, turn off the oven and allow it to cool before closing the door completely and resuming normal use.

Operazzjoni

The bake heating element operates automatically when the oven is set to a bake function. It is responsible for generating the heat required for baking. The oven's thermostat controls the cycling of the element to maintain the desired temperature.

Kun żgur li l-bieba tal-forn tkun magħluqa sew waqt it-tħaddim biex tinżamm it-temperatura u l-effiċjenza.
Avoid placing aluminum foil or other materials directly on the element or oven floor, as this can interfere with heat distribution and potentially damage the element or oven.

Manutenzjoni

Regular maintenance helps ensure the longevity and efficient operation of your bake heating element.

Tindif: Keep the oven cavity clean. Spills and food debris can burn onto the element, affecting its performance and potentially causing smoke. Always ensure the oven is cool and power is disconnected before cleaning. Use a damp cloth to wipe down the element if necessary, but avoid harsh abrasives or excessive moisture.
Spezzjoni: Periodically inspect the heating element for any signs of damage, such as cracks, blisters, or uneven heating (dark spots when hot). If any damage is observed, the element should be replaced.
Konnessjonijiet elettriċi: During cleaning or other oven maintenance, briefly check that the electrical connections to the element remain secure.

Issolvi l-problemi

If you encounter issues with your oven's baking function after installing the new element, consider the following:

Problema	Kawża Possibbli	Soluzzjoni
Element does not heat or glow.	L-ebda qawwa għall-forn. Konnessjonijiet elettriċi sfużi. Faulty element (rare for new). Oven control board issue.	Iċċekkja circuit breaker. Disconnect power and re-check connections. Contact seller for replacement if element is confirmed faulty. Consult an appliance technician.
Il-forn jisħon b'mod irregolari.	Element partially failed (partially glowing). Oven thermostat malfunction. Improper rack placement.	Inspect element for dark spots when hot. Replace if damaged. Consult an appliance technician. Refer to your oven's user manual for optimal rack positions.
Burning smell from oven.	Food debris on element or oven floor. New element "burning off" manufacturing residues (temporary).	Clean oven cavity and element (after disconnecting power and cooling). Run oven empty at high temperature for 30-60 minutes with good ventilation.

For issues not listed here or if troubleshooting steps do not resolve the problem, it is recommended to contact a qualified appliance repair technician.

Speċifikazzjonijiet tal-Prodott

Tip ta' Parti: Range Oven Bake Heating Element
Numru tal-Mudell (Parti): CGEF312FSA
Manifattur: Ġeneriċi
Dimensjonijiet tal-Prodott: Approximately 1 x 1 x 1 inches (Note: This is likely packaging or a generic placeholder. Actual element dimensions vary by model.)
Komponenti Inklużi: 1x Range Oven Bake Heating Element
Data L-Ewwel Disponibbli: 18 ta’ Marzu, 2025

Garanzija u Appoġġ

For warranty information or technical support regarding this Generic Range Oven Bake Heating Element, please refer to the seller's return policy or contact the seller directly through the platform where the purchase was made. Keep your purchase receipt as proof of purchase.
