Introduzzjoni
This manual provides essential instructions for the safe and efficient use of your EVER ADVANCED Collapsible Push & Pull Shopping Cart. Please read this manual thoroughly before assembly and operation. Keep it for future reference.
Prodott Overview
The EVER ADVANCED Collapsible Push & Pull Shopping Cart is designed for versatile transport of items, featuring both push and pull handle options, a practical integrated shopping basket, and all-terrain wheels with brakes. Its foldable design allows for compact storage and easy portability.
Figure 1: The EVER ADVANCED cart demonstrating both push and pull functionality.
Setup Istruzzjonijiet
Your EVER ADVANCED shopping cart requires minimal assembly, primarily involving the attachment of the wheels and unfolding the main frame.
- Kif tiftaħ il-karrettun: Place the folded cart on a flat surface. Gently pull the sides apart until the frame fully extends and locks into place. Ensure all frame joints are securely engaged.
- Twaħħil tar-Roti: The wheels are designed for quick, tool-free attachment. Align each wheel's mounting shaft with its corresponding bracket on the cart frame. Push firmly until you hear a "click," indicating the wheel is securely locked. Verify all four wheels are properly attached before use.
- Setting up the Shopping Basket: Position the integrated shopping basket onto the designated upper frame. Ensure it is stable and securely attached.
Figure 2: Detail of the all-terrain wheel with lock/unlock mechanism.
Video 1: Demonstrates the unfolding process and initial setup of the cart, including loading items.
Istruzzjonijiet Operattivi
The EVER ADVANCED cart offers flexible handling and ample storage for various uses.
Push and Pull Functionality
- Manku tal-Imbottatura: The cart features a dedicated push handle for comfortable operation, similar to a traditional shopping cart. Adjust the telescopic handle to your preferred height and angle for optimal control.
- Iġbed il-Manku: For pulling, extend the telescopic pull handle. Ensure it is locked in position before use.
Karatteristiċi tal-Ħażna
- Integrated Shopping Basket: Use the upper basket (18"L x 9"W x 8"H) for smaller, frequently accessed items like phones, wallets, or groceries.
- Kompartiment Prinċipali: The large main compartment is suitable for bulkier items.
- Cup Holders and Side Pockets: Utilize the three dedicated cup holders and multiple side organizer pockets for beverages and smaller accessories.
Figure 3: The cart featuring its practical integrated shopping basket.
Figure 4: Close-up of the cart's cup holders and large side pocket.
Wheel and Brake System
- The front wheels rotate 360° for easy maneuverability.
- Engage the dual-brake safety system on the wheels when parking the cart to prevent unintended movement. Push the red lever down to lock and up to unlock.
Video 2: Illustrates the push and pull functionality of the wagon, along with the wheel and brake features.
Manutenzjoni
Regular maintenance ensures the longevity and optimal performance of your cart.
- Tindif: Imsaħ id-drapp u l-qafas b'reklamaramp cloth and mild soap. Avoid harsh chemicals. Allow to air dry completely before folding or storing.
- Spezzjoni tar-rota: Periodically check the wheels for debris (e.g., dirt, hair, small stones) that may hinder smooth rotation. Clean as necessary. Ensure wheels remain securely attached.
- Ħażna: When not in use, fold the cart for compact storage. Store in a dry place away from direct sunlight to prevent material degradation.
Issolvi l-problemi
If you encounter issues with your cart, refer to the following common problems and solutions:
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Wheels get stuck or cart trails sideways. | Debris in wheels; wheels not fully attached. | Clean any debris from the wheels. Ensure each wheel's mounting shaft is pushed completely into its bracket until it "clicks" into place. |
| Brakes do not engage effectively. | Brake lever not fully depressed; mechanism obstructed. | Ensure the red brake lever is fully pushed down. Check for any obstructions around the brake mechanism. |
| Difficulty pushing or pulling the cart. | Handle not adjusted correctly; uneven weight distribution. | Adjust the telescopic handle to a comfortable height and angle. Distribute the load evenly within the cart to maintain balance. |
| Cart is bulky when folded. | Wheels not detached (if applicable). | For the most compact storage, detach the wheels by pressing the release button and pulling them off. |
Speċifikazzjonijiet
- Numru tal-Mudell: EA-TR-21830
- Ditta: QATT AVVANZAT
- Dimensjonijiet tal-Prodott (Miftuħ): 33"D x 18"W x 12.2"H
- Dimensjonijiet mitwija: Approximately 29.5"L x 22.4"W x 7.5"H (with wheels detached)
- Piż: 26.4 lbs
- Kapaċità: Sa 260 lbs
- Kulur: Blu
- Materjal tal-qafas: Aluminju
- Materjal tal-manku: Aluminju
- Numru ta' Roti: 4
- Tip ta' Caster: Swivel (front wheels)
- Karatteristika Speċjali: Sturdy, Collapsible, Push & Pull Design, Integrated Shopping Basket, Cup Holders, Side Pockets, All-Terrain Wheels with Brakes
- Assemblaġġ Meħtieġa: Iva (minimu)
- Użi Rakkomandati: Barra, Camping, Beach, Groceries, Utility

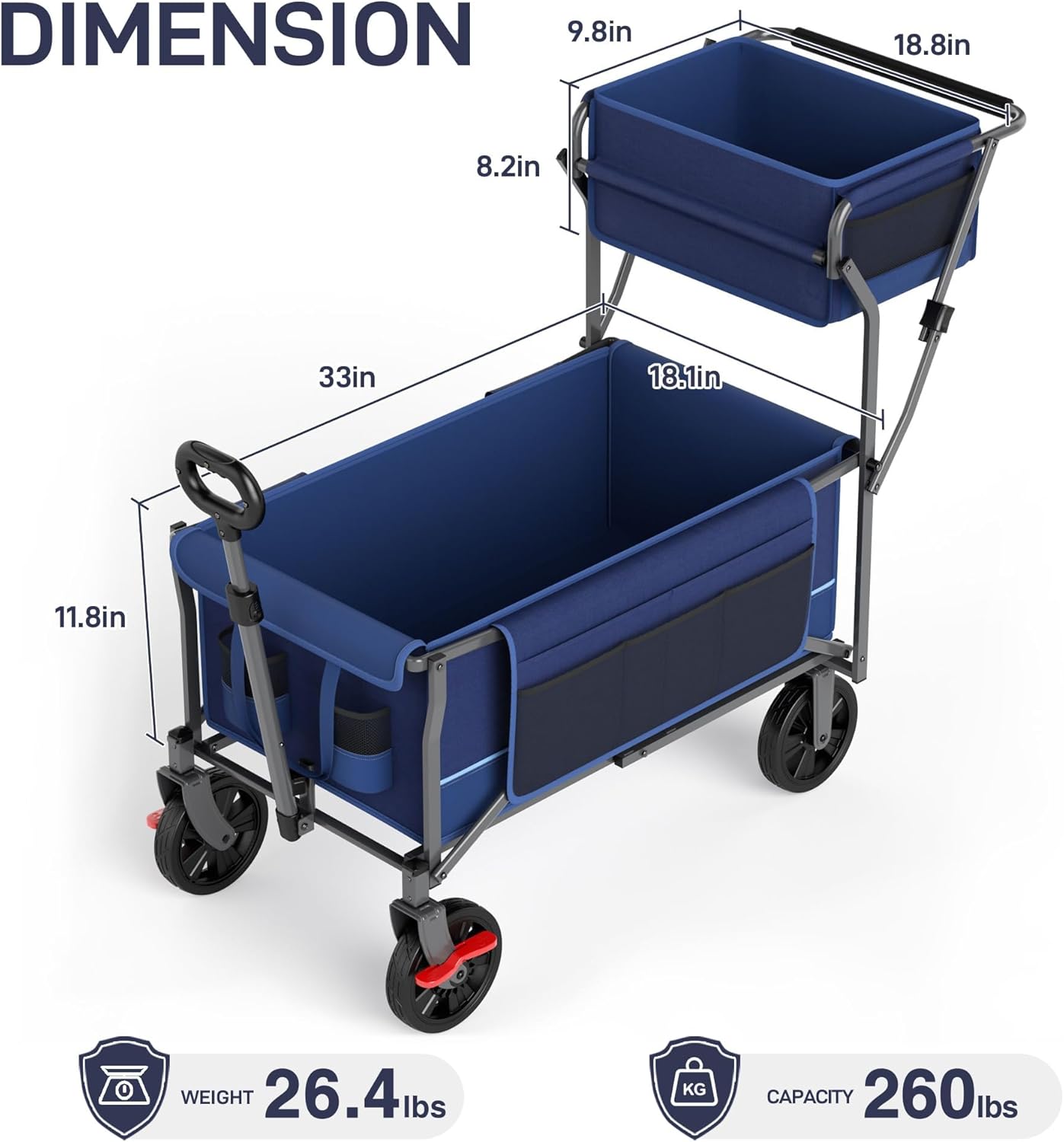

Figure 5: Detailed dimensions, weight, and capacity of the cart.
Garanzija u Appoġġ
Specific warranty details are not provided in this manual. For warranty information, product support, or to inquire about replacement parts, please contact EVER ADVANCED customer service directly or visit their official websit. Żomm l-irċevuta tax-xiri tiegħek bħala prova tax-xiri.
