1. Introduzzjoni
This manual provides detailed instructions for the installation, operation, and maintenance of your INSEETECH 6MP WiFi Dual Lens Outdoor Security Camera. Please read this manual thoroughly before use to ensure proper functionality and safety.
Image 1.1: INSEETECH 6MP WiFi Dual Lens Outdoor Security Camera.
2. Prodott Aktarview
Karatteristiċi Ewlenin
- Sistema ta' Lenti Doppju: Features a fixed wide-angle lens and a PTZ (Pan/Tilt/Zoom) tracking lens for comprehensive coverage.
- Riżoluzzjoni HD ta' 6MP: Delivers clear and detailed images and video.
- Konnettività WiFi ta' 2.4GHz: Jiżgura konnessjoni mingħajr fili stabbli.
- Sejbien tal-Bniedem bl-AI u Traċċar Awtomatiku: Intelligently identifies human movement and tracks subjects.
- Tliet Modi ta' Viżjoni bil-Lejl: Full-Color, Infrared, and Dual-Light Alarm for optimal visibility in low light.
- Awdjo f'żewġ direzzjonijiet: Mikrofonu u kelliem integrati għall-komunikazzjoni.
- IP66 Reżistenti għat-Temp: Iddisinjat għal użu fuq barra, reżistenti għax-xita u t-trab.
- Ħażna Lokali: Supports MicroSD card up to 128GB for 24/7 recording.
Kontenut tal-Pakkett
- 1 x Outdoor Security Camera
- 1 x Camera Bracket
- 1 x Manwal għall-Utent
- 1 x Adapter tal-Enerġija
- 1 x Accessories (screws, wall plugs)
Image 2.1: Illustration of package contents and connection methods.
3. Gwida ta' Setup
3.1 Installazzjoni Fiżika
- Agħżel Post: Agħżel post fil-beraħ b'dawl ċar view of the area you wish to monitor and within range of your 2.4GHz WiFi network. Ensure a power outlet is accessible.
- Immonta l-Bracket: Use the provided screws and wall plugs to securely attach the camera bracket to a wall or ceiling.
- Waħħal il-Kamera: Secure the camera to the mounted bracket. Adjust the camera angle as needed.
- Qabbad l-Enerġija: Plug the power adapter into the camera and then into a power outlet. The camera will power on and initiate self-test.

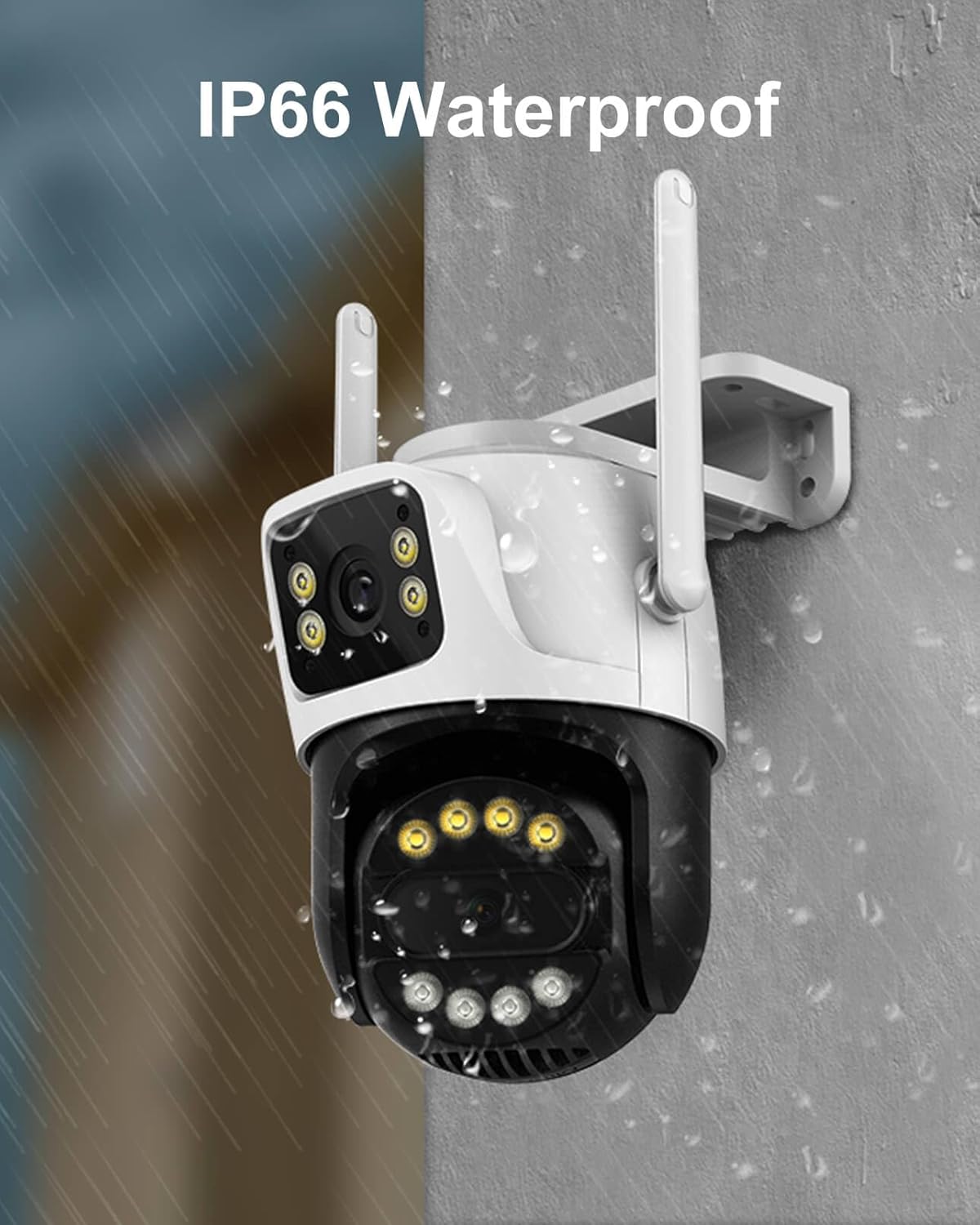

Image 3.1: The camera is IP66 waterproof, suitable for outdoor installation.
3.2 Installazzjoni tal-App u Konnessjoni man-Netwerk
- Niżżel l-App: Fittex għal 'INSEECam' in your smartphone's app store (iOS or Android) and download the application.
- Irreġistra/Idħol: Open the INSEECam app and follow the on-screen instructions to register a new account or log in if you already have one.
- Żid Apparat: Tap the '+' icon in the app to add a new device. Select your camera model or scan the QR code on the camera if available.
- Qabbad ma' WiFi ta' 2.4GHz: Follow the app's prompts to connect the camera to your 2.4GHz WiFi network. Nota: This camera requires a 2.4GHz Wi-Fi connection. 5GHz networks are not supported.
- Imla Setup: Ladarba tkun konnessa, agħti isem lill-kamera tiegħek u kompli l-proċess tas-setup.
Image 3.2: The camera connects via a stable 2.4GHz WiFi network.
4. Istruzzjonijiet Operattivi
4.1 App Control and Dual Lens Functionality
The INSEECam app provides full control over your camera. You can view live feeds, adjust settings, and manage recordings.
- Kontroll PTZ: Use the app to remotely pan the tracking camera 355° horizontally and tilt it 90° vertically.
- Monitoring Zones: Customize specific areas within the camera's view to focus on, reducing unnecessary alerts.
- Konnessjoni ta' Lenti Doppju: If the fixed wide-angle lens detects movement, the PTZ tracking lens will automatically adjust to follow and record the detected activity, providing comprehensive coverage.
Image 4.1: Dual lens system with 355° pan and 90° tilt capabilities.
4.2 Sejbien tal-Bniedem bl-AI u Traċċar Awtomatiku
The camera's advanced AI technology is designed to enhance security by focusing on relevant events.
- Sejbien tal-Bniedem: The camera can differentiate human shapes from other moving objects, minimizing false alarms caused by animals or swaying branches.
- Traċċar Awtomatiku: Upon detecting human movement, the camera will automatically track the subject across its field of view, ensuring continuous recording of the event.
Image 4.2: The camera features auto-tracking and sends alerts upon human detection.
4.3 Modi ta' Viżjoni bil-Lejl
The camera offers three distinct night vision modes to adapt to various lighting conditions:
- Viżjoni bil-Lejl b'Kulur Sħiħ: Utilizes white-light LEDs to provide full-color video in dark environments.
- Viżjoni bil-lejl infrared: Uses infrared LEDs for clear black-and-white video in complete darkness.
- Dual-Light Alarm: Combines infrared for general monitoring with white-light activation upon motion detection, illuminating the area and deterring intruders.
Image 4.3: Visual representation of Full-Color, Infrared, and Dual-Light Alarm night vision modes.
4.4 Awdjo b'żewġ direzzjonijiet
The integrated microphone and speaker allow for real-time two-way communication through the camera.
- Komunikazzjoni mill-bogħod: Speak to visitors or deter unwanted guests directly from your smartphone.
- Monitoraġġ tal-Awdjo: Listen to sounds from the camera's vicinity.
Image 4.4: Demonstrates two-way audio communication via the camera and app.
4.5 Reġistrazzjoni u Ħażna tal-Vidjo
The camera supports continuous recording and event-triggered recording.
- Ħażna tal-Kard MicroSD: Insert a MicroSD card (up to 128GB, not included) into the designated slot for local storage of video footage.
- Reġistrazzjoni 24/7: Configure the camera for continuous recording to the MicroSD card.
- Daqq: Aċċess irreġistrat footage directly through the INSEECam app, filtering by date and event.

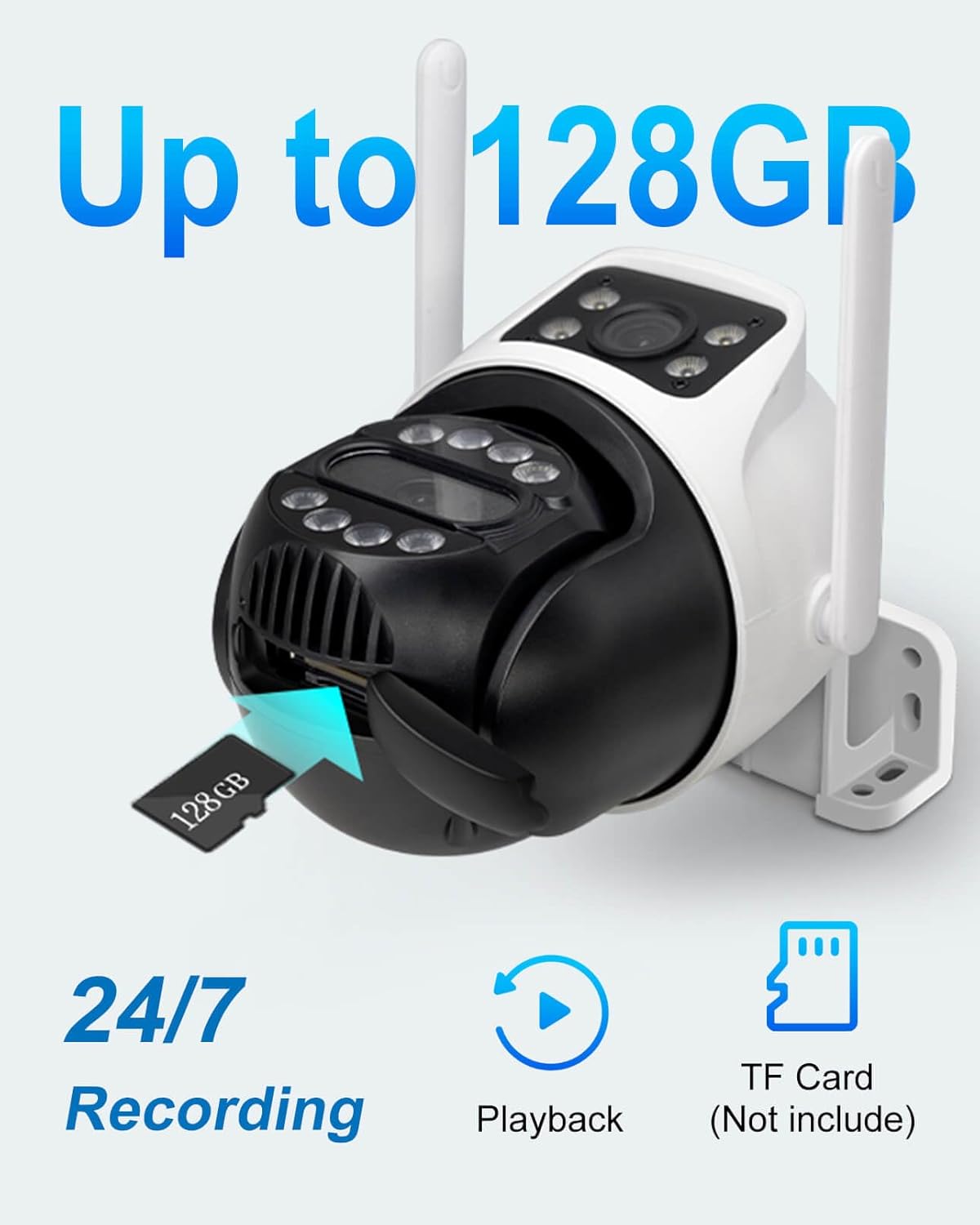

Image 4.5: The camera supports up to 128GB MicroSD card for local storage.
4.6 Kondiviżjoni tal-Familja
Share access to your camera's live feed and recordings with trusted family members or friends through the INSEECam app.
5. Manutenzjoni
- Tindif: Imsaħ il-lenti u l-korp tal-kamera regolarment b'ċarruta ratba u damp drapp biex tneħħi t-trab u l-ħmieġ. Tużax kimiċi ħarxa.
- Aġġornamenti tal-Firmware: Check the INSEECam app periodically for firmware updates to ensure optimal performance and security.
- Provvista tal-Enerġija: Kun żgur li l-adapter tal-enerġija u l-kejbil ma jkollhomx ħsara.
6 Issolvi l-problemi
| Ħruġ | Soluzzjoni Possibbli |
|---|---|
| Camera fails to power on. | Check the power adapter and cable connection. Ensure the power outlet is functional. |
| Ma tistax tikkonnettja mal-WiFi. | Ensure your router is broadcasting a 2.4GHz WiFi signal. Verify the WiFi password. Move the camera closer to the router. |
| Skonnessjonijiet frekwenti. | Check WiFi signal strength in the camera's location. Reduce interference from other electronic devices. Restart your router and camera. |
| No video recording to MicroSD card. | Ensure a MicroSD card (up to 128GB) is inserted correctly and formatted within the app. Check recording settings in the app. |
| Allarmi foloz minn skoperta ta' moviment. | Adjust the motion detection sensitivity in the app. Utilize human detection features and customize monitoring zones to exclude irrelevant areas. |
| L-awdjo f'żewġ direzzjonijiet mhux qed jaħdem. | Check microphone and speaker permissions for the INSEECam app on your smartphone. Ensure volume levels are adequate. |
7. Speċifikazzjonijiet Tekniċi
| Speċifikazzjoni | Dettall |
|---|---|
| Isem tal-Mudell | INC003B |
| Riżoluzzjoni tal-Qbid tal-Vidjo | 6MP (3MP+3MP) |
| Teknoloġija tal-Konnettività | Mingħajr fili (Wi-Fi 2.4GHz) |
| Medda Pan/Tilt | 355° Pan, 90° Mejjel |
| Medda tal-Viżjoni Lejl | 66 Saqajn |
| Modi tal-Viżjoni bil-lejl | Full-Color, Infrared, Dual-Light Alarm |
| Sejbien tal-Bniedem | Yes, with Auto-Tracking |
| Awdjo Two-Way | Iva |
| Ħażna | Karta MicroSD (sa 128GB) |
| Klassifikazzjoni tal-Protezzjoni Internazzjonali | IP66 (Li ma jgħaddix mit-temp) |
| Sors tal-Enerġija | Elettriku bil-Fili (12V) |
| Materjal | Acrylonitrile Butadiene Styrene (ABS) |
| Dimensjonijiet (L x W x H) | 3.06 x 3.15 x 2.34 pulzieri |
| Piż tal-oġġett | 1.17 libbra (0.53 Kilogrammi) |
| Frame Rata | 20 frejm kull sekonda |
| Kodifikazzjoni tal-vidjo | H.265AI |
8. Garanzija u Appoġġ
INSEETECH products are designed for reliability and performance. For warranty information, technical support, or any inquiries, please refer to the official INSEETECH website or contact customer service through the INSEECam app.
Tista 'wkoll iżżur il- INSEETECH Store on Amazon għal aktar informazzjoni u riżorsi ta’ appoġġ.
