Manwal ta' Istruzzjoni Ġeneriku SRN-873S 8-CH 8-POE Port NVR

1. Introduzzjoni

This manual provides comprehensive instructions for the installation, operation, and maintenance of the Generic SRN-873S 8-Channel Network Video Recorder (NVR). The SRN-873S is designed for surveillance applications, featuring an integrated 8-port Power over Ethernet (PoE/PoE+) network switch for direct camera connections, simplifying setup and reducing the need for additional hardware. It supports up to 8 channels and offers high-resolution recording capabilities.

Il-karatteristiċi ewlenin jinkludu:

• Sa 8 kanali appoġġjati.
• Recording resolution up to 4K (4096x2160) at 20 frames per second (8MP).
• Equipped with a 1TB hard drive for storage.
• Supports up to 64Mbps recording bandwidth with 2MP cameras.
• Features 8 Plug & Play PoE/PoE+ ports for direct camera connection.
• Includes HDMI and VGA outputs for local monitor connection.

2. Setup

2.1 Spakkjar u Spezzjoni

Carefully unpack the NVR and all accessories. Verify that all components listed in the packing list are present and undamaged. If any items are missing or damaged, contact your supplier immediately.

2.2 NVR Overview

Figure 2.1: Front Panel of SRN-873S NVR
This image displays the front panel of the SRN-873S NVR, showing indicator lights for REC, HDD, Network, Alarm, Backup, and Power, along with two USB ports on the right side.

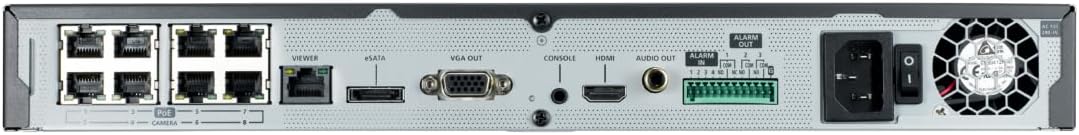

Figure 2.2: Rear Panel of SRN-873S NVR
This image illustrates the rear panel of the SRN-873S NVR, featuring eight PoE ports for cameras, a LAN port, eSATA, VGA Out, Console, HDMI Out, Audio Out, Alarm In/Out terminals, and the power input with a switch.

2.3 Hard Drive Installation (If applicable)

The SRN-873S NVR supports removable hard drives for easy installation and replacement. Refer to the specific instructions provided with your NVR for accessing the hard drive bay and securely installing or replacing the drive. Ensure the NVR is powered off before performing any hardware installation.

2.4 Konnessjoni tal-Periferali

1. Qabbad il-Kameras: Connect your IP cameras directly to the 8 PoE/PoE+ ports on the rear panel of the NVR. These ports provide both power and data, simplifying cabling.
2. Qabbad il-Monitor: Connect a monitor to the NVR using either the HDMI Out or VGA Out port.
3. Connect Mouse/IR Remote: Plug the USB mouse into one of the USB ports on the front or rear panel for local control. An IR remote can also be used if supported.
4. Qabbad man-Netwerk: Connect the NVR's LAN port to your local network router or switch using an Ethernet cable for remote access and network functionalities.
5. Qawwa Mixgħul: Connect the power adapter to the NVR and then to a power outlet. Flip the power switch on the rear panel to turn on the NVR.

3. Istruzzjonijiet Operattivi

3.1 Initial Login and Setup Wizard

Upon first boot, the NVR will typically guide you through an initial setup wizard. Follow the on-screen prompts to set up basic network configurations, date/time, and user accounts. It is crucial to change the default password for security purposes.

3.2 Ħaj View

After logging in, the NVR will display the live view ta' kameras konnessi. Tista' taqleb bejn kamera waħda view, grilja b'ħafna kameras view, and customize the display layout using the on-screen controls and mouse.

3.3 Ir-reġistrazzjoni

The NVR is configured to record video from connected cameras. Recording settings can be adjusted in the system menu, including continuous recording, motion-detection recording, and scheduled recording. The SRN-873S supports recording up to 4K (4096x2160) resolution at 20fps for 8MP cameras and up to 64Mbps total recording bandwidth for 2MP cameras.

3.4 Daqq

Biex terġa 'view irreġistrat footage, navigate to the playback menu. You can search for recordings by date, time, and event type. The NVR allows for synchronized playback of multiple channels and provides controls for fast-forward, rewind, and frame-by-frame viewing.

3.5 Backup

Important video footage can be backed up to an external USB storage device connected to the NVR's USB port. Access the backup menu, select the desired footage, and follow the prompts to initiate the backup process.

4. Manutenzjoni

4.1 Ġestjoni tal-Hard Drive

Regularly check the status of the hard drive(s) through the NVR's system information menu. Ensure there is sufficient storage space and that the drive is operating correctly. Replace failing hard drives promptly to prevent data loss. The NVR supports easy installation of removable HDDs.

4.2 Aġġornamenti tal-Firmware

Iċċekkja perjodikament il-manifattur website for available firmware updates. Firmware updates can improve performance, add new features, and address security vulnerabilities. Follow the provided instructions carefully when performing a firmware update.

4.3 Tindif

Keep the NVR unit clean and free from dust. Use a soft, dry cloth to wipe the exterior. Ensure ventilation openings are not obstructed to prevent overheating. Do not use liquid cleaners directly on the unit.
