Manwal ta' Istruzzjoni Ġeneriku CMAPADJ Awtomatiku tal-Magna tal-Kafè Airpot

Introduzzjoni

This manual provides essential instructions for the safe and efficient operation, setup, and maintenance of your Generic CMAPADJ Automatic Airpot Coffee Maker. Designed for commercial use, this unit delivers consistent coffee quality for high-volume environments such as restaurants and cafes. Please read this manual thoroughly before installation and use.

Informazzjoni Importanti dwar is-Sigurtà

• Always ensure the unit is properly grounded to prevent electrical shock.
• Tgħaddix l-apparat, korda, jew plagg fl-ilma jew likwidi oħra.
• Aqla 'l-kafè maker mill-iżbokk meta ma tkunx qed tuża u qabel tnaddaf.
• Tħaddim l-ebda apparat b'korda jew plagg bil-ħsara, jew wara li l-apparat ma jaħdimx jew ikun ġie bil-ħsara b'xi mod.
• Uża biss aċċessorji rakkomandati mill-manifattur.
• Żomm idejk u l-wajers 'il bogħod minn uċuħ sħan.
• Dan l-apparat huwa maħsub għal użu kummerċjali biss.

Komponenti tal-Prodott

Familiarize yourself with the main parts of your CMAPADJ Automatic Airpot Coffee Maker.

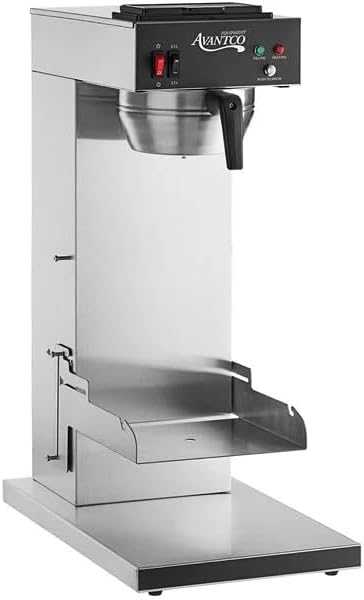

Figura 1: Quddiem View. This image displays the front of the coffee maker, showing the brew basket, control panel with power and heating indicators, and the adjustable shelf in its upper position.

Figura 2: Ġenb View. Din l-immaġni turi l-ġenb profile of the coffee maker, highlighting its compact design and the mechanism for the adjustable shelf.

Figura 3: Wara View. This image illustrates the back of the coffee maker, including the power cord connection and the main power switch.

Figure 4: Filter Basket. A dettaljata view of the stainless steel filter basket, designed to hold coffee grounds during the brewing process.

Setup Istruzzjonijiet

1. Spakkjar: Carefully remove the coffee maker from its packaging. Inspect for any shipping damage.
2. Pjazzament: Place the unit on a stable, level, heat-resistant surface. Ensure adequate clearance around the unit for ventilation.
3. Konnessjoni tal-Enerġija: Connect the power cord to a grounded 120V, 1450W electrical outlet.
4. Tindif Inizjali: Before first use, clean the brew basket and airpot (if included) with warm, soapy water. Rinse thoroughly.
5. Imla l-Ilma: Fill the water reservoir with fresh, cold water. Do not overfill.
6. Blata aġġustabbli: Adjust the shelf height to accommodate your airpot or serving vessel. The shelf can be moved up or down by loosening the side screws, positioning, and then re-tightening.

Istruzzjonijiet Operattivi

1. Qawwa Mixgħul: Flip the main power switch to the "ON" position. The "HEATING" indicator light will illuminate.
2. Żid il-Kafè: Place a commercial coffee filter into the brew basket. Add the desired amount of coffee grounds.
3. Position Airpot: Place your airpot or serving vessel on the adjustable shelf directly beneath the brew basket.
4. Ibda l-Birra: Once the water has reached the optimal brewing temperature (indicated by the "READY" light), press the "BREW" button to start the brewing cycle.
5. Proċess tal-birra: Hot water will dispense over the coffee grounds, and brewed coffee will drip into the airpot. The brewing temperature is maintained between 190-200°F for consistent results.
6. Tlestija: Once the brewing cycle is complete, the "BREWING" indicator will turn off. Carefully remove the airpot.
7. Irrepeti: To brew another batch, repeat steps 2-5. Ensure the water reservoir is refilled as needed.

This unit is designed to brew up to 60 (8 oz.) cups per hour, equivalent to approximately 3.8 gallons.

Manutenzjoni u Tindif

Tindif u manutenzjoni regolari jiżguraw il-lonġevità u l-prestazzjoni ottimali tal-magna tal-kafè tiegħek.

1. Tindif ta 'Kuljum:
   • Aqla 'l-unità u ħalliha tiksaħ kompletament.
   • Remove and discard used coffee grounds and filter.
   • Wash the brew basket and airpot (if applicable) with warm, soapy water. Rinse thoroughly and dry.
   • Imsaħ il-barra tal-magna bl-adamp drapp. Tużax cleaners li joborxu jew għorik.
2. Tneħħija tal-ġebla (Kull xahar jew skont il-bżonn):
   • Mineral deposits can build up over time, affecting performance.
   • Use a commercial descaling solution or a mixture of white vinegar and water (1 part vinegar to 2 parts water).
   • Run the descaling solution through a brew cycle without coffee grounds.
   • Follow with several cycles of fresh water to rinse thoroughly.
3. Blata aġġustabbli: Periodically check the tightness of the screws holding the adjustable shelf. Tighten if necessary.

Gwida dwar is-sejbien ta 'problemi

Speċifikazzjonijiet tal-Prodott

• Mudell: CMAPADJ
• Ditta: Ġeneriċi
• Qawwa: 120V, 1450W
• Dimensjonijiet (D x W x H): 18" x 11" x 27"
• Kapaċità: 3.8 Gallons (approx. 60 x 8 oz. cups per hour)
• Temperatura tal-Birra: 190-200°F (non-adjustable)
• Kostruzzjoni: Stainless Steel
• Modalità ta' Operazzjoni: Kompletament Awtomatiku
• Piż tal-oġġett: 33 liri

Garanzija u Appoġġ għall-Klijent

For warranty information, please refer to the documentation provided at the time of purchase or contact the retailer. For technical support or service inquiries, please contact Generic customer service directly. Contact details can typically be found on the product packaging or the manufacturer's official websit.
