Generic Replacement Carburetor for Full Boar FBT 4800 2.8HP Plate Compactor

1. Introduzzjoni

This instruction manual provides essential information for the safe and effective installation, operation, and maintenance of your new replacement carburetor. Please read this manual thoroughly before attempting any installation or maintenance procedures. Proper understanding and adherence to these instructions will ensure optimal performance and longevity of the carburetor.

2. Prodott Aktarview

This replacement carburetor is designed to provide the correct fuel-air mixture for your engine, ensuring efficient combustion and reliable operation. It is a critical component for the proper functioning of your Full Boar FBT 4800 2.8HP Plate Compactor.

Figura 2.1: Quddiem view of the replacement carburetor, showing the main body, fuel inlet, and throttle linkage. This image displays the overall structure and primary connections of the carburetor.

3. Kompatibilità

This carburetor is a replacement part specifically for the Full Boar FBT 4800 2.8HP Plate Compactor. Before ordering and installation, it is crucial to carefully compare the provided product photos and model information with your original carburetor to ensure full compatibility. Discrepancies can lead to improper fitment and engine malfunction.

Please verify the following:

• Visual appearance and dimensions match your existing carburetor.
• Mounting hole patterns are identical.
• Linkage and hose connections are consistent.

4. Installazzjoni

Is-Sigurtà l-Ewwel: Always ensure the engine is turned off, cooled down, and the spark plug wire is disconnected before beginning any installation or maintenance work to prevent accidental starting.

1. Ipprepara ż-Żona tax-Xogħol: Work in a well-ventilated area. Gather all necessary tools, including wrenches, screwdrivers, and a clean cloth.
2. Ixxotta l-Fjuwil: If necessary, drain the fuel tank to prevent spills.
3. Neħħi l-Assemblea tal-Filtru tal-Arja: Neħħi bir-reqqa l-kaxxa tal-filtru tal-arja u l-element tal-filtru biex taċċessa l-karburatur.
4. Skonnettja l-Linja tal-Fjuwil u l-Konnessjonijiet: Disconnect the fuel line from the carburetor. Note the routing of all throttle and choke linkages before detaching them. Taking photos can be helpful.
5. Neħħi l-Karburatur il-Qadim: Unbolt the old carburetor from the engine manifold. Be mindful of any gaskets that may be present.
6. Installa Karburatur Ġdid: Place new gaskets (if supplied or required) and mount the new carburetor onto the engine manifold. Tighten bolts securely but do not overtighten.
7. Reconnect Fuel Line and Linkages: Reattach the fuel line and all throttle and choke linkages in their original positions. Ensure all connections are secure and free of leaks.
8. Erġa' installa l-Assemblea tal-Filtru tal-Arja: Replace the air filter element and housing.
9. Refill Fuel and Test: Refill the fuel tank. Reconnect the spark plug wire. Start the engine and check for proper operation, adjusting idle and mixture screws if necessary (refer to your plate compactor's engine manual for specific adjustment procedures).

5. Konsiderazzjonijiet Operattivi

Once installed, the carburetor's primary function is to mix fuel and air in precise ratios for combustion. Proper operation relies on a clean fuel supply and correctly adjusted engine settings. If the engine runs poorly after carburetor replacement, ensure all connections are tight, fuel is clean, and air filter is not obstructed. Refer to your plate compactor's engine manual for detailed operating instructions and specific carburetor adjustment procedures.

6. Manutenzjoni

Regular maintenance of your carburetor is essential for reliable engine performance.

• Kwalità tal-Fjuwil: Always use fresh, clean fuel. Stale or contaminated fuel can clog carburetor jets and passages.
• Filtru tal-Fjuwil: Regularly check and replace the fuel filter to prevent debris from reaching the carburetor.
• Filtru tal-Arja: Keep the air filter clean and replace it as recommended by your engine manufacturer. A dirty air filter can restrict airflow, leading to a rich fuel mixture and poor performance.
• Tindif tal-Karburatur: If performance issues arise, the carburetor may need cleaning. This typically involves disassembling the carburetor, cleaning jets and passages with carburetor cleaner, and replacing gaskets. This procedure should only be performed by individuals with appropriate mechanical knowledge.
• Ħażna: Before long-term storage, run the engine until it runs out of fuel, or drain the fuel system, to prevent fuel from gumming up the carburetor.

7 Issolvi l-problemi

If your engine experiences issues after carburetor replacement, consider the following common troubleshooting steps:

• Il-Magna Mhux Tibda:
  • Check fuel supply and ensure the fuel line is not kinked or blocked.
  • Verify spark plug is clean and firing.
  • Ensure choke is set correctly for starting.
  • Confirm all carburetor linkages are properly connected and moving freely.
• Waqfien mhux maħdum jew Waqfien:
  • Check for vacuum leaks around the carburetor mounting gaskets.
  • Inspect the air filter for obstructions.
  • Adjust idle speed screw (refer to engine manual).
• Lack of Power or Poor Acceleration:
  • Ensure the throttle linkage is fully opening the throttle plate.
  • Check for clogged fuel filter or carburetor jets.
• Tnixxijiet tal-Fjuwil:
  • Spezzjona l-konnessjonijiet kollha tal-linji tal-fjuwil għal sigurtà.
  • Check carburetor bowl gasket and drain screw for proper sealing.

If issues persist after troubleshooting, it is recommended to consult a qualified service technician.

8. Speċifikazzjonijiet

Figura 8.1: Ġenb view of the carburetor with key dimensions indicated. The mounting hole spacing is shown as 0.72 inches and 0.34 inches.

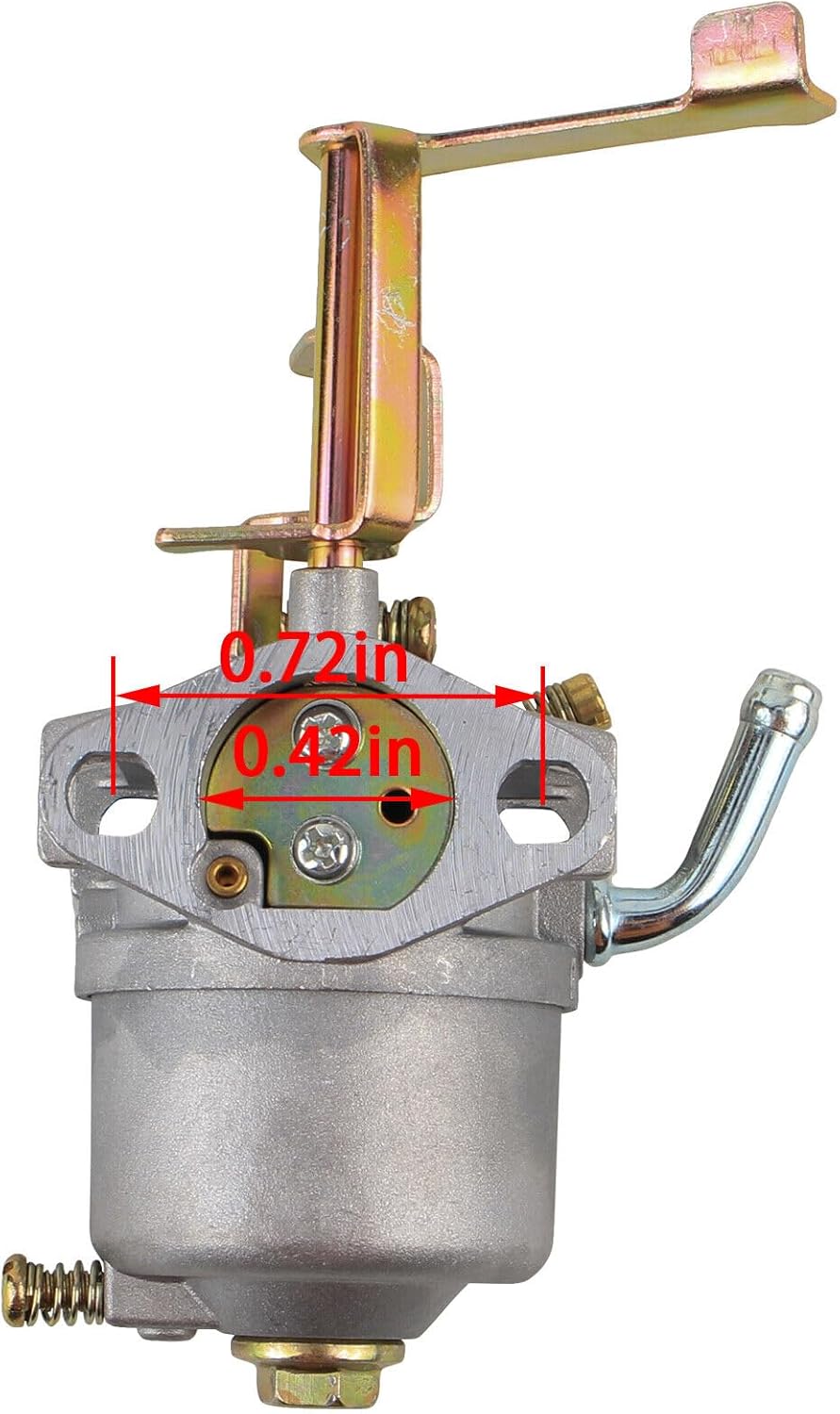

Figura 8.2: Naħa oħra view of the carburetor, providing additional dimensional details. The mounting hole spacing is indicated as 0.72 inches and 0.42 inches.

9. Kontenut tal-Pakkett

Il-pakkett jinkludi:

• 1 x Replacement Carburetor (PC ONLY)

10. Appoġġ

If you have any questions regarding this item, its compatibility, or require further assistance with installation or troubleshooting, please feel free to contact the seller through the platform where the purchase was made. Provide your order details and a clear description of your inquiry for prompt support.
