QCHMM Mini Electric Bicycle Pump User Manual

1. Introduzzjoni

Thank you for choosing the QCHMM Mini Electric Bicycle Pump. This compact and portable pump is designed for efficient and precise inflation of bicycle tires and other inflatables. It features a memory function, compatibility with both Presta and Schrader valves, and an automatic shut-off mechanism for safe operation. Please read this manual thoroughly before use to ensure proper handling and optimal performance.

2. Istruzzjonijiet Importanti dwar is-Sigurtà

• Dan l-apparat mhuwiex ġugarell. Żomm fejn ma jintlaħaqx mit-tfal.
• Do not expose the pump to rain or moisture. Store in a dry place.
• Avoid operating the pump in excessively hot or cold environments.
• Do not overinflate tires or other items. Always refer to the recommended pressure for your specific item.
• Ensure the inflation hose is securely connected to both the pump and the valve before starting inflation.
• Do not block the air inlet/outlet during operation.
• Uża biss il-kejbil tal-iċċarġjar ipprovdut u adapter tal-enerġija kompatibbli.
• If the pump emits unusual noises, smells, or smoke, discontinue use immediately and contact support.

3. Kontenut tal-Pakkett

Jekk jogħġbok iċċekkja l-pakkett għall-oġġetti li ġejjin:

• QCHMM Mini Electric Bicycle Pump
• Manka tal-Inflazzjoni
• Cable tal-Iċċarġjar tal-USB
• Valve Adapters (e.g., ball needle, swimming ring nozzle)
• Borża tal-Ħażna
• Manwal għall-Utent

4. Prodott Aktarview

Familiarize yourself with the pump's components and controls:

Deskrizzjoni tal-Immaġni: A close-up view of the QCHMM Mini Electric Bicycle Pump held in a hand. The digital display shows '0.00' for real-time pressure and '100.1' for preset pressure, along with unit indicators (PSI, BAR, KPA, Kg/cm²). Below the display are four control buttons: Power On/Off, Increase Pressure Value (+), Decrease Pressure Value (-), Switch Pressure Unit, and Switch Pressure Modes.

• Wirja Diġitali: Shows real-time pressure, preset pressure, pressure units, and selected inflation mode.
• Buttuna tal-Qawwa: Agħfas fit-tul għal 2 sekondi biex tixgħel/itfi.
• Buttuna '+': Increase preset pressure value.
• Buttuna '-': Decrease preset pressure value.
• Unit Switch Button (Sun icon): Cycle through PSI, BAR, KPA, KG/cm².
• Mode Switch Button (Arrow icon): Cycle through Road Bike, E-Bike, Mountain Bike, and Ball modes.
• Inflation Port: Where the inflation hose connects.
• Port tal-Iċċarġjar USB-C: Għall-iċċarġjar tal-batterija interna.

5. Setup

5.1 Iċċarġjar inizjali

Before first use, fully charge the pump. Connect the provided USB charging cable to the pump's USB-C port and a compatible USB power adapter (not included). The charging indicator on the display will show charging status. A full charge is recommended for optimal battery life and performance.

5.2 Attaching the Inflation Hose

Screw the inflation hose securely into the inflation port on the top of the pump. Ensure it is finger-tight to prevent air leakage.

6. Istruzzjonijiet Operattivi

6.1 Tixgħel/Jitfi

Agħfas fit-tul il- Buttuna tal-Qawwa for 2 seconds to turn the pump on or off.

6.2 Connecting to the Valve

The pump is compatible with both Presta and Schrader valves. Attach the appropriate end of the inflation hose to your tire valve. For Presta valves, you may need to unscrew the valve cap and lightly press the valve stem to release any trapped air before connecting.

Deskrizzjoni tal-Immaġni: A split image demonstrating the QCHMM pump connected to two different bicycle tire valves. The left side shows the pump connected to a Schrader valve, and the right side shows it connected to a Presta valve, highlighting its dual compatibility.

6.3 Setting Pressure Units and Modes

After powering on, the display will show the current real-time pressure. You can adjust the settings:

• Agħfas il- Unit Switch Button (Sun icon) to cycle through available pressure units: PSI, BAR, KPA, KG/cm².
• Agħfas il- Mode Switch Button (Arrow icon) to select an inflation mode: Road Bike, E-Bike, Mountain Bike, or Ball. Each mode may have a default preset pressure range.

Deskrizzjoni tal-Immaġni: A dettaljata view of the QCHMM pump's display, illustrating the various unit choices (PSI, BAR, KPA, KG/cm²) and preset pressure ranges for different inflation modes: Road Bike, E-Bike, Mountain Bike, and Ball. The display shows a current pressure of 17.0 and a preset of 100.1.

6.4 Issettjar tal-Pressjoni Mira

Uża l- '+' u '-' buttons to adjust the desired target pressure. The pump features a memory function, meaning it will recall the last set pressure value for each mode, so you may not need to reset it every time.

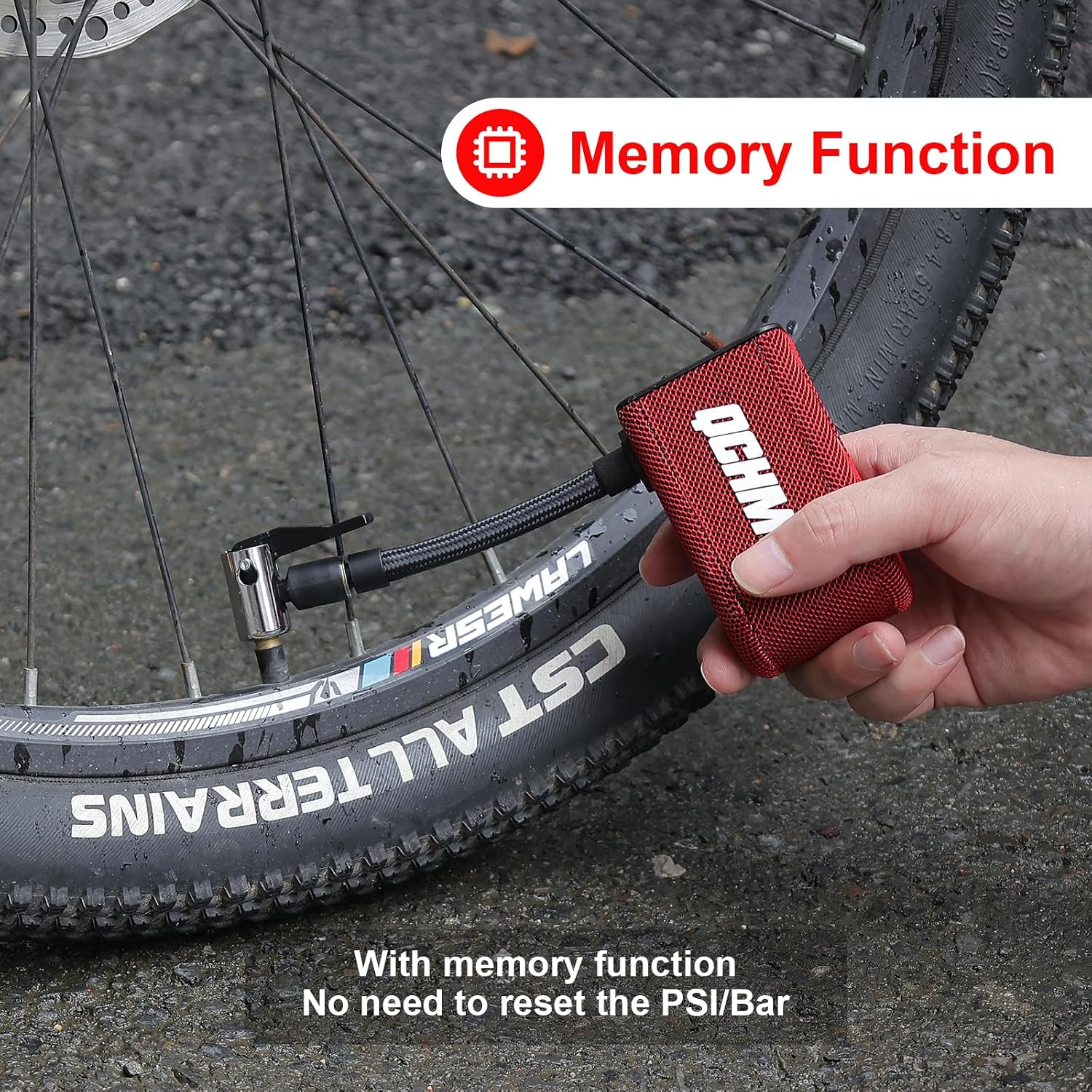

Deskrizzjoni tal-Immaġni: The QCHMM Mini Electric Bicycle Pump is shown connected to a bicycle tire valve, with the text "Memory Function" and "No need to reset the PSI/Bar" overlaid, indicating the pump's ability to remember previous pressure settings.

6.5 Il-Bidu u t-Twaqqif tal-Inflazzjoni

Once the target pressure is set, short press the Buttuna tal-Qawwa to start inflation. The pump will automatically stop when the preset pressure is reached. To manually stop inflation at any time, short press the Buttuna tal-Qawwa mill-ġdid.

Deskrizzjoni tal-Immaġni: The QCHMM Mini Electric Bicycle Pump is actively inflating a bicycle tire, connected via its hose to the valve. The pump's display is visible, showing inflation in progress.

7. Manutenzjoni

7.1 Tindif

Wipe the pump with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners. Ensure no water enters the charging port or inflation port.

7.2 Ħażna

Store the pump in a cool, dry place, away from direct sunlight and extreme temperatures. Use the provided storage bag to protect it from dust and damage.

7.3 Kura tal-Batterija

To prolong battery life, charge the pump at least once every three months, even if not in regular use. Avoid fully discharging the battery frequently.

8 Issolvi l-problemi

9. Speċifikazzjonijiet

• Mudell: B0D5Y4XSC6
• Dimensjonijiet: 3.8 x 5.5 x 9 ċm (1.5 x 2.2 x 3.5 pulzieri)
• Piż: 145 gramma (0.32 lbs)
• Materjal: Aluminju
• Sors tal-Enerġija: Battery (2 Lithium Polymer batteries included)
• Pressjoni massima: 100 PSI / 6.8 Bar
• Unitajiet tal-Pressjoni: PSI, BAR, KPA, KG/cm²
• Inflation Modes: Road Bike, E-Bike, Mountain Bike, Ball
• Port tal-Iċċarġjar: USB-C

10. Garanzija u Appoġġ

For warranty information and customer support, please refer to the documentation provided with your purchase or contact the seller directly through the platform where the product was acquired. Keep your purchase receipt as proof of purchase.
