Dosilkc DS-LBQ01

Manwal tal-Utent tal-Kamera tas-Sigurtà tal-Bozza tad-Dawl Dosilkc DS-LBQ01 2K

Model: DS-LBQ01 | Brand: Dosilkc

Introduzzjoni

This manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of your Dosilkc DS-LBQ01 2K Light Bulb Security Camera. Please read this manual thoroughly before using the product to ensure proper function and safety.

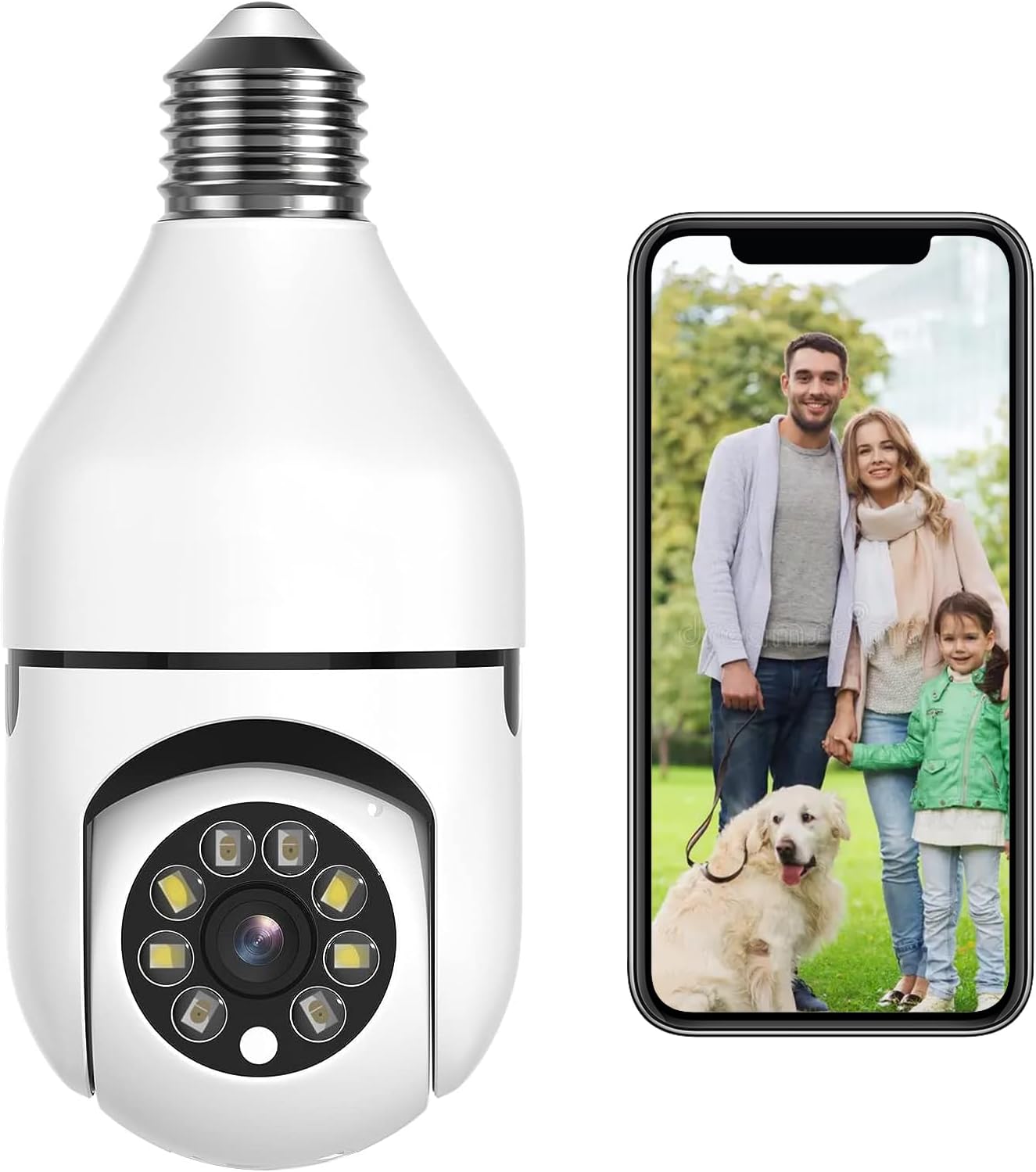

Dosilkc DS-LBQ01 2K Light Bulb Security Camera and a smartphone displaying a family image

Image: The Dosilkc DS-LBQ01 2K Light Bulb Security Camera, shown next to a smartphone displaying a live feed of a family.

Setup u Installazzjoni

The Dosilkc DS-LBQ01 camera is designed for easy installation into a standard E27 light bulb socket. Ensure the power to the socket is turned off before installation.

Itfi: Before beginning, ensure the power supply to the E27 light socket is completely turned off at the circuit breaker or switch.
Installa Kamera: Carefully screw the Dosilkc DS-LBQ01 camera into the E27 light socket. Ensure it is securely fastened.
Qawwa Mixgħul: Restore power to the light socket. The camera will initiate its startup sequence.
Niżżel l-App: Download the designated mobile application (refer to product packaging or included quick start guide for app name) from your device's app store (iOS/Android).
Qabbad mal-Wi-Fi: Open the app and follow the on-screen instructions to connect the camera to your Wi-Fi network. The camera supports both 2.4GHz and 5GHz Wi-Fi bands.
Konfigurazzjoni Inizjali: Complete any initial setup steps within the app, such as setting a password and adjusting basic camera settings.

Dosilkc DS-LBQ01 camera being screwed into an E27 light socket, with examples of it installed in a living room and dining room.

Image: Visual guide demonstrating the simple screw-in installation of the camera into an E27 light socket, with examples of its placement in home environments.

Istruzzjonijiet Operattivi

1. Ħaj View u Aċċess Remot

Once connected, access the live video feed from your camera anytime, anywhere via the mobile application on your iOS or Android smartphone.

2. Pan, Tilt, and Digital Zoom (PTZ)

The camera offers a 355° pan and 90° tilt capability. Use the controls within the mobile app to remotely adjust the camera's viewing angle. The camera also supports 4x digital zoom for closer inspection of details.

Dosilkc DS-LBQ01 camera showing 355 degree pan and 120 degree tilt capabilities, with a smartphone displaying the camera's view of a living room.

Image: Illustration of the camera's pan (355°) and tilt (90°) movement range, alongside a smartphone showing the wide coverage in a room.

3. Human Motion Detection and Tracking

The camera features advanced AI-powered human motion detection. When a person is detected, the camera can automatically track their movement within its field of view and send real-time alerts to your smartphone. This system is designed to filter out up to 95% of false alarms.

Dosilkc DS-LBQ01 camera detecting a person, triggering an email alert and app notification.

Image: Diagram illustrating the human detection process, from detection by the camera to email and app notifications on a smartphone.

4. Dual-Light Full Color Night Vision

The camera is equipped with dual-light technology, providing both infrared (IR) night vision and full-color night vision. In low-light conditions, the camera can automatically switch to full-color mode to capture more detailed and identifiable images.

Comparison of IR Night Vision and Color Night Vision from the Dosilkc DS-LBQ01 camera, showing a clearer image in color mode.

Image: A side-by-side comparison demonstrating the difference between standard IR night vision and the enhanced full-color night vision feature.

5. Awdjo b'żewġ direzzjonijiet

Utilize the built-in microphone and speaker for two-way communication. This allows you to listen to the camera's environment and speak through the camera using the mobile app.

Dosilkc DS-LBQ01 camera enabling two-way communication between a child and a parent via smartphone.

Image: Depiction of the two-way audio function, showing a child speaking near the camera and a parent responding via a smartphone.

6. Reġistrazzjoni u Ħażna tal-Vidjo

The camera supports 24/7 continuous recording. Footage can be stored locally on a Micro SD card (up to 256GB, not included) or via cloud storage services (subscription may be required). The camera is compatible with NVRs and third-party software using the Onvif protocol.

Dosilkc DS-LBQ01 camera with icons for 5G WiFi, Micro SD card, and cloud storage, showing video playback thumbnails.

Image: Visual representation of the camera's dual-band Wi-Fi connectivity and dual storage options (Micro SD card and cloud), with examples of recorded video playback.

Manutenzjoni

Tindif: Gently wipe the camera lens and exterior with a soft, dry cloth. Avoid using harsh chemicals or abrasive materials.
Aġġornamenti tal-Firmware: Regularly check the mobile application for available firmware updates. Keeping the firmware updated ensures optimal performance and security.
Ġestjoni tal-Karta SD: If using a Micro SD card for local storage, it is recommended to periodically format the card through the camera's app settings to maintain performance and free up space. Note that deleting individual recordings directly from the SD card via the app may not be supported; reformatting is typically required to clear content.

Issolvi l-problemi

Ħruġ	Kawża Possibbli	Soluzzjoni
Il-kamera ma tikkonnettjax mal-Wi-Fi	Incorrect Wi-Fi password, camera too far from router, router settings (e.g., firewall), weak Wi-Fi signal.	Ivverifika l-password tal-Wi-Fi. Mexxi l-kamera eqreb lejn ir-router. Ensure your router supports 2.4GHz/5GHz and is configured correctly. Ibda mill-ġdid il-kamera u r-router.
Ebda twissijiet ta 'skoperta ta' moviment	Motion detection sensitivity too low, detection zone not set, app notifications disabled.	Aġġusta s-sensittività tad-detezzjoni tal-moviment fl-app. Define or check the detection zone. Enable app notifications for the camera. Kun żgur li l-kamera għandha ċara view taż-żona.
Kwalità fqira tal-vidjo	Weak Wi-Fi signal, dirty lens, low bandwidth.	Ensure strong Wi-Fi signal. Naddaf il-lenti tal-kamera. Iċċekkja l-veloċità tal-konnessjoni tal-internet tiegħek.
Camera loses connection after power outage	Network configuration reset, camera requires re-initialization.	In some cases, a power interruption may require the camera to be re-added to the app. If the camera does not automatically reconnect: Delete the camera from the mobile app. Reformat the Micro SD card (if installed). Perform the initial setup steps again as described in the "Setup and Installation" section.

Speċifikazzjonijiet

Mudell	DS-LBQ01
Riżoluzzjoni	2K (2304*1296), 3MP Effective Still Resolution
Konnettività	Wi-Fi (2.4GHz/5GHz)
Sors tal-Enerġija	Corded Electric (110V-240V, E27 Socket)
Medda Pan/Tilt	Pan 355°, Mejjel 90°
Viżjoni bil-lejl	IR Night Vision, Full Color Night Vision (Dual-Light)
Għażliet ta' Ħażna	Karta Mikro SD (sa 256GB, mhux inkluża), Ħażna fis-Sħab
Awdjo	Awdjo b'żewġ direzzjonijiet (Mikrofonu u Speaker integrati)
Sejbien tal-Moviment	Human Motion Detection & Tracking
Użu fuq ġewwa/barra	Ġewwa
Dimensjonijiet (L x W x H)	6.1 x 2.8 x 2.8 pulzieri (15.5 x 7.1 x 7.1 ċm)
Piż	7.8 uqija (221 gramma)
Komponenti Inklużi	Light Bulb Camera, Light Socket, User Manual

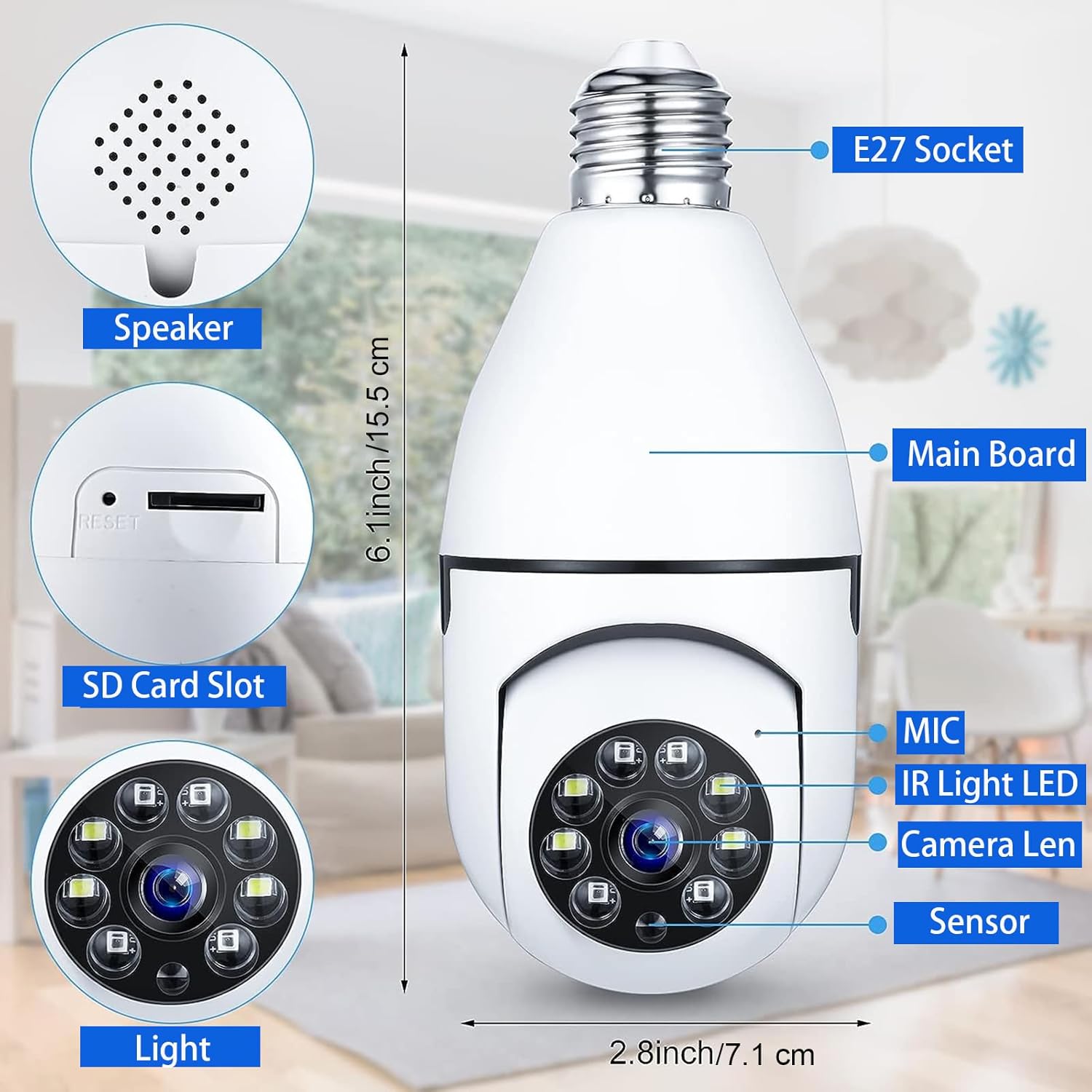

Detailed diagram of the Dosilkc DS-LBQ01 camera showing its components and dimensions.

Immaġni: Sploda view of the camera highlighting key components like the speaker, SD card slot, microphone, IR LEDs, camera lens, and sensor, along with its dimensions.

Garanzija u Appoġġ

For warranty information and technical support, please refer to the documentation included with your product packaging or visit the official Dosilkc website. Contact details for customer service are typically provided in these resources.
