Manwal tal-Utent tar-Rota Elettrika Airwest 26 x 4.0" b'Tajers Kbar

1. Introduzzjoni

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your airwest 26 x 4.0" Fat Tire Electric Bicycle. Please read this manual thoroughly before using your electric bicycle to ensure proper assembly, safe riding, and optimal performance. Keep this manual for future reference.

The airwest electric bicycle is designed for versatile terrain, offering a powerful 250W Bafang motor, a long-range 48V 15Ah Samsung battery, Shimano 7-speed gears, and dual hydraulic disc brakes for a safe and enjoyable riding experience.

2. Informazzjoni dwar is-Sigurtà

Is-sigurtà tiegħek hija importanti ħafna. Dejjem segwi l-linji gwida ta' sigurtà li ġejjin:

• Użu tal-elmu: Always wear a certified bicycle helmet when riding.
• Kontroll ta' Qabel is-Sewqan: Before each ride, inspect tires, brakes, battery, and all fasteners to ensure they are secure and functioning correctly.
• Liġijiet tat-Traffiku: Obdi l-liġijiet u r-regolamenti kollha tat-traffiku lokali.
• Viżibilità: Use the integrated lights and rear reflector, especially during low-light conditions. Consider wearing reflective clothing.
• Kundizzjonijiet tat-Temp: Exercise caution when riding in wet or slippery conditions. The IP65 waterproof rating for the battery allows for riding in various weather, but always prioritize safety.
• Limitu tal-Piż: Do not exceed the recommended weight capacity of the bicycle.
• Sigurtà tal-batterija: Only use the provided charger. Do not attempt to open or modify the battery pack. Charge in a well-ventilated area.
• Ibbrejkjar: Familiarize yourself with the hydraulic disc brakes. Practice braking in a safe area before riding in traffic.

3. Setup u Assemblea

Your airwest electric bicycle is 85% pre-assembled. The following steps detail the final assembly process. An installation video and tools are included for assistance.

3.1 Tneħħija tal-kaxxa u Spezzjoni

Carefully remove all components from the packaging. Inspect for any damage during transit. Ensure all parts listed in the packing list are present.

3.2 Installazzjoni tar-rota ta' quddiem

Align the front wheel with the fork dropouts. Ensure the brake rotor slides correctly into the brake caliper. Secure the wheel using the quick-release skewer or axle nuts as per the specific design.

3.3 Installazzjoni tal-manubriju

Attach the handlebar to the stem. Ensure the handlebar is centered and the brake levers and shifters are positioned comfortably for easy access. Tighten all bolts securely.

3.4 Seat Post and Saddle Installation

Insert the seat post into the frame's seat tube. Adjust the saddle height to ensure a comfortable and safe riding position. The adjustable seat allows for different rider heights. Secure the seat post clamp sod.

3.5 Installazzjoni tal-pedali

Identify the left (L) and right (R) pedals. Apply a small amount of grease to the pedal threads. Screw the pedals into the crank arms. Remember that the left pedal has a reverse thread (tightens counter-clockwise). Tighten firmly with a wrench.

3.6 Iċċarġjar tal-batterija

Before first use, fully charge the 48V 15Ah Samsung battery. The battery can be charged on or off the bike. Charging time is approximately 4-5 hours. Use only the provided charger.

Figure 3.6: The 48V 15Ah Samsung battery, which can be charged on or off the bike. It features IP65 waterproofing and anti-theft locking.

4. Istruzzjonijiet Operattivi

Understanding the different modes and controls will enhance your riding experience.

4.1 Tixgħel/Jitfi

Locate the power button on the LCD display. Press and hold to turn the system on or off.

4.2 Funzjonijiet tal-Wiri LCD

The LCD display provides real-time riding data:

• Veloċità: Veloċità attwali tas-sewqan.
• Mili: Distanza totali vvjaġġata.
• Qawwa: Indikatur tal-livell tal-batterija.
• Modalità ta' Riding: Indicates the current assistance mode.

4.3 Modi tas-Sewqan

Your airwest electric bicycle offers three distinct riding modes:

• Normal Bicycle Mode: In this mode, the electric motor provides no assistance. The bicycle operates like a traditional pedal bike, relying solely on your pedaling power.
• Modalità ta' Assistenza bil-Pedali (PAS): This mode provides electric assistance as you pedal. There are 5 adjustable levels of assistance. Use the '+' and '-' buttons on the display to increase or decrease the assistance level. Higher levels provide more power, making pedaling easier, especially on inclines.
• Modalità Mixja: This mode provides a very low power impulse (approximately 6 km/h) to assist you when walking alongside the bicycle, useful for navigating crowded areas or pushing the bike uphill.

4.4 Shimano 7-Speed Gears

The Shimano 7-speed gear system allows you to adjust your pedaling effort to match terrain and speed. Use the shifter on the handlebar to change gears. Lower gears (larger cogs) are for climbing hills, while higher gears (smaller cogs) are for faster speeds on flat terrain.

4.5 Sistema tal-Ibbrejkjar

The bicycle is equipped with dual hydraulic disc brakes for superior stopping power and control. Apply both front and rear brakes simultaneously for effective and safe stopping. Avoid sudden, hard braking, especially with the front brake, to prevent skidding.

Figure 4.5: The dual hydraulic disc brakes provide reliable stopping power in all weather conditions.

4.6 Furketta tas-Sospensjoni

The hydraulic locking front suspension fork provides a smoother ride over rough terrain. You can lock the suspension for more efficient pedaling on smooth surfaces or unlock it for shock absorption on uneven paths.

Figure 4.6: The airwest electric bicycle featuring its robust design, fat tires, and front suspension.

5. Manutenzjoni

Manutenzjoni regolari tiżgura l-lonġevità u t-tħaddim sikur tar-rota elettrika tiegħek.

5.1 Tindif

Naddaf ir-rota tiegħek regolarment b'reklamaramp cloth and mild soap. Avoid high-pressure washing, especially around electrical components and bearings.

5.2 Pressjoni tat-Tajers

Check tire pressure before each ride. The 26" x 4.0" fat tires require specific pressure for optimal performance and comfort. Refer to the tire sidewall for recommended PSI ranges. Proper inflation prevents punctures and improves ride quality.

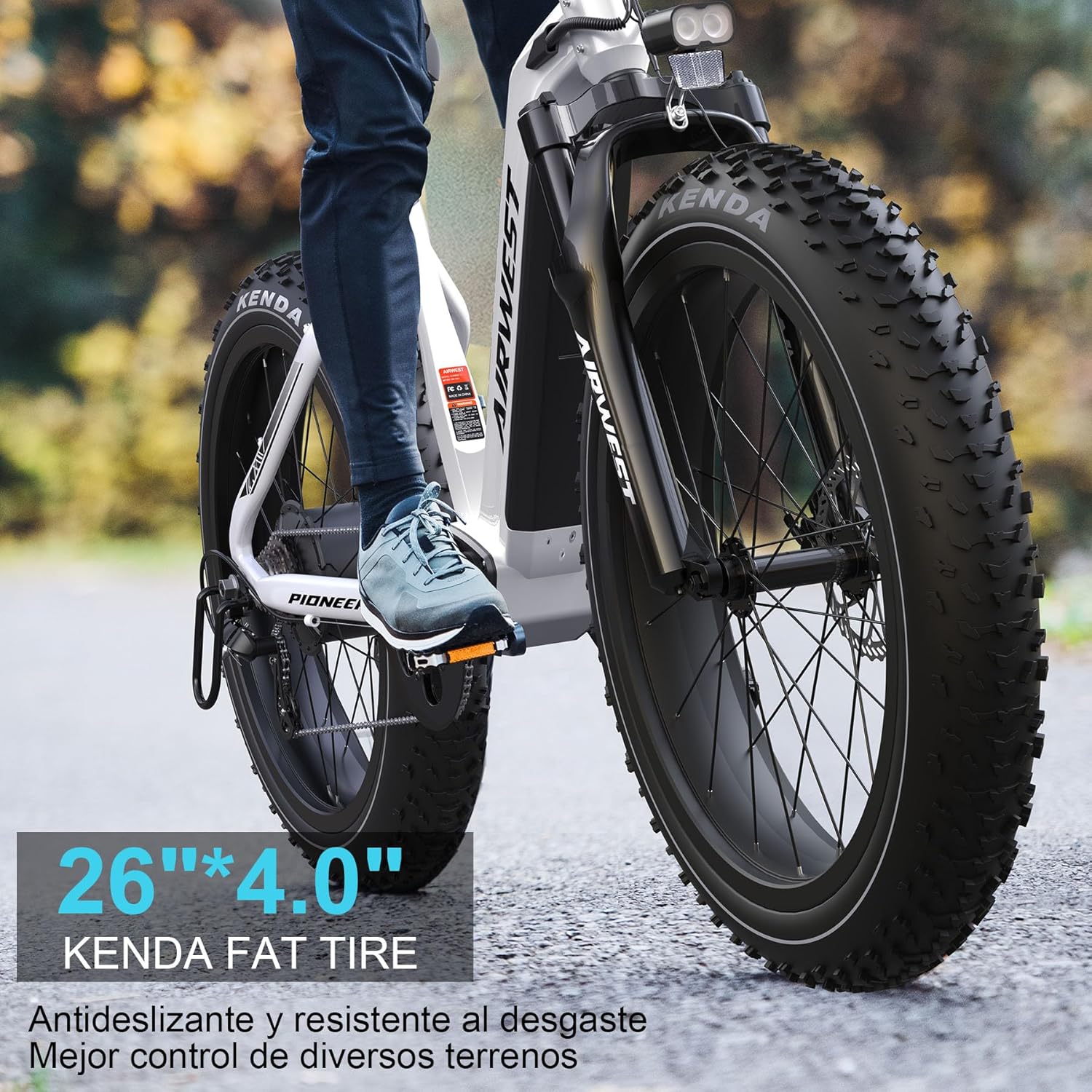

Figure 5.2: Close-up of the 26" x 4.0" Kenda fat tire, designed for various terrains.

5.3 Lubrikazzjoni tal-Katina

Lubricate the chain regularly, especially after riding in wet conditions. A well-lubricated chain ensures smooth gear changes and reduces wear.

5.4 Spezzjoni tal-Brejk

Regularly check brake pads for wear and brake levers for proper function. If brakes feel spongy or less effective, they may need adjustment or fluid bleeding by a qualified technician.

5.5 Kura tal-Batterija

Store the battery in a cool, dry place. If storing for extended periods, charge the battery to approximately 50-70% and recharge every 2-3 months to maintain battery health.

5.6 Fastener Check

Periodically check all bolts and nuts for tightness, especially on critical components like the handlebars, seat post, wheels, and crank arms.

6 Issolvi l-problemi

This section addresses common issues you might encounter with your airwest electric bicycle.

For issues not covered here, please contact airwest customer support.

7. Speċifikazzjonijiet

Figure 7.1: Detailed size parameters of the airwest electric bicycle.

8. Garanzija u Appoġġ

airwest provides professional after-sales service. For any questions or concerns regarding your electric bicycle, please contact our customer service team. We aim to respond to all inquiries within 24 hours.

Jekk jogħġbok irreferi għad-dokumentazzjoni tax-xiri tiegħek għat-termini u l-kundizzjonijiet speċifiċi tal-garanzija. Żomm il-prova tax-xiri tiegħek għal talbiet ta' garanzija.

For installation assistance, an installation video and manual are provided with the product.
