Introduzzjoni
This manual provides detailed instructions for the installation, operation, and maintenance of your Blue Mountain Fans 48" Primo Brushed Nickel Finish Ceiling Fan. Please read this manual thoroughly before installation and retain it for future reference. This ceiling fan is designed for indoor use and features a brushed nickel finish, 5 reversible silver and oak blades, an integrated LED light kit, and a full-function remote control.

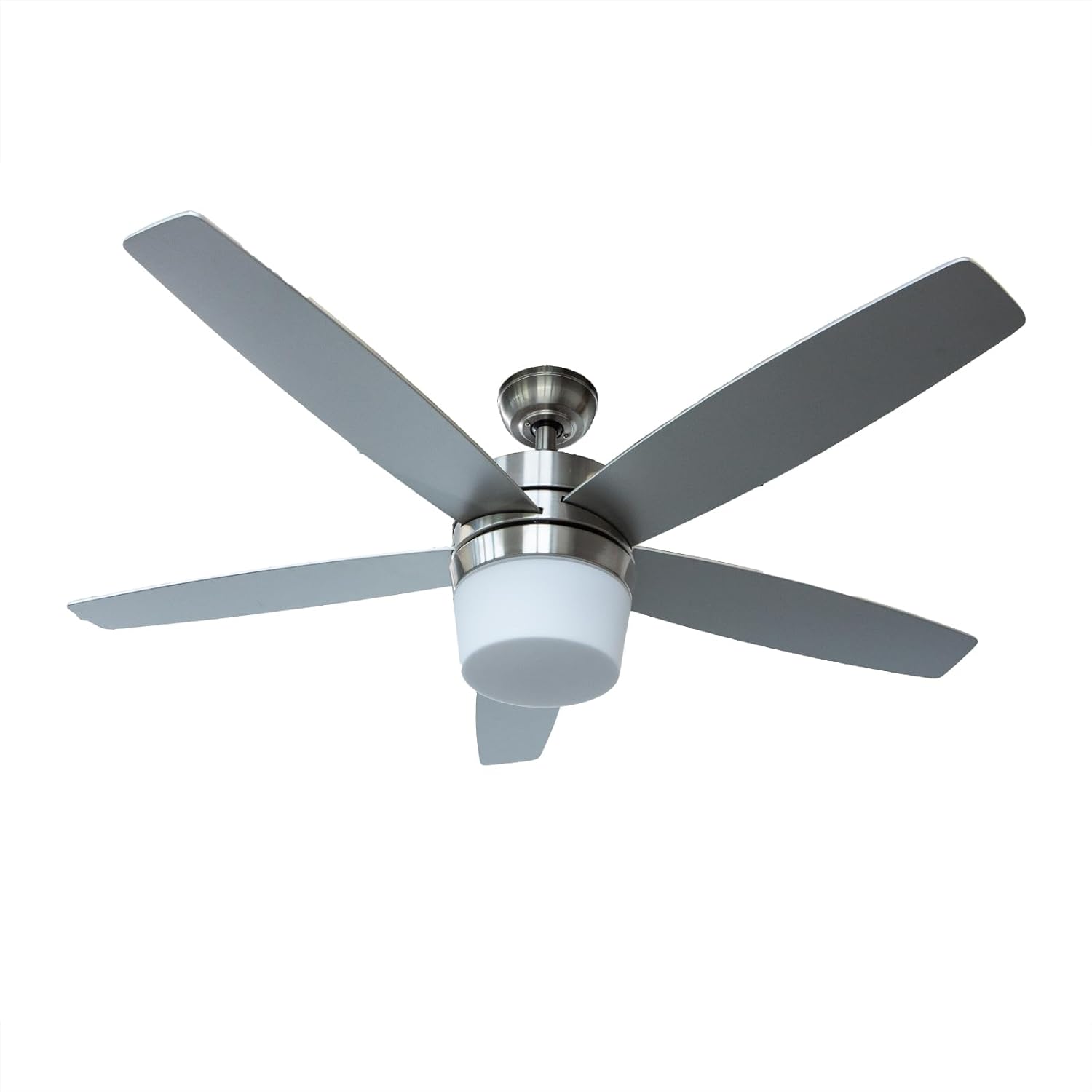

Image: The Blue Mountain Fans 48" Primo Ceiling Fan with brushed nickel finish and light kit.
Informazzjoni dwar is-Sigurtà
Dejjem segwi l-prekawzjonijiet bażiċi ta’ sigurtà meta tinstalla u tħaddem apparati elettriċi. Jekk ma tagħmilx dan, jista’ jkun hemm nar, xokk elettriku, jew korriment personali.
- Kun żgur li l-enerġija tkun mitfija mis-circuit breaker qabel l-installazzjoni jew il-manutenzjoni.
- Il-wajers kollha għandhom ikunu skont il-kodiċijiet elettriċi nazzjonali u lokali.
- L-istruttura tal-immuntar trid tkun kapaċi ssostni l-piż tal-fann (madwar 17.16 libbra).
- Tħaddimx il-fann b'xfafar jew housing bil-ħsara.
- Żomm idejk, xagħar u ħwejjeġ 'il bogħod mix-xfafar tal-fann li jiċċaqalqu.
- Dan il-fann huwa għal użu fuq ġewwa biss.
Kontenut tal-Pakkett
Iċċekkja li l-komponenti kollha huma preżenti qabel tibda l-installazzjoni:
- Assemblaġġ tal-Mutur tal-Fann tas-Saqaf
- 5 Reversible Blades (Silver and Oak finish)
- Light Kit with Opal Glass
- 2-il Basal LED Dimmable
- Downrod ta' 6 pulzieri
- Bracket tal-Immuntar
- Full Function Handheld Remote Control
- Pakkett tal-Ħardwer (viti, woxers, ġewż tal-wajer)
- Manwal ta' Istruzzjoni
Setup u Installazzjoni
Professional installation is recommended. Follow these general steps for setup:
- Itfi l-Enerġija: Disconnect power at the main circuit breaker to prevent electrical shock.
- Installazzjoni tal-Bracket tal-Immuntar: Waħħal il-bracket tal-immuntar mal-kaxxa tal-junction tas-saqaf. Kun żgur li l-kaxxa tal-junction hija mwaħħla sew mal-istruttura tal-bini u tista' ssostni l-piż tal-fann.
- Assemblea Downrod: Insert the downrod through the canopy and coupling. Feed the fan wires through the downrod.
- Fann Imdendel: Carefully lift the fan motor assembly and hang it on the mounting bracket.
- Konnessjonijiet tal-Wiring: Connect the fan's electrical wires to the household wiring according to the wiring diagram provided in the full PDF manual. Ensure all connections are secure.
- It-twaħħil tax-xafra: Attach the 5 reversible blades to the motor housing using the provided screws. Choose either the silver or oak side facing down.
- Installazzjoni tal-Kit tad-Dawl: Connect the light kit wires and secure the light kit to the fan motor assembly. Install the two dimmable LED bulbs and attach the opal glass shade.
- Installazzjoni tal-kanupew: Slide the canopy up and secure it to the mounting bracket, covering the wiring connections.
Image: The 48" Primo ceiling fan with oak-finish blades installed in a room setting.
Istruzzjonijiet Operattivi
Your Blue Mountain Fans Primo ceiling fan comes with a full-function handheld remote control for convenient operation.
Image: The 48" Primo ceiling fan shown with its remote control, highlighting its remote operation capability.
Funzjonijiet tal-Kontroll mill-bogħod:
- Kontroll tal-veloċità tal-fann: The remote allows you to select between 3 fan speeds (High, Medium, Low).
- Light On/Off and Dimming: Control the integrated LED light kit. The light is fully dimmable.
- Mutur Riversibbli: The 3-speed reversible motor allows for year-round comfort.
- Modalità tas-Sajf (Kontra l-arloġġ): Joħloq fluss tal-arja 'l isfel, u jipprovdi effett ta' tkessiħ.
- Modalità tax-Xitwa (Lejn l-Arloġġ): Creates an upward airflow, circulating warm air trapped near the ceiling. The reverse switch is typically located on the fan motor housing.
Manutenzjoni
Manutenzjoni regolari tiżgura l-lonġevità u l-prestazzjoni ottimali tal-fann tas-saqaf tiegħek.
- Tindif: Biex tnaddaf il-fann, imsaħ b'ċarruta ratba u damp cloth. Do not use abrasive cleaners or solvents as they may damage the finish or blades.
- Tindif tax-xafra: Dust the blades regularly to prevent dust buildup, which can affect fan balance and performance.
- Issikka l-Viti: Periodically check all screws on the fan and light kit to ensure they are tight. Vibration from normal operation can cause them to loosen over time.
- Lubrikazzjoni: Il-mutur huwa llubrikat b'mod permanenti u ma jeħtieġx iż-żejt.
Issolvi l-problemi
Jekk tesperjenza problemi bil-fann tas-saqaf tiegħek, irreferi għall-problemi u s-soluzzjonijiet komuni li ġejjin:
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Fan ma jibda | Ebda enerġija għall-fann; Konnessjonijiet tal-wajers maħlula; Batterija tal-kontroll remot baxxa. | Iċċekkja s-circuit breaker; Ivverifika li l-konnessjonijiet tal-wajers kollha huma sikuri; Ibdel il-batterija tal-kontroll remot. |
| Fan wobbles | Loose blades or blade holders; Unbalanced blades; Loose mounting bracket. | Ensure all blade screws are tight; Use a balancing kit (not included) if necessary; Tighten mounting bracket screws. |
| Id-dawl ma jaħdimx | Konnessjoni tal-wajer maħlula; Bozza difettuża; Problema bil-kontroll remot. | Check light kit wiring; Replace LED bulbs; Ensure remote is paired and battery is good. |
| Operazzjoni storbjuża | Viti maħlula; Ħoss tal-mutur; Xfafar jolqtu ostruzzjoni. | Tighten all screws; Some motor hum is normal; Ensure blades have clearance. |
Speċifikazzjonijiet
Detailed specifications for the Blue Mountain Fans 48" Primo Ceiling Fan:
| Karatteristika | Dettall |
|---|---|
| Brand | Ġeneriċi |
| Isem tal-Mudell | Primo |
| Kulur | 48" Primo (Brushed Nickel Finish) |
| Disinn tal-Fann Elettriku | Fann tas-saqaf |
| Sors tal-Enerġija | AC |
| Stil | Kontemporanju |
| Dimensjonijiet tal-Prodott | 48"D x 48"W x 15.4"H |
| Tip ta' Kamra | Kċina, Kamra tal-Ħajja, Kamra tas-sodda, Uffiċċju tad-Dar, Kamra tal-pranzu |
| Karatteristiċi Speċjali | Multi-Speed, Reversible Airflow, LED Light, Remote Control, Adjustable Tilt |
| Użi Rakkomandati | Ventilating, Cooling, Air Circulation |
| Tip Finish | Brushed |
| Numru ta' Xfafar | 5 |
| Kapaċità tal-Fluss tal-Ajru | 2966 Piedi Kubu Fil-Minuta |
| Komponenti Inklużi | Light Kit, Downrod, Remote, Cord |
| Użu fuq ġewwa/barra | Ġewwa |
| Speċifikazzjoni Met | ETL |
| Metodu ta' Kontroll | Remote |
| Tip Dawl | LED |
| Materjal tax-xafra | Injam Inġinerija |
| Huwa mingħajr fili? | Nru |
| Numru ta 'Livelli ta' Qawwa | 3 |
| Daqs | 48" |
| Piż tal-oġġett | 17.16 liri |
| Data L-Ewwel Disponibbli | 4 ta’ Settembru, 2023 |
Image: Diagram illustrating the dimensions of the 48" ceiling fan, with key measurements A: 15.4 in., B: 10.0 in., C: 8.5 in., D: 5.1 in.
Garanzija u Appoġġ
Your Blue Mountain Fans Primo Ceiling Fan is backed by a comprehensive warranty:
- Garanzija tal-Mutur: Limited lifetime warranty on the motor.
- Garanzija tal-Partijiet: Garanzija ta' sentejn fuq il-partijiet l-oħra kollha.
For technical support, warranty claims, or replacement parts, please contact Generic customer service. Refer to the original packaging or purchase documentation for specific contact details.
For the most up-to-date information and a complete user manual, please refer to the official PDF document available on the product's Amazon page or the manufacturer's websit.
