Introduzzjoni
This manual provides detailed instructions for the assembly, operation, and maintenance of your Crestlive Products CL-UB033BLK Umbrella Base. Please read these instructions carefully before use to ensure proper setup and safe operation. Keep this manual for future reference.

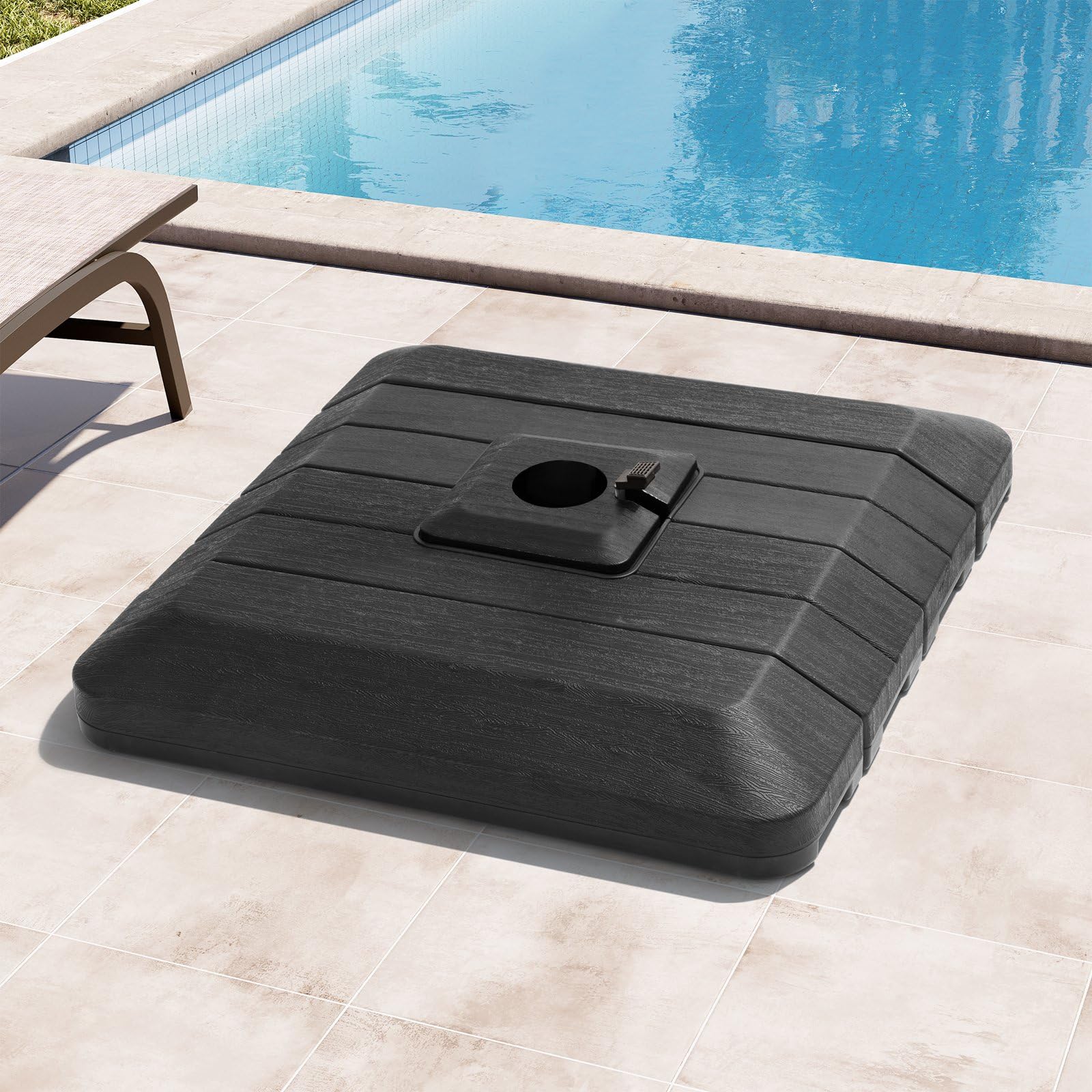

Immaġni: Fuq view of the Crestlive Products CL-UB033BLK umbrella base, showing its square, segmented design and central umbrella pole opening.
Informazzjoni dwar is-Sigurtà
- Kun żgur li l-komponenti kollha huma mmuntati sew qabel l-użu.
- Always fill the base with water or sand to the recommended capacity for maximum stability.
- Do not attempt to move the base when it is filled. Empty the base before relocating.
- In strong winds, lower or close your umbrella to prevent damage to the umbrella and base, and to avoid potential injury.
- Keep children and pets away from the umbrella base during assembly and filling.
Kontenut tal-Pakkett
Iċċekkja li l-partijiet kollha huma preżenti qabel tibda l-assemblaġġ:
- 4 x Base Segments (High-density polyethylene plastic)
- 1 x Central Connector Plate
- 1 x Umbrella Pole Adapter/Sleeve
- 1 x Adjustment Knob/Screw
- 1 x Manwal tal-Istruzzjonijiet (Dan id-dokument)
Image: All individual components of the umbrella base laid out, including four black base segments, a central connector, and a pole adapter.
Setup
- Position the Base Segments: Place the four base segments on a flat, stable surface where the umbrella will be used. Arrange them to form a square, ensuring the central openings align.
Image: Illustration showing the four base segments being connected to form the square base, with an umbrella pole stand in the background.
- Connect the Segments: Secure the central connector plate over the aligned openings of the four segments. Insert the umbrella pole adapter into the central opening.
- Imla l-Bażi: Each segment can be filled with water or sand for stability.
- Ilma: The base can hold approximately 220 pounds (100 kg) when filled with water.
- Ramel: The base can hold up to 240 pounds (109 kg) when filled with sand.
- Mixed Filling: For optimal stability, it is recommended to fill the base with a mixture of water and sand, ideally in a 50% ratio each. This combination can support even heavier loads.
Image: Close-up showing water being poured into a base segment, with icons indicating sand (240 lbs) and water (220 lbs) filling options.
Image: A note advising to fill the umbrella base with a 50/50 mixture of water and sand for ideal stability, shown next to a filled base.
- Insert Umbrella Pole: Insert your cantilever umbrella pole into the central adapter. Tighten the adjustment knob/screw firmly to secure the umbrella pole in place.
Istruzzjonijiet Operattivi
Once assembled and filled, the umbrella base provides stable support for your cantilever umbrella. The base features adjustable pedals (if applicable to your umbrella model) allowing for rotation of the umbrella.
- Ensure the umbrella pole is securely fastened within the base before opening the umbrella.
- To adjust the umbrella's direction, loosen the adjustment knob slightly, rotate the umbrella to the desired position, and then re-tighten the knob firmly.
- Always close your umbrella when not in use or during adverse weather conditions to prevent damage.
Image: A cantilever umbrella supported by the black umbrella base, positioned next to lounge chairs by a swimming pool. The umbrella itself is not included with the base.
Manutenzjoni
- Tindif: Clean the base with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the high-density polyethylene material.
- Ħażna: For prolonged periods of non-use, especially during winter months, it is recommended to empty the base of water or sand, clean it, and store it in a dry, protected area.
- Spezzjoni: Periodically check all components for wear or damage. Ensure the filling caps are intact and sealed.

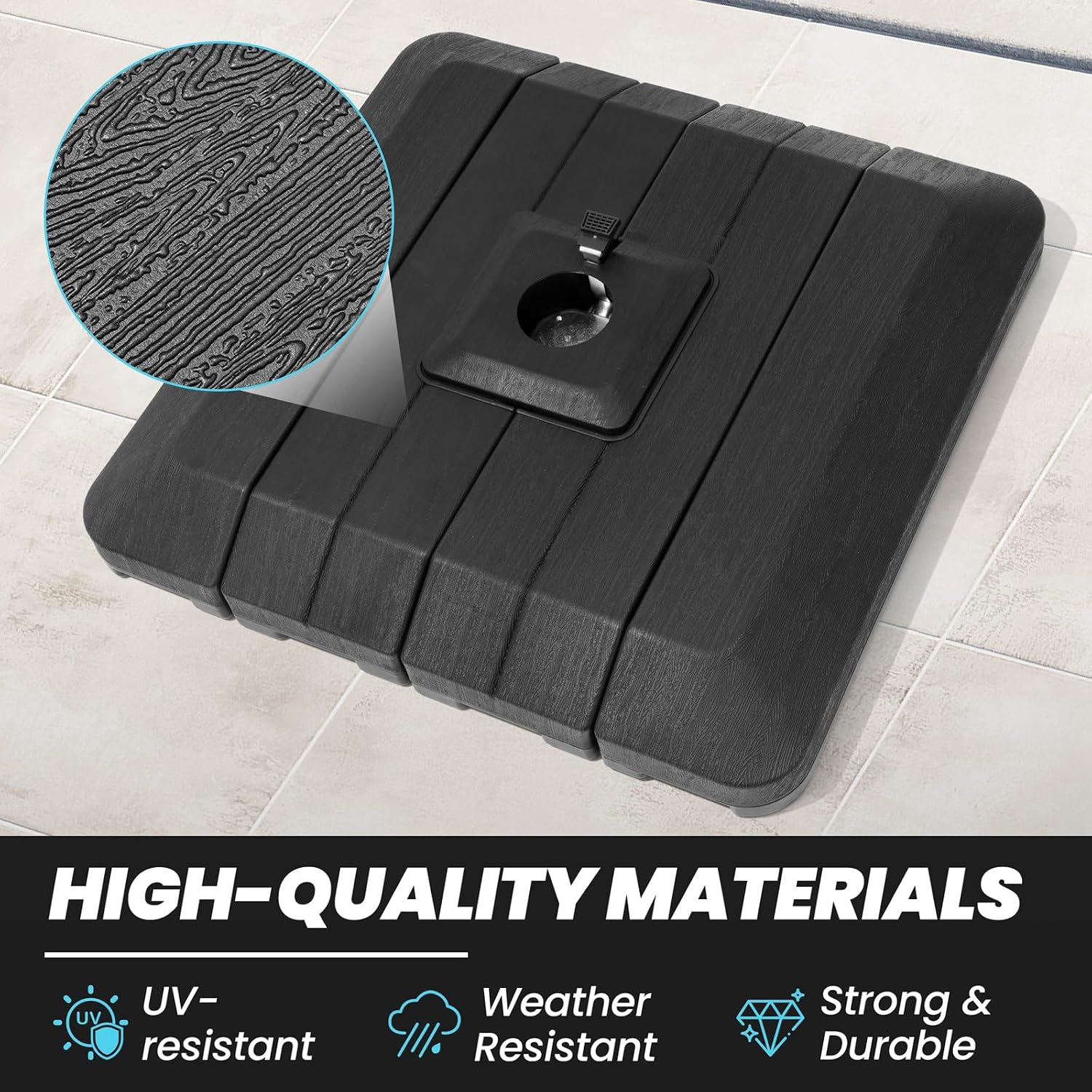

Image: Close-up of the umbrella base surface texture, highlighting its UV-resistant, weather-resistant, strong, and durable material properties.
Issolvi l-problemi
- Issue: Umbrella base feels unstable.
Soluzzjoni: Ensure all four segments are fully filled with water or sand. Check that the central connector plate is properly seated and the umbrella pole adjustment knob is tightened securely. Verify the ground surface is level.
- Issue: Water leakage from the base.
Soluzzjoni: Check that all filling caps are securely closed and properly sealed. Inspect the base segments for any visible cracks or damage. If damage is found, discontinue use and contact customer support.
- Issue: Difficulty inserting the umbrella pole.
Soluzzjoni: Ensure the umbrella pole adapter is correctly positioned in the central opening. The adapter is designed to accommodate standard pole sizes; confirm your umbrella pole diameter is compatible. Do not force the pole.
Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Isem tal-Mudell | CL-UB033BLK |
| Materjal | Polyethylene ta' Densità Għolja (HDPE) |
| Kulur | Iswed |
| Dimensjonijiet tal-oġġett (LxWxH) | 38.58 x 37.8 x 5.9 pulzier (immuntat) |
| Weight Capacity (Water) | Appross. 220 lbs (100 kg) |
| Weight Capacity (Sand) | Appross. 240 lbs (109 kg) |
| Numru ta 'Segmenti | 4 |
Image: Diagram showing the assembled dimensions of the umbrella base: 38.58 inches length, 37.8 inches width, and 5.9 inches height, with a central opening diameter of 7.48 inches.
Garanzija u Appoġġ
For warranty information or technical support, please refer to the product packaging or contact Crestlive Products customer service directly. Keep your purchase receipt for warranty claims.
