1. Introduzzjoni
This manual provides detailed instructions for the installation, operation, and maintenance of your OLONETO 100A Solar Charge Controller. This device is designed to manage power flow from your solar panel to your battery bank and DC loads, ensuring efficient charging and protection for your battery system. It supports 12V, 24V, 36V, and 48V battery systems with automatic voltage identifikazzjoni.
Note: This controller utilizes a combination of MPPT and PWM charging technologies. It is not a 100% true MPPT controller.

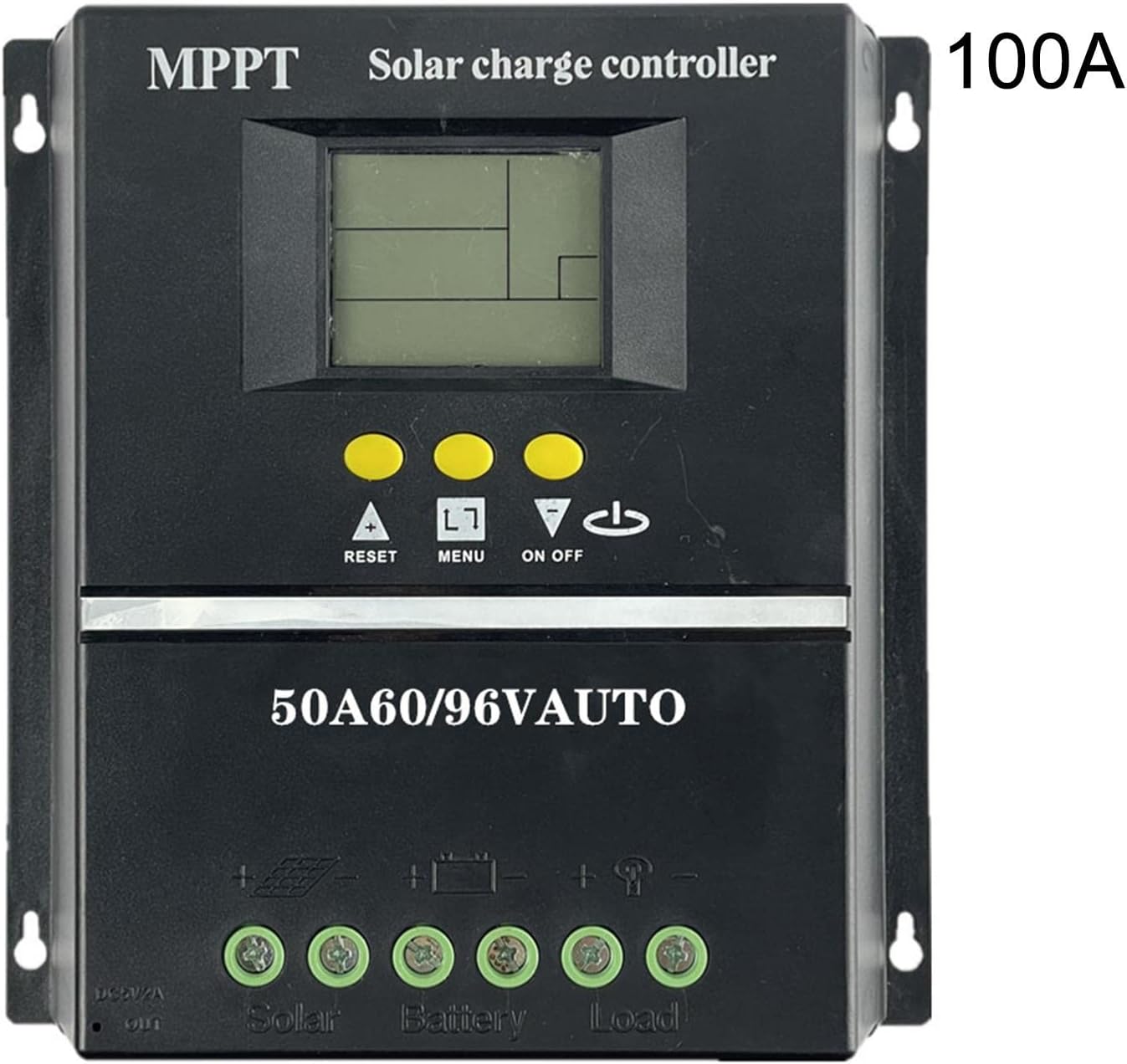

Figura 1: Quddiem view of the OLONETO 100A Solar Charge Controller, showing the LCD display, control buttons, and connection terminals. The "100A" rating is visible on the top right.
2. Istruzzjonijiet tas-Sigurtà
- Ensure all connections are tight and correct to prevent damage to the controller or other components.
- Always connect the battery to the controller l-ewwel, and then connect the solar panel. Disconnect in the reverse order: solar panel first, then battery. Failure to follow this sequence may damage the controller.
- Żgura li l-batterija voltage is sufficient for the controller to recognize the system voltage (e.g., >10V for 12V battery, >20V for 24V battery, >30V for 36V battery, >40V for 48V battery).
- Install the controller in a well-ventilated area, away from direct sunlight, high temperatures, and moisture.
- Tippruvax issewwi jew timmodifika l-kontrollur int stess. Ikkuntattja persunal kwalifikat għas-servizz.
3. Karatteristiċi tal-prodott
The OLONETO Solar Charge Controller offers several key features for efficient solar power management:
- Vol. Awtomatikutage Identifikazzjoni: Automatically detects 12V, 24V, 36V, or 48V battery systems.
- Display LCD: Provides real-time information on battery status, charging parameters, and load status.
- Ħruġ USB doppju: Convenient 5V output for charging mobile phones and other USB devices.
- Parametri Aġġustabbli: Allows users to customize charging and discharge settings.
- Smart Charge Management: Optimizes battery charging to prolong battery life.
- Protezzjoni Ambjentali: Designed with green environmental protection principles.
- Automatic Focusing MPPT Tracking: High charging efficiency with non-stop detection during charging and bidirectional focusing tracking.
Figure 2: Diagram illustrating key features of the solar charge controller, including LCD display for battery power supply voltage, smart charge capabilities, 5V USB output, adjustable parameters, and green environmental protection.
Figure 3: Image highlighting the automatic focusing MPPT tracking feature, which ensures high charging efficiency and continuous detection during the charging process.
4. Setup u Installazzjoni
4.1 Sekwenza tal-Wajers
- Qabbad il-batterija: Qabbad il-batterija mat-terminals tal-batterija tal-kontrollur. Kun żgur li l-polarità hija korretta (+ għal + u - għal -). Il-kontrollur awtomatikament jiskopri l-volum tal-batterija.tage.
- Qabbad il-Panel Solari: Connect the solar panel to the controller's solar panel terminals. Ensure correct polarity.
- Qabbad it-Tagħbija DC (Mhux obbligatorja): Connect your DC loads to the controller's load terminals. Ensure correct polarity.
Important: Always follow this connection order: Battery → Solar Panel → Load. To disconnect, follow the reverse order: Load → Solar Panel → Battery.
4.2 Recommended Solar Panel Voltage
- Għal 12V battery systems: Use a solar panel with approximately 18V output.
- Għal 24V battery systems: Use a solar panel with approximately 30-37V output.
- Għal 36V battery systems: Use a solar panel with approximately 45-55V output.
- Għal 48V battery systems: Use a solar panel with approximately 60-72V output.
4.3 Dijagrammi tal-Wiring
Figure 4: Basic wiring diagram showing connections for the solar panel, battery, and DC loads to the controller. Ensure positive (+) and negative (-) terminals are correctly matched.
Figure 5: Detailed wiring diagram illustrating connections for the solar panel, battery, DC load, and the integrated USB output for charging external devices.
5. Istruzzjonijiet Operattivi
5.1 L-Inizjali Tixgħel u l-Wiri
Once the battery is connected, the controller's LCD display will power on, showing current system parameters. The controller automatically identifies the battery voltage (12V, 24V, 36V, jew 48V).
5.2 Funzjonijiet tal-buttuni
- ▲ (Up/Reset): Used to increase values during setting, or as a reset function.
- MENU: Used to navigate through display screens and enter/exit setting modes.
- ▼ (Down/On/Off): Used to decrease values during setting, or to toggle the DC load on/off.
5.3 Iċċarġjar Voltage Settings
To adjust charging parameters:
- After connecting the battery, ensure the clock is set and saved (see 5.4 Clock Setting).
- Agħfas u żomm il-buttuna "▲" button for 3-5 seconds. The screen will display "L**V" (floating charging voltagu).
- Uża l-"▼" button to adjust the floating charging voltage.
- Briefly press "▲" again. The screen will display "H**V" (boost charging voltagu).
- Uża l-"▼" button to adjust the boost charging voltage.
- Briefly press "▲" again. The screen will display "F**V" (low-voltage cut-off voltage for DC load).
- Uża l-"▼" button to adjust the low-voltage cut-off voltage.
- After making all desired adjustments, press and hold the "▲" button for 3-5 seconds to save the settings and exit.
5.4 Issettjar tal-Arloġġ
To set the internal clock:
- Kun żgur li l-batterija tkun konnessa.
- Agħfas il-buttuna "▲"jew"▼" buttons to navigate to the clock setting interface.
- Uża l-"▲" u "▼" buttons to adjust the time.
- Briefly press the "MENU" button (represented as "□" in some descriptions) to save the clock setting.
5.5 Load Protection Voltage Referenza
The following are typical battery charging voltages for different system voltages:
- Meta tuża a 12V battery, the battery charging voltage is typically 13.7V.
- Meta tuża a 24V battery, the battery charging voltage is typically 27.4V.
- Meta tuża a 36V battery, the battery charging voltage is typically 41.1V.
- Meta tuża a 48V battery, the battery charging voltage is typically 54.8V.
6. Manutenzjoni
- Spezzjoni regolari: Iċċekkja perjodikament il-konnessjonijiet tal-wajers kollha għal issikkar u korrużjoni.
- Indafa: Żomm il-kontrollur nadif u ħieles mit-trab u l-fdalijiet. Uża drapp niexef għat-tindif.
- Ventilazzjoni: Ensure the installation area remains well-ventilated to prevent overheating.
- Saħħa tal-batterija: Immonitorja s-saħħa u l-volum tal-batterija tiegħektage regularly to ensure optimal system performance.
7 Issolvi l-problemi
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Il-wiri tal-kontrollur huwa mitfi. | No battery connected or battery voltage baxx wisq. | Connect battery or ensure battery voltage is above minimum threshold (e.g., >10V for 12V system). |
| L-ebda ċċarġjar minn pannell solari. | Solar panel not connected, incorrect polarity, or insufficient sunlight. | Check solar panel connections and polarity. Ensure adequate sunlight. |
| Voltage identification error. | Batterija voltage was too low when connected initially. | Żgura vol tal-batterijatage is above the minimum threshold before connecting to the controller. Disconnect and reconnect the battery. |
| DC load not working. | Load is off, incorrect wiring, or battery voltage is below low-voltage cut-off. | Check load connection and polarity. Press the "▼" button to toggle load. Check battery voltage and adjust low-voltage cut-off if necessary. |
8. Speċifikazzjonijiet
| Parametru | Valur |
|---|---|
| Mudell | 100A |
| Brand | OLONETO |
| Sistema Voltage | 12V/24V/36V/48V Auto |
| Teknoloġija tal-Iċċarġjar | MPPT/PWM Hybrid |
| Output USB | Dual USB, 5V |
| Piż tal-oġġett | 200 Gramm |
| Dimensjonijiet (Approx.) | 190mm (7.48in) x 180mm (7.08in) |
Figure 6: Physical dimensions of the solar charge controller, showing approximate measurements of 190mm (7.48 inches) in width and 180mm (7.08 inches) in height.
9. Garanzija u Appoġġ
Għal informazzjoni dwar il-garanzija u appoġġ tekniku, jekk jogħġbok irreferi għad-dokumentazzjoni pprovduta max-xiri tiegħek jew ikkuntattja lill-bejjiegħ tiegħek. Żomm il-prova tax-xiri tiegħek għal kwalunkwe talba dwar il-garanzija.
