GIVI D7413ST Windscreen Instruction Manual

1. Introduzzjoni

This manual provides detailed instructions for the proper installation, use, and maintenance of the GIVI D7413ST Windscreen. This windscreen is specifically designed for Ducati Multistrada V4 and V4 S motorcycle models from 2021 to 2022. Please read these instructions carefully before proceeding with installation to ensure safety and optimal performance.

2. Informazzjoni dwar is-Sigurtà

• Dejjem ilbes tagħmir protettiv personali xieraq waqt l-installazzjoni.
• Ensure the motorcycle is stable and securely supported before beginning any work.
• Do not overtighten fasteners, as this can damage components. Refer to your motorcycle's service manual for specific torque values if available.
• Jekk m'intix ċert dwar xi pass, ikkonsulta mekkanik tal-muturi kwalifikat.
• Regularly check all mounting bolts for tightness, especially after the first few rides.

3. Kontenut tal-Pakkett

Verify that all components are present and undamaged before starting installation.

• 1 x GIVI D7413ST Windscreen (Clear)
• 1 x Mounting Kit (Specific to Ducati Multistrada V4 / V4 S 2021-2022)
• Instruction Sheet (This manual)

Image 3.1: GIVI brand logo.

4. Istruzzjonijiet ta 'installazzjoni

The GIVI D7413ST windscreen is designed to mount directly onto the original windscreen fixing points of your Ducati Multistrada V4 / V4 S.

4.1 Għodod Meħtieġa

• Hex key set (Allen wrenches)
• Torque wrench (rakkomandat)
• Drapp artab

4.2 Installazzjoni Pass Pass

1. Ipprepara l-Mutur: Ipparkja l-mutur fuq wiċċ ċatt u kun żgur li jkun stabbli. Itfi l-magna u neħħi ċ-ċavetta tal-ignition.
2. Remove Original Windscreen: Carefully locate and remove the bolts securing the original windscreen to the motorcycle. Keep these bolts and any spacers or washers organized, as some may be reused.
3. Attach Mounting Brackets (if applicable): If your GIVI D7413ST kit includes separate mounting brackets, attach them to the motorcycle's original fixing points using the provided hardware or reused original hardware as specified in the kit's diagram. Do not fully tighten yet.
4. Position the GIVI Windscreen: Align the GIVI D7413ST windscreen with the mounting points on the motorcycle or the newly installed brackets.
5. Waħħal sew il-windskrin: Insert the new bolts (or reused original bolts, if instructed) through the windscreen and into the mounting points. Hand-tighten all bolts first to ensure proper alignment.
6. Issikkar finali: Once all bolts are in place and the windscreen is correctly aligned, progressively tighten all bolts. Refer to your motorcycle's service manual for recommended torque specifications for windscreen mounting bolts. If no specific torque is available, tighten securely but do not overtighten.
7. Spezzjona l-Installazzjoni: Gently push and pull on the windscreen to ensure it is securely mounted and does not wobble. Check for any obstructions or contact with other motorcycle components.

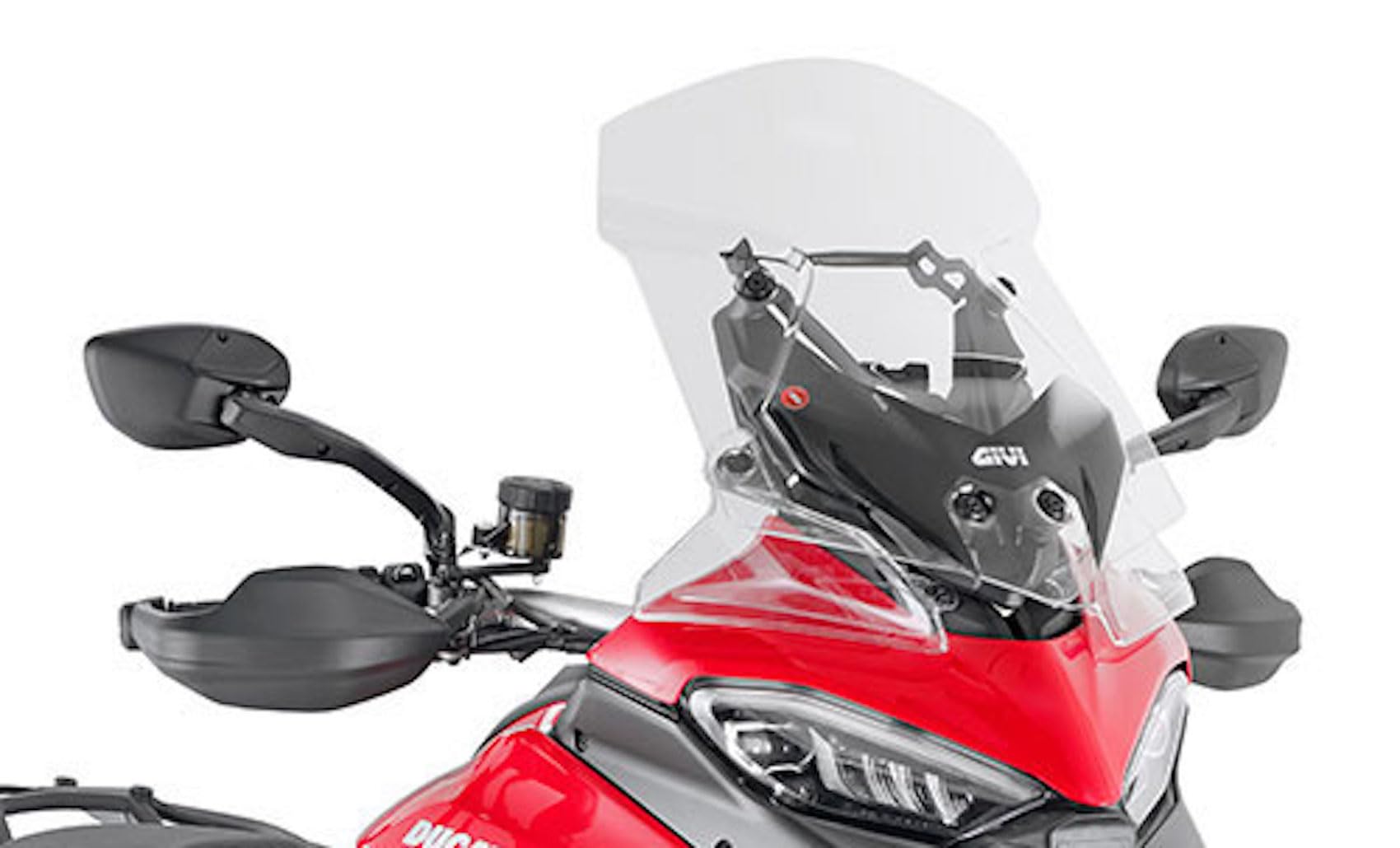

Image 4.1: GIVI D7413ST Windscreen shown installed on a Ducati Multistrada V4 motorcycle. The clear windscreen is visible above the dashboard and handlebars.

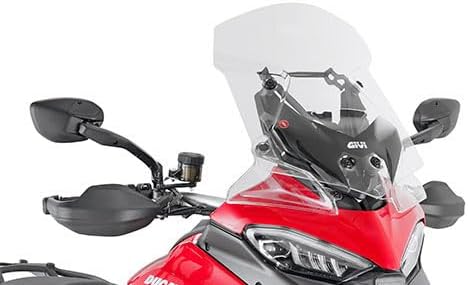

Immaġni 4.2: Mill-qrib view of a windscreen mounting point, illustrating the hardware and attachment mechanism.

5. Operation and Care

Once installed, the GIVI D7413ST windscreen requires minimal "operation" but proper care ensures its longevity and clarity.

• Viżibilità: Ensure your riding visibility is not impaired by the windscreen. Adjust your seating position if necessary.
• Tindif: Clean the windscreen regularly with a soft cloth and mild soap and water. Avoid abrasive cleaners, solvents, or harsh chemicals, as these can damage the material.
• Prevenzjoni tal-grif: Do not wipe the windscreen when dry, as dust and dirt can cause scratches. Always rinse with water first.

6. Manutenzjoni

• Spezzjoni regolari: Periodically inspect the windscreen for cracks, chips, or excessive wear.
• Iċċekkja tal-Qafliet: Check all mounting bolts for tightness before each ride, especially after riding on rough terrain. Retighten if necessary.
• Sostituzzjoni: If the windscreen becomes severely damaged or visibility is compromised, replace it with a genuine GIVI D7413ST replacement part.

7 Issolvi l-problemi

8. Speċifikazzjonijiet

9. Garanzija u Appoġġ

The GIVI D7413ST Windscreen comes with a garanzija ta 'sena mid-data tax-xiri. Din il-garanzija tkopri difetti fil-manifattura u difetti fil-materjal taħt użu normali.

For warranty claims, technical support, or replacement parts, please contact your authorized GIVI dealer or the point of purchase. Keep your proof of purchase for warranty validation.

For more information, visit the official GIVI websit: www.givi.it
