Retevis RB689 Walkie Talkie with Wireless Microphone User Manual

1. Introduzzjoni

Thank you for choosing the Retevis RB689 Walkie Talkie with Wireless Microphone. This professional two-way radio system is designed for reliable long-range communication in various environments, offering features such as a wireless microphone for convenience, VOX hands-free operation, and a robust 2600mAh battery for extended use. This manual will guide you through the setup, operation, and maintenance of your device to ensure optimal performance.

2. Kontenut tal-Pakkett

Jekk jogħġbok iċċekkja l-pakkett bir-reqqa biex tiżgura li l-oġġetti kollha huma preżenti u f'kundizzjoni tajba. Jekk xi oġġetti huma neqsin jew bil-ħsara, jekk jogħġbok ikkuntattja lill-bejjiegħ tiegħek.

• 2 x RB689 Walkie Talkie
• 2 x Batterija tal-jone tal-litju ta' 2600mAh
• 2 x Clip taċ-ċinturin
• 2 x Lanyard
• 2 x Cable tal-Iċċarġjar tat-Tip-Ċ
• 2 x Ċarġer tal-Desktop
• 2 x Wireless Speaker Microphone
• 2 x Manwal tal-Utent b'ħafna lingwi
• 2 x Antenna

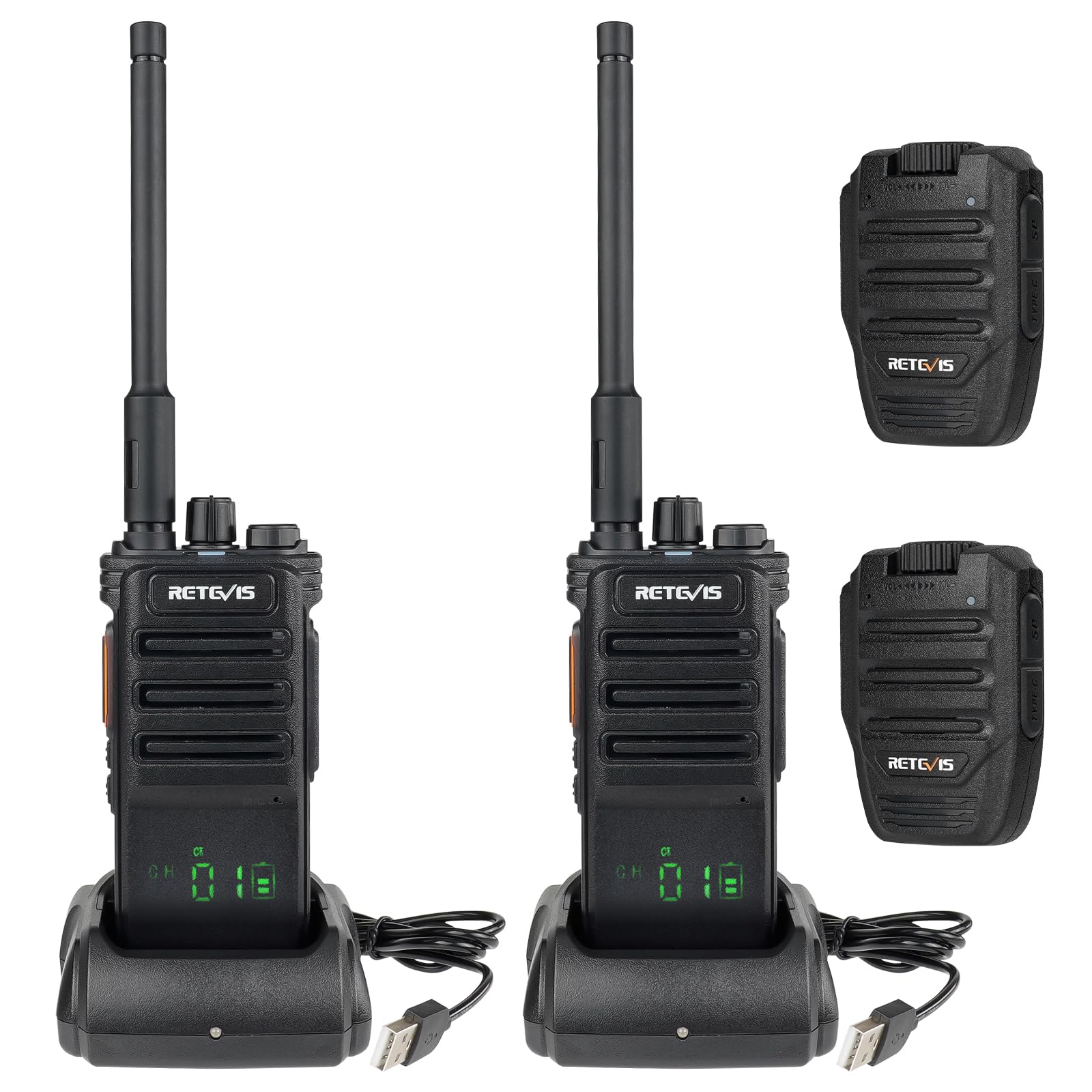

Figure 2.1: Complete package contents of the Retevis RB689.

3. Prodott Aktarview

The Retevis RB689 is a high-performance two-way radio designed for clear and reliable communication. It features a compact design, a digital display, and a robust build. The included wireless speaker microphone enhances usability by allowing hands-free communication.

Figure 3.1: Retevis RB689 Walkie Talkie and Wireless Microphone.

3.1 Walkie Talkie Components

• Antenna: Għat-trażmissjoni u r-riċeviment ta' sinjali.
• Pum tal-Qawwa/Volum: Turns the radio on/off and adjusts volume.
• Selettur tal-Kanal: Rotates to select desired communication channel.
• Buttuna PTT (Push-to-Talk): Agħfas u żomm biex tittrażmetti, itlaq biex tirċievi.
• Kelliem/Mikrofonu: Integrated for audio input and output.
• Wirja Diġitali: Shows channel, battery status, and signal strength.
• Ġakk tal-Aċċessorju: Għal aċċessorji awdjo esterni.

3.2 Wireless Speaker Microphone Components

• Buttuna PTT: For transmitting.
• Kelliem: Għall-output tal-awdjo.
• Mikrofonu: Għal input awdjo.
• Kontroll tal-Volum: Jaġġusta l-volum tal-kelliem.
• Port tal-Iċċarġjar tat-Tip C: For charging the microphone.
• Clip taċ-ċinturin: Biex titwaħħal mal-ħwejjeġ.

Figure 3.2: Retevis Wireless Speaker Microphone.

4. Setup

Follow these steps to prepare your Retevis RB689 for use:

1. Installa l-batterija: Align the 2600mAh Li-ion battery with the battery compartment on the back of the walkie talkie. Push it firmly until it clicks into place.
2. Waħħal l-Antenna: Screw the antenna clockwise into the connector on top of the walkie talkie until it is secure. Do not overtighten.
3. Charge the Walkie Talkie: Place the walkie talkie into the desktop charger. Connect the Type-C charging cable to the desktop charger and a power source. The indicator light on the charger will show charging status. A full charge provides approximately 17-18 hours of use.
4. Charge the Wireless Speaker Microphone: Connect the Type-C charging cable directly to the wireless speaker microphone's charging port and a power source.
5. Attach Belt Clip/Lanyard: Secure the belt clip to the back of the walkie talkie or wireless microphone if desired. Attach the lanyard for convenient carrying.

Figure 4.1: Charging the Retevis RB689 Walkie Talkie.

5. Istruzzjonijiet Operattivi

Once your devices are charged and assembled, follow these steps for basic operation:

1. Power On/Off: Rotate the Power/Volume knob clockwise to turn on the walkie talkie. Rotate counter-clockwise until it clicks to turn off.
2. Aġġusta Volum: After powering on, continue rotating the Power/Volume knob to adjust the listening volume.
3. Agħżel il-Kanal: Rotate the Channel Selector knob to choose one of the 16 available channels. Ensure all radios you wish to communicate with are on the same channel.
4. Transmit (Talk): Press and hold the PTT button on the walkie talkie or wireless microphone. Speak clearly into the microphone. Release the PTT button to stop transmitting and listen for a response.
5. Receive (Listen): Meta l-buttuna PTT ma tkunx ippressata, ir-radju jkun fil-modalità ta' riċeviment.
6. Konnessjoni tal-Mikrofonu bla Fili: The wireless speaker microphone will automatically connect to the walkie talkie when both devices are powered on. No manual pairing is typically required.
7. Funzjoni VOX: The RB689 supports VOX (Voice Operated Exchange) for hands-free operation. When VOX is enabled, you can transmit by speaking into the microphone without pressing the PTT button. Refer to the detailed user manual for activation and sensitivity settings.

Figure 5.1: VOX Function in operation.

6. Karatteristiċi Avvanzati

• Wireless Cloning: The RB689 features a wireless cloning function, allowing you to quickly synchronize the frequency and settings of one walkie talkie to another. This simplifies setup for multiple units. Consult the full user manual for specific instructions on initiating wireless cloning.
• Funzjoni Squelch: The squelch feature automatically mutes the speaker when no signal is being received, reducing background noise and improving clarity.
• Flashlight LED: The walkie talkie includes a built-in LED flashlight for illumination in low-light conditions.
• Allarm ta' Emerġenza: An emergency alarm function is available for critical situations, allowing you to quickly alert others.
• Kwalità tal-Ħoss Ċara: The wireless microphone is equipped with a large 40mm speaker, providing clear and crisp audio for effective communication.

Figura 6.1: Kwalità tal-Ħoss Ċara.

Figure 6.2: Rugged and Durable Design.

7. Konsiderazzjonijiet tal-Firxa

The effective communication range of two-way radios is influenced by several factors, including terrain, obstacles, radio power, antenna type, and atmospheric conditions. While manufacturers may state maximum ranges under ideal conditions (e.g., line of sight from a mountain top), real-world performance in urban, suburban, or rural areas will vary.

Factors affecting radio range:

• Terren u Ostakli: Mountains, buildings, and dense foliage can block radio signals.
• Qawwa tar-Radju (Watts): Higher power generally means longer range.
• Antenna: A high-gain antenna can improve signal transmission and reception.
• Kundizzjonijiet Atmosferiċi: It-temp jista' jaffettwa l-propagazzjoni tas-sinjal.
• Radju Orizzont: The curvature of the Earth limits line-of-sight communication.

To extend communication distance:

• Increase transmission power (if applicable and legally permitted).
• Improve reception sensitivity (adjust squelch threshold, use a high-gain antenna).
• Communicate from a higher elevation.
• Ensure your battery is fully charged.

8. Manutenzjoni

Proper maintenance ensures the longevity and optimal performance of your Retevis RB689 walkie talkie:

• Kura tal-batterija: Always use the original charger. Do not overcharge or deep discharge the battery. Store batteries in a cool, dry place when not in use.
• Tindif: Uża artab, damp cloth to clean the radio's exterior. Do not use harsh chemicals or solvents. Ensure all ports are dry before charging or connecting accessories.
• Ħażna: Store the walkie talkie in a dry, dust-free environment away from extreme temperatures. Remove batteries if storing for extended periods.
• Spezzjoni tal-antenna: Regularly check the antenna for any damage. A damaged antenna can significantly reduce range and performance.

9 Issolvi l-problemi

If you encounter issues with your Retevis RB689, refer to the following common problems and solutions:

10. Speċifikazzjonijiet

Detailed technical specifications for the Retevis RB689 Walkie Talkie:

11. Garanzija u Appoġġ

Retevis provides the following warranty and support for your RB689 Walkie Talkie:

• Perjodu ta' Garanzija: 2 years warranty for the radio body and 1 year warranty for accessories.
• Politika ta' Ritorn: 30 jum ta' ritorn mingħajr raġuni.
• Servizz ta' wara l-garanzija: Maintenance service is available beyond the warranty period. Buyers are responsible for associated costs.
• Appoġġ għall-Klijent: For any inquiries or support needs, please contact us through Amazon. We aim to respond within 12 hours.
