Bimar VC77 Tower Fan 80 cm with Timer User Manual

1. Introduzzjoni

Thank you for choosing the Bimar VC77 Tower Fan. This manual provides important information regarding the safe operation, installation, maintenance, and troubleshooting of your new fan. Please read these instructions carefully before use and keep them for future reference.

The Bimar VC77 is an 80 cm tower fan designed for domestic indoor ventilation. It features 3 speed settings, a 60-minute timer, automatic right/left oscillation, and adjustable up/down tilt, powered by a 45W induction motor.

2. Istruzzjonijiet tas-Sigurtà

TWISSIJA: Jekk ma ssegwix dawn l-istruzzjonijiet ta’ sigurtà, dan jista’ jirriżulta f’xokk elettriku, nar, jew korriment serju.

• This appliance is intended for domestic indoor use only. Do not use it for any other purpose. Any other use is considered improper and dangerous.
• Ensure the power outlet is easily accessible to quickly disconnect the plug in an emergency.
• Position the fan away from heat sources (open flames, gas stoves, etc.) and liquid containers to prevent water splashes.
• Do not insert any tools or fingers between the protective grille meshes of the fan.
• Tħaddimx il-fann b'korda jew plagg bil-ħsara. Jekk il-korda tal-provvista tkun bil-ħsara, din trid tiġi sostitwita mill-manifattur, mill-aġent tas-servizz tiegħu, jew minn persuni kwalifikati bl-istess mod biex jiġi evitat periklu.
• Always unplug the fan before cleaning or when not in use for extended periods.
• Żomm l-apparat fejn ma jintlaħaqx mit-tfal u l-annimali domestiċi.
• Do not cover the fan during operation.

3. Prodott Aktarview

Familiarize yourself with the components of your Bimar VC77 Tower Fan.

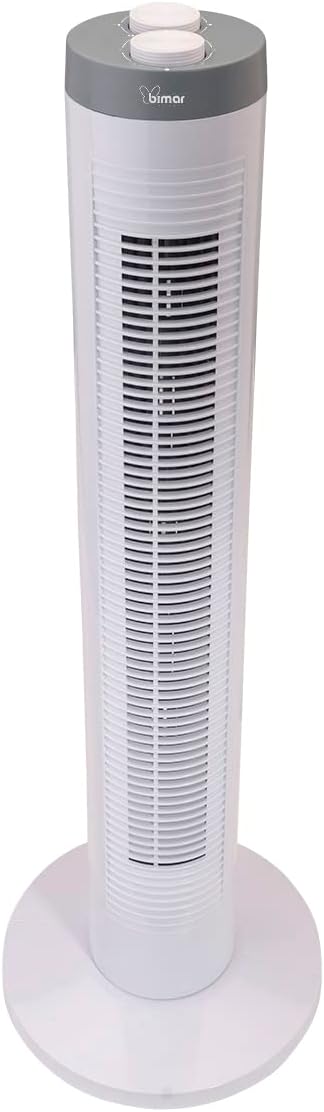

Stampa 3.1: Quddiem view of the Bimar VC77 Tower Fan, showing the main body, base, and control panel on top.

Stampa 3.2: Ġenb view of the Bimar VC77 Tower Fan, illustrating its compact design and the handle for easy transport.

Stampa 3.3: Detailed diagram of the fan's top control panel, indicating the knobs for speed selection, timer setting, and oscillation function.

Komponenti Ewlenin:

• Panel tal-Kontroll: Located on the top of the fan, featuring selector knobs for various functions.
• Grilja tal-Ħruġ tal-Arja: Front grille through which air is expelled.
• Bażi: Provides stability for the tower fan.
• Manku integrat: Għal trasport faċli tal-unità.
• Korda tal-Enerġija: Għall-konnessjoni ma' sokit elettriku.

4. Setup u Installazzjoni

Follow these steps to set up your Bimar VC77 Tower Fan:

1. Spakkjar: Carefully remove the fan from its packaging. Retain the packaging for storage or if the product needs to be returned.
2. Base Assembly (if required): Some models may require simple assembly of the base. Align the base parts and secure them according to the diagrams in the separate installation manual (if provided). Ensure the base is firmly attached for stability.
3. Pjazzament: Place the fan on a flat, stable surface. Ensure there is adequate space around the fan for proper air circulation and oscillation. Avoid placing it near curtains or other objects that could obstruct airflow or get caught in the fan.
4. Konnessjoni tal-Enerġija: Plug the power cord into a standard 220-240V~ 50Hz electrical outlet. Ensure the outlet is easily accessible.

5. Istruzzjonijiet Operattivi

The Bimar VC77 Tower Fan is controlled via selector knobs located on the top panel.

1. Power On/Off: Turn the speed selector knob to one of the speed settings (Min, Med, Max) to turn the fan on. Turn it to '0' to turn the fan off.
2. Aġġusta tal-Veloċità tal-Fan: Rotate the speed selector knob to choose your desired airflow intensity:
   • Min: Veloċità baxxa għal ċirkolazzjoni ġentili tal-arja.
   • Med: Medium speed for moderate airflow.
   • Max: High speed for maximum cooling.
3. Oxxillazzjoni Awtomatika: To activate the automatic right/left oscillation, turn the oscillation knob to the 'ON' position. The fan will sweep air across a wider area. Turn the knob to 'OFF' to stop oscillation.
4. Mejjel aġġustabbli: The fan head can be manually tilted up or down to direct the airflow vertically. Gently push or pull the top section of the fan to adjust the tilt angle.
5. Funzjoni Timer: Use the timer knob to set the fan to operate for a specific duration, up to 60 minutes. Rotate the timer knob clockwise to the desired time setting. The fan will automatically turn off once the set time has elapsed. To bypass the timer, ensure the timer knob is set to the 'ON' position (usually indicated by a continuous operation symbol or '0' if it's a countdown timer).

6. Manutenzjoni

Tindif u manutenzjoni regolari jiżguraw il-lonġevità u t-tħaddim effiċjenti tal-fann tiegħek.

• Tindif:
  1. Dejjem aqla’ l-fann mill-plagg tal-elettriku qabel ma tnaddaf.
  2. Uża artab, damp cloth to wipe the exterior surfaces of the fan. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the plastic.
  3. For dust accumulation on the grilles, use a vacuum cleaner with a brush attachment or compressed air to gently remove dust. Do not attempt to disassemble the fan to clean internal components.
  4. Kun żgur li l-fann ikun niexef għalkollox qabel ma terġa' tqabbdu u tħaddmu.
• Ħażna: When not in use for extended periods, store the fan in its original packaging or cover it to protect it from dust. Store in a cool, dry place.

7 Issolvi l-problemi

If you encounter issues with your Bimar VC77 Tower Fan, refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact Bimar customer support.

8. Speċifikazzjonijiet

9. Garanzija u Appoġġ

For warranty information, please refer to the documentation provided with your purchase or contact the retailer. Bimar products are designed for reliability and performance.

If you require technical assistance, have questions about your product, or need to report a fault, please contact Bimar customer support. You may also find additional resources, including detailed user and installation manuals, on the manufacturer's website or through the following links:

• Manwal għall-Utent (PDF)
• Manwal tal-Installazzjoni (PDF)
• Istruzzjonijiet għall-Użu (PDF)

Please have your model number (VC77) and purchase details ready when contacting support.
