Chipolino Atlas 4.3-inch Video Baby Monitor User Manual

Introduzzjoni

Thank you for choosing the Chipolino Atlas 4.3-inch Video Baby Monitor. This manual provides essential information for the safe and effective operation of your device. Please read it thoroughly before use and retain it for future reference.

The Chipolino Atlas video baby monitor is designed to help you monitor your baby with ease, offering features such as a 4.3-inch display, night vision, temperature monitoring, and two-way communication.

Informazzjoni dwar is-Sigurtà

TWISSIJA:

• PERIKLU TA' STRANGOLAZZJONI: Keep all cables out of reach of children (at least 1 meter / 3 feet away). Never place the camera or cables within reach of the baby's crib or playpen.
• PERIKLU TA' FEGAT: Dan il-prodott fih partijiet żgħar. Żomm fejn ma jintlaħaqx mit-tfal.
• PERIKLU TA' XOKK ELETTRIKA: Do not expose the product to water or moisture. Do not open the casing. Irreferi s-servizz kollu lil persunal kwalifikat.
• SIGURTÀ TAL-BATTERIJA: Use only the provided power adapters and cables. Do not use damaged batteries or chargers. Dispose of batteries properly.
• This product is intended for adult use only as an aid. It is not a substitute for responsible adult supervision.
• Ensure proper ventilation around both units. Do not cover them with blankets or other materials.
• Avoid placing the units near heat sources or direct sunlight.

Kontenut tal-Pakkett

Jekk jogħġbok iċċekkja l-pakkett għall-oġġetti li ġejjin:

• Unità tal-Ġenituri (Monitor)
• Baby Unit (Kamera)
• 2 x AC/DC Power Adapters
• 2 x Kejbils USB
• Manwal għall-Utent (dan id-dokument)

Prodott Overview

The Chipolino Atlas Video Baby Monitor consists of two main components: the Parent Unit (monitor) and the Baby Unit (camera).

Unità tal-Ġenituri (Monitor)

The Parent Unit features a 4.3-inch color display for viewing your baby. It includes controls for volume, menu navigation, pan/tilt, lullabies, and two-way talk.

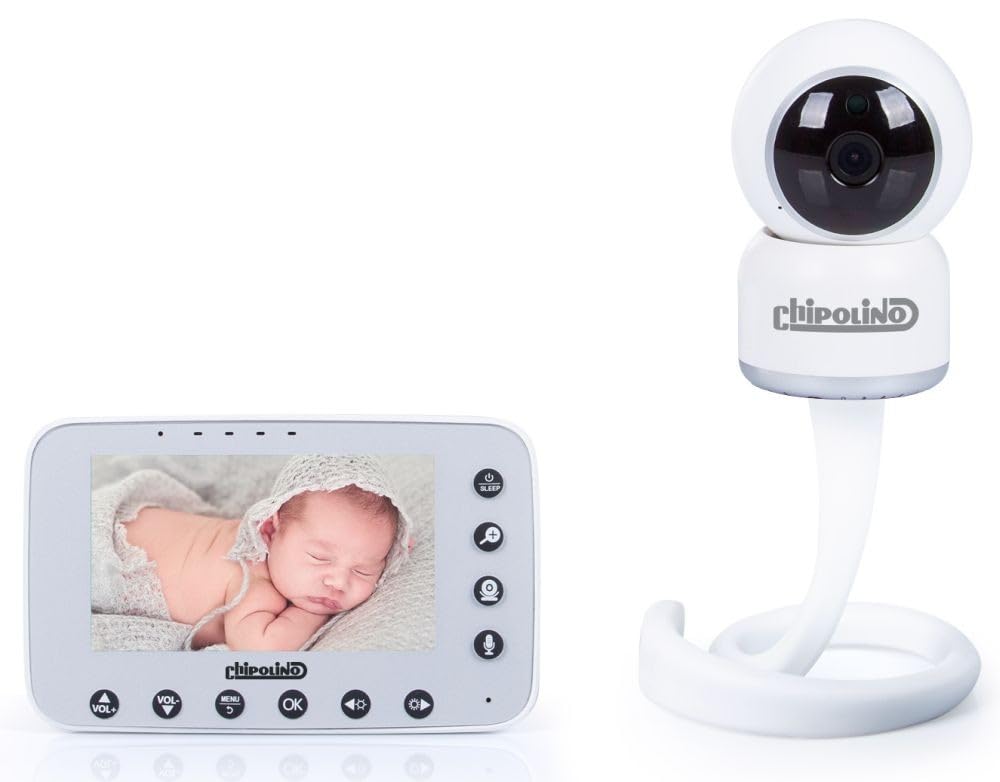

Image: The Parent Unit (left) with a 4.3-inch screen displaying a baby, and the Baby Unit (right) with its camera lens and Chipolino logo.

Baby Unit (Kamera)

The Baby Unit houses the camera, microphone, speaker, and temperature sensor. It features infrared LEDs for night vision and a flexible silicone stand for versatile placement.

Image: The Baby Unit camera, white and spherical, attached to the rail of a white baby crib using its flexible silicone stand.

Setup

1. Iċċarġjar tal-Unità tal-Ġenitur

1. Connect one of the provided USB cables to the Parent Unit's charging port.
2. Plug the other end of the USB cable into one of the AC/DC power adapters.
3. Ipplaggja l-adapter tal-enerġija f'iżbokk tal-ħajt.
4. Allow the Parent Unit to charge fully before first use. The battery indicator on the screen will show charging status.

2. L-Ixgħel tal-Unità tat-Trabi

1. Connect the second USB cable to the Baby Unit's power input.
2. Plug the other end of the USB cable into the second AC/DC power adapter.
3. Plug the power adapter into a wall outlet. The Baby Unit does not have an internal battery and must remain connected to power during operation.

3. Positioning the Baby Unit

• Place the Baby Unit on a flat surface or use the flexible silicone stand to securely attach it to a crib rail or other suitable location.
• Ensure the camera has a clear, unobstructed view tat-tarbija tiegħek.
• IMPORTANTI: Position the Baby Unit and its power cable at least 1 meter (3 feet) away from your baby's crib or playpen to prevent strangulation hazards.

4. Konnessjoni Inizjali

Once both units are powered on, they should automatically connect. If they do not connect, refer to the Troubleshooting section for pairing instructions.

Istruzzjonijiet Operattivi

Qawwa mixgħul/mitfi

• To power on the Parent Unit, press and hold the Power button (⏻) sakemm l-iskrin jixgħel.
• Biex titfi, agħfas u żomm il-buttuna tal-Qawwa mill-ġdid sakemm l-iskrin jintefa.
• The Baby Unit powers on automatically when connected to an electrical outlet.

Video Display and Range

• The Parent Unit features a 4.3-inch color display with a resolution of 1920 x 1080 pixels.
• The monitor operates on a 2.4 GHz FHSS frequency.
• The maximum indoor range is approximately 50 meters (164 feet).
• The maximum outdoor range is approximately 270 meters (885 feet) in open areas.

Viżjoni bil-lejl

The Baby Unit is equipped with infrared LEDs for automatic night vision. When the ambient light is low, the monitor will automatically switch to black and white night vision mode, providing clear visibility of your baby up to 3-5 meters.

Monitoraġġ tat-Temperatura

The Baby Unit includes a temperature sensor that monitors the room temperature in your baby's environment. The temperature is displayed on the Parent Unit screen. You can set temperature alarms in the menu to be notified if the temperature deviates from your desired range.

VOX Activation (Voice Operated Exchange)

VOX mode allows the Parent Unit screen to turn off to save power and battery life. The screen will automatically activate and display video when the Baby Unit detects sound above a certain threshold. You can adjust the VOX sensitivity in the menu settings.

Pan, Mejjel, u Żum

The camera's panoramic view, pan, and tilt functions can be controlled directly from the Parent Unit using the monitor buttons. This allows you to adjust the camera's viewing angolu mill-bogħod.

Alarm and Feeding Timer

The Parent Unit features an alarm function, including a feeding timer. You can set reminders for feeding times at intervals of 2, 3, 4, or 5 hours via the menu settings.

Lullabies

The monitor includes 4 pre-programmed lullabies. You can activate and control the lullabies from the Parent Unit to soothe your baby.

Kontroll tal-Volum

Adjust the listening volume on the Parent Unit using the dedicated volume buttons (VOL+ / VOL-).

Komunikazzjoni f'żewġ direzzjonijiet

Press and hold the microphone button on the Parent Unit to speak to your baby through the Baby Unit's speaker. Release the button to listen.

Modalità Iffrankar tal-Enerġija

In addition to VOX, the Parent Unit may have other power-saving options in its menu, such as display brightness adjustment or automatic screen off after a set period.

Menu Multilingwi

The Parent Unit's menu supports multiple languages. Navigate to the settings menu to select your preferred language.

Manutenzjoni

• Tindif: Wipe both units with a soft, dry, or slightly damp drapp. Tużax tindif jew solventi li joborxu.
• Kura tal-batterija: To prolong the life of the Parent Unit's rechargeable battery, avoid fully discharging it frequently. If storing the unit for an extended period, charge it periodically.
• Ħażna: Aħżen il-monitor f'post frisk u niexef 'il bogħod mix-xemx diretta u minn temperaturi estremi.

Issolvi l-problemi

Speċifikazzjonijiet

Garanzija u Appoġġ

For warranty information and technical support, please refer to the documentation provided with your purchase or contact Chipolino customer service. Keep your proof of purchase for warranty claims.
