ENSTER 2K Dual-Lens WiFi PTZ Outdoor Security Camera User Manual

1. Prodott Aktarview

The ENSTER 2K Dual-Lens WiFi PTZ Outdoor Security Camera is designed for comprehensive outdoor surveillance. It features a dual-lens system, 8X hybrid zoom, automatic tracking, human detection, and color night vision to provide detailed monitoring of your property. The camera supports two-way audio and customizable alerts, ensuring effective communication and timely notifications.

Figure 1: ENSTER 2K Dual-Lens WiFi PTZ Outdoor Security Camera

Karatteristiċi ewlenin:

• Sistema b'Lenti Doppji: Equipped with a 12mm telephoto lens for close-up details and a 2.8mm wide-angle lens for panoramic views.
• Riżoluzzjoni 2K 4MP: Jipprovdi vidjow ċar u preċiżtage.
• 8X Hybrid Zoom: Combines 4X optical zoom and 4X digital zoom for enhanced detail.
• Panoramika ta' 355° u Inklinazzjoni ta' 95°: Provides extensive coverage with remote control.
• Traċċar Awtomatiku: Automatically follows detected human activity.
• Sejbien tal-Bniedem: Intelligent detection to minimize false alarms.
• Viżjoni bil-lejl bil-kulur: Features 4 infrared LEDs and 4 white lights for clear night vision up to 40 meters, with three available modes.
• Awdjo f'żewġ direzzjonijiet: Jippermetti komunikazzjoni f'ħin reali permezz tal-kamera.
• Customizable Voice Alerts: Record personalized messages to deter intruders.
• IP66 Reżistenti għat-Temp: Iddisinjat għall-użu fuq barra f'diversi kundizzjonijiet tat-temp.
• Għażliet ta' Ħażna: Jappoġġja kard Micro SD (sa 128GB, mhux inkluża) u ħażna fuq il-cloud.
• Konnettività: 2.4GHz Wi-Fi and Ethernet cable support.

2. Kontenut tal-Pakkett

Before installation, please verify that all items listed below are included in your package. If any items are missing or damaged, please contact customer support.

Oġġetti inklużi:

• ENSTER 2K Dual-Lens WiFi PTZ Outdoor Security Camera
• Adapter tal-Enerġija
• Viti u Ankri tal-Immuntar
• Manwal għall-Utent
• Waterproof Kit for Cable Connections
• Stiker ta' Twissija

3. Gwida ta' Setup

3.1. Daħħal il-Kard tal-Micro SD

1. Locate the Micro SD card slot on the camera. This is typically covered by a rubber plug for waterproofing.
2. Carefully open the rubber plug.
3. Insert a Micro SD card (up to 128GB, not included) into the slot with the contacts facing down until it clicks into place.
4. Close the rubber plug securely to maintain waterproofing.

3.2. Tixgħel il-Kamera

1. Qabbad l-adapter tal-enerġija mal-port tad-dħul tal-enerġija tal-kamera.
2. Ipplaggja l-adapter ta 'l-enerġija fi żbokk ta' l-elettriku adattat.
3. The camera will perform a self-check, indicated by movement and a voice prompt stating "System starting up."

3.3. App Installation and Initial Configuration

1. Download the recommended mobile application (e.g., iCSee) from your device's app store (App Store for iOS, Google Play Store for Android).
2. Iftaħ l-app u oħloq kont jew idħol.
3. Tektek l-ikona "+" biex iżżid apparat ġdid.
4. Select the appropriate connection method (WiFi Camera or 4G Camera, depending on your model).
5. Follow the on-screen instructions to connect the camera to your network.

3.4. WiFi Connection (Wireless Setup)

1. Ensure your mobile device's WiFi and Bluetooth are enabled.
2. In the app, select "WiFi Camera" and confirm the camera is powered on and ready for configuration.
3. Daħħal l-isem u l-password tan-netwerk tal-WiFi 2.4GHz tiegħek.
4. The app will display a QR code. Position your phone approximately 10-20 cm (4-8 inches) in front of the camera lens.
5. The camera will scan the QR code and announce "Connecting." Once connected, it will confirm "Connect to router successfully."
6. Set a password for your camera and name the device (e.g., "Living Room", "Balcony").

3.5. Network Cable Connection (Wired Setup)

1. Connect an Ethernet cable from your router to the camera's Ethernet port.
2. Kun żgur li l-kamera tkun mixgħula.
3. In the app, select "Add Device" and choose the option to scan a QR code.
4. Scan the QR code located on the camera's label.
5. The camera will automatically connect to the network via the Ethernet cable.
6. Set a password for your camera and name the device.

4. Istruzzjonijiet Operattivi

4.1. Ħaj View and Dual Screen Mode

Access the live feed from your camera through the mobile application. The dual-lens system allows for a unique dual-screen mode, displaying both a panoramic view and a zoomed-in close-up simultaneously on one screen.

Figure 2: Dual Screen Mode displaying panoramic and close-up views.

4.2. PTZ Control and Zoom

Use the directional controls within the app to pan (355°) and tilt (95°) the camera. The 8X hybrid zoom allows you to digitally zoom in on specific areas for more detail. The dual-lens design provides both a wide overview and a magnified view.

Figure 3: Camera's pan and tilt capabilities with 8X hybrid zoom.

Figure 4: Demonstrating the 8X hybrid zoom capability.

4.3. Automatic Tracking and Human Detection

When human activity is detected, the camera can automatically track the subject. Once the subject leaves the area, the camera returns to its original monitoring position. This feature helps focus on relevant events and reduces unnecessary recordings.

Figure 5: Auto tracking and human detection in action.

Figure 6: Automatic tracking of moving subjects.

4.4. Modi ta' Viżjoni bil-Lejl

The camera offers three night vision modes: full color, infrared, and dual-light alert. You can switch between these modes in the app to suit your surveillance needs, providing clear visibility even in low-light conditions.

Figure 7: Different night vision modes: Full Color, Infrared, and Dual-Light Alert.

4.5. Two-Way Audio and Customizable Alerts

Engage in two-way conversations through the camera using the app. You can also set up customized voice alerts to play specific messages when motion is detected, such as "You have entered the 24-hour video surveillance area" or "Please leave now."

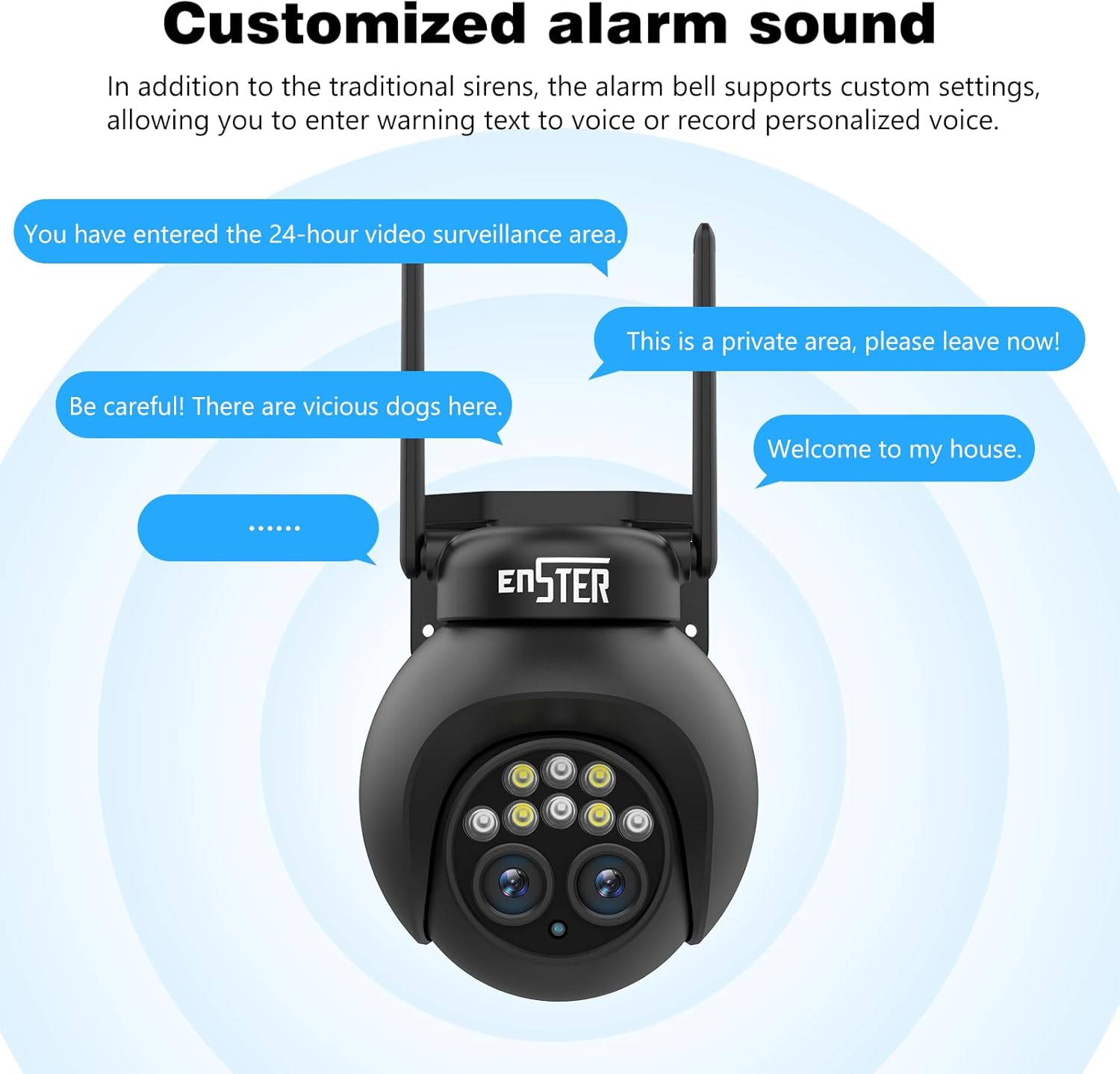

Figure 8: Customizable alarm sound feature.

Figure 9: Humanoid detection triggering real-time alarms and notifications.

4.6. Reġistrazzjoni u Ħażna

The camera supports 24/7 continuous recording or event-triggered recording to a Micro SD card (up to 128GB) or cloud storage. Review irreġistrat footage directly from the mobile application.

Figure 10: 24/7 recording capability with app interface.

Figure 11: Continuous recording and app interface for playback.

Figure 12: Micro SD card slot and cloud storage options.

4.7. Utent Multiplu Viewing

Share live streams and recorded footage with family members or trusted individuals through the mobile application, allowing multiple users to monitor the camera simultaneously.

Figure 13: Multiple users viewing camera feeds on their devices.

5. Manutenzjoni

5.1. Tindif tal-Kamera

• Naddaf il-lenti u l-housing tal-kamera regolarment b'drapp artab u dryer.amp drapp biex tneħħi t-trab u l-ħmieġ.
• Avoid using harsh chemicals or abrasive materials that could scratch the lens or damage the camera's finish.
• Ensure the rubber plugs covering ports are securely closed after any maintenance to maintain waterproofing.

5.2. Aġġornamenti tal-Firmware

• Check the mobile application periodically for available firmware updates.
• L-aġġornament tal-firmware jiżgura prestazzjoni ottimali, sigurtà, u aċċess għal karatteristiċi ġodda.
• Follow the in-app instructions carefully during the update process and ensure the camera remains powered on.

5.3. Ġestjoni tal-Ħażna

• Karta Micro SD: Agħmel backup regolari tal-ikel importantitage from the Micro SD card to another storage device. Format the SD card periodically to maintain performance.
• Ħażna Cloud: Manage your cloud storage subscription and review foo maħżunatage permezz tal-app.

6 Issolvi l-problemi

Kwistjonijiet Komuni u Soluzzjonijiet:

• Il-kamera mhux qed tikkonnettja mal-WiFi:
  • Ensure your WiFi network is 2.4GHz. This camera does not support 5GHz WiFi.
  • Verify the WiFi password is correct.
  • Place the camera closer to the WiFi router.
  • Reset the camera to factory settings and try connecting again.
• Kwalità fqira tal-immaġni:
  • Naddaf il-lenti tal-kamera.
  • Kun żgur li m'hemm l-ebda ostaklu fil-kamp ta' azzjoni tal-kamera. view.
  • Iċċekkja l-veloċità tal-konnessjoni tal-internet tiegħek.
• False alarms or no alerts:
  • Aġġusta s-settings tas-sensittività tad-detezzjoni tal-moviment fl-app.
  • Configure detection zones to focus on specific areas.
  • Ensure human detection is enabled if you only want alerts for people.
• Kamera offline:
  • Iċċekkja l-konnessjoni tal-enerġija mal-kamera.
  • Verify your WiFi or Ethernet connection is stable.
  • Erġa' ibda l-kamera u r-router tiegħek.

6.1. Irrisettjar tal-Kamera

To reset the camera to factory settings, locate the reset button (often a small pinhole button) on the camera's cable or body. Press and hold this button for approximately 5-10 seconds until you hear a voice prompt indicating a reset. The camera will then restart and be ready for re-configuration.

7. Speċifikazzjonijiet

8. Garanzija u Appoġġ

8.1. Garanzija tal-Prodott

The manufacturer provides a one-year warranty for this product from the date of purchase. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.

8.2. Appoġġ għall-Klijent

For any questions, technical assistance, or warranty claims, please contact our customer support team. We are committed to providing satisfactory solutions.

• Appoġġ bl-Email: euro@enster.net
• Appoġġ onlajn: Available 7x24 hours. You can also reach out through your Amazon buyer account by finding your order and clicking on "Get help."
