Nexgrill Premium 22-inch Charcoal Kettle Grill

Introduzzjoni

The Nexgrill 22-inch Premium Charcoal Kettle Grill, Model 810-KY002, is designed for versatile outdoor cooking. This grill is crafted for durability and performance, allowing for a range of cooking techniques from searing to slow smoking. Its robust construction ensures consistent results for various gatherings. The spacious cooking surface provides ample room for diverse foods, and adjustable air vents allow for precise temperature control to achieve optimal cooking outcomes. Featuring a classic kettle design and a black finish, this grill is both functional and aesthetically pleasing for any outdoor setting. With user-friendly features and excellent versatility, this charcoal grill is suitable for both novice and experienced grill users. Its durable build and intuitive design make it easy to use and maintain, and its compact size is ideal for smaller outdoor spaces.

Figura 1: Quddiem view of the Nexgrill Premium 22-inch Charcoal Kettle Grill.

Informazzjoni dwar is-Sigurtà

Please read and understand all safety warnings and instructions before assembling and operating this grill. Failure to follow these instructions could result in fire, explosion, or burn hazard, which could cause property damage, personal injury, or death.

• GĦAL UŻU BARRA BISS: Never operate this grill indoors or in an enclosed area.
• approvazzjoni: Maintain a minimum distance of 10 feet (3 meters) from combustible materials.
• STABBILTÀ: Ensure the grill is placed on a firm, level surface to prevent tipping.
• CHARCOAL SAFETY: Use only charcoal briquettes or lump charcoal. Do not use lighter fluid after charcoal has been lit.
• UĊĊI SĦUN: Grill surfaces become extremely hot during use. Use heat-resistant gloves and appropriate tools. Keep children and pets away.
• ASH DISPOSAL: Allow ashes to cool completely before disposing. Never dispose of hot ashes in combustible containers.
• VENTILAZZJONI: Ensure proper airflow by keeping vents clear during operation.

Kontenut tal-Pakkett

Verify that all components are present before beginning assembly. If any parts are missing or damaged, do not attempt to assemble or operate the grill. Contact customer support for assistance.

• Lid with Handle and Thermometer
• Porcelain Enamel Firebox (Kettle Bowl)
• Cooking Grate (Steel Wire)
• Gradil tal-Faħam tal-Kannol
• Removable Ash Catcher
• Legs (Steel Frame)
• Roti
• Small Storage Rack
• Hardware Pack (bolts, washers, wingnuts)

Setup u Assemblea

Assembly typically requires one person and basic tools. Follow the included diagrams carefully. Ensure all connections are secure before use.

1. Waħħal Saqajn: Secure the steel legs to the kettle bowl using the provided hardware. Ensure the legs with wheels are positioned correctly for mobility.
2. Installa Roti: Attach the wheels to the designated legs, ensuring they are firmly secured.
3. Assemble Storage Rack: Fasten the small storage rack to the lower section of the legs.
4. Insert Ash Catcher: Slide the removable ash catcher into its designated bracket beneath the kettle bowl.
5. Place Grates: Position the charcoal grate at the bottom of the kettle bowl, then place the steel wire cooking grate on top of the support tabs.
6. Waħħal l-għatu: Place the lid onto the kettle bowl. The lid includes a handle and a lid-mounted thermometer.

Figura 2: Detail of the removable ash catcher for easy cleaning.

Istruzzjonijiet Operattivi

Follow these steps for safe and effective grilling.

1. Charcoal Loading: Place charcoal briquettes or lump charcoal onto the charcoal grate. The adjustable charcoal tray allows for control over heat intensity by raising or lowering the charcoal.
2. Lighting Charcoal: Use a charcoal chimney starter or appropriate fire starters to ignite the charcoal. Allow charcoal to ash over before placing food on the cooking grate.
3. Kontroll tat-temperatura: The grill is equipped with adjustable air vents on the lid and bottom, and a lid-mounted thermometer. Adjust these vents to regulate airflow and maintain desired cooking temperature. Opening vents increases temperature, closing them reduces it.
4. Tisjir: Place food on the steel wire cooking grate. Utilize the warming rack to keep cooked items warm while other foods finish. The total cooking area is approximately 347.5 square inches.
5. Użu tal-Għatu: Keep the lid on during cooking to maintain consistent temperature and infuse smoky flavor. The lid-mounted thermometer provides real-time temperature readings.

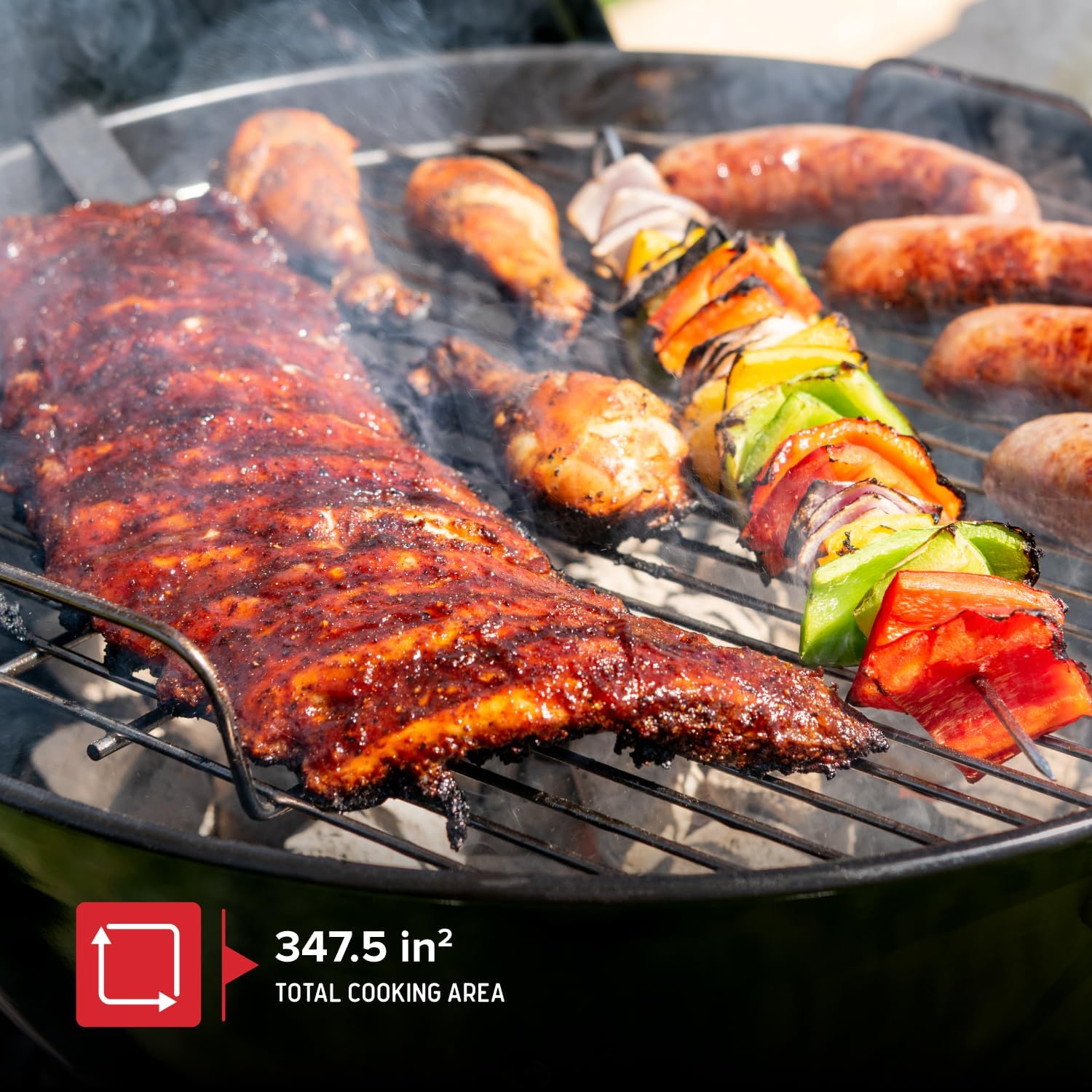

Figura 3: Grill in use, highlighting the generous cooking area.

Figura 4: Lid-mounted thermometer for monitoring internal grill temperature.

Figura 5: Adjustable air vent on the lid for temperature regulation.

Figura 6: Durable steel wire cooking grid.

Manutenzjoni u Tindif

Regular cleaning and maintenance will extend the life of your grill.

• Tneħħija tal-Irmied: After the grill has completely cooled, remove the ash catcher and dispose of ashes safely. The removable design simplifies this process.
• Cooking Grate Cleaning: Scrape off any food residue from the cooking grate after each use. For deeper cleaning, wash with warm, soapy water and a grill brush.
• Tindif ta' barra: Imsaħ l-uċuħ ta 'barra b'adamp drapp. Evita prodotti tat-tindif li joborxu li jistgħu jagħmlu ħsara lill-finitura.
• Ħażna: Store the grill in a dry, covered area when not in use to protect it from weather elements.

Issolvi l-problemi

Hawn huma soluzzjonijiet għal kwistjonijiet komuni li tista' tiltaqa' magħhom.

Speċifikazzjonijiet

Garanzija u Appoġġ

For warranty information or technical support, please refer to the documentation included with your purchase or visit the official Nexgrill websit. Żomm l-irċevuta tax-xiri tiegħek bħala prova tax-xiri għal kwalunkwe talba ta' garanzija.

If you have questions regarding assembly, operation, parts, or troubleshooting that are not covered in this manual, please contact Nexgrill customer service.
