Generic Home Security Safe SAFE307905 User Manual

1. Introduzzjoni

This manual provides essential information for the proper installation, operation, and maintenance of your Generic Home Security Safe, model SAFE307905. Please read these instructions carefully before using the safe to ensure optimal security and functionality. This safe is designed for secure storage of confidential documents, valuables, and other important items.

2. Karatteristiċi tal-prodott

• High-Quality Steel Construction: Manufactured from durable, high-quality steel for enhanced security.
• Mekkaniżmu ta' Sokor Doppju: Features a robust mechanical code lock combined with a key for double protection.
• Advanced Mechanical Code Lock: Equipped with an all-metal mechanical code lock, featuring anti-rust coating and anti-aging properties. It utilizes 3 sets of 6-digit passwords, offering millions of random combinations to deter unauthorized access.
• Adjustable Interior: Includes a double-layer adjustable interior with a removable partition, providing flexible storage space for various valuables.
• Installazzjoni versatili: Designed for secure installation into a wall, against a wall, or within a cabinet.
• Waterproof and Fireproof Design: Engineered to offer protection against water and fire damage for your stored items.

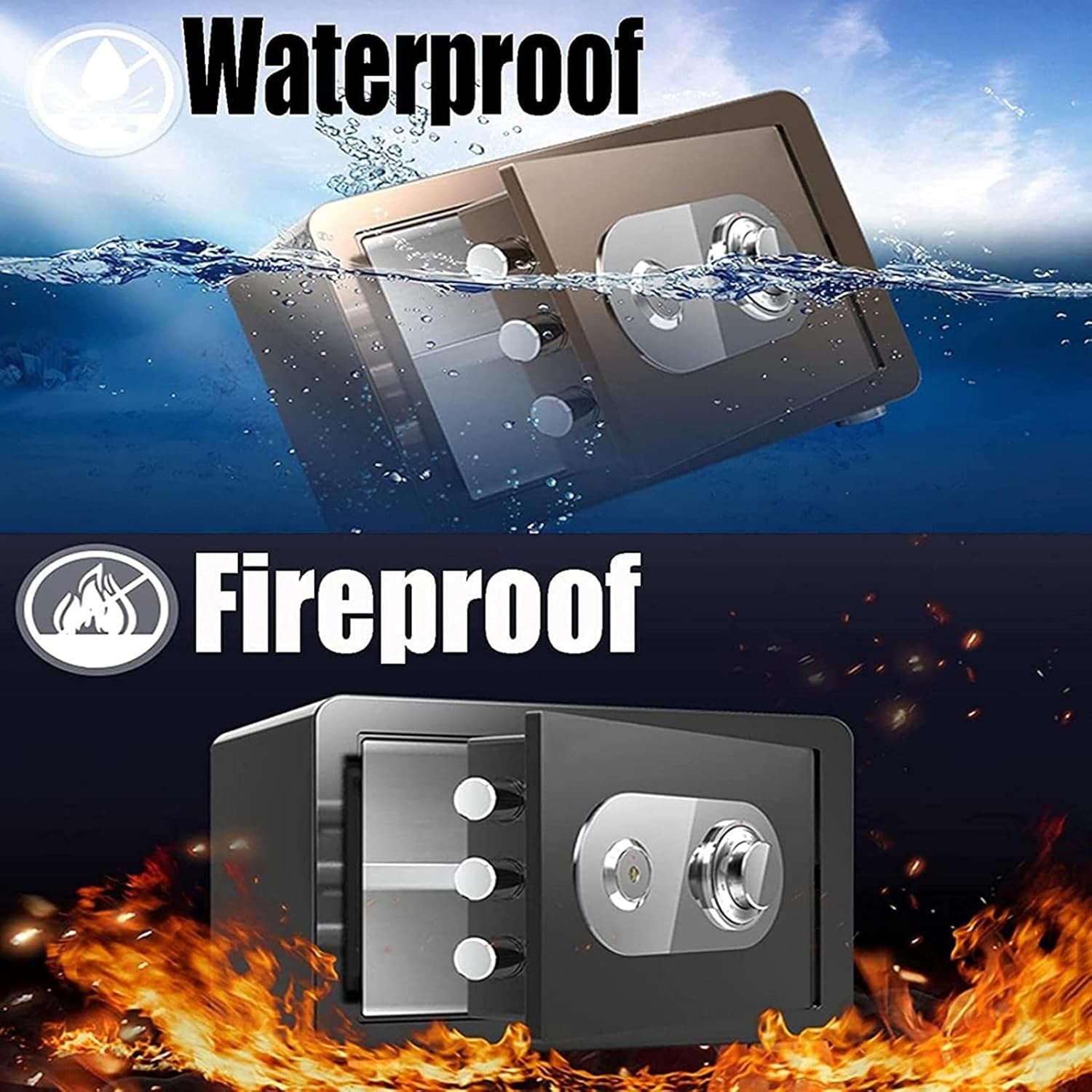

Figure 2.1: Illustration of the safe's waterproof and fireproof features.

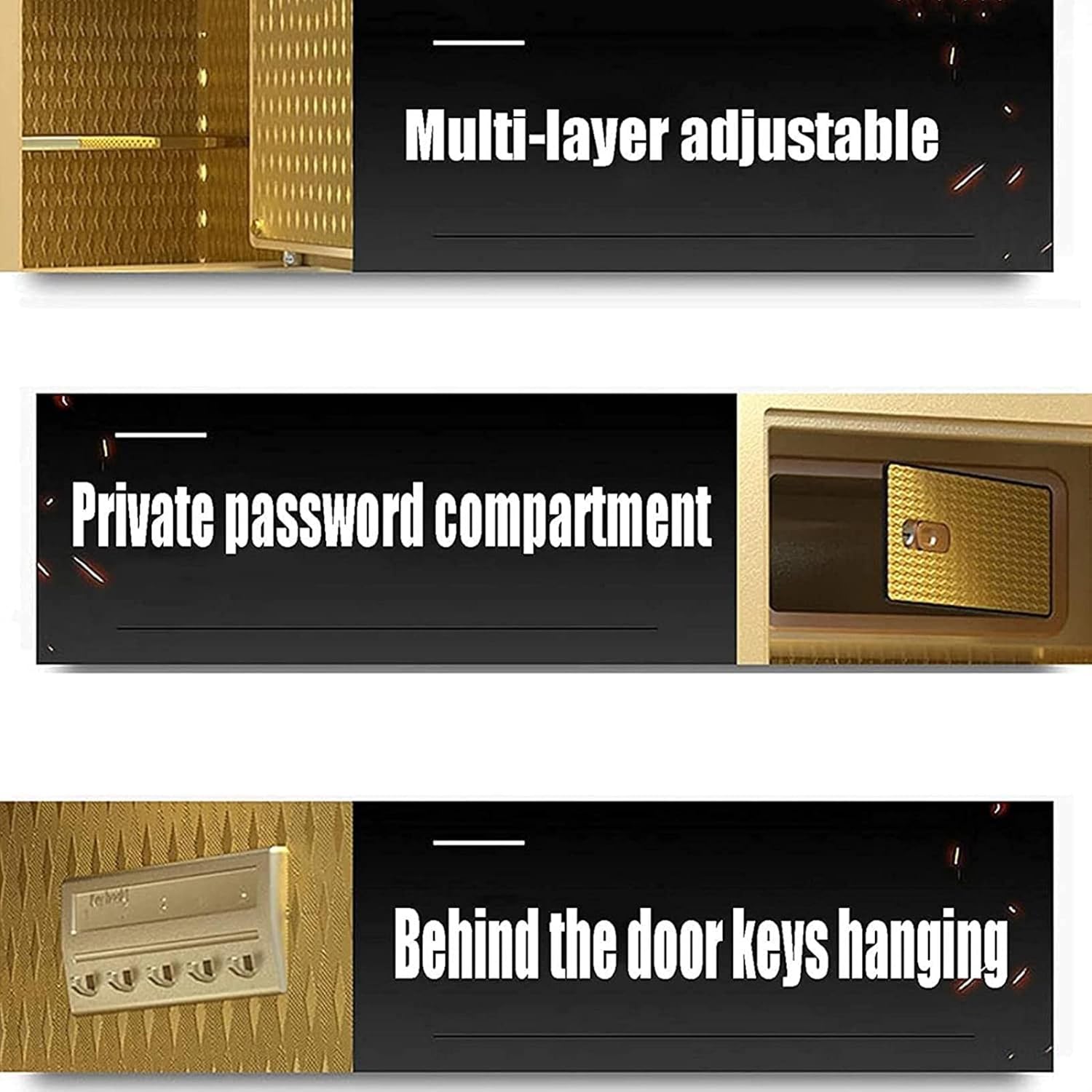

Figure 2.2: Interior features including adjustable shelving, a private compartment, and key hooks.

3. Informazzjoni dwar is-Sigurtà

• Twissija Kritika: Never lock the safe's key inside the safe. Doing so will prevent you from opening it without professional assistance.
• Keep the safe's key and mechanical password combination in a secure location, separate from the safe itself.
• Ensure the safe is installed on a stable surface or securely mounted to prevent tipping or unauthorized removal.
• Do not attempt to force the lock if it is not opening. Refer to the troubleshooting section or contact support.

4. Setup u Installazzjoni

4.1 Disimballaġġ

Carefully remove the safe from its packaging. Inspect the safe for any signs of damage. Retain all packaging materials until you are satisfied with the product.

4.2 Għażla ta' Post ta' Installazzjoni

The safe can be installed in various locations, including:

• Into a wall (recessed installation)
• Against a wall (surface-mounted installation)
• Inside a cabinet or wardrobe

Choose a location that is discreet, secure, and provides a stable mounting surface. Mounting hardware is typically included for secure installation.

Figura 4.1: Eżamples of safe placement within a home or office environment.

5. Istruzzjonijiet Operattivi

Your safe uses a combination of a mechanical password and a key for opening. The mechanical password is factory-set and cannot be changed by the user. It consists of 3 sets of 6-digit numbers.

5.1 Il-Ftuħ tas-Sejf

Biex tiftaħ is-safe, segwi dawn il-passi:

1. Locate the Mechanical Password: Refer to the documentation provided with your safe for the specific 3-set, 6-digit mechanical password. Let's assume the password is X-Y-Z (where X, Y, and Z are the three numbers).
2. Dial the First Number (X): Turn the mechanical dial clockwise (right) past '0' at least three times, then stop precisely on the first number (X) of your password.
3. Dial the Second Number (Y): Turn the mechanical dial counter-clockwise (left) past '0' at least two times, then stop precisely on the second number (Y) of your password.
4. Dial the Third Number (Z): Turn the mechanical dial clockwise (right) past '0' at least once, then stop precisely on the third number (Z) of your password.
5. Insert and Turn the Key: Insert the provided key into the keyhole and turn it clockwise (right) to unlock.
6. Open the Safe Door: Pull the safe door open.

Figure 5.1: Details of the safe's locking mechanism.

Figure 5.2: The anti-theft key and mechanical password interface.

5.2 L-Għeluq u l-Qfil tas-Sejf

To close and lock the safe:

1. Ensure the safe door is fully closed.
2. Turn the key counter-clockwise (left) to lock the mechanism, then remove the key.
3. Rotate the mechanical dial a few turns in either direction to scramble the combination, preventing unauthorized access.

6. Manutenzjoni

• Tindif: Imsaħ il-barra tas-sejf b'ċarruta ratba u damp drapp. Evita li tuża prodotti tat-tindif jew solventi li joborxu li jistgħu jagħmlu ħsara lill-finitura.
• Mekkaniżmu tas-Sokkjar: Periodically check the lock mechanism for smooth operation. Do not lubricate the mechanical dial or keyhole unless specifically instructed by a professional, as this can attract dust and cause issues.
• Intern: Keep the interior clean and dry to protect your stored items.

7 Issolvi l-problemi

7.1 Safe Will Not Open

• Kombinazzjoni Żbaljata: Double-check that you are using the correct mechanical password and following the dialing sequence precisely. Ensure you are stopping exactly on each number.
• Key Issue: Ensure the key is fully inserted and turned correctly. If the key is stuck or damaged, do not force it.
• Key Locked Inside: If the key was accidentally locked inside, professional assistance will be required to open the safe.

7.2 Safe Door Will Not Close Properly

• Check for any obstructions inside the safe or around the door frame that might be preventing it from closing completely.
• Ensure the locking bolts are fully retracted before attempting to close the door.

8. Speċifikazzjonijiet

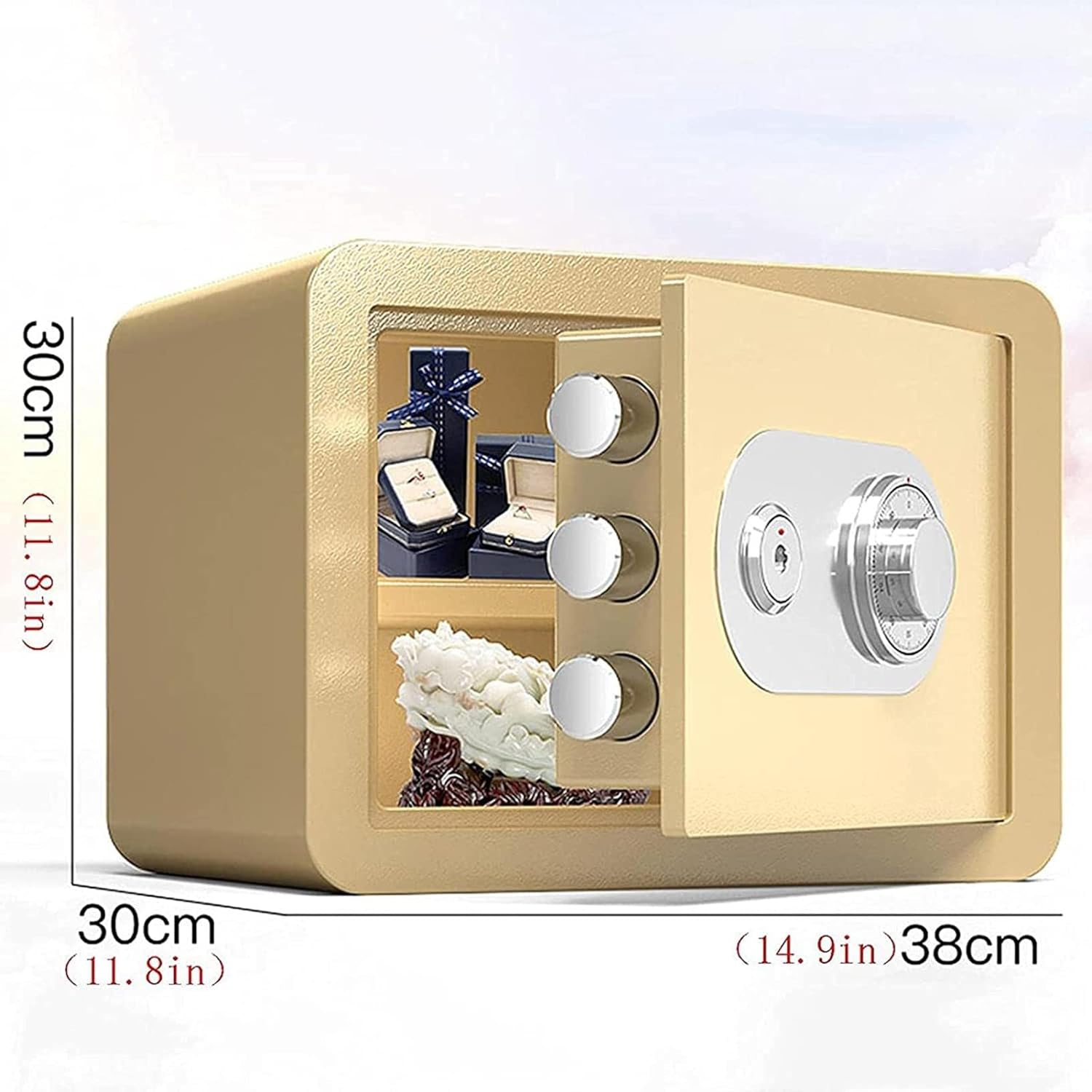

Figure 8.1: External dimensions of the safe.

9. Garanzija u Appoġġ

This Generic Home Security Safe comes with a garanzija ta 'sena from the date of purchase, ensuring peace of mind. For any issues, questions, or support needs, please refer to your purchase documentation for contact information or reach out to the seller directly. Our customer service is committed to assisting you promptly with any concerns.
