Dynascan LP-50 Professional PMR446 Walkie-Talkie User Manual

1. Introduzzjoni

The Dynascan LP-50 is a professional PMR446 walkie-talkie designed for robust communication in various environments. This device combines professional performance with extreme durability, featuring an IP67 certification for protection against dust and water immersion. It is suitable for use in construction, industrial settings, and event security. This manual provides essential information for the safe and efficient operation of your Dynascan LP-50.

2. Kontenut tal-Pakkett

Jekk jogħġbok immarka l-kaxxa għall-oġġetti li ġejjin:

• Dynascan LP-50 PMR Radio Station
• Li-Ion Battery (2000 mAh)
• Benniena tal-Iċċarġjar
• Cable tal-Iċċarġjar tal-USB-C
• Clip taċ-ċinturin
• Antenna

3. Karatteristiċi tal-prodott

The Dynascan LP-50 offers a range of features designed for reliable and efficient communication:

• Protezzjoni mill-Ilma u t-Trab IP67: Fully protected against dust and capable of immersion in water, making it ideal for demanding outdoor and industrial environments.
• Batterija fit-tul: Equipped with a high-capacity 2000 mAh Li-Ion battery for extended operation.
• Iċċarġjar flessibbli: Rechargeable via the included desktop charging cradle or directly via the USB-C port.
• Clear and Secure Communication: Features 16 programmable channels with 50 CTCSS sub-tones and 105 DCS codes to minimize interference and ensure private exchanges.
• LCD Screen and Ergonomics: Backlit display shows channel, battery level, and signal status. Front buttons provide quick access to essential functions.
• Funzjonijiet Professjonali: Includes VOX (Voice Operated Transmit) for hands-free operation, an emergency SOS function, keypad lock, and a voice guide for simplified handling.
• Medda ta' Frekwenzi: PMR446 (446.00625 MHz – 446.19375 MHz).
• Medda massima: Up to 10 kilometers (depending on terrain and conditions).

4. Setup

4.1. Installazzjoni tal-batterija

1. Ensure the walkie-talkie is powered off.
2. Sib l-għatu tal-kompartiment tal-batterija fuq wara tal-apparat.
3. Slide the latch or unscrew the fasteners to remove the cover.
4. Insert the Li-Ion battery, ensuring the contacts align correctly with the terminals inside the compartment.
5. Replace the battery cover and secure it firmly to maintain the IP67 seal.

4.2. Iċċarġjar tal-batterija

The LP-50 offers two charging methods:

• L-użu tal-Bniena tal-Iċċarġjar: Place the walkie-talkie into the desktop charging cradle. Ensure the charging contacts on the radio align with those on the cradle. The charging indicator light will illuminate.
• Bl-użu tal-USB-C: Connect the USB-C charging cable directly to the USB-C port on the side of the walkie-talkie. Connect the other end to a compatible USB power adapter (not included) or a computer USB port.

A full charge typically takes approximately 3-4 hours. The battery icon on the LCD will indicate charging status.

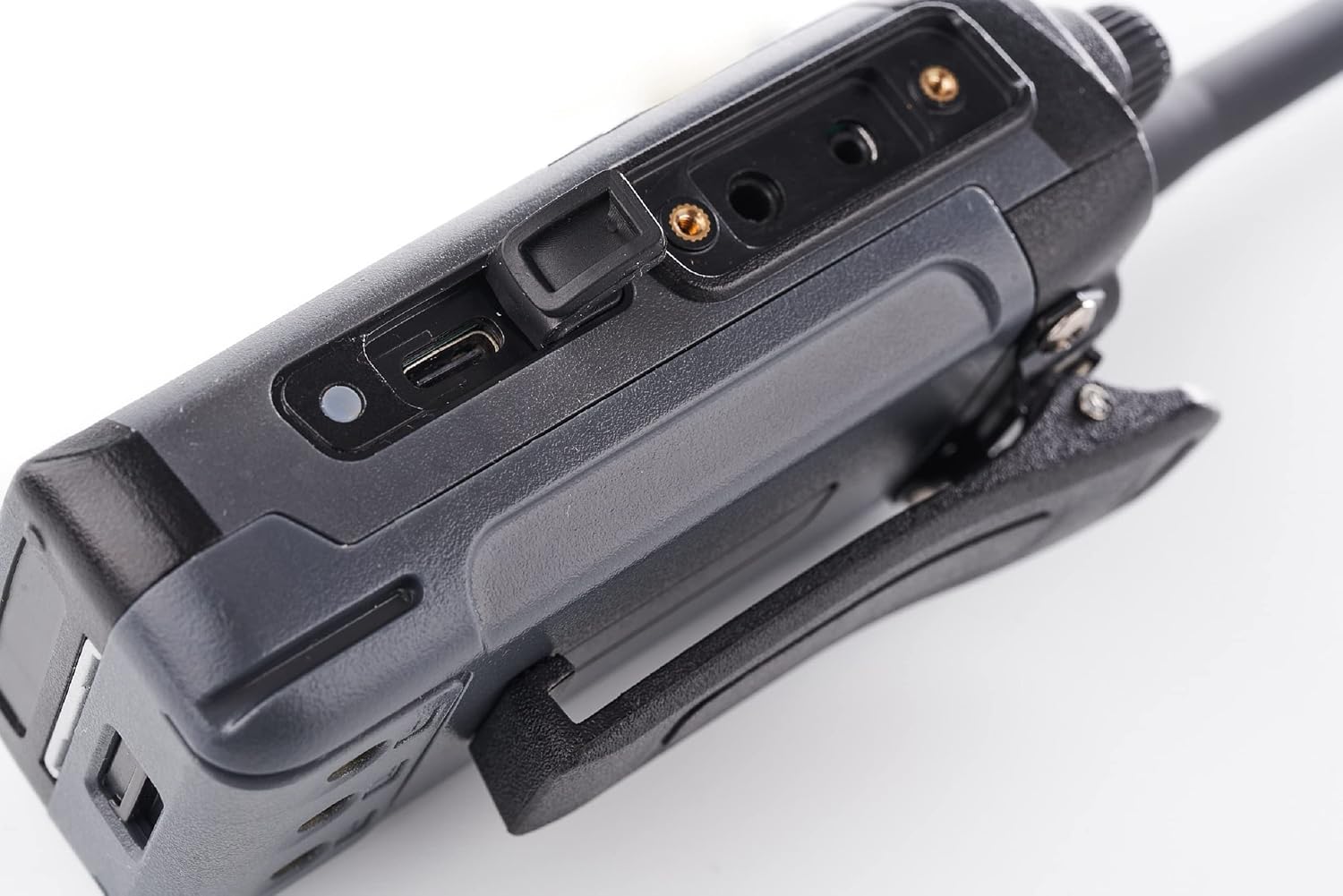

Image: Close-up of the Dynascan LP-50 walkie-talkie showing the USB-C charging port with its protective cover open. This port allows for direct charging without the cradle.

4.3. It-twaħħil tal-Antenna

1. Screw the antenna clockwise into the connector on the top of the walkie-talkie until it is finger-tight. Do not overtighten.

4.4. Twaħħil tal-Klipp taċ-Ċinturin

1. Align the belt clip with the screw holes on the back of the walkie-talkie.
2. Waħħal il-klipp taċ-ċinturin billi tuża l-viti pprovduti.

Immaġni: Ġenb view of the Dynascan LP-50 walkie-talkie with the belt clip attached, showing how it can be worn.

5. Istruzzjonijiet Operattivi

5.1. Tixgħil / Mitfi

To power on the walkie-talkie, rotate the Pum tal-qawwa/volum (top-left knob) clockwise until you hear a click and the LCD screen illuminates. To power off, rotate the knob counter-clockwise until it clicks off.

5.2. Volum ta 'aġġustament

After powering on, continue rotating the Pum tal-qawwa/volum lejn l-arloġġ biex iżżid il-volum u kontra l-arloġġ biex tnaqqasu.

5.3. Għażla tal-Kanal

Uża l- Buttuna tas-Selettur tal-Kanal (top-right knob) to select one of the 16 available channels. The selected channel number will be displayed on the LCD screen.

Immaġni: Quddiem view of the Dynascan LP-50 walkie-talkie, highlighting the LCD screen which displays the current channel (e.g., CHAN16 016) and the two control knobs at the top for power/volume and channel selection.

5.4. Trażmissjoni u Riċeviment

• Biex Tittrażmetti: Agħfas u żomm il- Buttuna PTT (Push-To-Talk) located on the side of the walkie-talkie. Speak clearly into the microphone. Release the PTT button to stop transmitting.
• Biex Tirċievi: Ensure the PTT button is not pressed. The walkie-talkie will automatically receive signals on the selected channel.

5.5. Funzjoni VOX (Trażmissjoni Mħaddma bil-Vuċi)

The VOX function allows for hands-free transmission. When activated, the radio will automatically transmit when it detects your voice. Refer to the device's menu or specific button functions (if available) to enable/disable VOX. Adjust VOX sensitivity as needed to prevent accidental transmissions or missed voice activation.

5.6. Funzjoni SOS

The SOS function is an emergency alert feature. When activated, the radio may emit an alarm tone or transmit a distress signal to other radios on the same channel. Consult your device's specific button assignments or menu for activating the SOS function.

5.7. Serratura tat-Tastiera

To prevent accidental changes to settings or channel selection, the keypad lock function can be activated. This typically involves pressing and holding a designated button (e.g., the 'Menu' or 'Lock' button) for a few seconds. Repeat the action to unlock the keypad.

5.8. CTCSS/DCS Codes

CTCSS (Continuous Tone-Coded Squelch System) and DCS (Digitally Coded Squelch) codes are used to filter out unwanted conversations. When a CTCSS/DCS code is set, you will only hear transmissions from radios using the same channel and the same CTCSS/DCS code. This enhances communication privacy. These codes are typically set via the radio's menu system.

6. Manutenzjoni

6.1. Tindif

Naddaf il-barra tar-radju b'ċarruta ratba u driegħ.amp cloth. Do not use harsh chemicals, solvents, or abrasive cleaners. Ensure all port covers (e.g., USB-C, accessory port) are securely closed to maintain the IP67 rating.

6.2. Kura tal-batterija

• Evita li tiċċarġja l-batterija kompletament ta' spiss.
• Iċċarġja l-batterija regolarment, anke jekk ir-radju ma jkunx qed jintuża, biex iżżomm il-ħajja tagħha.
• Tesponix il-batterija għal temperaturi estremi.

6.3. Ħażna

When storing the walkie-talkie for extended periods, remove the battery and store both the radio and battery in a cool, dry place. Ensure the battery is partially charged (around 50%) before storage.

6.4. Klassifikazzjoni IP67

While the device is IP67 rated (dustproof and protected against temporary immersion in water up to 1 meter for 30 minutes), it is not designed for continuous underwater use. Always ensure all port covers and the battery compartment are properly sealed before exposing the device to water or dusty environments.

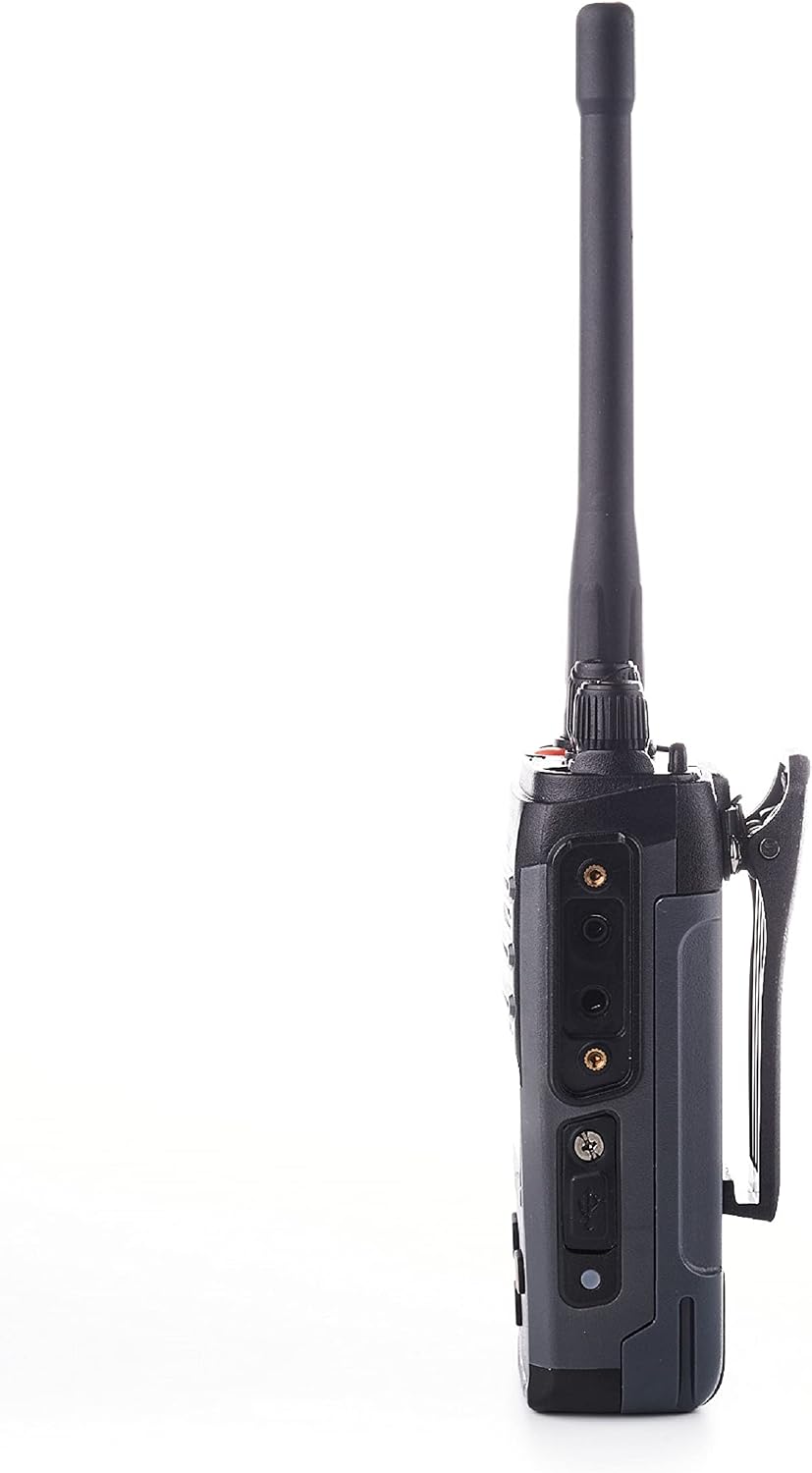

Immaġni: Ġenb view of the Dynascan LP-50 walkie-talkie showing the accessory port with its protective cover. This cover must be securely closed to maintain the device's IP67 rating.

7 Issolvi l-problemi

If you encounter issues with your Dynascan LP-50, refer to the following common problems and solutions:

8. Speċifikazzjonijiet

9. Informazzjoni dwar Garanzija

The Dynascan LP-50 walkie-talkie comes with a garanzija ta 'sena from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by misuse, accidents, unauthorized modifications, or failure to follow the instructions in this manual.

10. Appoġġ

For further assistance, technical support, or warranty claims, please contact your Dynascan retailer or authorized service center. Ensure you have your product model number (LP-50) and proof of purchase available when seeking support.
