Fanmusic TRN EMX Earphone Instruction Manual

1. Introduzzjoni

Thank you for choosing the Fanmusic TRN EMX Earphone. This manual provides essential information for the proper setup, operation, and maintenance of your new HiFi flat earbuds. Please read this manual thoroughly before using the product to ensure optimal performance and longevity.

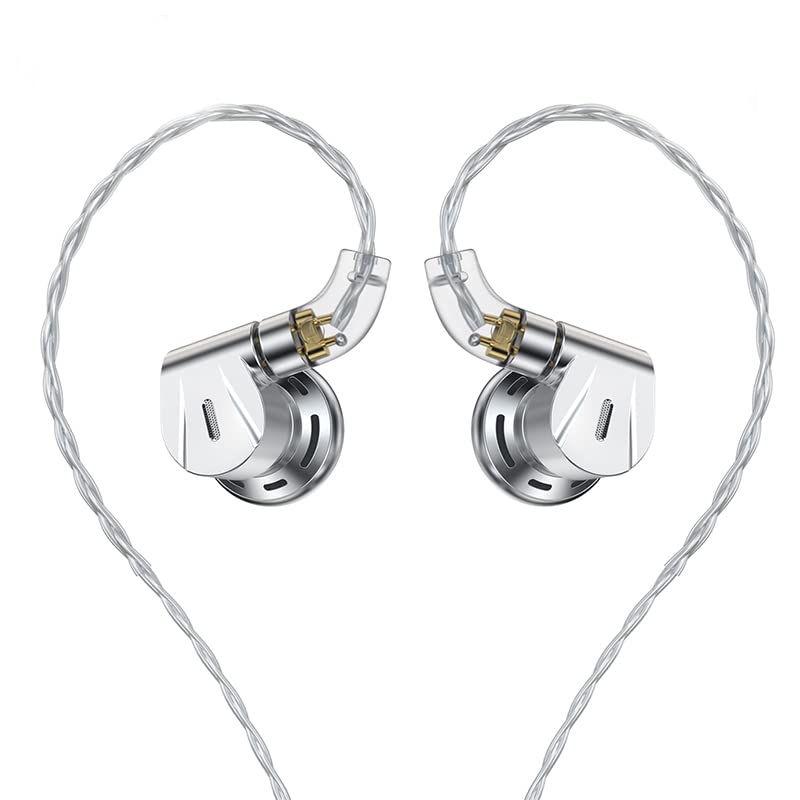

Figure 1: Fanmusic TRN EMX Earphone overview.

Karatteristiċi ewlenin:

• 14.2mm Beryllium-Plated Diaphragm Unit: Delivers magnificent low-frequency performance with clean speed and power.
• Aluminum Alloy Cavity: Precision CNC-cut to effectively suppress resonance, ensuring comfortable and natural high-frequency extension.
• Professional Acoustic Structure: Optimizes dynamic coil performance for a rich and full sound experience.
• Acoustic Airflow Design: Half-open exhaust design for easy pressure relief, enhancing bass dive and power.
• Interchangeable Plugs: Features 2.5mm, 3.5mm, and 4.4mm jack types for versatile connectivity.
• 2-Pin Gold-Plated Connector: Ensures secure and high-quality signal transmission.

2. X'hemm fil-Kaxxa

Upon unpacking your TRN EMX Earphone, please ensure all the following items are present:

• TRN EMX Earbuds (1 pair)
• Audio Cable with 2-Pin connectors
• Interchangeable Plugs (2.5mm, 3.5mm, 4.4mm)
• Various Ear Tips (silicone and foam, different sizes)
• Manwal għall-Utent (dan id-dokument)

Figure 2: TRN EMX Earphone components including earbuds, cable, and interchangeable plugs.

3. Setup

3.1 Attaching the Cable to Earbuds

1. Identify the left (L) and right (R) earbuds and the corresponding connectors on the cable. The earbuds typically have 'L' and 'R' markings.
2. Align the 2-pin connector on the cable with the receptacle on the earbud. Ensure the pins are correctly oriented.
3. Gently push the connector into the earbud until it clicks securely into place. Do not force it.
4. Irrepeti għall-earbud l-oħra.

Figure 3: Close-up of the 2-pin connector being attached to the earbud housing.

3.2 L-Għażla u l-Installazzjoni tat-Tips tal-Widnejn

Selecting the correct ear tips is crucial for sound quality and comfort. Experiment with different sizes and materials (silicone or foam) to find the best fit for your ears.

1. Neħħi bil-mod il-ponot tal-widnejn installati minn qabel billi tiġbidhom 'il barra miż-żennuna.
2. Select a new pair of ear tips.
3. Push the new ear tip onto the earbud's nozzle, ensuring it is fully seated and secure.

3.3 Attaching Interchangeable Plugs

The TRN EMX features interchangeable audio plugs for compatibility with various devices.

1. Unscrew the currently attached plug from the cable.
2. Select the desired plug (2.5mm, 3.5mm, or 4.4mm).
3. Screw the new plug onto the cable connector until it is firmly attached.

Figure 4: The interchangeable audio plugs (2.5mm, 3.5mm, 4.4mm) provided with the TRN EMX Earphone.

4. Istruzzjonijiet Operattivi

4.1 L-Ilbies tal-Earphones

1. Insert the earbuds into your ears, ensuring a comfortable and secure fit. The cable is designed to be worn over the ear for better stability and reduced microphonics.
2. Adjust the cable over your ears so it rests comfortably.

Figure 5: Proper wearing technique for the TRN EMX Earphone with the cable routed over the ear.

4.2 Konnessjoni ma' Sors tal-Awdjo

1. Ensure the correct interchangeable plug is attached to your earphone cable.
2. Insert the audio plug into the corresponding jack on your audio device (smartphone, DAP, amplifier, eċċ.).
3. Start playing your audio. Adjust the volume on your audio device to a comfortable listening level.

4.3 Using the In-line Remote (if applicable)

If your cable includes an in-line remote, it may offer basic controls such as play/pause, track skip, and call management. Refer to your audio device's manual for specific compatibility and functions.

5. Manutenzjoni

5.1 Cleaning the Earbuds and Ear Tips

• Regularly clean your earbuds and ear tips to maintain hygiene and sound quality.
• Gently wipe the earbud housings with a soft, dry cloth.
• Neħħi l-ponot tal-widnejn u aħsilhom b'sapun ħafif u ilma. Laħlaħhom sewwa u ħallihom jinxfu kompletament qabel ma terġa' twaħħalhom.
• Use a small, soft brush or cotton swab to carefully remove any earwax or debris from the earbud nozzles.

5.2 Kura tal-Kejbil

• Evita liwjiet qawwija jew ġbid eċċessiv tal-kejbil biex tevita l-ħsara.
• When storing, coil the cable loosely to prevent tangling.

5.3 Ħażna

When not in use, store your TRN EMX Earphone in a clean, dry place, preferably in a protective case, to prevent dust accumulation and physical damage.

6 Issolvi l-problemi

6.1 Ebda Ħoss jew Ħoss Intermittenti

• Ensure the audio plug is fully inserted into the audio source.
• Check that the 2-pin connectors are securely attached to the earbuds.
• Verify the volume on your audio device is turned up and not muted.
• Ittestja b'sors awdjo jew kejbil differenti biex teskludi problemi bl-apparat jew bil-kejbil.
• Inspect the earbud nozzles for any blockages (e.g., earwax) and clean if necessary.

6.2 Ħoss Mgħawġ

• Naqqas il-volum fuq l-apparat awdjo tiegħek.
• Kun żgur li s-sors tal-awdjo qed idoqq awdjo ta' kwalità għolja files.
• Check for any damage to the cable or earbuds.

6.3 Tajbin Skomdu

• Try different sizes and materials of ear tips to find the most comfortable and secure fit.
• Adjust the cable's position over your ear.

7. Speċifikazzjonijiet

Figure 6: Frequency response graph of the TRN EMX Earphone. Note: Actual use may vary slightly.

8. Garanzija u Appoġġ

8.1 Informazzjoni dwar Garanzija

The Fanmusic TRN EMX Earphone comes with a GARANZIJA TA' SENA mid-data tax-xiri. Din il-garanzija tkopri difetti fil-manifattura u abbilità taħt użu normali. Ma tkoprix ħsara kkawżata minn użu ħażin, inċidenti, modifiki mhux awtorizzati, jew xedd u kedd normali.

8.2 Appoġġ għall-Klijent

For technical assistance, warranty claims, or any questions regarding your TRN EMX Earphone, please contact your retailer or visit the official Fanmusic websit għal riżorsi ta' appoġġ.
