Introduzzjoni
This manual provides detailed instructions for the Onten USB 3.0 to HDMI/VGA Display Adapter, Model 5201b. This adapter allows you to connect your computer or laptop to external displays using either HDMI or VGA ports, supporting simultaneous output to two screens. Please read this manual carefully before using the product to ensure proper operation and to maximize its performance.

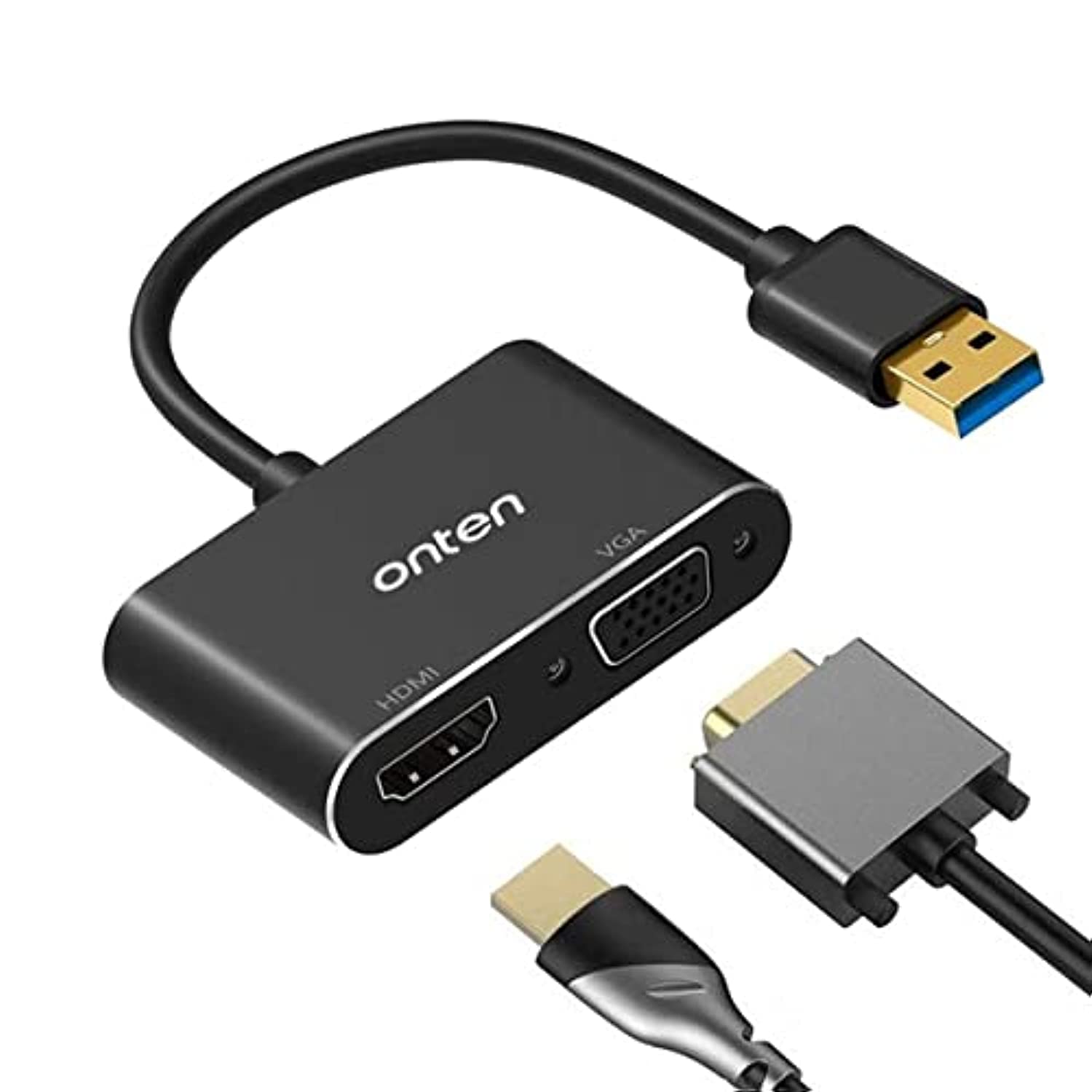

Image: The Onten USB 3.0 to HDMI/VGA Display Adapter, showing its USB 3.0 input and HDMI/VGA outputs.
Informazzjoni dwar is-Sigurtà
- Żomm l-apparat 'il bogħod mill-ilma, min-nar, u minn temperaturi għoljin.
- Tippruvax tiżżarma jew issewwi l-apparat int stess. Irreferi għal persunal tas-servizz kwalifikat.
- Use only with compatible devices and cables as specified in this manual.
- Evita li twaqqa’ jew tissuġġetta l-apparat għal impatti qawwija.
Kontenut tal-Pakkett
Jekk jogħġbok iċċekkja l-kontenut tal-pakkett malli tiftaħ biex tiżgura li l-oġġetti kollha huma preżenti:
- 1 x Onten USB 3.0 to HDMI/VGA Display Adapter (Model 5201b)
- 1 x USB 3.0 Cable (removable)
- 1 x Manwal għall-Utent
Setup
- Connect the USB 3.0 Cable: Attach the removable USB 3.0 cable to the adapter.
- Qabbad mal-Kompjuter: Plug the USB 3.0 end of the cable into an available USB 3.0 port on your Windows computer or laptop. For optimal performance and resolution (up to 1920x1080), a USB 3.0 port is highly recommended. Connecting to a USB 2.0 port will limit the resolution to 800x600.
- Qabbad id-Displays:
- For HDMI display: Connect an HDMI cable from your display to the HDMI port on the adapter.
- For VGA display: Connect a VGA cable from your display to the VGA port on the adapter.
- Installazzjoni tas-sewwieq: The adapter is designed for plug-and-play functionality on Windows 7, 8, and 10. The necessary drivers should install automatically. If prompted, follow the on-screen instructions. If the display does not activate, you may need to manually install drivers from the manufacturer's website (if available) or check your display settings.
Istruzzjonijiet Operattivi
- Kompatibilità: This adapter is compatible exclusively with Windows 7, Windows 8, and Windows 10 operating systems. It does le support Mac OS, Linux, Vista, or Chrome OS.
- Riżultat Simultanju: The adapter supports simultaneous output to both HDMI and VGA displays. Both external displays will mirror the image from your computer's primary display.
- Riżoluzzjoni:
- When connected to a USB 3.0 port: Supports resolutions up to 1920x1080 (Full HD).
- When connected to a USB 2.0 port: Resolution is limited to 800x600.
- Output Awdjo: The HDMI port transmits both video and audio. The VGA port also supports audio output. Ensure your display or connected audio system is configured correctly to receive audio.
- Issettjar tal-wiri: After connecting, you may need to adjust your display settings in Windows (e.g., 'Display settings' or 'Screen Resolution') to extend or duplicate your desktop, if not automatically detected.
Issolvi l-problemi
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| No display or low resolution (800x600) | Adapter connected to a USB 2.0 port instead of USB 3.0. | Ensure the adapter is plugged into a USB 3.0 port on your computer. USB 3.0 ports are typically blue or marked with a 'SS' symbol. |
| No display on external monitor | Incorrect connection, incompatible operating system, or driver issue. | 1. Verify all cables are securely connected. 2. Confirm your computer runs Windows 7/8/10. 3. Check Windows display settings. 4. Restart your computer. |
| No audio from VGA display | Audio settings not configured, or display does not support audio input via VGA. | 1. Check your computer's sound output settings. 2. Ensure your VGA display or connected audio system is capable of receiving audio. |
| Adapter not recognized by computer | Driver installation failed or USB port issue. | 1. Try a different USB port. 2. Check Device Manager in Windows for any unrecognized devices and attempt to update drivers. |
Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Mudell | 5201b |
| Input Interface | USB 3.0 |
| Interfaces tal-Output | hdmi, vga |
| Max Resolution (USB 3.0) | 1920x1080 |
| Max Resolution (USB 2.0) | 800x600 |
| Sistemi Operattivi Kompatibbli | Windows 7, Windows 8, Windows 10 |
| Incompatible Operating Systems | Mac OS, Linux, Vista, Chrome OS |
| Output Simultanju | Yes (mirrored display) |
| Sors tal-Enerġija | USB Bus-powered (Plugless) |
| Tip Finish | Non-glossy |
| Manifattur | Onten |
Manutenzjoni
- Naddaf l-adapter b'ċarruta ratba u niexfa. Tużax prodotti tat-tindif likwidi jew aerosols.
- Aħżen l-adapter f'post frisk u niexef meta ma jkunx qed jintuża.
- Evita li tgħawweġ jew iddawwar il-kejbils b'mod eċċessiv biex tevita l-ħsara.
Garanzija u Appoġġ
This Onten USB 3.0 to HDMI/VGA Display Adapter (Model 5201b) comes with a garanzija ta 'sena mid-data tax-xiri, li tkopri difetti fil-manifattura.
For technical support, warranty claims, or any product-related inquiries, please do not hesitate to contact us via email. Refer to your purchase documentation for specific contact details or visit the official Onten support websit.
