HUMILABS 50 Pint Dehumidifier User Manual

1. Introduzzjoni

Thank you for choosing the HUMILABS 50 Pint Dehumidifier. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your appliance. Please read it thoroughly before use and retain it for future reference.

This dehumidifier is designed to remove excess moisture from the air, helping to protect your home from humidity-related issues such as mold, mildew, and odors. It is suitable for various indoor environments, including basements, living rooms, bedrooms, bathrooms, and offices.

2. Istruzzjonijiet Importanti dwar is-Sigurtà

Biex tnaqqas ir-riskju ta’ nar, xokk elettriku, jew korriment, dejjem segwi dawn il-prekawzjonijiet bażiċi:

• Aqra l-istruzzjonijiet kollha qabel tuża l-apparat.
• Kun żgur li l-provvista tal-enerġija taqbel mat-tikketta tal-klassifikazzjoni fuq l-unità.
• Tħaddimx id-dehumidifikatur b'korda jew plagg bil-ħsara.
• Timblokkax id-daħliet jew il-ħruġ tal-arja. Żomm mill-inqas 8 pulzieri (20 ċm) spazju madwar l-unità.
• Always place the unit on a level, stable surface.
• Spluggja l-apparat qabel it-tindif jew is-servizz.
• Tużax l-apparat ħdejn l-ilma jew f'ambjenti eċċessivament imxarrba.
• Żomm it-tfal u l-annimali domestiċi 'l bogħod mill-apparat waqt it-tħaddim.

3. Prodott Aktarview

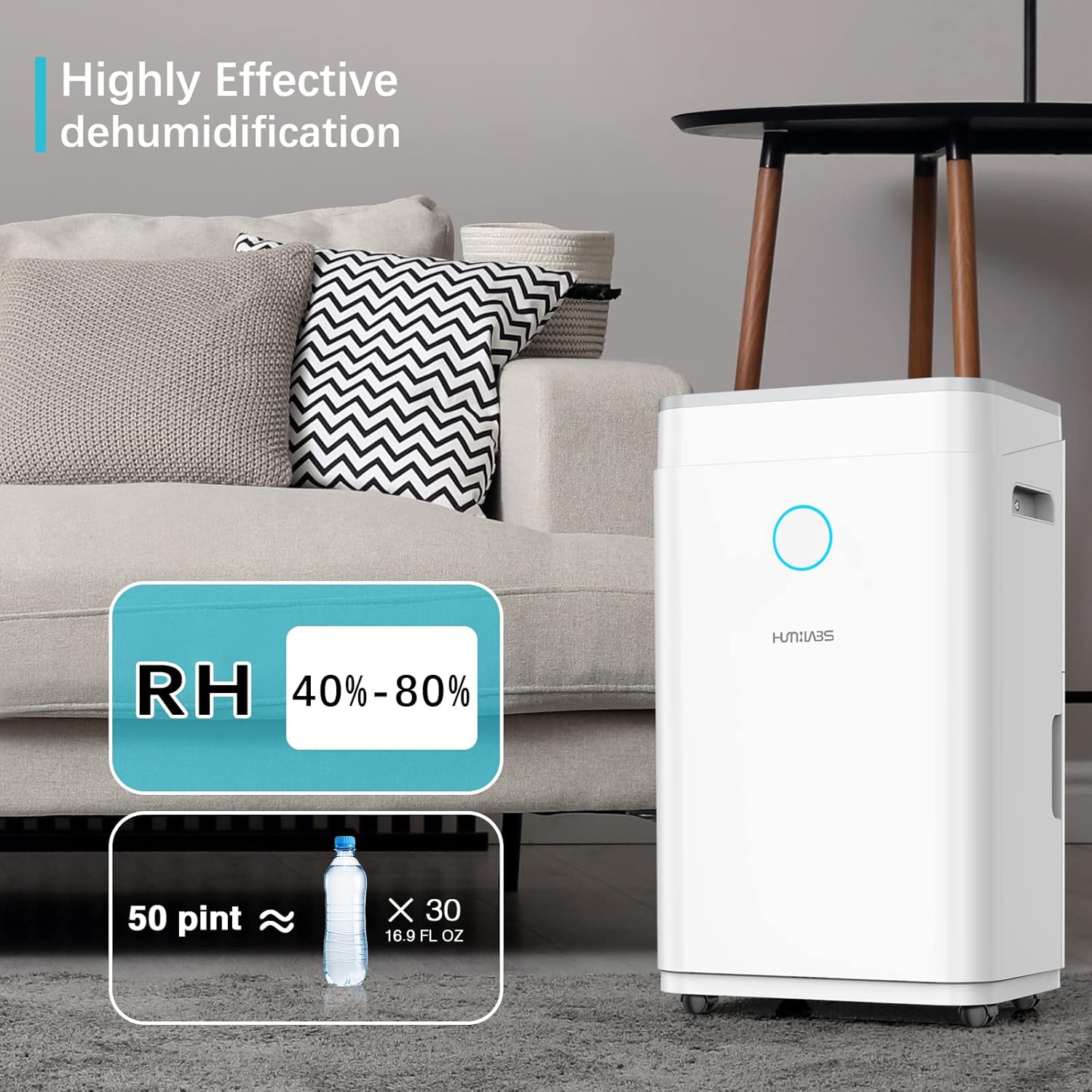

The HUMILABS 50 Pint Dehumidifier is designed for efficient moisture removal in areas up to 4500 square feet. It features intelligent humidity control, multiple operating modes, and user-friendly functions.

Karatteristiċi ewlenin:

• Kapaċità Għolja: Ineħħi sa 50 pinta ta' umdità kuljum.
• Kopertura Wiesgħa: Effettiv għal żoni sa 4500 pied kwadru.
• Kontroll Intelliġenti tal-Umdità: Adjustable humidity range from 30% to 80%.
• Modi multipli: Auto Dry, Continuous, and Manual Set.
• Timer ta' 24 siegħa: Program auto start and stop times.
• Operazzjoni kwieta: Iddisinjat għal tfixkil minimu tal-ħoss.
• Tifi Awtomatiku: Activates when the water tank is full.
• Childlock: Jipprevjeni bidliet mhux intenzjonati fis-settings.
• Iffiltra li tinħasel: Faċli biex tnaddaf u tinżamm.

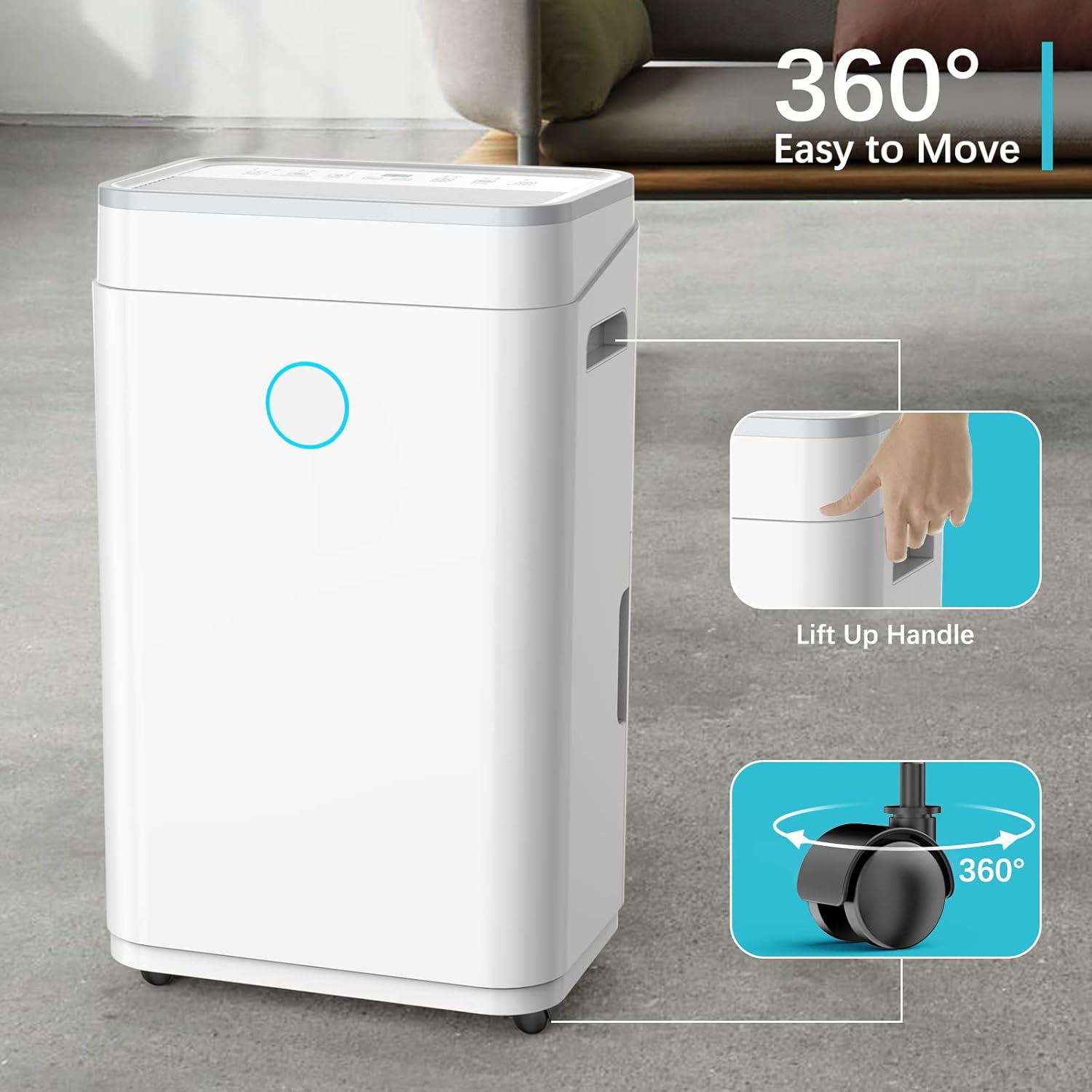

• Portabbiltà: Equipped with 360° rotatable wheels and lift-up handles.

Komponenti tal-Prodott:

4. Setup u Installazzjoni

4.1 Disimballaġġ

• Neħħi d-deumidifikatur mill-imballaġġ tiegħu bir-reqqa.
• Neħħi l-materjali tal-ippakkjar kollha, inkluż kwalunkwe tejp jew films protettivi.
• Spezzjona l-unità għal kwalunkwe ħsara waqt it-tbaħħir. Jekk tkun ġarrbet ħsara, tħaddimhiex u kkuntattja l-appoġġ għall-klijenti.

4.2 Tqegħid

It-tqegħid xieraq huwa kruċjali għal prestazzjoni ottimali.

• Place the dehumidifier on a firm, level surface capable of supporting its weight when the water tank is full.
• Ensure there is at least 8 inches (20 cm) of space around the unit for proper airflow. Do not block the air inlet or outlet.
• For best results, operate the dehumidifier in an enclosed area. Close all doors and windows to the room where it is operating.
• The unit is suitable for basements, living rooms, bedrooms, bathrooms, offices, laundry rooms, and other areas up to 4500 sq. ft.

4.3 Konnessjoni tal-Enerġija

• Ipplaggja l-korda tad-dawl fi żbokk elettriku ertjat.
• Tużax kurduni ta' estensjoni jew plaggs tal-adapter.

5. Istruzzjonijiet Operattivi

5.1 Panel tal-Kontroll

The control panel allows you to manage all functions of the dehumidifier.

• Buttuna tal-Qawwa: Ixgħel jew jitfi l-unità.
• Buttuna tal-Modalità: Cycles through operating modes: Auto Dry, Continuous, and Manual Set.
• Buttuna tal-veloċità: Adjusts fan speed (e.g., Low, High).
• Buttuna tat-Tajmer: Sets the 24-hour timer for auto start/stop.
• Lock Button (Childlock): Press and hold to activate/deactivate childlock, preventing accidental changes.
• Sleep/Reset Button: Activates sleep mode for quieter operation or resets filter alert.
• Wiri tal-Umdità: Shows the current room humidity level.

5.2 Issettjar tal-Umdità Mixtieqa

In Manual Set mode, you can set your desired humidity level between 30% and 80%.

1. Press the 'Mode' button until 'Manual Set' is selected.
2. Use the up/down arrows (often integrated with other buttons) to adjust the target humidity.
3. L-unità se topera sakemm jintlaħaq il-livell ta' umdità stabbilit, imbagħad tixgħel u titfi ċiklikament biex iżżommu.

5.3 Modi Operattivi

• Modalità Nixxef Awtomatiku: The unit automatically adjusts its operation to maintain a comfortable humidity level, typically around 45-55%.
• Modalità Kontinwa: The unit runs continuously regardless of the humidity level, ideal for very damp conditions or for drying laundry.
• Manual Set Mode: Allows you to set a specific target humidity level.

5.4 Funzjoni Timer

The 24-hour timer allows you to schedule the dehumidifier to turn on or off automatically.

1. Press the 'Timer' button.
2. Use the adjustment buttons to set the desired number of hours (1-24) for the unit to turn on or off.
3. The timer will activate after a few seconds.

5.5 Laundry Dry Function

This mode is designed to help dry clothes faster by running the dehumidifier continuously at a high fan speed.

5.6 Auto-Restart and Sleep Mode

• Ristartja Awtomatikament: F'każ ta' qawwa outage, l-unità terġa 'tibda awtomatikament bis-settings preċedenti ladarba l-enerġija tiġi restawrata.
• Modalità Sleep: Reduces fan speed and dims display lights for quieter operation during sleep.

5.7 Humidity Indicator Light

The indicator light on the front of the unit changes color to reflect the current humidity level:

• Blu: Umdità taħt is-45%
• Aħdar: Umdità bejn 45% u 65%
• Aħmar: Umdità 'l fuq minn 65%

6. Drenaġġ tal-Ilma

Your dehumidifier offers two drainage options:

6.1 Manual Drainage (Water Tank)

The unit has a 1.5-gallon (6500ml) water tank. When the tank is full, the 'Full' indicator will light up, an alarm will sound, and the dehumidifier will automatically shut off.

1. Iġbed bil-mod it-tank tal-ilma 'l barra minn quddiem l-unità.
2. Vojta l-ilma miġbur.
3. Slide the empty water tank back into the unit until it clicks into place. The unit will resume operation.

6.2 Continuous Drainage (Drain Hose)

For continuous operation without emptying the tank, you can connect a drain hose.

1. Locate the drainpipe hole on the left side of the dehumidifier.
2. Attach a suitable drain hose (not included) to this outlet.
3. Ensure the hose is sloped downwards to allow gravity drainage into a floor drain or larger container.

7. Manutenzjoni

Manutenzjoni regolari tiżgura prestazzjoni ottimali u testendi l-ħajja tad-deumidifikatur tiegħek.

7.1 Tindif tal-Filtru tal-Arja

The dehumidifier is equipped with a reusable and washable filter. A 'Filter Clean' alert will remind you when it's time to clean the filter.

1. Itfi d-deumidifikatur u aqlagħh mill-plagg tal-elettriku.
2. Sib il-filtru tal-arja, tipikament fuq wara jew fuq il-ġenb tal-unità.
3. Iġbed il-filtru bil-mod 'il barra.
4. Aħsel il-filtru b'ilma sħun u bis-sapun. Laħlaħ sew.
5. Allow the filter to air dry completely before reinstalling. Do not use a dryer or direct heat.
6. Once reinstalled, press the 'Sleep/Reset' button to clear the 'Filter Clean' alert.

7.2 Tindif tal-Estern tal-Unità

• Imsaħ il-barra b'artab, damp drapp.
• Tużax kimiċi ħarxa, sustanzi li joborxu, jew solventi.

8 Issolvi l-problemi

Qabel ma tikkuntattja l-appoġġ għall-klijenti, jekk jogħġbok irreferi għall-kwistjonijiet u s-soluzzjonijiet komuni li ġejjin:

If the problem persists after trying these solutions, please contact HUMILABS customer support.

9. Speċifikazzjonijiet

10. Garanzija u Appoġġ għall-Klijent

For warranty information, technical assistance, or any questions regarding your HUMILABS 50 Pint Dehumidifier, please contact HUMILABS customer support. Our team is dedicated to providing satisfactory assistance for any issues you may encounter.

Jekk jogħġbok żomm il-mudell tal-prodott tiegħek u d-data tax-xiri disponibbli meta tikkuntattja l-appoġġ.
