HUAWEI MateView Manwal tal-Utent tal-Monitor ta' 28.2 pulzier

1. Introduzzjoni

Thank you for choosing the HUAWEI MateView 28.2-inch Monitor. This monitor is designed to provide an exceptional visual experience with its 4K+ Ultra-HD display, vibrant color reproduction, and sleek, minimalist design. Featuring a 3:2 aspect ratio, 98% DCI-P3 cinema-level color gamut, and VESA DisplayHDR 400 certification, it is ideal for both professional and personal use. The integrated Smart Bar offers intuitive touch controls for easy interaction, and its versatile connectivity options, including multi-purpose USB-C, enhance productivity.

Figura 1.1: Quddiem view of the HUAWEI MateView Monitor.

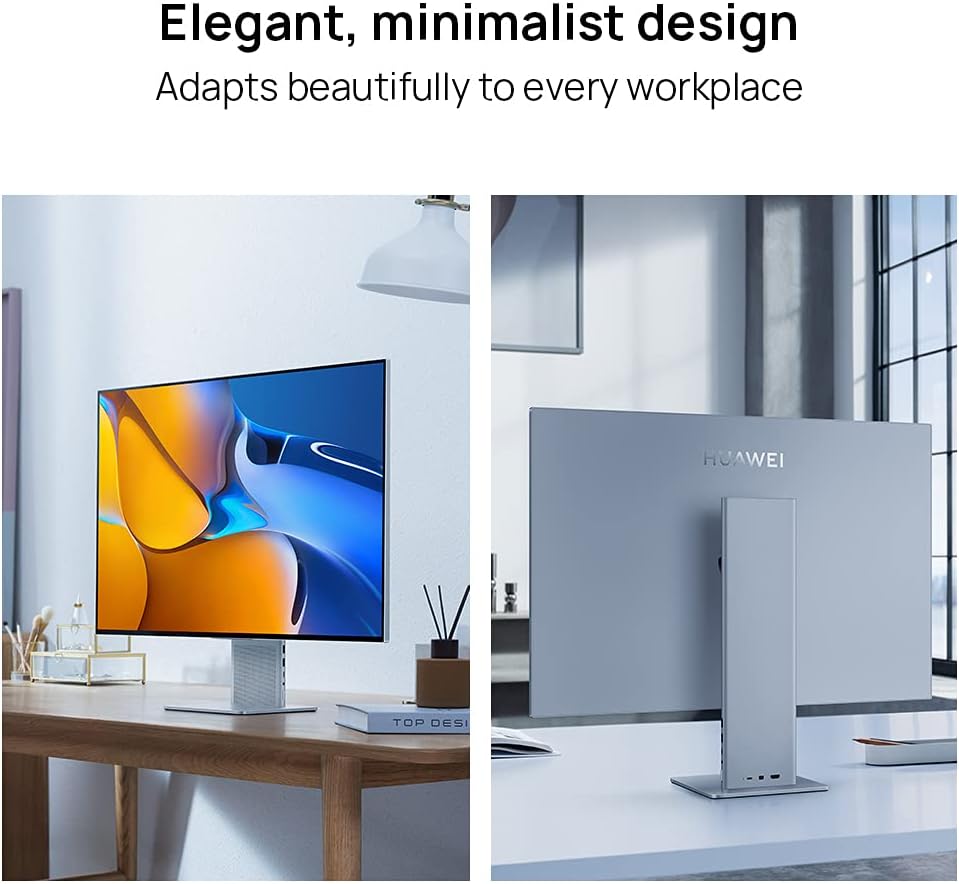

Figure 1.2: The elegant and minimalist design of the HUAWEI MateView Monitor, shown from front and back.

2. Informazzjoni dwar is-Sigurtà

Please read all safety instructions before using the monitor. Keep this manual for future reference.

• Tesponix il-monitor għax-xita jew għall-umdità.
• Twaqqafx il-fetħiet tal-ventilazzjoni.
• Uża biss aċċessorji/aċċessorji speċifikati mill-manifattur.
• Aqla’ dan l-apparat waqt maltempati tas-sajjetti jew meta ma jintużax għal perjodi twal ta’ żmien.
• Irreferi l-manutenzjoni kollha lil persunal tas-servizz kwalifikat.

3. Kontenut tal-Pakkett

Kun żgur li l-oġġetti kollha huma preżenti u f'kundizzjoni tajba meta tiftaħ il-kaxxa:

• HUAWEI MateView Monitor 28.2-il pulzier
• Monitor Stand
• Adapter tal-Enerġija u Cable
• USB-C għal USB-C Cable
• USB-C għal USB-A Cable
• MiniDP Cable (if included with your model)
• HDMI Cable (if included with your model)
• Gwida Quick Start
• Karta ta' Garanzija

4. Setup

4.1 Assemblaġġ tal-Monitor

1. Carefully remove the monitor and stand from the packaging.
2. Attach the monitor panel to the stand base. Ensure it clicks securely into place.
3. Poġġi l-monitor immuntat fuq wiċċ stabbli u ċatt.

4.2 Kejbils tal-Konnessjoni

Il HUAWEI MateView monitor offers versatile connectivity. Connect your devices using the appropriate ports located on the stand.

Figura 4.1: Ġenb view of the monitor stand showing the various input and output ports.

• Konnessjoni tal-Enerġija: Connect the power adapter to the monitor's USB-C power port and then to a power outlet.
• Konnessjoni USB-C: For a single-cable solution that provides display, data transfer, and charging (up to 65W) for compatible laptops, connect a USB-C to USB-C cable from your device to the monitor's USB-C port.
• Konnessjoni HDMI: Qabbad kejbil HDMI mit-tagħmir tiegħek mal-port HDMI tal-monitor.
• MiniDP Connection: Connect a MiniDP cable from your device to the monitor's MiniDP port.
• Portijiet USB-A: Use the two USB-A 3.0 ports on the stand to connect peripherals like keyboards, mice, or external storage devices.
• Jack Awdjo 3.5mm: Connect headphones or external speakers to this port.

4.3 L-aġġustament tal-Monitor

The monitor stand allows for ergonomic adjustments to suit your viewpreferenzi.

Figure 4.2: A hand demonstrating the height adjustment feature of the HUAWEI MateView Monitor.

• Aġġustament Għoli: Gently push or pull the monitor up or down to adjust its height. The elevation range is approximately 110 mm.
• Aġġustament tal-inklinazzjoni: Mejjel l-iskrin tal-monitor 'il quddiem jew lura biex issib l-aħjar viewing angle. The tilt angle ranges from -5° to 18°.

5. Joperaw

5.1 Power On/Off

The monitor will automatically power on when connected to a power source and a signal is detected. To manually power on/off, use the Smart Bar.

5.2 Using the Smart Bar

The Smart Bar, located at the bottom edge of the monitor, provides intuitive touch controls for various settings.

Figure 5.1: The Smart Bar interface on the HUAWEI MateView Monitor, showing touch controls for settings.

• Tektek Uniku: Agħżel għażla jew ikkonferma setting.
• Swipe Xellug/Lemin: Navigate through menus or adjust values (e.g., brightness, volume).
• Swipe 'l fuq/'l isfel: Access quick settings or switch between display inputs.
• Agħfas u żomm: Access the main menu or power off the monitor.

5.3 Projezzjoni bla fili

Wirelessly project your compatible laptop or smartphone screen onto the HUAWEI MateView for enhanced productivity and entertainment. Refer to your device's manual for specific wireless projection instructions.

Figure 5.2: The monitor displaying content wirelessly projected from a laptop, showcasing enhanced efficiency.

5.4 Karatteristiċi tal-awdjo

The monitor features built-in dual speakers and four microphones for clear audio and voice pickup.

• Kelliema: Provide integrated audio output. Volume can be controlled via the Smart Bar or your connected device.
• Mikrofoni: Designed for 4-meter far-field voice pickup, ideal for video calls and voice commands.

6. Manutenzjoni

To ensure the longevity and optimal performance of your HUAWEI MateView monitor, follow these maintenance guidelines:

• Tindif tal-Iskrin: Imsaħ l-iskrin bil-mod b'ċarruta ratba u mingħajr suf. Għal marki persistenti, nixxef ftit.ampLaħlaħ id-drapp bl-ilma jew b'prodott tat-tindif tal-iskrin li ma jobrox. Evita li tisprejja l-likwidu direttament fuq l-iskrin.
• Tindif tas-Casing: Uża drapp artab u niexef biex timsaħ il-monitor casing. Tużax deterġenti jew solventi qawwija.
• Ventilazzjoni: Kun żgur li l-fetħiet tal-ventilazzjoni huma ċari u mhux imfixkla biex tevita li s-sħana tisħon iżżejjed.
• Ħażna: Meta ma tkunx qed tużah għal perjodi twal, aħżen il-monitor f'post frisk u niexef, 'il bogħod mix-xemx diretta u minn temperaturi estremi.

7 Issolvi l-problemi

Jekk tiltaqa' ma' problemi bil-monitor tiegħek, irreferi għall-passi komuni li ġejjin għas-soluzzjoni tal-problemi:

If the problem persists after trying these solutions, please contact HUAWEI customer support.

8. Speċifikazzjonijiet

Figure 8.1: Visual representation of the 4K+ Ultra-HD Display.

Figure 8.2: Details on the monitor's color reproduction capabilities, including 1.07 billion colors and 98% DCI-P3.

Figure 8.3: Certification for VESA DisplayHDR 400, ensuring high dynamic range content display.

Figure 8.4: Illustration of the 3:2 aspect ratio compared to traditional 16:9, highlighting more vertical screen space.

9. Garanzija u Appoġġ

Your HUAWEI MateView Monitor comes with a standard manufacturer's warranty. For detailed warranty terms and conditions, please refer to the warranty card included in your package or visit the official HUAWEI support websit.

For technical support, troubleshooting assistance, or service requests, please contact HUAWEI customer service through their official channels. Keep your purchase receipt and product serial number handy for faster service.

HUAWEI Official Support: consumer.huawei.com/en/support/
