PETIQUE Chinook Black Luxury Dog Stroller Instruction Manual

1. Linji Gwida dwar is-Sigurtà

Please read all instructions carefully before assembling and using the PETIQUE Chinook Dog Stroller. Failure to follow these instructions could result in injury to your pet or damage to the product.

• Kapaċità massima tal-piż: This stroller is designed to safely carry pets up to 23 KG (50 lbs). Do not exceed this weight limit.
• Pet Restraint: Always use the interior leash clips to secure your pet inside the stroller to prevent them from jumping out.
• Superviżjoni: Qatt m'għandek tħalli l-annimal domestiku tiegħek waħdu fil-stroller.
• Brejkijiet: Always engage the rear wheel brakes when the stroller is stationary.
• Terren: While the EVA tires provide a smooth ride, exercise caution on uneven or steep terrain.
• Tiwi/Tiwi: Keep hands and fingers clear of moving parts during folding and unfolding to prevent pinching.
• Kontrolli regolari: Periodically inspect the stroller for loose parts, wear, or damage. Do not use if damaged.

2. Kontenut tal-Pakkett

Ivverifika li l-komponenti kollha huma preżenti qabel tibda l-assemblaġġ:

• PETIQUE Chinook Black Luxury Dog Stroller Frame
• 12-inch EVA Front Wheel
• Two 12-inch EVA Rear Wheels
• Patented Seat Pad
• Cup Holder Tray

3. Setup u Assemblea

Follow these steps to assemble your PETIQUE Chinook Dog Stroller:

1. Unfolding the Stroller Frame:
   Place the folded stroller on a flat surface. Release the folding latch (if engaged). Gently pull the handle upwards until the frame locks into its open position. Ensure all locking mechanisms are securely engaged.
2. It-twaħħil tar-roti ta' wara:
   Locate the quick-release buttons on the rear axle. Press the button and slide each 12-inch EVA rear wheel onto the axle until it clicks into place. Pull gently on the wheel to ensure it is securely attached.


   Image: Quick-release mechanism for rear wheels.
3. Attaching the Front Wheel:
   Insert the stem of the 12-inch EVA front wheel into the designated slot at the front of the stroller frame. Push firmly until it locks into place. Ensure the wheel can swivel freely unless locked.
4. Installing the Cup Holder Tray:
   Align the cup holder tray with the attachment points on the stroller handle. Push down firmly until it snaps securely into place.


   Image: Stroller handle with attached cup holder tray.

5. Placing the Seat Pad:
   Position the patented seat pad inside the pet compartment. The pad is designed for comfort and can accommodate a pee pad insert underneath for added convenience.

4. Istruzzjonijiet Operattivi

4.1. Securing Your Pet

Place your pet gently into the stroller compartment. Use the two interior leash clips to attach to your pet's harness or collar. This prevents your pet from jumping out during movement.

Image: Stroller interior with leash clips.

4.2. Using the Wheels

• Front Wheel Swivel/Lock: The front wheel can swivel 360 degrees for easy maneuverability. For stability on rough terrain or when jogging, engage the front wheel lock.
• Brejkijiet tar-Roti ta' Wara: Push down on the red levers located near the rear wheels to engage the brakes. Lift the levers to release. Always engage brakes when stopping.

4.3. Folding the Stroller (One-Hand Fold)

The PETIQUE Chinook features a convenient one-hand fold mechanism:

1. Ensure your pet is removed from the stroller and all items are cleared from the storage basket.
2. Locate the folding buttons/levers on the handle (often red).
3. Simultaneously press the release button and pull the folding lever (refer to handle image for exact location).
4. Push the handle forward and down. The stroller will collapse into a compact, standing fold.


   Image: Stroller in folded, compact position.

5. Engage the auto-lock latch to keep the stroller securely folded for storage or transport.

4.4. Karatteristiċi tal-Ħażna

• Undercarriage Basket: Use the spacious basket located beneath the pet compartment for storing pet essentials or personal items.


  Image: Undercarriage storage basket.

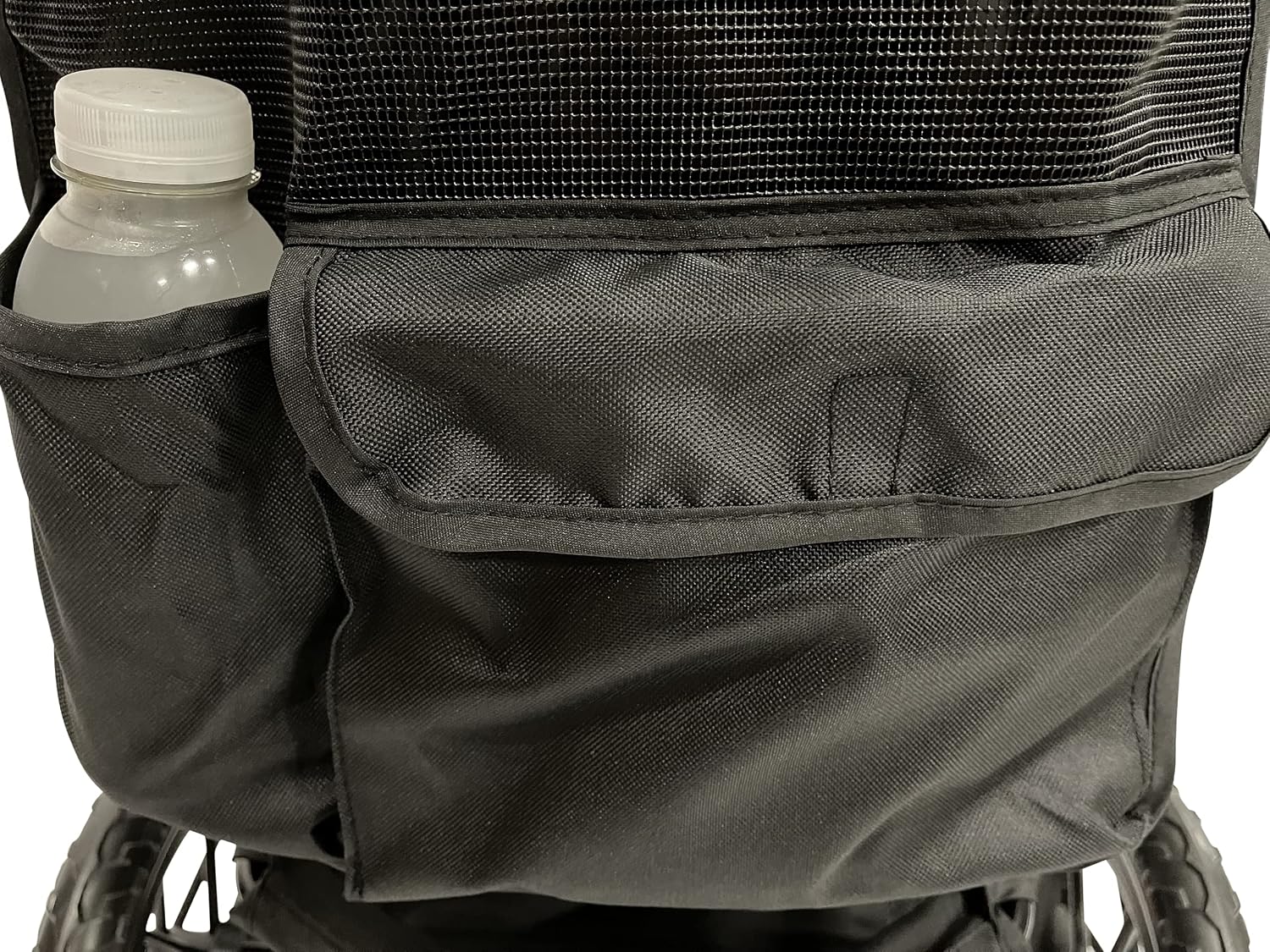

• Bwiet tal-ġenb: Additional pockets are available on the sides of the pet compartment for smaller items like water bottles or treats.


  Image: Side pocket with a water bottle.

• Cup Holder Tray: The tray on the handle provides two cup holders for beverages.

5. Manutenzjoni

Proper maintenance ensures the longevity and performance of your stroller:

• Tindif tad-drapp: All fabrics on the PETIQUE Chinook stroller are removable and washable. Remove fabric components and hand wash with mild soap and cold water. Air dry thoroughly before reattaching.
• Tindif tal-qafas: Imsaħ il-qafas tal-aluminju b'reklamaramp drapp u sapun ħafif. Nixxef immedjatament biex tevita s-sadid.
• Manutenzjoni tar-roti: Periodically check the EVA tires for debris. The quick-release rear wheels can be easily removed for cleaning or inspection.
• Ħażna: Aħżen il-pram f'post niexef u frisk 'il bogħod mix-xemx diretta meta ma tkunx qed tużah.

6 Issolvi l-problemi

• Il-pram ma jintewax/jinfetaħx bla xkiel:
  Ensure all locking mechanisms are disengaged before folding. Check for any obstructions in the folding joints. Apply a silicone-based lubricant to moving parts if necessary.
• Wheels are squeaky or stiff:
  Clean any dirt or debris from the wheel axles and bearings. Apply a small amount of silicone lubricant to the axle points. Ensure the wheel locks are disengaged if the wheel is stiff.
• Stroller jiġbed lejn naħa waħda:
  Check that all wheels are securely attached and properly aligned. Ensure the front wheel is not locked if you intend for it to swivel.
• Pet escapes from stroller:
  Always use the interior leash clips to secure your pet's harness or collar. Ensure the canopy is fully zipped and secured if your pet is prone to jumping.

7. Speċifikazzjonijiet

8. Appoġġ għall-Klijent

For further assistance, warranty information, or to purchase replacement parts, please contact PETIQUE customer service through their official websit jew il-bejjiegħ bl-imnut minn fejn inxtara l-prodott.

You can visit the PETIQUE store online for more information: PETIQUE Store
