1. Prodott Aktarview
The EBYTE E104-BT51A is a compact and low-power serial port to BLE Bluetooth slave node module. It supports the Bluetooth 5.0 protocol and operates in the 2.4GHz frequency band. Designed for ease of use, this module allows for efficient wireless communication in various applications.

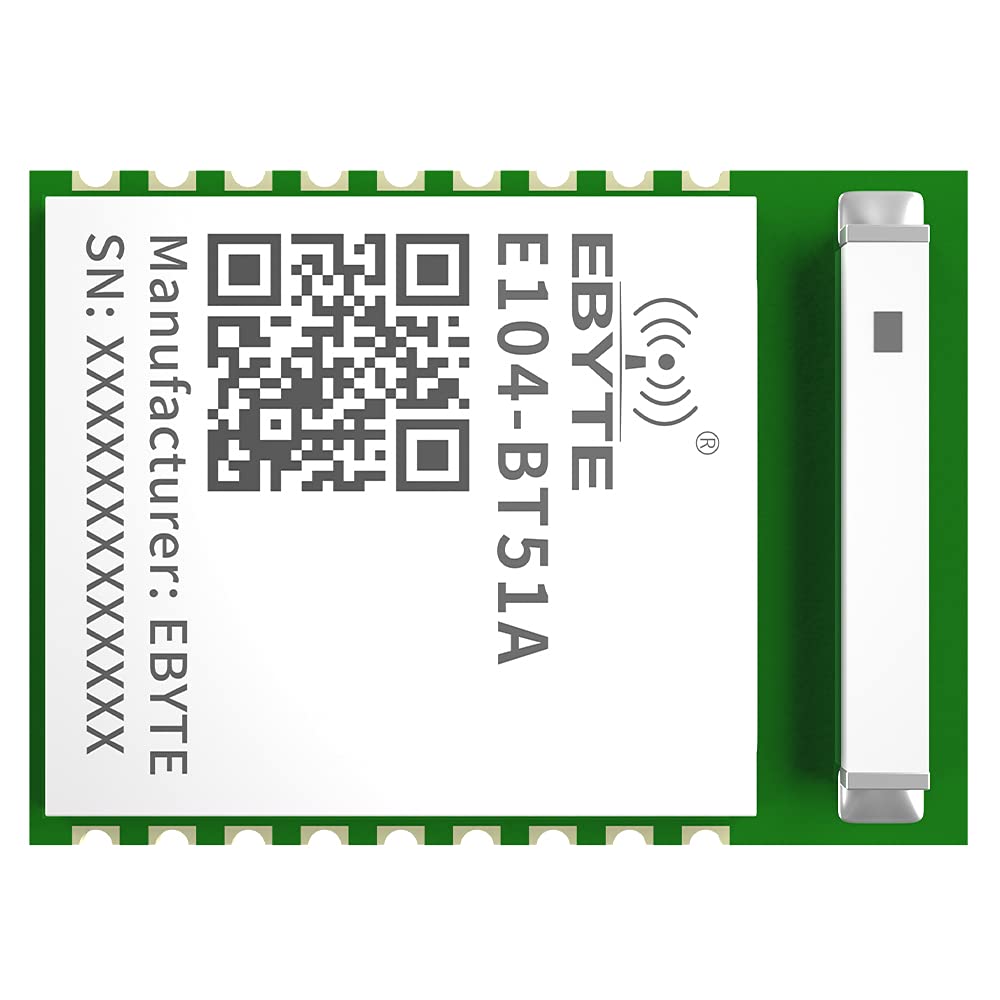

Image 1.1: The EBYTE E104-BT51A Bluetooth Wireless Module, showcasing id-disinn kompatt tiegħu.
2. Karatteristiċi ewlenin
- Supports Bluetooth BLE 5.0 protocol for enhanced connectivity and data rates.
- Adjustable Bluetooth package length for optimized data transmission.
- Two working modes: configuration and transparent transmission.
- Automatic broadcast and connection capabilities upon startup.
- Supports IBeacon and standard broadcast switching with configurable broadcast data.
- MAC address binding support for secure connections.
- Multiple serial port modes and baud rate options.
- Customizable 16-bit and 128-bit UUIDs.
- Bluetooth parameter air configuration for remote adjustments.
- Maximum communication distance of 50 meters.
- Ultra-low power consumption sleep mode with synchronous broadcast data and connection maintenance.
- IO port level output and PWM output with variable frequency period.
- ADC analog quantity acquisition and battery voltage detection service.
- Supports 2M and 1M airspeed.
- Maximum MTU data transmission unit of 230 bytes.
- Integrated ceramic antenna, eliminating the need for an external antenna.
Image 2.1: The module supports the BLE 5.0 protocol, offering high stability and ultra-low sleep power consumption.
Image 2.2: The module allows for convenient switching between Beacon, iBeacon, and regular broadcast modes, with dynamically configurable content.
3. Setup u Konfigurazzjoni
The E104-BT51A module's parameters are configured using AT commands. This method provides a straightforward way to customize the module's behavior to suit specific application requirements.
3.1 Modi ta' Ħidma
The module supports two primary working modes:
- Modalità ta' Konfigurazzjoni: Used to set various parameters of the module, such as baud rate, broadcast interval, UUIDs, and other operational settings.
- Modalità ta' Trażmissjoni Trasparenti: Once configured, the module operates in this mode to transparently transmit serial data over Bluetooth Low Energy.
3.2 AT Command Interface
To enter configuration mode and send AT commands, connect the module's serial interface to a host device (e.g., microcontroller, PC via a USB-to-serial converter). Use a serial terminal program to send commands. Refer to the detailed AT command set documentation provided by EBYTE for specific commands and their syntax.
Image 3.1: The module supports convenient and quick configuration via AT commands sent through a serial interface.
4. Istruzzjonijiet Operattivi
After initial setup and configuration, the E104-BT51A module is ready for operation. The module primarily functions as a Bluetooth slave, awaiting connections from a master device.
4.1 Trażmissjoni tad-Data
In transparent transmission mode, any data received via the serial port will be transmitted over the BLE connection, and any data received over BLE will be output through the serial port. Ensure the baud rate of the host device matches the configured baud rate of the module.
4.2 Broadcast Functionality
The module can be configured to broadcast specific data, including IBeacon or standard broadcast packets. This is useful for applications requiring device discovery or proximity sensing. Broadcast content and intervals are set via AT commands.
4.3 IO Port and Analog Functions
The module offers advanced functionalities such as IO port level output, PWM output with adjustable frequency and period, and ADC for analog quantity acquisition. These features can be controlled and monitored through specific AT commands, allowing for integration with various sensors and actuators.
5. Applikazzjonijiet
The E104-BT51A module's versatility and low power consumption make it suitable for a wide range of Internet of Things (IoT) applications, including:
- Apparat li jintlibes intelliġenti
- Home Automation and Security Systems
- Industrial Remote Control and Telemetry
- Smart Buildings and Smart Homes
- Automatic Data Collection Systems
- Health Sensors and Personal Healthcare Devices
- Robots intelliġenti
- Wireless Meter Reading
- Tikketti Elettroniċi
- Smart Lighting and Automotive Electronics
Image 5.1: EBYTE products, including the E104-BT51A, are designed for various IoT applications such as smart agriculture, industrial control, and outdoor communication.
6. Speċifikazzjonijiet
Image 6.1: Physical dimensions of the EBYTE E104-BT51A module, measuring 16mm by 11.5mm.
| Karatteristika | Deskrizzjoni |
|---|---|
| IC | CC2640R2L |
| Frekwenza | 2.402 ~ 2.480GHz |
| Protokoll | BLE 5.0 |
| Distanza tal-Komunikazzjoni | 50m (massimu) |
| Daqs | 16mm * 11.5mm |
| Interface tal-Ħardwer | Bluetooth, Bluetooth 5 |
| Protokoll tal-Kollegament tad-Data | Bluetooth |
| Max Baud Rate | 921600bps |
| Rata tal-Ajru | 2M, 1M PHY |
| Antenna | Ceramic antenna (integrated) |
| Manifattur | EBYTE |
7 Issolvi l-problemi
If you encounter issues with your E104-BT51A module, consider the following troubleshooting steps:
- Provvista tal-Enerġija: Ensure the module is receiving the correct voltage and stable power supply as specified in the datasheet.
- Konnessjoni Serjali: Verify that the serial connections (TX, RX, GND) are correctly wired and that the baud rate of your host device matches the module's configured baud rate.
- AT Command Syntax: Double-check the syntax of your AT commands. Incorrect commands will not be processed by the module.
- Module Mode: Confirm the module is in the expected operating mode (configuration or transparent transmission).
- Antenna: Ensure there are no obstructions or metallic objects directly interfering with the integrated ceramic antenna.
- Firmware: If issues persist, consult the manufacturer's website for potential firmware updates or detailed troubleshooting guides.
8. Garanzija u Appoġġ
For warranty information, technical support, or further inquiries regarding the EBYTE E104-BT51A Bluetooth Wireless Module, please contact EBYTE directly or visit their official websit.
Uffiċjali Websit: http://www.cdebyte.com/
