Rockpals 50 Quart (47L) Portable Refrigerator User Manual

1. Introduzzjoni

This manual provides essential information for the safe and efficient operation of your Rockpals 50 Quart (47L) Portable Refrigerator. Please read all instructions carefully before use and retain this manual for future reference.

2. Istruzzjonijiet tas-Sigurtà

• Aċċerta ruħek li jkun hemm ventilazzjoni xierqa madwar l-unità. Timblokkax il-ventijiet tal-arja.
• Use only the specified power adapters (12/24V DC, 100/240V AC, or compatible solar charging).
• Avoid placing the unit in direct sunlight for extended periods to maintain cooling efficiency.
• Tgħaddasx l-unità fl-ilma jew tesponihiex għal xita qawwija.
• Żomm fejn ma jintlaħaqx mit-tfal.
• Handle with care; avoid dropping or severe impacts.

3. Kontenut tal-Pakkett

Iċċekkja li l-oġġetti kollha huma inklużi fil-pakkett tiegħek:

• 1 x Rockpals Portable Car Refrigerator
• 1 x adapter AC
• 1 x DC Power Cord (2.5m)
• 1 x Gwida għall-Utent

4. Prodott Aktarview

The Rockpals 50 Quart Portable Refrigerator is designed for versatile cooling and freezing. It features a robust compressor cooling system capable of reaching temperatures from -4°F to 68°F (-20°C to 20°C).

Karatteristiċi ewlenin:

• Kapaċità Kbira: 50 Quart (47L) for ample ħażna.
• Tkessiħ Mgħaġġel: Achieves 32°F (0°C) from 68°F (20°C) within 25 minutes in Max mode.
• Protezzjoni tal-batterija: 3-level (H/M/L) module to prevent vehicle battery drain.
• Għażliet multipli tal-iċċarġjar: 12/24V DC, 100/240V AC, or Solar Charging.
• Portabbiltà: Equipped with a telescoping handle and sturdy wheels for easy transport.
• Kontrolli faċli għall-utent: Digital panel with temperature control and display, plus a 5V/2A USB charging port.
• Durabilità: Ċ ta' barra iebsa u solidaasing, functions even when tilted 45°.
• Dawl LED Intern: Għal viżibilità f'kundizzjonijiet ta 'dawl baxx.

Image: Smart Multifunctional Refrigerator Freezer with digital display and examples of food temperatures.

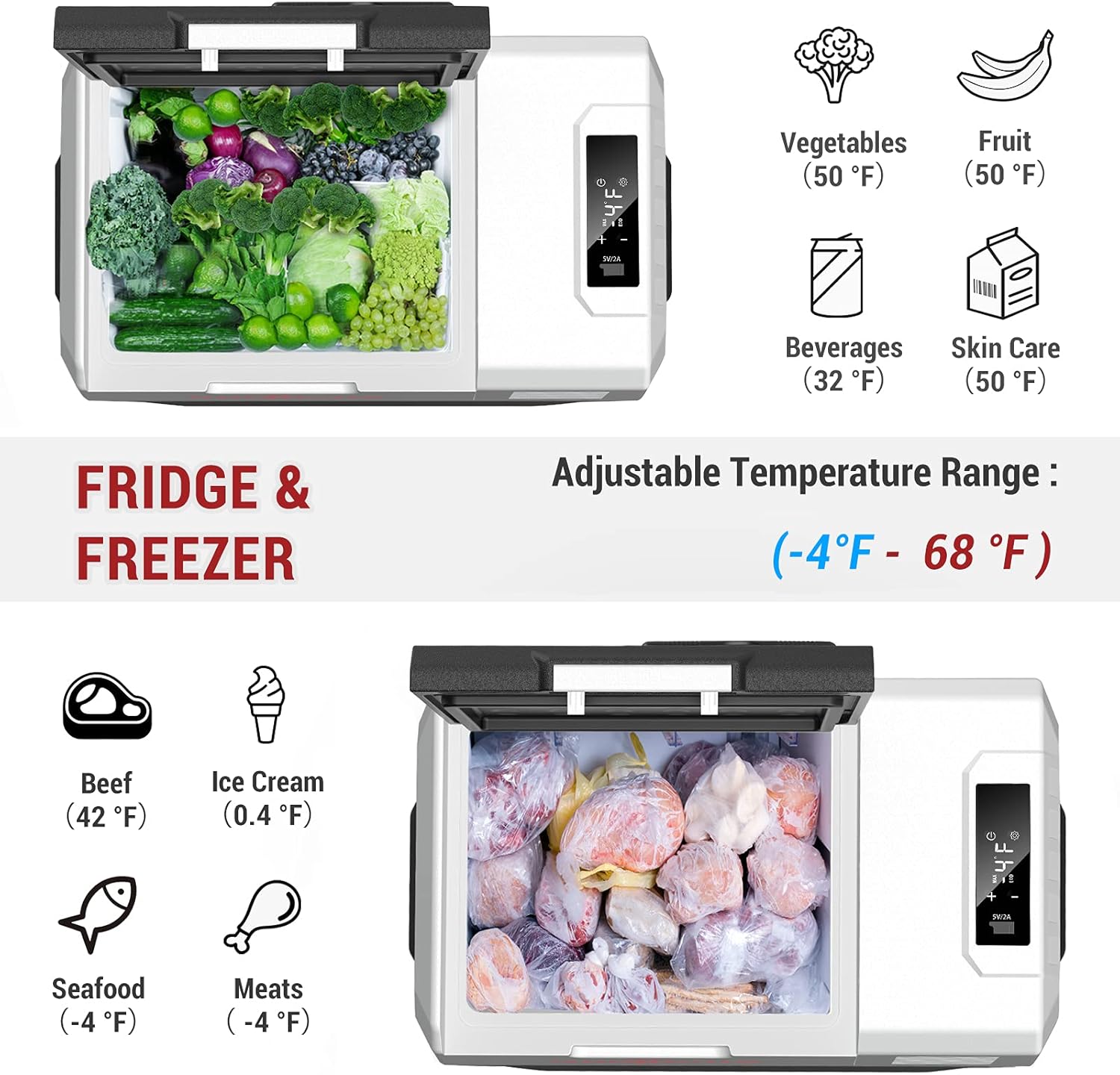

Image: Adjustable temperature range from -4°F to 68°F, suitable for both refrigeration and freezing.

Image: The refrigerator features two large wheels and a pull-up handle for easy mobility.

5. Setup

5.1 Unboxing

1. Neħħi l-friġġ mill-imballaġġ tiegħu bir-reqqa.
2. Inspect the unit for any damage. If damaged, do not use and contact customer support.
3. Neħħi l-materjali u l-aċċessorji kollha tal-ippakkjar intern.

5.2 Konnessjoni Inizjali tal-Enerġija

1. Before first use, ensure the refrigerator is placed on a stable, level surface with adequate ventilation around all sides.
2. Connect the appropriate power cord (AC or DC) to the unit and then to the power source.
3. For optimal performance, allow the unit to stand upright for at least 6 hours before initial power-on.

5.3 L-Ewwel Użu

After connecting to power, press and hold the power button on the control panel for 3 seconds to turn on the unit. The display will illuminate, showing the current internal temperature.

6. Istruzzjonijiet Operattivi

6.1 Control Panel Overview

Image: The precise temperature control panel with digital display and 3-level voltage protection indicators.

• Buttuna tal-Qawwa: Press and hold for 3 seconds to turn ON/OFF. Short press to switch between MAX/ECO modes.
• Buttuni +/-: Aġġusta t-temperatura mixtieqa.
• Buttuna tal-issettjar: Short press to cycle through battery protection levels (H/M/L).
• USB Port (5V/2A): Għall-iċċarġjar ta' apparati esterni.

6.2 Issettjar tat-Temperatura

With the unit powered on, use the + or - buttons to set your desired temperature. The display will flash while adjusting and then stabilize to show the current internal temperature once set.

6.3 Cooling Modes (MAX/ECO)

• Modalità MAX: Provides rapid cooling for quick temperature reduction.
• Modalità ECO: Energy-saving mode for sustained operation with lower power consumption.

Press the Power button briefly to toggle between MAX and ECO modes.

6.4 Protezzjoni tal-Batterija

The refrigerator features a 3-level battery protection system to prevent excessive discharge of your vehicle's battery. Use the Settings button to select:

• H (Għoli): Highest protection, cuts off power at a higher voltage.
• M (Medju): Protezzjoni standard.
• L (Baxx): Lowest protection, allows for deeper discharge.

Choose the appropriate level based on your battery type and usage scenario.

6.5 Iċċarġjar USB

The integrated 5V/2A USB port allows you to charge small electronic devices directly from the refrigerator's control panel.

6.6 Operation Angle

The compressor is designed to function effectively even when the unit is tilted up to 45 degrees, making it suitable for various outdoor and vehicle environments.

7. Metodi ta 'ċċarġjar

Your Rockpals portable refrigerator supports multiple power input options:

• 12/24V DC: Connect to your vehicle's cigarette lighter socket.
• 100/240V AC: Use the provided AC adapter to plug into a standard wall outlet.
• Iċċarġjar Solari: Compatible with solar panels for off-grid power. Connect a compatible solar panel to the DC input port.

Image: Multiple charging methods including solar panel, car charger, and wall charger.

Video: Rockpals 53 Quarts Portable Freezer Fridge Overview

Video Description: An official Rockpals video providing a comprehensive overview of the 53-quart portable freezer fridge, demonstrating its features and functionality.

Video: ROCKPALS 53 Quart (50L) 12V Car Fridge Detailed Look

Video Description: An official Rockpals video offering a detailed demonstration of the 53-quart (50L) 12V car fridge, covering its various aspects and uses.

8. Manutenzjoni

8.1 Tindif

• Skonnettja l-unità mis-sorsi kollha tal-enerġija qabel ma tnaddafha.
• Imsaħ l-intern u barra bl-adamp drapp u deterġent ħafif. Evita cleaners li joborxu.
• Ensure all vents are clear of dust and debris for efficient operation.
• Tużax kimiċi ħarxa jew tgħaddasx l-unità fl-ilma.

8.2 Ħażna

• When storing for extended periods, ensure the unit is clean and dry.
• Ħalli l-għatu ftit miftuħ biex tevita rwejjaħ ħżiena u t-tkabbir tal-moffa.
• Aħżen f'żona niexfa u ventilata sew 'il bogħod mix-xemx diretta.

9 Issolvi l-problemi

If you encounter issues with your Rockpals portable refrigerator, refer to the following common problems and solutions:

• L-unità ma tixgħelx: Check power connections, ensure the power source is active, and verify the battery protection setting (if using DC power).
• Mhux qed ikessaħ b'mod effettiv: Ensure vents are not blocked, the lid is properly sealed, and the ambient temperature is not excessively high. Check if the unit is in ECO mode and switch to MAX mode if faster cooling is needed.
• Kodiċijiet ta' żball tal-wiri: Consult the detailed user guide for specific error code meanings and troubleshooting steps.
• Storbju mhux tas-soltu: Minor compressor noise is normal. If the noise is excessive or unusual, ensure the unit is on a stable surface and not vibrating against other objects.

For further assistance, please contact Rockpals customer support.

10. Speċifikazzjonijiet

11. Garanzija u Appoġġ

Your Rockpals portable refrigerator comes with 12 months of product support service. For warranty claims, technical assistance, or any questions regarding your product, please contact Rockpals customer support through their official channels.
