Introduzzjoni
The OREI EX-230C HDMI Extender allows for the transmission of HDMI signals over a single Cat6/7 LAN cable. This device supports 4K@30Hz resolution up to 130 feet and Full 1080P signal up to 230 feet. It features Power over Cable (PoC) technology, requiring only one power adapter for both transmitter and receiver units. The extender also includes an HDMI loop-out on the transmitter and one-way IR control for convenient operation of the source device from the display location. It is HDCP 1.4 compliant and supports EDID management, Deep Color, and LPCM 7.1 audio.
Kontenut tal-Pakkett
Jekk jogħġbok ivverifika li l-oġġetti kollha huma inklużi fil-pakkett tiegħek:
- 1x HDMI Transmitter (TX) Unit
- 1x HDMI Receiver (RX) Unit
- 1x Power Supply Adapter (DC 12V)
- 1x IR Blaster Cable
- 1x IR Riċevitur Cable
- 1x Manwal tal-Prodott
Image: Components included in the OREI EX-230C package.
Karatteristiċi
- Extends HDMI signal up to 230 feet (70 meters) for 1080P resolution.
- Extends HDMI signal up to 130 feet (40 meters) for 4K@30Hz resolution.
- Supports Power over Cable (PoC) technology, requiring power only at the transmitter.
- HDMI Loop Out port on the transmitter for a local display.
- One-way IR control allows source device control from the receiver location.
- Supports EDID Copy function (local or remote EDID selection).
- Compatible with HDMI 480i/p, 576i/p, 720p, 1080i/p, 2K@60Hz, and 4K@30Hz.
- Supports audio formats including PCM7.1, Dolby True HD, and DTS HD.
- HDCP 1.4 konformi.
- Compact size with heavy-duty metal enclosure.
Image: Key features including PoC support and extension distances.
Speċifikazzjonijiet
| Brand | OREI |
| Isem tal-Mudell | EX-230C |
| Tip ta' Konnettur | HDMI |
| Tip ta' Cable | Extender HDMI |
| Riżoluzzjoni massima | 4K@30Hz |
| Max Extension Distance (4K@30Hz) | 130 feet (40 meters) with CAT6/7 |
| Max Extension Distance (1080P) | 230 feet (70 meters) with CAT6/7 |
| Kategorija tal-Kejbil Ethernet | CAT5e/CAT6/CAT7 (Shielded recommended) |
| Konformità HDCP | HDCP 1.4 |
| Formati Awdjo | PCM7.1, Dolby True HD, DTS HD |
| Appoġġ IR | One-way IR (from RX to TX) |
| Konsum tal-Enerġija | 5 Watts |
| Piż tal-oġġett | 1 Lira |
| Dimensjonijiet (madwar) | Length: 3.1", Width: 2.7", Height: 0.6" (per unit) |

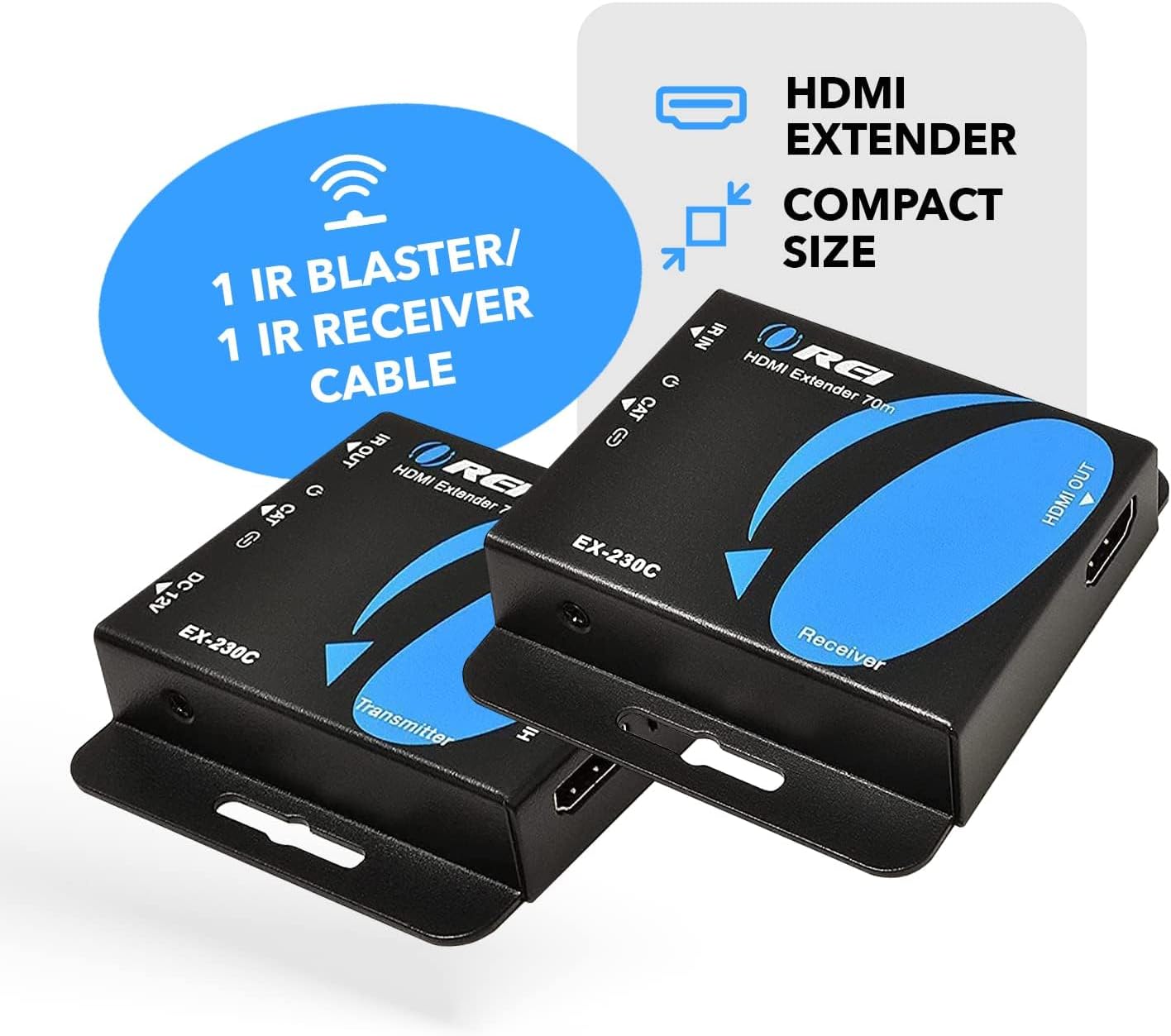

Image: Dimensions and technical specifications of the EX-230C units.
Gwida ta' Setup
Follow these steps to set up your OREI EX-230C HDMI Extender:
- Apparat mitfi: Ensure all devices (source, display, extender units) are powered off before making connections.
- Qabbad is-Sors HDMI mat-Trasmettitur (TX): Connect your HDMI source device (e.g., Blu-ray player, game console, PC) to the HDMI-IN port on the Transmitter unit using a high-quality HDMI cable.
- Qabbad id-Displej Lokali (Mhux obbligatorju): If you wish to have a local display near your source, connect it to the HDMI OUT (Ħruġ Loop) port on the Transmitter unit using an HDMI cable.
- Connect Cat Cable: Connect a single CAT5e/CAT6/CAT7 Ethernet cable (shielded cable recommended for optimal performance) between the QATTUS BARRA port fuq l-unità tat-Trasmettitur u l- QATUS IN port fuq l-unità tar-Riċevitur.
- Connect Display to Receiver (RX): Connect your remote display device (e.g., TV, projector) to the HDMI OUT port on the Receiver unit using a high-quality HDMI cable.
- Connect IR Cables:
- Connect the IR Blaster cable to the IR OUT port on the Transmitter unit and place the IR emitter eye near the IR sensor of your source device.
- Connect the IR Receiver cable to the IR IN port on the Receiver unit and place the IR receiver eye in a location where it can receive signals from your remote control.
- Applika l-Enerġija: Qabbad l-adapter tal-enerġija pprovdut mal- DC 12V port on the Transmitter unit. Due to PoC (Power over Cable) technology, the Receiver unit will be powered automatically through the Ethernet cable.
- Apparat ta' Qawwa: L-ewwel ixgħel l-apparati tal-wiri tiegħek, imbagħad l-apparat tas-sors HDMI tiegħek.

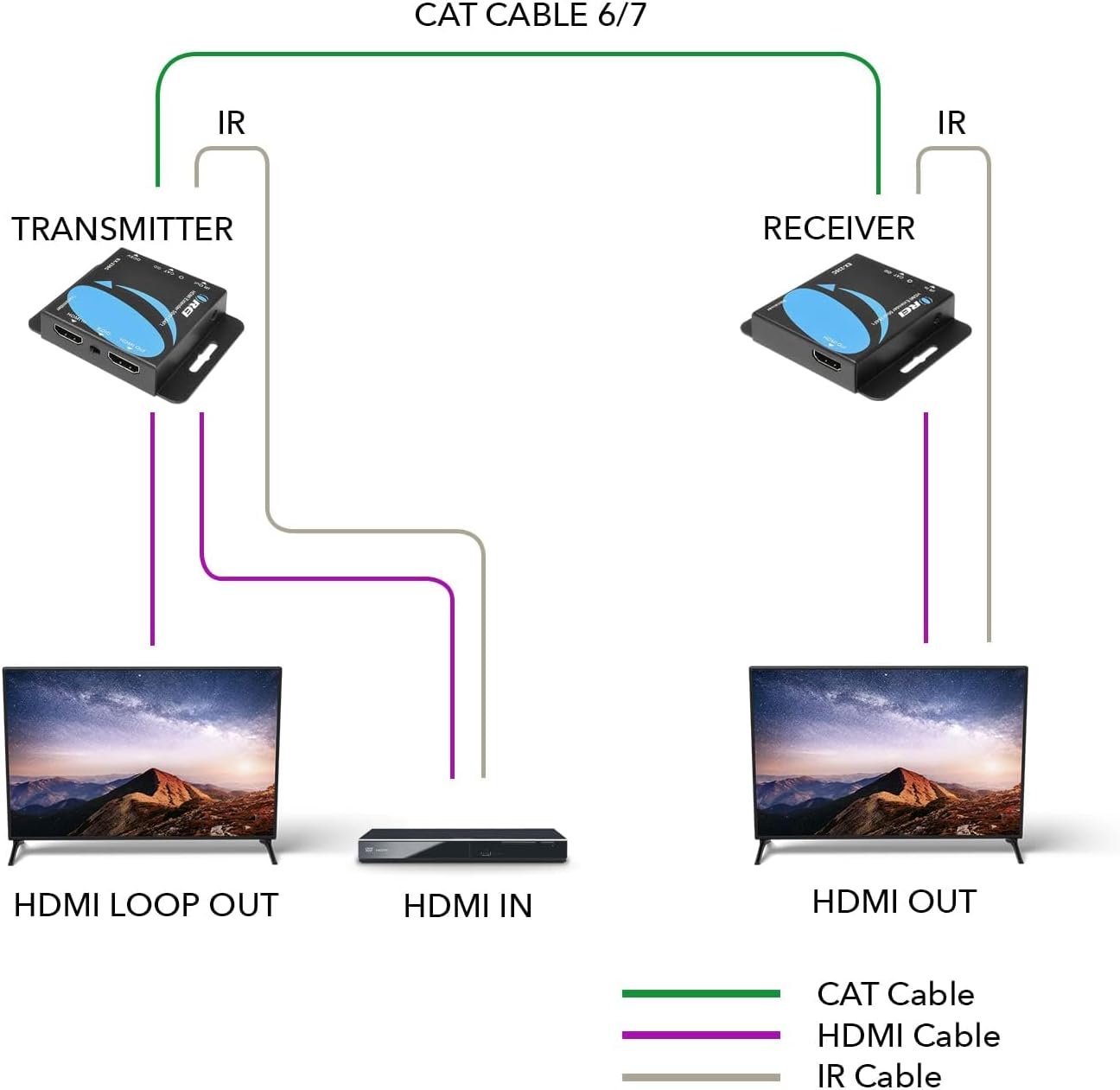

Image: Wiring diagram for connecting the HDMI extender units.
Immaġni: Fuqview of the transmitter and receiver units with port labels.
Video: A detailed guide on setting up the OREI 4K HDMI Over Ethernet CAT6/CAT7 Extender.
Istruzzjonijiet Operattivi
Ġestjoni EDID
The EX-230C supports EDID Copy functionality. This allows the extender to learn the EDID (Extended Display Identification Data) from either the local display connected to the transmitter's loop-out or the remote display connected to the receiver. This ensures optimal compatibility between your source and display devices.
- Local EDID: If the EDID switch is set to TX, the extender will copy the EDID from the display connected to the HDMI Loop Out port on the Transmitter.
- Remote EDID: If the EDID switch is set to RX, the extender will copy the EDID from the display connected to the HDMI OUT port on the Receiver.
It is recommended to set the EDID switch to the desired display's location before powering on the system to ensure proper EDID negotiation.
Kontroll IR
The one-way IR feature enables you to control your HDMI source device (e.g., cable box, DVD player) from the remote display location. Point your source device's remote control at the IR Receiver eye connected to the Receiver unit. The signal will be transmitted back to the IR Blaster connected to the Transmitter unit, which will then relay the command to your source device.

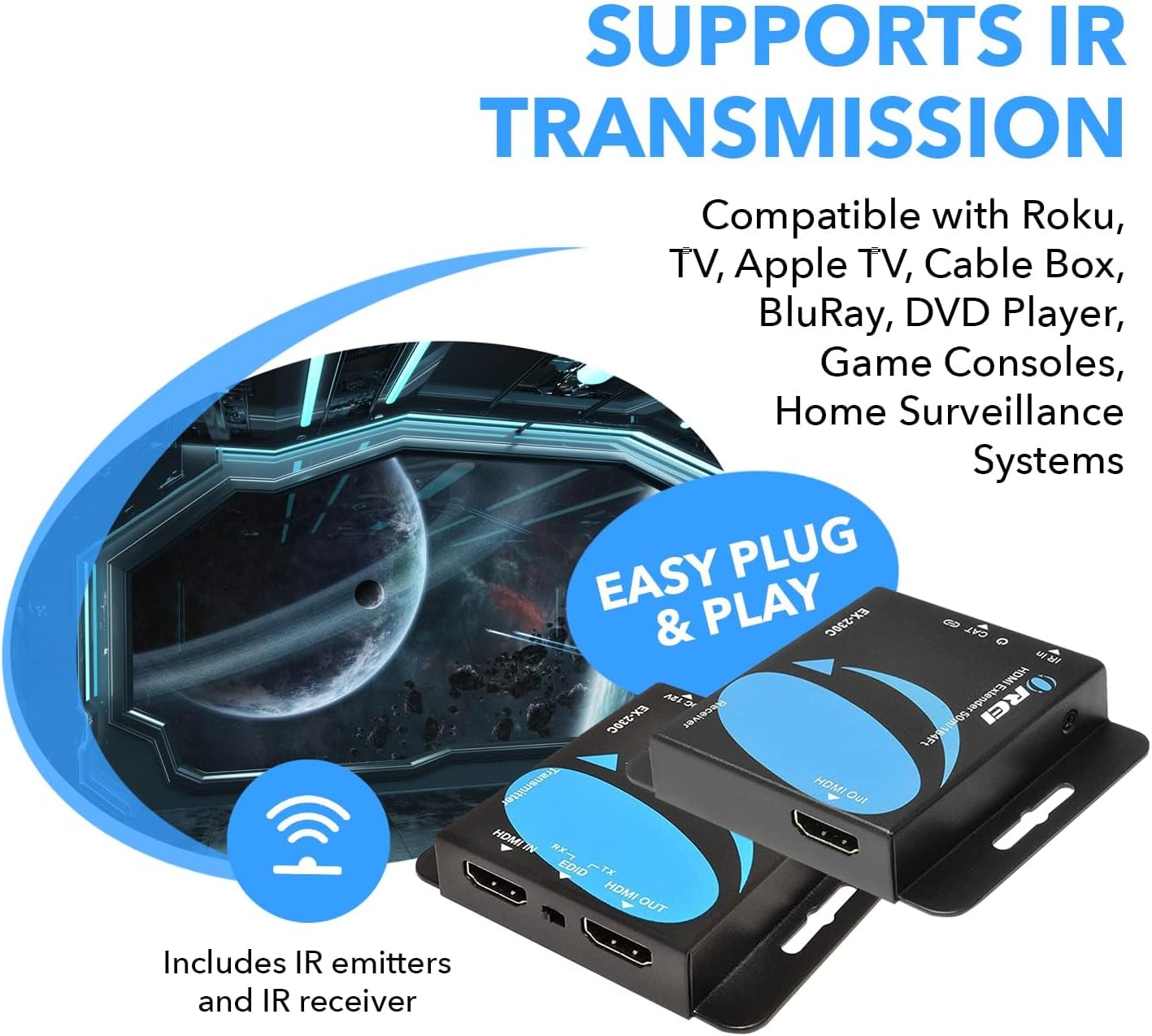

Image: Illustration of IR transmission functionality.
Vidjo: Overview of the EX-230C HDMI Extender, highlighting its features and operation.
Manutenzjoni
To ensure the longevity and optimal performance of your OREI EX-230C HDMI Extender, please follow these maintenance guidelines:
- Tindif: Uża drapp artab u niexef biex tnaddaf il-barra tal-unitajiet. Evita li tuża prodotti tat-tindif likwidi jew aerosol, għax jistgħu jagħmlu ħsara lill-apparat.
- Ventilazzjoni: Kun żgur li l-unitajiet jitqiegħdu f'żona ventilata sew biex tevita li jisħnu żżejjed. Timblokkax xi fetħiet tal-ventilazzjoni.
- Ġestjoni tal-Kejbil: Żomm il-kejbils organizzati pulit u evita liwjiet qawwija jew tensjoni eċċessiva, li jistgħu jagħmlu ħsara lill-kejbils jew lill-portijiet.
- Kundizzjonijiet Ambjentali: Operate the device within its specified temperature and humidity ranges. Avoid extreme temperatures, direct sunlight, and high humidity.
- Skonnettjar tal-Enerġija: If the device will not be used for an extended period, disconnect the power adapter from the electrical outlet.
Issolvi l-problemi
If you encounter issues with your OREI EX-230C HDMI Extender, please refer to the following common problems and solutions:
- Ebda Stampa jew Sinjal Intermittenti:
- Iċċekkja li l-kejbils kollha tal-HDMI u tal-Ethernet huma konnessi sew.
- Ensure the power adapter is connected to the Transmitter unit and the power LED is on.
- Try using shorter or higher-quality (shielded CAT6/7) Ethernet and HDMI cables.
- Check if the resolution and refresh rate of your source device are supported by the extender and display.
- Cycle power to all devices (source, extender, display) by unplugging and replugging them.
- Adjust the EDID switch on the Transmitter (TX) unit to either TX or RX position and re-power the system to ensure proper EDID negotiation.
- Picture Quality Issues (Flickering, Distortion, Color Problems):
- Ensure you are using a high-quality CAT6/7 Ethernet cable, preferably shielded.
- Reduce the length of the Ethernet cable if it exceeds the recommended distance for your resolution (130ft for 4K@30Hz, 230ft for 1080P).
- Check for strong electromagnetic interference near the Ethernet cable.
- Ittestja b'kejbils HDMI differenti.
- Il-Kontroll tal-IR Mhux Jaħdem:
- Ensure the IR Blaster cable is securely plugged into the Transmitter's IR OUT port and its emitter eye is directly facing the IR sensor of the source device.
- Ensure the IR Receiver cable is securely plugged into the Receiver's IR IN port and its receiver eye is positioned to receive signals from your remote control.
- Verify that your remote control has fresh batteries and is functioning correctly.
- Audio Issues (No Audio or Distorted Audio):
- Iċċekkja l-konnessjonijiet tal-kejbil HDMI.
- Ensure your display and source devices are configured for compatible audio output.
- Verify the audio format is supported by the extender (PCM7.1, Dolby True HD, DTS HD).
Garanzija u Appoġġ
The OREI EX-230C HDMI Extender comes with a Garanzija tal-Manifattur ta' Sena. Din il-garanzija tkopri difetti fil-materjali u l-abbilità taħt użu normali.
For technical support, warranty claims, or any questions regarding your product, please contact OREI customer service:
- Email: info@orei.com
- Informazzjoni ta' Kuntatt tal-Manifattur: info@orei.com
- Packer Contact Information: info@fayzelectronics.com , 99250 12671
- Appoġġ onlajn: Żur il- OREI Store on Amazon għal aktar riżorsi u informazzjoni dwar il-prodott.
Jekk jogħġbok żomm il-prova tax-xiri tiegħek għas-servizz tal-garanzija.
