Monzana MZBC04 6V/12V Automatic Smart Battery Charger User Manual

1. Prodott Aktarview

The Monzana MZBC04 is an intelligent 6V/12V-4A automatic battery charger designed for charging and maintaining various types of lead-acid batteries, including WET, MF, GEL, and AGM. It features a microprocessor-controlled 7-step charging process and 6 selectable charging programs to optimize battery health and longevity. The charger incorporates advanced safety features and an intuitive LCD display for easy monitoring.

Immaġni: Diagram showing the Monzana MZBC04 charger, highlighting its components such as the LCD display, ABS housing, IP65 protection, 7 charging modes, and cable lengths (1.7m power cable, 1.4m charging cable with clamps).

2. Informazzjoni dwar is-Sigurtà

TWISSIJA! Always follow these instructions to ensure safe operation and prevent injury or damage.

• Aqra u tifhem l-informazzjoni kollha dwar is-sigurtà qabel tuża dan il-prodott.
• Dan l-apparat huwa għal użu fuq ġewwa biss. Do not expose to rain or moisture.
• Żomm partijiet żgħar u materjali tal-ippakkjar 'il bogħod mit-tfal biex tevita perikli ta' fgar.
• Ensure proper ventilation during charging. Do not operate in a closed area or restrict ventilation.
• Tippruvax tiċċarġja batterija ffriżata.
• The charger is equipped with protection against reverse polarity, overheating, overload, sparks, and short circuits. However, always ensure correct connection.
• If the power connection is interrupted during charging, the memory function will save the selected charging setting and resume automatically once reconnected.

3. Kontenut tal-Pakkett

The Monzana MZBC04 package includes:

• 1x Monzana MZBC04 Automatic Smart Battery Charger
• 1x Set of bipolar clamps (aħmar għall-pożittiv, iswed għan-negattiv)
• 1x Manwal tal-Utent (dan id-dokument)

4. Karatteristiċi tal-prodott

• Kompatibilità Universali: Suitable for 6V and 12V WET, MF, GEL, and AGM lead-acid batteries.
• Sigurtà Avvanzata: Features protection against reverse polarity, overheating, overload, sparks, and short circuits. IP65 rated for dust and water resistance.
• Funzjoni tal-memorja: Retains charging settings after power interruptions.
• Funzjoni tat-test tal-batterija: Allows battery testing without connecting to a power source.
• Iċċarġjar tal-Manutenzjoni: Prevents overcharging, ideal for long-term connection.
• Kumpens tat-Temperatura: Vol iċċarġjartage adjusts automatically based on external temperature.
• Multiple Charging Programs: 6 selectable programs and a 7-step automatic charging process.
• Display LCD: Clear LCD with blue backlight for charging status and green light when fully charged.
• Konsum Baxx ta' Enerġija fil-Modalità Standby: Consumes less than 1.5W in standby mode.
• Kostruzzjoni Durabbli: Impact-resistant ABS plastic casing.

Immaġni: The Monzana MZBC04 charger with icons illustrating its key features: IP65 rating, 7-step charging, 6V/12V compatibility, 4A output, test function, memory function, 6 charging programs, microprocessor control, 1.2-120Ah capacity, and maintenance function.

5. Speċifikazzjonijiet Tekniċi

6. Setup

Before connecting the charger, ensure the battery terminals are clean and free of corrosion. The charger can be mounted on a wall using the four eyelets provided for convenience.

Immaġni: The Monzana MZBC04 charger showing the four eyelets on its casing, indicating its suitability for wall mounting.

Connecting the Charger to the Battery:

1. Qabbad il- red (+) positive clamp għat-terminal pożittiv tal-batterija.
2. Qabbad il- black (-) negative clamp mat-terminal negattiv tal-batterija.
3. Ensure a secure connection to prevent sparks.
4. Plug the charger's power cable into a suitable 230V AC wall outlet.

Immaġni: The Monzana MZBC04 charger connected to a car battery under the hood, demonstrating the proper connection of the red and black clamps għat-terminali tal-batterija.

7. Istruzzjonijiet Operattivi

Selecting a Charging Program:

Once connected to the battery and power outlet, the charger will automatically detect the battery type and voltage. Press the 'MODE' button to cycle through the available charging programs:

• 6V Motorcycle Mode (7.2V/1A): For 6V batteries.
• 6V Motorcycle Winter Mode (7.4V/1A): For 6V batteries in cold conditions.
• 12V Motorcycle Mode (14.4V/1A): For 12V batteries.
• 12V Motorcycle Winter Mode (14.7V/1A): For 12V batteries in cold conditions.
• 12V Car Mode (14.4V/4A): For 12V car batteries.
• 12V Car Winter Mode (14.7V/4A): For 12V car batteries in cold conditions.

The charger will automatically begin the 7-step charging process once a mode is selected.

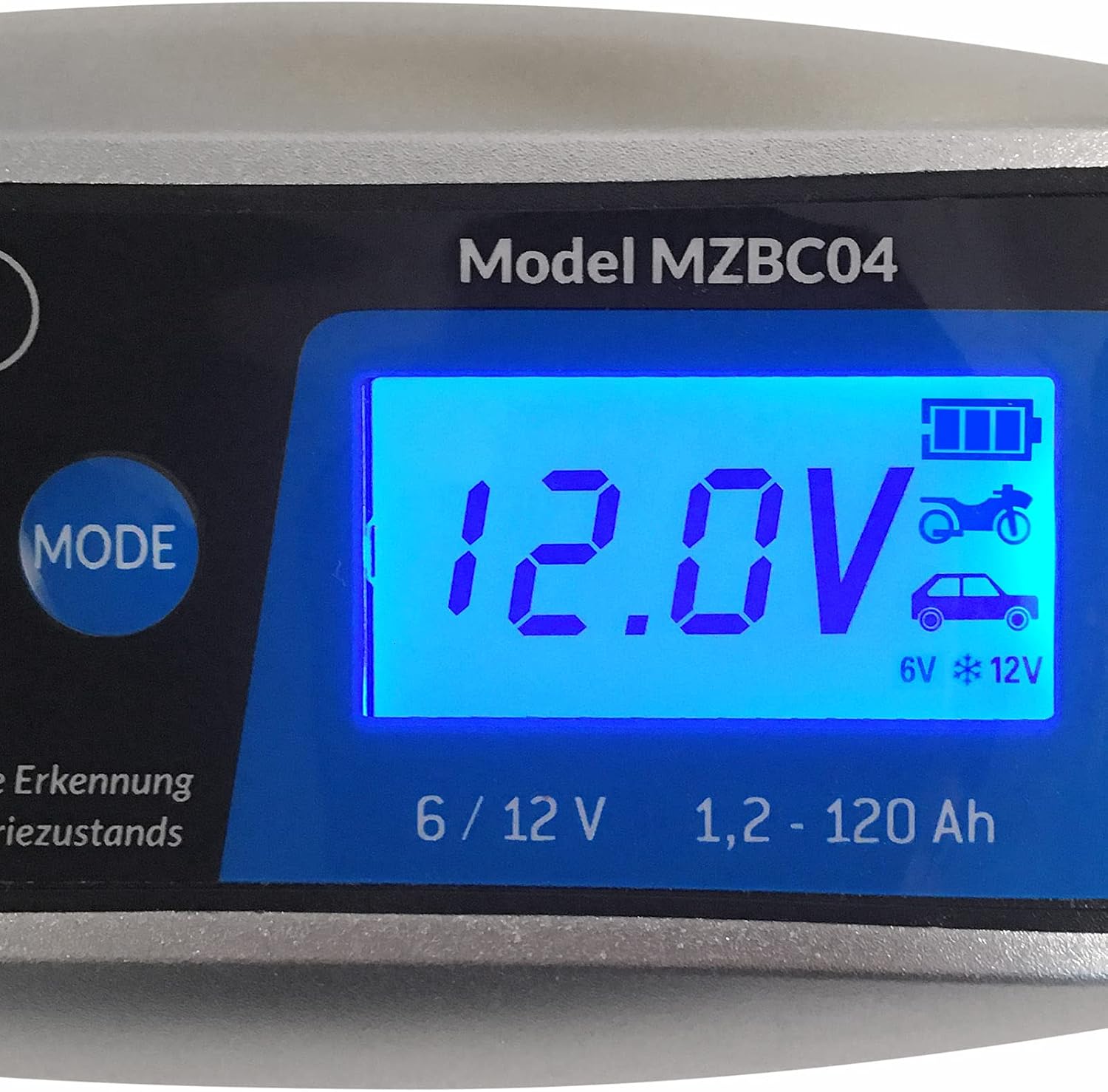

Immaġni: A close-up view of the Monzana MZBC04's LCD display, showing a reading of 12.0V, indicating the current battery voltage waqt it-tħaddim.

Indikaturi tal-Wiri LCD:

• Dawl Blu: Jindika li l-batterija bħalissa qed tiċċarġja.
• Dawl aħdar: Tindika li l-batterija hija kompletament iċċarġjata.

Immaġni: Żewġ views of the Monzana MZBC04 charger's LCD display. The top image shows a blue display, indicating the battery is charging. The bottom image shows a green display, indicating the battery is fully charged.

8. Ittestjar tal-batterija

The MZBC04 allows you to test the battery's condition without connecting the charger to a power outlet. Simply connect the bipolar clamps to the battery terminals, and the charger will provide a diagnostic reading.

9. Manutenzjoni

The charger is designed for long-term maintenance charging. Once the battery is fully charged, the device automatically switches to a maintenance mode, preventing overcharging and keeping the battery in optimal condition. This is ideal for vehicles stored for extended periods.

Immaġni: The Monzana MZBC04 charger illustrating its thermal compensation feature. It shows how the charging process adapts to both hot (40°C/104°F) and cold (-20°C/-4°F) external temperatures to prevent overcharging or undercharging.

10 Issolvi l-problemi

If the charger is not operating as expected, check the following:

• Ebda Wiri/Qawwa: Ensure the charger is securely plugged into a working power outlet. Check the power cable for damage.
• L-ebda Indikazzjoni ta' Iċċarġjar: Ivverifika li l-clamps are correctly connected to the battery terminals (red to positive, black to negative). Check if the battery is severely discharged or damaged.
• Indikaturi ta' Żball: The charger has built-in safety features. If an error occurs (e.g., reverse polarity, short circuit, overheating), the charger will stop operating and may display a specific error code or light pattern. Refer to the full manual for detailed error codes.
• Is-sħana żejda: If the charger becomes excessively hot, it may temporarily stop charging to cool down. Ensure adequate ventilation around the charger.

Jekk il-kwistjonijiet jippersistu, ikkuntattja l-appoġġ tal-klijent.

11. Garanzija u Appoġġ

This product comes with a standard manufacturer's warranty. For warranty claims or technical support, please refer to the contact information provided in your purchase documentation or visit the official Monzana websit.
