Alpicool CX50 50L Portable Car Refrigerator and Freezer User Manual

1. Introduzzjoni

This manual provides essential information for the safe and efficient operation of your Alpicool CX50 50L Portable Car Refrigerator and Freezer. Please read these instructions carefully before use and retain them for future reference. This appliance is designed for cooling and freezing items in various environments, including vehicles, homes, and during outdoor activities like camping.

2. Istruzzjonijiet tas-Sigurtà

TWISSIJA: Jekk ma ssegwix dawn l-istruzzjonijiet ta’ sigurtà, dan jista’ jirriżulta f’nar, xokk elettriku, jew korriment.

Ensure proper ventilation around the appliance. Do not block ventilation openings.
Do not use electrical appliances inside the refrigerator unless they are of the type recommended by the manufacturer.
Taħżinx sustanzi splussivi bħal bottijiet aerosol bi propellant li jaqbad f'dan l-apparat.
The appliance must be connected to a power supply that matches the voltage speċifikat fuq it-tikketta tal-klassifikazzjoni.
Tgħaddasx l-apparat fl-ilma jew tesponihx għax-xita.
Żomm l-apparat 'il bogħod minn sorsi ta' sħana u dawl tax-xemx dirett.
It-tfal għandhom ikunu sorveljati biex jiżguraw li ma jilagħbux bl-apparat.
Skonnettja l-provvista tal-enerġija qabel tnaddaf jew twettaq il-manutenzjoni.

3. Kontenut tal-Pakkett

Ivverifika li l-oġġetti kollha huma preżenti fil-pakkett:

1 x Alpicool CX50 Car Refrigerator
1 x 12/24V DC Power Cord (2.5 meters)
1 x 100-240V AC Cable with Adapter
1 x Manwal għall-Utent
1 x Telescopic Handle (pre-installed or to be attached)
2 x Durable Wheels (pre-installed or to be attached)

Alpicool CX50 Package Contents — Image: Contents of the Alpicool CX50 package, including the refrigerator, DC power cord, AC cable with adapter, and user manual.

4. Prodott Aktarview

The Alpicool CX50 is a portable compressor refrigerator and freezer designed for versatile use. It features a robust construction, efficient cooling, and user-friendly controls.

Karatteristiċi ewlenin:

Tkessiħ Mgħaġġel: Utilizes advanced refrigeration technology to reach temperatures as low as -20°C quickly.
Kapaċità Kbira: 50-liter capacity suitable for various food and beverage storage.
Protezzjoni tal-batterija: Three-level battery protection system prevents vehicle battery drain.
Provvista ta' Enerġija Doppju: Operates on both DC (12V/24V) and AC (100-240V) power.
Portabbiltà: Equipped with durable wheels and a telescopic handle for easy transport.
Disinn kontra x-xokk: Engineered to function reliably on uneven terrain and inclines up to 40 degrees.

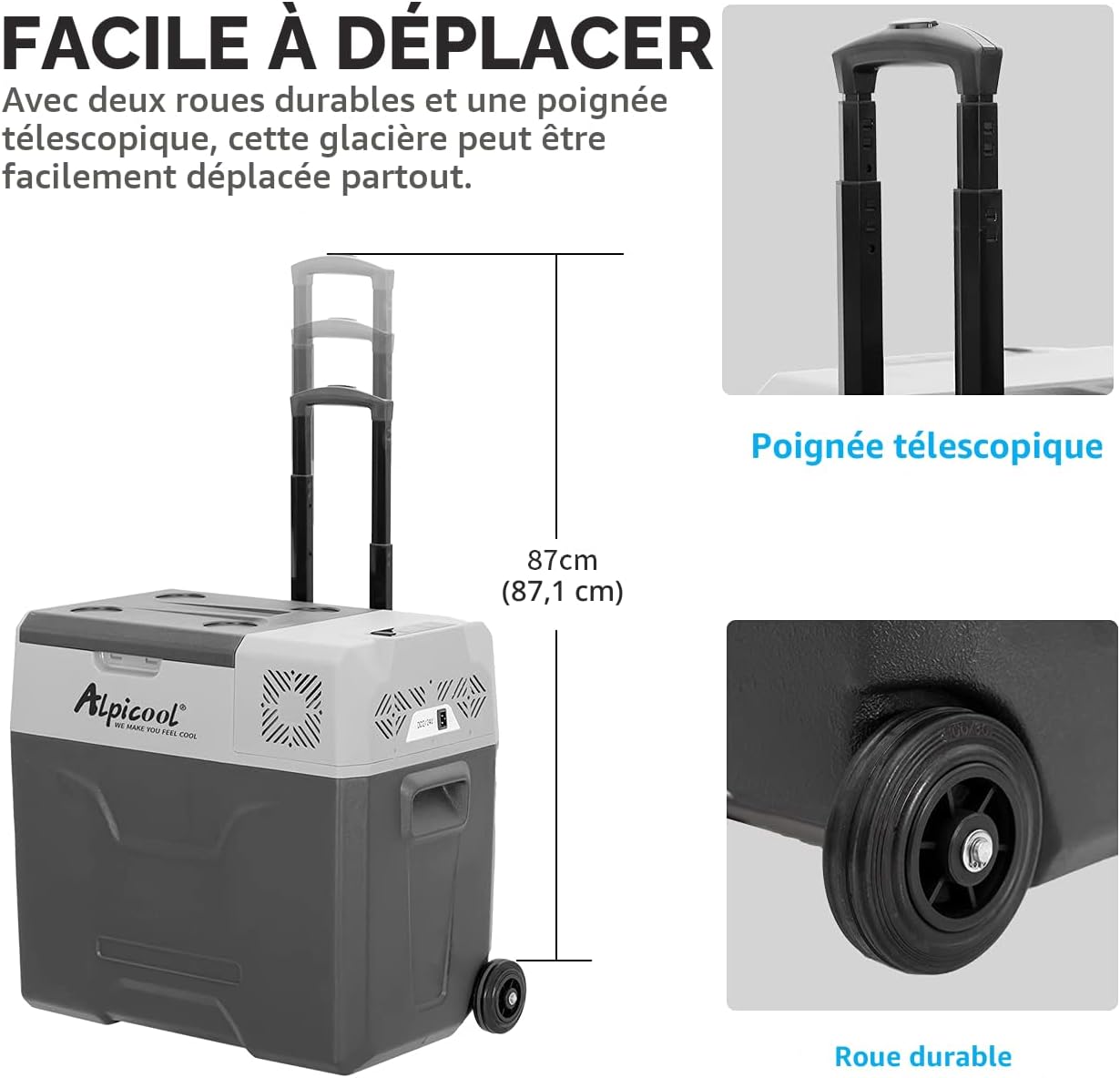

Alpicool CX50 Easy Mobility Features — Image: The Alpicool CX50 refrigerator showcasing its durable wheels and extendable telescopic handle for easy movement. The handle extends to a maximum total height of 87 cm.

Alpicool CX50 Telescoping Handle Operation — Image: A sequence demonstrating the extension of the durable telescoping handle on the Alpicool CX50, showing its maximum total height of 99.5 cm / 35.5 inches.

Alpicool CX50 Anti-Shock Design — Image: Illustration of the Alpicool CX50's anti-vibration design, demonstrating its ability to operate on inclines up to 40 degrees, suitable for rough roads.

5. Setup

5.1 Disimballaġġ

Carefully remove the refrigerator from its packaging. Inspect the unit for any damage that may have occurred during transit. Report any damage to your retailer immediately.

5.2 Tqegħid

Place the refrigerator on a stable, level surface. Ensure there is adequate ventilation around the unit, leaving at least 10 cm of space on all sides for proper airflow. Avoid placing the unit in direct sunlight or near heat sources.

5.3 Konnessjoni tal-Enerġija

The Alpicool CX50 can be powered by either DC (12V/24V) or AC (100-240V) power.

DC Connection (Car/Vehicle): Connect the 12/24V DC power cord to the refrigerator's DC input port and then to your vehicle's cigarette lighter socket.
AC Connection (Home/Dorm/Camping): Connect the AC cable to the adapter, then plug the adapter into the refrigerator's AC input port. Finally, plug the AC cable into a standard wall outlet.

Alpicool CX50 Power Adapters — Image: The Alpicool CX50 portable refrigerator showing its two types of power adapters: an EU AC power cord with adapter for indoor use and a 12/24V DC connector for vehicle use.

Alpicool CX50 Different Power Connections — Image: Visual representation of the different power connection options for the Alpicool CX50, including DC (12V/24V) for RV travel, AC (100-240V) for home use, and connection with a power station for camping.

5.4 Użu Inizjali

After connecting to power, the unit will turn on. Allow the refrigerator to cool down for at least 30 minutes before placing items inside. This ensures the internal temperature stabilizes at your desired setting.

6. Istruzzjonijiet Operattivi

6.1 Panel tal-Kontroll

The control panel typically includes a display, temperature adjustment buttons (+/-), and a power button. Refer to the specific layout on your unit for exact button functions.

6.2 Issettjar tat-Temperatura

Press the '+' or '-' buttons to adjust the desired temperature. The display will show the current internal temperature and then briefly flash the set temperature. The unit will automatically adjust to reach and maintain the set temperature.

Alpicool CX50 Efficient Cooling — Image: Demonstrates the efficient cooling and freezing capabilities of the Alpicool CX50, highlighting its ability to cool from 25°C to 0°C in just 15 minutes, with features like 60W power, rapid cooling, energy saving, and silent operation.

6.3 Modalità ta' Protezzjoni tal-Batterija

The refrigerator features a three-level battery protection system (Low, Medium, High) to prevent your vehicle's battery from draining completely. You can select the desired mode based on your vehicle's battery condition and usage.

Modalità Baxxa: Provides the longest operating time but may risk draining a weaker battery.
Modalità Medja: A balanced setting for most situations.
Modalità Għolja: Offers maximum battery protection, cutting off power at a higher voltage.

To change the battery protection mode, consult your unit's specific instructions, usually involving holding a button or navigating a menu on the control panel.

Voltage Reference for Battery Protection Modes
Modalità	DC 12V		DC 24V
	Aqta'	Aqta' ġewwa	Aqta'	Aqta' ġewwa
Modalità Baxxa	8.5V	10.9V	21.3V	22.7V
Modalità Medja	10.1V	11.1V	22.3V	23.7V
Modalità Għolja	11.1V	12.4V	24.3V	25.7V

Note: This car fridge does not contain batteries and needs to be connected to a power source for use.

Alpicool CX50 Battery Protection Mode — Image: Diagram illustrating the three-level battery protection mode (Low, Medium, High) with corresponding cut-out and cut-in voltages for both DC 12V and DC 24V inputs, designed to protect your car battery.

7. Manutenzjoni

7.1 Tindif

Dejjem skonnettja l-provvista tal-enerġija qabel it-tindif.
Naddaf l-uċuħ ta 'ġewwa u ta' barra b'adamp drapp u deterġent ħafif.
Tużax tindif li joborxu jew kimiċi ħarxa.
Kun żgur li l-fetħiet tal-ventilazzjoni huma ħielsa mit-trab u l-fdalijiet.

7.2 Defrosting

Frost may accumulate on the interior cooling surfaces, especially in humid conditions. To defrost:

Itfi l-apparat u skonnettja mill-provvista tal-enerġija.
Neħħi l-kontenut kollu.
Leave the lid open to allow the frost to melt naturally.
Wipe away melted water with a clean cloth. Do not use sharp objects to remove frost.

7.3 Ħażna

Meta taħżen il-friġġ għal perjodu estiż:

Kun żgur li l-unità hija nadifa u niexfa.
Ħalli l-għatu ftit miftuħ biex tevita rwejjaħ ħżiena u t-tkabbir tal-moffa.
Aħżen f'post niexef u ventilat sew, 'il bogħod mix-xemx diretta u minn temperaturi estremi.

8 Issolvi l-problemi

If you encounter issues with your Alpicool CX50, refer to the following common problems and solutions:

Problema	Kawża Possibbli	Soluzzjoni
L-apparat ma jixgħelx	No power supply; Faulty power cable; Low battery voltage (in DC mode)	Check power connection; Replace cable if damaged; Adjust battery protection mode or charge vehicle battery.
Tkessiħ insuffiċjenti	Poor ventilation; Too high ambient temperature; Lid not closed properly; Excessive items inside; Incorrect temperature setting	Ensure proper airflow; Move to a cooler location; Close lid securely; Reduce contents; Adjust temperature setting lower.
Ħoss mhux tas-soltu	Appliance not level; Items inside vibrating; Fan obstruction	Place on a level surface; Secure items inside; Clear any obstructions from the fan.
Kodiċi ta' żball fuq il-wiri	Ħsara interna speċifika	Irreferi għall-manwal sħiħ tal-utent għat-tifsiriet u s-soluzzjonijiet speċifiċi tal-kodiċi tal-iżball, jew ikkuntattja l-appoġġ għall-klijenti.

9. Speċifikazzjonijiet

Karatteristika	Dettall
Brand	Alpicool
Isem tal-Mudell	CX50
Kapaċità	50 Liters (47 Liters usable volume)
Dimensjonijiet (L x W x H)	63.1 cm x 38 cm x 87 cm (approx. 38P x 63.1l x 87H centimeters)
Piż tal-oġġett	13.4 Kilogrammi
Kulur	Griż
Materjal	Stainless Steel, Acrylonitrile Butadiene Styrene (ABS)
Input tal-Enerġija	DC 12V / 24V, AC 100-240V
Karatteristika Speċjali	Water Dispenser (Note: This may refer to a drain plug for melted ice/water)
Użi Rakkomandati	Camping, Picnic
Tip ta' Insulazzjoni	Fowm tal-polyurethane
Livell ta' Storbju	45 dB
Klassi tal-Effiċjenza tal-Enerġija	D
Konsum Annwali tal-Enerġija	60 kWh / sena
Klassi tal-Klima	Tropikali

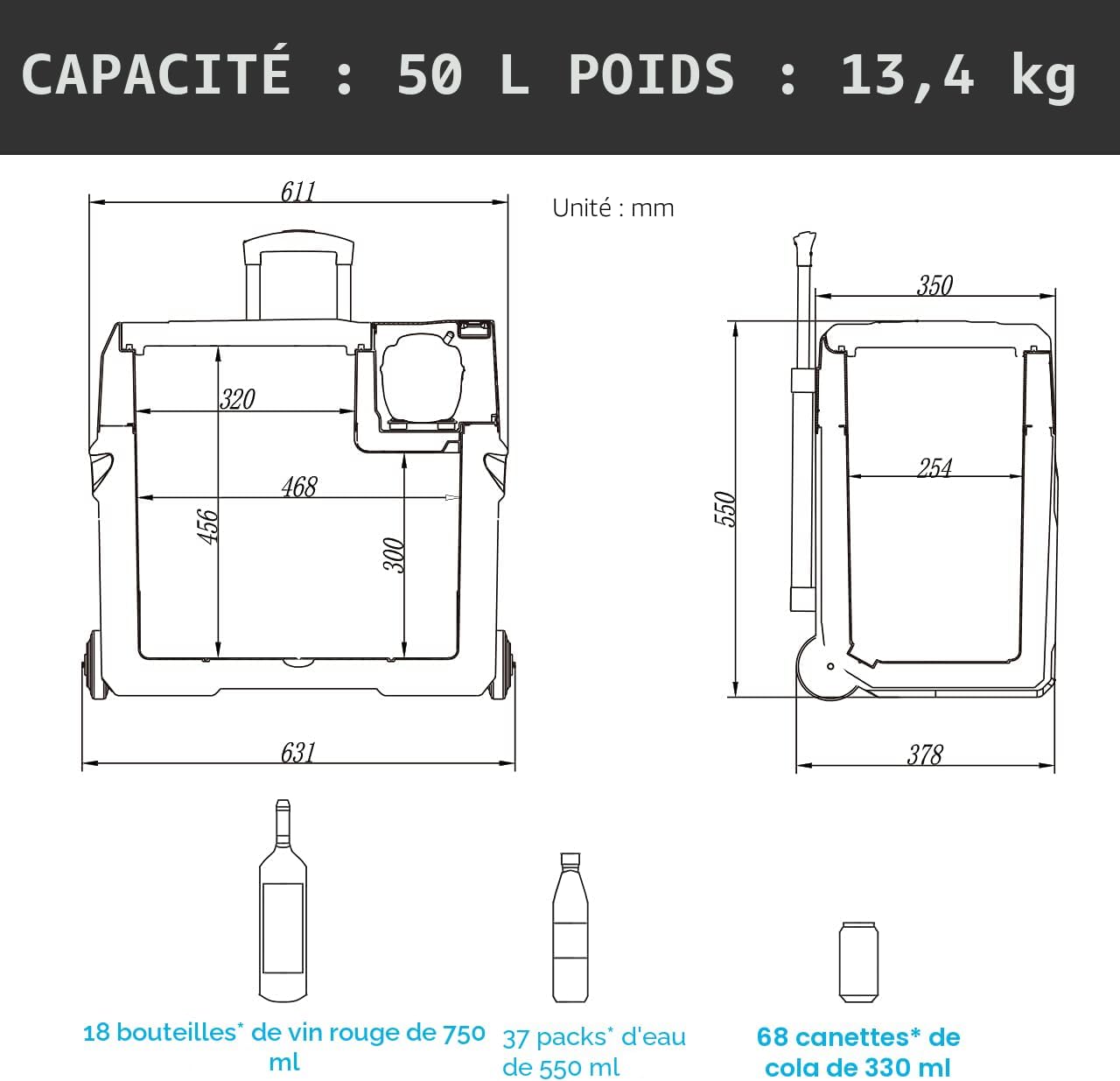

Alpicool CX50 Dimensions and Capacity — Image: Technical drawing showing the dimensions of the Alpicool CX50 refrigerator in millimeters, along with visual representations of its capacity for 18 bottles of 750ml wine, 37 bottles of 550ml water, or 68 cans of 330ml cola.

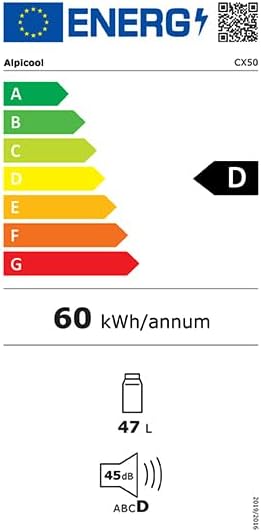

Alpicool CX50 Energy Label — Image: The energy label for the Alpicool CX50, indicating an energy efficiency class D, 60 kWh/annum consumption, 47L capacity, and 45dB noise level. For more details, scan the QR code or visit eprel.ec.europa.eu/qr/2362397.

Alpicool CX50 Product Information Sheet — Image: A product information sheet detailing compliance with COMMISSION DELEGATED REGULATION (EU) 2019/2016, including supplier name, model identifier, type of refrigerating appliance, general product parameters, and additional information.

10. Garanzija u Appoġġ

10.1 Informazzjoni dwar Garanzija

The Alpicool CX50 comes with a garanzija ta 'sena mid-data tax-xiri. Din il-garanzija tkopri difetti fil-manifattura u malfunzjonamenti taħt użu normali. Jekk jogħġbok żomm il-prova tax-xiri tiegħek għal talbiet ta' garanzija.

10.2 Appoġġ għall-Klijent

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Alpicool customer support. Contact details can typically be found on the manufacturer's official websit jew permezz tal-bejjiegħ bl-imnut tiegħek.

Manufacturer: Alpicool
Pajjiż ta 'Oriġini: Iċ-Ċina

Alpicool CX50
