Beldray EH3328 4-in-1 Orbit Air Climate Circulator User Manual

Istruzzjonijiet Importanti dwar is-Sigurtà

Please read these instructions carefully before using your Beldray EH3328 Orbit Air Climate Circulator. Keep this manual for future reference.

• Ensure the appliance is placed on a firm, flat, heat-resistant surface.
• Tgħaddix l-apparat fl-ilma jew f'xi likwidu ieħor.
• Żomm fejn ma jintlaħaqx mit-tfal u l-annimali domestiċi.
• Always unplug the appliance from the mains power supply when not in use, before cleaning, or before performing any maintenance.
• Tħaddimx l-apparat b'korda jew plagg bil-ħsara.
• Timblokka l-ebda fetħiet tal-ventilazzjoni.
• Use only clean, distilled water in the humidifier tank.
• Do not add essential oils directly into the water tank; use the designated aroma function tray.

Prodott Overview

The Beldray EH3328 is a versatile 4-in-1 climate control device, combining the functions of a heater, humidifier, air cooler, and air circulator. It features adjustable temperature control, multiple wind modes, an aroma function, and a timer.

Immaġni: Quddiem view of the Beldray EH3328 4-in-1 Orbit Air Climate Circulator, showcasing its sleek white and black design with the control panel visible at the base.

Setup

Unboxing u Tqegħid

1. Neħħi l-apparat bir-reqqa mill-imballaġġ tiegħu.
2. Place the unit on a stable, level surface, ensuring there is adequate space around it for proper air circulation. Avoid placing it directly against walls or furniture.
3. Ensure the power cord is not obstructed or tangled.

Filling the Water Tank (Humidifier Function)

Image: A hand pouring water into the removable water tank of the Beldray EH3328, demonstrating the refilling process for the humidifier function.

1. Locate the water tank at the base of the unit.
2. Neħħi t-tank tal-ilma bir-reqqa.
3. Fill the tank with clean, distilled water up to the 'MAX' fill line. The tank capacity is 350 ml.
4. Securely replace the water tank into the unit.
5. The humidifier function will not operate if the water tank is empty or incorrectly installed.

Bl-użu tal-Funzjoni tal-Aroma

Image: A hand adding drops of essential oil to the small, removable aroma diffusion tray of the Beldray EH3328, located near the base of the unit.

1. Locate the aroma tray, typically a small pull-out drawer or compartment, on the unit.
2. Add a few drops of your preferred essential oil onto the sponge or pad inside the tray.
3. Slide the aroma tray back into its position.
4. The aroma will diffuse into the air when the unit is operating.

Istruzzjonijiet Operattivi

The Beldray EH3328 can be operated using the control panel on the unit or the supplied remote control.

Panel tal-Kontroll u Kontroll mill-bogħod

Image: The remote control for the Beldray EH3328, showing various buttons for power, mode selection, temperature, and timer functions.

Both the control panel and remote control feature intuitive buttons for various functions. Ensure the remote control has working batteries (not supplied) before use.

Qawwa mixgħul/mitfi

• Plug the appliance into a suitable mains power outlet.
• Agħfas il- Qawwa button (usually marked with an 'On/Off' symbol) on the control panel or remote control to turn the unit on or off.

Mode Selection (Heater, Humidifier, Fan)

Image: The Beldray EH3328 in a living room setting, with visual effects indicating both heating (red glow) and cooling (blue glow) capabilities, demonstrating its dual functionality.

• Agħfas il- Modalità buttuna biex tiċċikla bejn il-modi disponibbli:
  • Heater: Provides warm air. The heating power is 1800W.
  • Umidifikatur: Releases cool mist to increase humidity. Requires water in the tank.
  • Fan/Air Cooler: Jiċċirkola l-arja mingħajr ma jissaħħan.

Adjusting Temperature (Heater Mode)

Image: A close-up of the Beldray EH3328's digital display showing the temperature setting, indicating adjustable temperature control between 12°C and 27°C.

• In Heater mode, use the '+' u '-' buttons to adjust the desired temperature between 12°C and 27°C.

Wind Selection and Modes (Fan Mode)

• In Fan mode, press the Veloċità tar-Riħ button to cycle through 12 levels of wind selection.
• Agħfas il- Modalità tar-Riħ button to select from 4 wind modes:
  • Normali: Fluss tal-arja kostanti.
  • Naturali: Simulates natural breeze with varying speeds.
  • Irqad: Quieter operation with reduced fan speed for comfortable sleep.
  • Eko: Modalità li tiffranka l-enerġija.

Funzjoni ta 'Oxxillazzjoni

Image: The Beldray EH3328 with arrows indicating its oscillation capabilities, showing full air circulation for the entire room, including up/down and side-to-side movement.

• Agħfas il- Oscilazzjoni button to activate the oscillation function, allowing the unit to rotate and distribute air across a wider area.
• Press the button again to stop oscillation at the desired position.

Funzjoni Timer

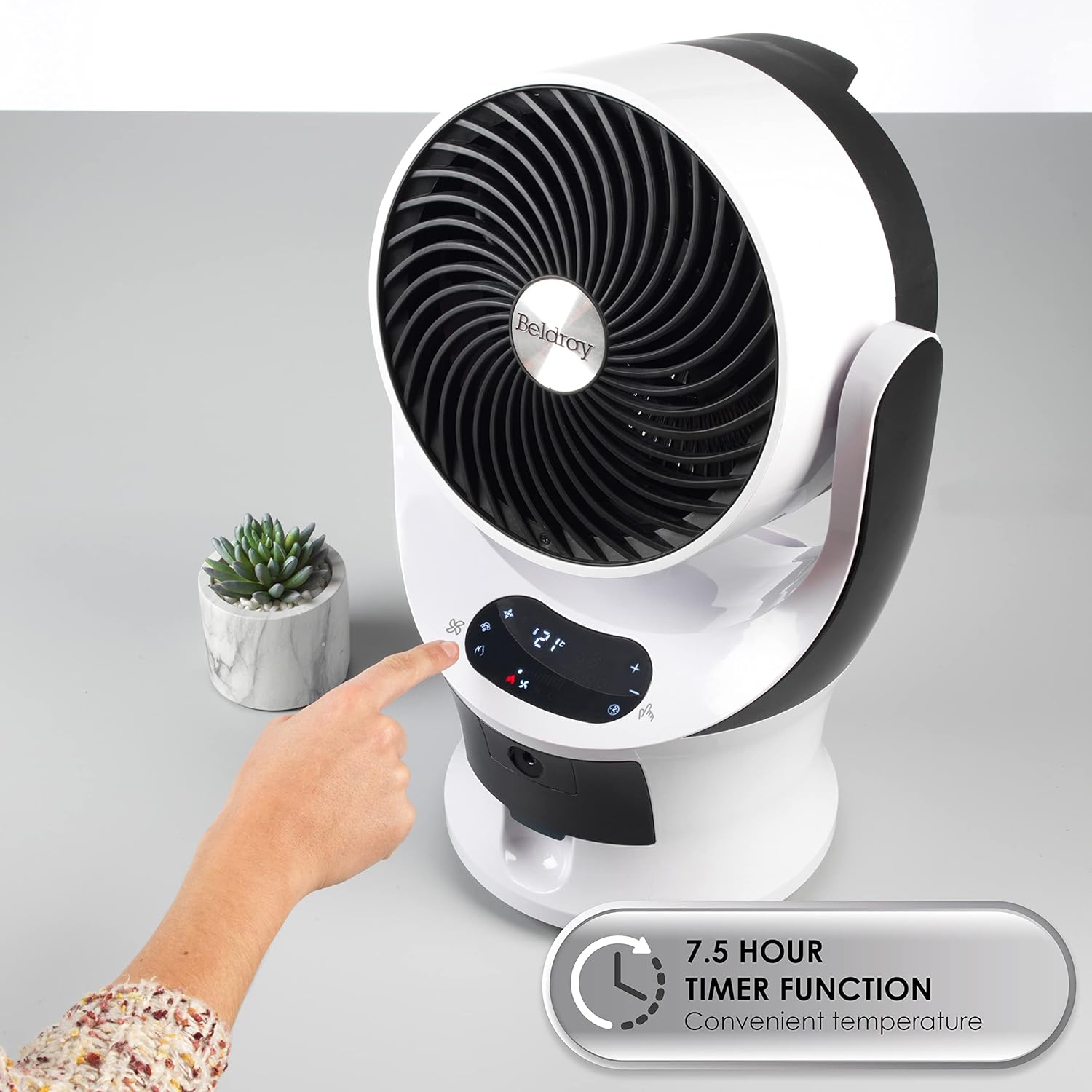

Image: A finger pointing to the control panel of the Beldray EH3328, with the digital display showing a timer setting, indicating the 7.5-hour timer function.

• Agħfas il- Timer button to set the operating duration. The timer can be set up to 7.5 hours.
• Each press typically increases the timer by a set increment (e.g., 0.5 hours or 1 hour). The unit will automatically turn off once the set time has elapsed.

Manutenzjoni

Regular cleaning and maintenance will ensure the longevity and optimal performance of your Beldray EH3328.

Tindif ta 'barra

• Always unplug the appliance from the mains power supply before cleaning.
• Imsaħ l-uċuħ ta 'barra b'artab, damp drapp. Tużax tindif jew solventi li joborxu.
• Kun żgur li ma jidħol l-ebda ilma fil-komponenti interni.
• Dry thoroughly before plugging back in.

Cleaning the Water Tank and Humidifier Nozzle

Image: A close-up of the Beldray EH3328's humidifier function, showing a fine mist being emitted from the nozzle, highlighting its ability to rejuvenate air.

• Neħħi t-tank tal-ilma u vojta kull ilma li jkun fadal.
• Rinse the tank thoroughly with clean water. For stubborn mineral deposits, a mild descaling solution (e.g., white vinegar diluted with water) can be used. Rinse thoroughly after descaling.
• Gently wipe the humidifier nozzle and surrounding area to remove any buildup.
• Ħalli l-partijiet kollha jinxfu kompletament qabel ma jerġgħu jingħaqdu.

Aroma Tray Cleaning

• Remove the aroma tray.
• Clean the sponge or pad with mild soap and water, or replace it if necessary.
• Ensure the tray is dry before reinserting.

Ħażna

• If storing the appliance for an extended period, ensure it is clean and dry.
• Aħżen f'post frisk u niexef, 'il bogħod mid-dawl tax-xemx dirett u temperaturi estremi.
• Huwa rakkomandat li l-unità tinħażen fl-imballaġġ oriġinali tagħha biex tiġi protetta mit-trab u l-ħsara.

Issolvi l-problemi

Qabel ma tikkuntattja l-appoġġ għall-klijenti, jekk jogħġbok irreferi għall-kwistjonijiet komuni li ġejjin u s-soluzzjonijiet tagħhom.

Speċifikazzjonijiet

Garanzija u Appoġġ

For warranty information, product registration, or technical support, please refer to the official Beldray websit jew ikkuntattja lid-dipartiment tas-servizz tal-konsumatur tagħhom.

• Appoġġ onlajn: Visit the Beldray official websit għal FAQs u riżorsi ta' appoġġ.
• Servizz tal-Klijent: Contact details for customer service can typically be found on the Beldray webis-sit jew fuq l-imballaġġ tal-prodott.
• Prova tax-Xiri: Jekk jogħġbok żomm il-prova tax-xiri tiegħek għal kwalunkwe talba ta' garanzija.
