StarAndDaisy EC1 Automatic Baby Cradle Cot User Manual

Introduzzjoni

This manual provides essential instructions for the safe and proper use, assembly, and maintenance of your StarAndDaisy EC1 Automatic Baby Cradle Cot. Please read this manual thoroughly before assembly and use, and retain it for future reference. This cradle cot is designed to provide a comfortable and secure sleeping environment for infants, featuring automatic cradling, adjustable height, bed connectivity, and integrated music functions.

Informazzjoni dwar is-Sigurtà

• Always ensure the cradle cot is placed on a firm, flat, and level surface.
• Do not use the cradle cot if any parts are missing, damaged, or broken. Contact customer support for replacement parts.
• Never leave your child unattended in the cradle cot.
• Keep small parts, plastic bags, and packaging materials away from children to prevent choking hazards.
• Ensure all locking mechanisms are securely engaged before placing a child in the cradle cot.
• Do not use the cradle cot for children who can climb out or who weigh more than the recommended limit (refer to specifications).
• Keep the cradle cot away from open flames, heaters, and other heat sources.
• Regularly check all screws and fittings to ensure they are tight and secure.
• When using the bed connectivity feature, ensure the cradle cot is securely attached to the adult bed and there are no gaps between the cot and the bed.

X'hemm fil-Kaxxa

Carefully unpack all components and verify that you have received all items listed below. If any items are missing or damaged, please contact StarAndDaisy customer support.

Figura 1: Komponenti Inklużi. This image displays the main cradle cot unit along with its accessories: a remote control, power adaptor, mattress, mosquito net, a detachable storage basket, and a carry bag for portability.

• Main Cradle Cot Unit
• Kontroll mill-bogħod
• Adapter tal-Enerġija
• Saqqu
• Mosquito Net
• Qoffa tal-Ħażna
• Wettaq Bag

Setup u Assemblea

The StarAndDaisy EC1 Automatic Baby Cradle Cot is designed for easy setup. No complex assembly is required as the product is largely pre-assembled.

1. Ippakkja: Neħħi l-komponenti kollha mill-imballaġġ.
2. Iftaħ il-Qafas: Carefully unfold the main cradle cot frame until it locks into position. Ensure all joints are secure.
3. Waħħal ir-roti: If not already attached, insert the wheels into the designated slots on the base of the frame. Ensure the locking mechanisms on the wheels are functional.
4. Daħħal is-Saqqu: Place the provided mattress securely into the base of the cradle cot.
5. Waħħal il-Basket tal-Ħażna: Hook or clip the storage basket to the lower frame of the cot, ensuring it is stable.
6. Installa x-Xibka tan-Nemus: Drape the mosquito net over the cot and secure it to prevent insects from entering.
7. Konnessjoni tal-Enerġija: Connect the power adaptor to the cradle cot's power input and plug it into a suitable electrical outlet.

Figure 2: Cradle Cot in Use. This image shows the assembled cradle cot positioned in a room, highlighting its readiness for use after basic setup.

Istruzzjonijiet Operattivi

1. Automatic Cradling Mode

The automatic cradling feature provides gentle, soothing motion for your baby. Use the remote control or the control panel on the cot to activate and adjust the cradling speed. There are multiple speed settings to suit your baby's comfort.

Figure 3: Automatic Cradle Mode. This image illustrates a parent observing their baby in the cradle cot, which is in automatic cradling mode, providing a comfortable sleep environment.

2. Manual Cradling

F'każ ta' qawwa outage or if you prefer, the cradle cot can also be gently rocked manually.

3. Għoli Aġġustabbli

The cradle cot offers 3 levels of height adjustment, allowing you to position it optimally next to your bed or for standalone use.

1. Locate the height adjustment buttons/levers on the side supports of the cot.
2. Press the buttons and simultaneously raise or lower the cot to the desired height (50cm, 48cm, or 46cm).
3. Ensure both sides are adjusted to the same height and securely locked in place before use.

Figura 4: Aġġustament tal-Għoli. This image details the height adjustment feature, indicating the three possible height settings for the cradle cot.

4. Bed Connectivity (Parent-Child Mode)

To connect the cradle cot to your adult bed:

1. Adjust the cradle cot's height to match your bed's mattress level.
2. Unzip and lower one side panel of the cradle cot.
3. Position the cradle cot flush against your bed, ensuring there are no gaps.
4. Use the provided straps (if applicable) to secure the cot to your bed frame for added stability.

Figure 5: Bed Connectivity. This image demonstrates the cradle cot positioned next to an adult bed with its side lowered, facilitating co-sleeping and easy access to the baby.

5. Anti-Milk Choking Design

The cradle cot features an anti-milk choking design where one side can be slightly raised to create a gentle incline. This helps prevent milk reflux and choking during or after feeding.

1. Adjust one side of the cot to a slightly higher position than the other using the height adjustment mechanism.
2. Ensure the incline is gentle and safe for the baby.

Figure 6: Anti-Milk Choking Feature. This image shows the cradle cot with one end slightly elevated, a design feature intended to help prevent milk reflux in infants.

6. Kontroll mill-bogħod

The included remote control allows you to conveniently operate the automatic cradling speed, music, and Bluetooth functions from a distance.

7. Bluetooth and Music

The cradle cot includes integrated music and Bluetooth connectivity. You can play soothing melodies directly from the cot or connect your smartphone via Bluetooth to play your preferred audio.

• To play built-in music: Use the control panel or remote to select and play pre-loaded lullabies.
• Biex tikkonnettja permezz tal-Bluetooth:
  1. Turn on the Bluetooth function on the cradle cot (refer to control panel indicators).
  2. Ippermetti l-Bluetooth fuq l-ismartphone jew it-tagħmir tiegħek.
  3. Fittex għal "StarAndDaisy EC1" (or similar name) in your device's Bluetooth settings.
  4. Pair the devices. Once connected, you can stream audio from your device to the cradle cot's speakers.

8. Mobility and Storage

The cradle cot is equipped with locking wheels for easy movement between rooms. The bottom storage basket provides convenient space for baby essentials.

• Moving the Cot: Unlock the wheels before moving. Relock them once the cot is in the desired position.
• Basket tal-Ħażna: Use the basket to keep diapers, wipes, toys, or other items within easy reach.

Manutenzjoni

Proper maintenance ensures the longevity and safety of your StarAndDaisy EC1 Automatic Baby Cradle Cot.

• Tindif ta' Partijiet tad-Drapp: The fabric components are designed for hand washing only. Do not machine wash, bleach, or tumble dry. Use mild soap and cold water, then air dry completely.
• Qafas tat-Tindif: Imsaħ il-partijiet tal-metall u tal-plastik tal-qafas b'reklamaramp drapp u sapun ħafif. Nixxef sewwa.
• Kontrolli regolari: Periodically inspect all parts for wear, damage, or loose fittings. Tighten any loose screws.
• Ħażna: When not in use for extended periods, clean the cot, fold it (if applicable), and store it in its carry bag in a dry, cool place away from direct sunlight.

Issolvi l-problemi

If you encounter any issues with your StarAndDaisy EC1 Automatic Baby Cradle Cot, please refer to the following common solutions:

Speċifikazzjonijiet

Detailed specifications for the StarAndDaisy EC1 Automatic Baby Cradle Cot:

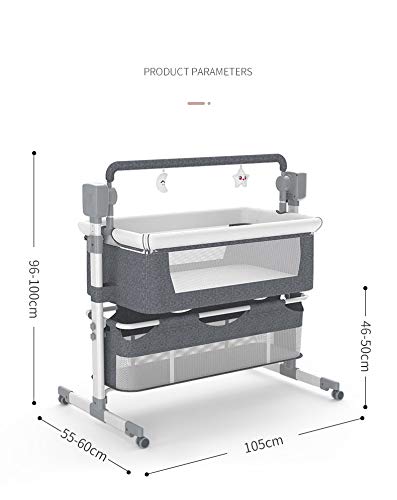

Figura 7: Dimensjonijiet tal-Prodott. This diagram provides the overall measurements of the cradle cot, including its length, width, and adjustable height range.

Garanzija u Appoġġ

StarAndDaisy is committed to providing quality products and excellent customer service.

• Garanzija: This product is covered under a warranty for a period of 6 months from the date of purchase. This warranty covers manufacturing defects and material faults under normal use.
• Appoġġ għall-Klijent: For any problems with the product, questions, or warranty claims, please contact StarAndDaisy customer support. Have your purchase details and product model number (EC1) ready when contacting support.
