Symcode 2.4 GHz Wireless Laser Barcode Scanner User Manual

1. Introduzzjoni

Thank you for choosing the Symcode 2.4 GHz Wireless Laser Barcode Scanner. This device is designed for efficient and reliable barcode scanning, offering both wireless and wired connectivity options. This manual provides detailed instructions for setup, operation, and maintenance to ensure optimal performance.

Figura 1: Symcode 2.4 GHz Wireless Laser Barcode Scanner. This image displays the Symcode 2.4 GHz Wireless Laser Barcode Scanner in black, along with its accompanying USB wireless dongle and USB charging cable. The scanner features a comfortable grip and a laser scanning window.

2. Kontenut tal-Pakkett

Jekk jogħġbok ivverifika li l-oġġetti kollha huma preżenti fil-pakkett tiegħek:

• 1 x Symcode Laser Barcode Scanner
• 1 x 2.4 GHz Wireless USB Dongle
• 1 x USB Charging/Data Cable

3. Karatteristiċi tal-prodott

• Konnettività 2 f'1: Supports both 2.4 GHz wireless and USB wired connections.
• Plug and Play: L-ebda installazzjoni ta' sewwieq mhi meħtieġa għall-biċċa l-kbira tas-sistemi operattivi.
• Kompatibilità Wiesgħa: Works with Windows, Mac, Android, and Linux systems, connecting to PCs, laptops, and POS machines via a USB port.
• Distanza Twila ta' Trażmissjoni: Up to 15-30 meters indoors (with obstacles) and 30-100 meters outdoors (open environment).
• Żewġ Modi ta' Tlugħ: Instant Upload and Offline Storage modes.
• Karatteristiċi programmabbli: Customizable settings for uppercase/lowercase, volume, terminator, prefix/suffix, and character addition/masking.
• High Decoding Capability: Reads various 1D barcodes.
• Batterija Durabbli: 1800mAh capacity for extended operation.

4. Setup

4.1 Konnessjoni bil-Wajer (USB)

1. Qabbad il-kejbil USB mal-port tal-iskaner.
2. Ipplaggja t-tarf l-ieħor tal-kejbil USB f'port USB disponibbli fuq il-kompjuter tiegħek.
3. The scanner will be recognized automatically by your operating system. It is ready for use once the connection is established.

4.2 Konnessjoni bla fili (2.4 GHz)

1. Insert the 2.4 GHz wireless USB dongle into an available USB port on your computer.
2. The computer will automatically install the necessary drivers.
3. Turn on the barcode scanner by pressing the trigger. The scanner will automatically pair with the dongle.
4. Once paired, the scanner is ready for wireless operation.

Figura 2: Mini USB Receiver. This image highlights the compact mini USB receiver, emphasizing its plug-and-play functionality for easy connection to laptops and PCs. It also indicates the ability to store up to 100,000 barcodes.

5. Istruzzjonijiet Operattivi

5.1 Modi ta' Skennjar

L-iskaner jappoġġja żewġ modi primarji ta' skennjar:

• Modalità Trigger: Press the trigger to activate the laser and scan a barcode. Release the trigger to deactivate.
• Modalità Kontinwa: The laser remains active, continuously scanning barcodes without needing to press the trigger for each scan.

To switch between scanning modes, specific setting barcodes are required. If these are not provided in your physical manual, please contact Symcode customer support for assistance.

5.2 Modi ta' Tella' tad-Data

L-iskaner joffri żewġ metodi biex tittella’ d-dejta skenjata:

• Instant Upload Mode (Normal Mode): Data is transmitted to your computer immediately after each successful scan. This is the default mode.
• Modalità ta' Ħażna Offline: Scanned barcodes are stored in the scanner's internal memory. You can then upload all stored data to your computer at a later time by scanning a specific setting barcode. The scanner can store up to 100,000 barcodes.

Figura 3: Two Upload Modes. This image illustrates the two data upload modes: Instant Upload Mode, where data is synchronously transferred to the computer after each scan, and Offline Storage Mode, where barcodes are stored internally in the scanner for later upload.

5.3 Kapaċitajiet ta' Dekodifikazzjoni

The Symcode MJ-2030-B scanner is capable of reading various 1D barcode types, including but not limited to:

• UPC/EAN (including add-on code)
• Code 128, UCC/EAN128
• Code 39, Code 39 Full ASCII
• Kodiċi 93
• Codabar
• Interleaved 2 minn 5
• MSI
• Kodiċi 11
• ISBN, ISSN, China Postage

5.4 Karatteristiċi Programmabbli

The scanner offers several programmable options to customize its behavior:

• Uppercase/Lowercase Settings: Adjust how scanned data appears.
• Aġġustament tal-Volum: Control the sound level of the buzzer.
• Terminator Setting: Configure the character appended to scanned data (e.g., Enter, Tab).
• Prefix/Suffix Setting: Add custom characters before or after scanned barcode data.
• Add/Hide Characters: Modify specific characters within the scanned data.

These settings are typically configured by scanning specific programming barcodes found in the full user manual or provided by customer support.

Figura 4: Prefix and Suffix Customization. This image shows how the scanner supports adding custom prefixes or suffixes to scanned barcode data, allowing for flexible data formatting.

5.5 Appoġġ Multilingwi

The scanner supports various keyboard layouts and languages, including English (US & UK), German, French, Italian, Spanish, and Japanese, to ensure correct data input in different regions.

6. Manutenzjoni

6.1 Informazzjoni dwar il-batterija

The scanner is equipped with a built-in 1800mAh Lithium-ion battery. To ensure optimal battery life and performance:

• Operazzjoni Kontinwa: Approximately 8 to 10 hours.
• Ħin ta' Standby: Sa 15 ijiem.
• Ħin tal-Iċċarġjar: Approximately 3.5 to 4 hours for a full charge using the provided USB cable.
• Recharge the battery when the low battery indicator is active or when performance degrades.

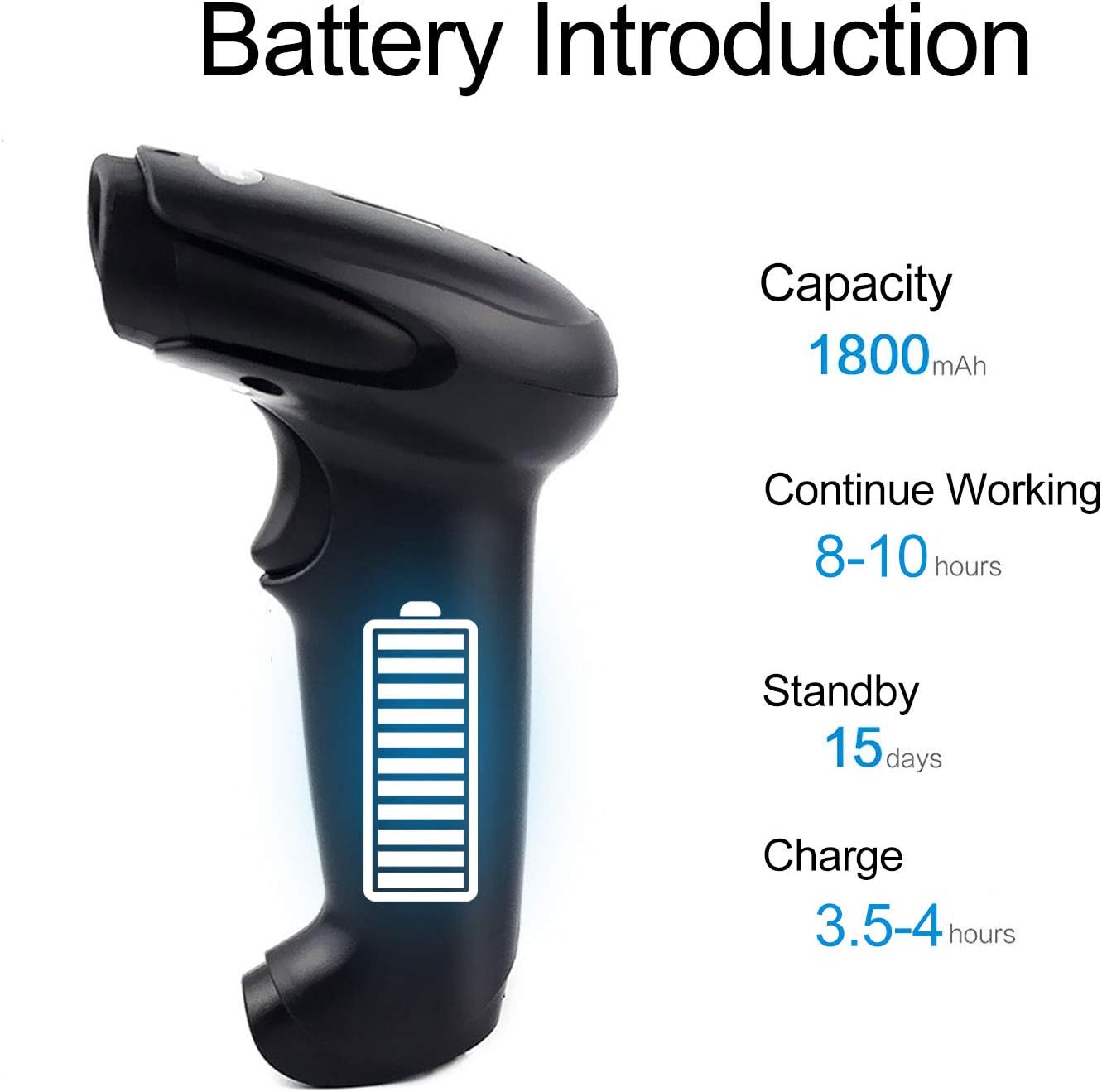

Figura 5: Battery Specifications. This image provides details about the scanner's battery, including its 1800mAh capacity, 8-10 hours of continuous working time, 15 days of standby time, and 3.5-4 hours charging time.

6.2 Tindif

To clean the scanner, use a soft, dry cloth. Do not use abrasive cleaners or solvents, as these can damage the device. Keep the scanning window clean for accurate performance.

7 Issolvi l-problemi

• L-iskaner mhux qed jikkonnettja: Ensure the USB cable is securely connected or the wireless dongle is properly inserted. For wireless, ensure the scanner is charged and within range.
• L-iskaner mhux qed jaqra l-barcodes: Ensure the barcode is not damaged or smudged. Check that the laser is active and properly aimed. Verify the scanner is in the correct scanning mode.
• Data not appearing on computer: Confirm the scanner is connected and in Instant Upload Mode. Check if the cursor is active in a text field on your computer.
• Difficulty changing settings: Specific setting barcodes are required for configuration. If these are missing from your manual, contact customer support for the correct codes.
• Ħajja qasira tal-batterija: Ensure the scanner is fully charged. Reduce continuous scanning time if possible.

8. Speċifikazzjonijiet

8.1 Parametri Tekniċi

8.2 Wireless Parameters

Figura 6: Long Transmission Distance. This image demonstrates the wireless transmission capabilities of the scanner, showing an indoor range of 10-50 meters with obstacles and an outdoor range of up to 100 meters in open areas.

8.3 Speċifikazzjonijiet tal-batterija

8.4 Parametri Ambjentali

Figura 7: Product Dimensions. This image provides the physical dimensions of the Symcode barcode scanner, indicating its length, width, and height in both inches and centimeters for precise measurement.

9. Garanzija u Appoġġ

This Symcode barcode scanner comes with a Garanzija ta '180 jum mid-data tax-xiri. Din il-garanzija tkopri difetti fil-manifattura u malfunzjonamenti taħt użu normali. Jekk jogħġbok żomm il-prova tax-xiri tiegħek għal talbiet ta' garanzija.

For technical support, specific setting barcodes, or warranty inquiries, please contact your seller or Symcode customer service. Refer to the contact information provided with your purchase or visit the official Symcode websit.
