1. Introduzzjoni
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Pedrollo CPM150 centrifugal water pump. Please read these instructions carefully before installing or operating the pump. Retain this manual for future reference.
The Pedrollo CPM150 pump is designed for handling clean liquids with minimal sediment. It is suitable for various applications including industrial liquid recycling (cold or hot), filtration processes, water treatment, and general agricultural or domestic use.
2. Istruzzjonijiet tas-Sigurtà
Always observe the following safety precautions to prevent personal injury and damage to the pump:
- Ensure the pump is installed by qualified personnel in accordance with local electrical and plumbing codes.
- Disconnect power before performing any installation, maintenance, or repair work.
- Do not operate the pump with flammable, corrosive, or explosive liquids.
- Ipproteġi l-pompa minn temperaturi ta' ffriżar.
- Ensure proper ventilation around the pump. The ambient temperature should not exceed 40°C.
- Never run the pump dry. This can cause severe damage.
- Ilbes tagħmir protettiv personali (PPE) xieraq waqt l-installazzjoni u l-manutenzjoni.
3. Prodott Aktarview
The Pedrollo CPM150 is a robust centrifugal pump featuring a cast iron pump body with cataphoresis treatment. The impeller is made of INOX AISI 304 stainless steel, and the motor lantern is aluminum. The pump is designed for continuous service (S1).

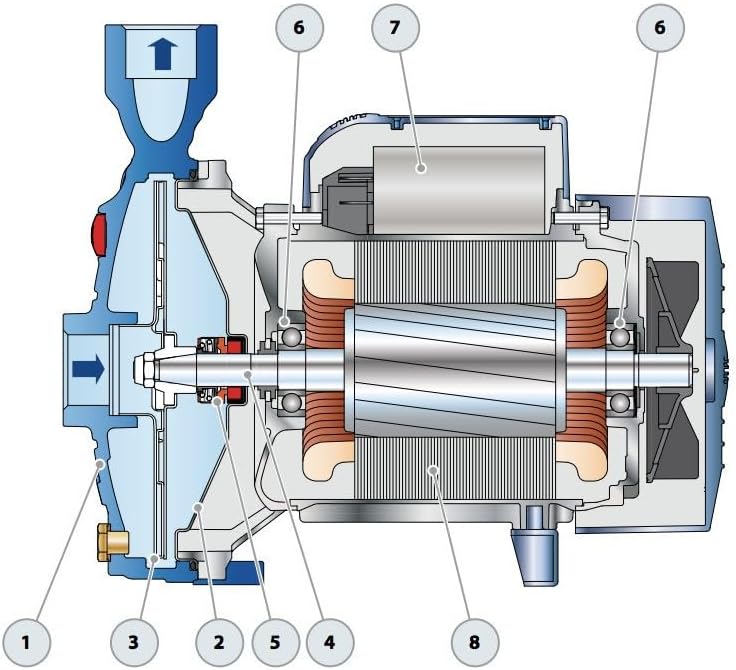

Figura 1: Sploda view of the Pedrollo CPM150 pump, showing internal components. Key parts include (1) Pump Body, (2) Impeller, (3) Mechanical Seal, (4) Motor Shaft, (5) Bearings, (6) Motor Casing, (7) Capacitor (for single-phase), and (8) Stator/Rotor Assembly.
The single-phase 220V motor includes integrated thermal protection to safeguard the pump against unexpected starts or overheating. The coupling shaft between the impeller and the electric motor is made of INOX EN 10088-3 - 1.4104. The mechanical seal, composed of carbon, ceramic, and nitrile, ensures a tight seal between the pump body and the electric motor.
4. Speċifikazzjonijiet
Below are the key technical specifications for the Pedrollo CPM150 pump:
| Karatteristika | Speċifikazzjoni |
|---|---|
| Mudell | CPM150 |
| Qawwa | 0.75 kW |
| Voltage | 220 V Single-Phase |
| Frekwenza | 50 Hz |
| Rata tal-Fluss (Q) | 0 sa 7.2 m³/h |
| Head (HMT) | 29.5 sa 15 metru |
| Medda ta 'Temperatura tal-Likwidu | -10°C (with antifreeze) to +90°C |
| Temperatura Ambjentali | Mhux aktar minn 40°C |
| Materjal tal-Korp tal-Pompa | Cast Iron with Cataphoresis Treatment |
| Materjal tal-Impeller | INOX AISI 304 Stainless Steel |
| Protezzjoni tal-Mutur | IPX4 |
| Klassi ta' Insulazzjoni | F |
| Servizz Kontinwu | S1 |
| Veloċità ta 'Rotazzjoni | 2900 rpm |

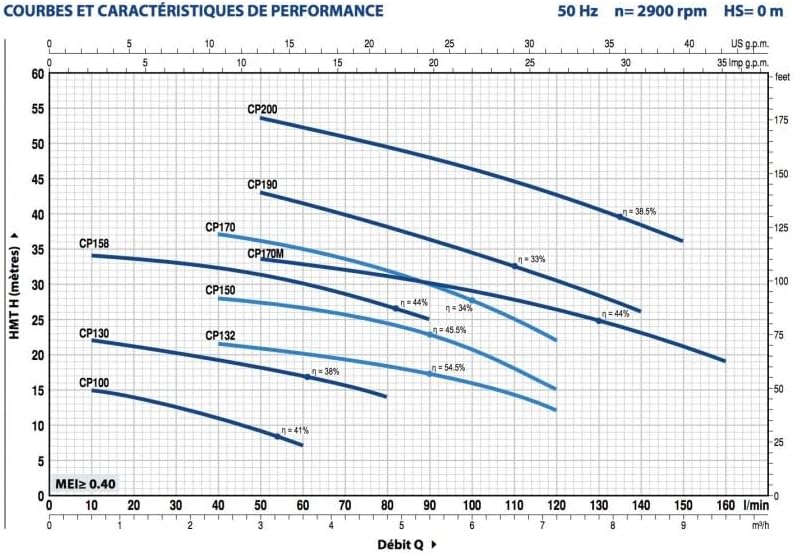

Figura 2: Performance curves for Pedrollo CP series pumps at 50 Hz and 2900 rpm. This graph illustrates the relationship between flow rate (Q) in l/min or m³/h and total head (HMT) in meters or feet for various models, including the CPM150.
5. Installazzjoni u Setup
Proper installation is crucial for the pump's performance and longevity. It is highly recommended that installation be carried out by a qualified professional.
5.1. Immuntar
- Mount the pump on a solid, level, and vibration-free surface.
- Ensure the installation location is dry, well-ventilated, and protected from direct sunlight, rain, and freezing temperatures.
- Allow sufficient space around the pump for ventilation and maintenance access.
5.2. Piping Connections
- Use pipes of adequate diameter to minimize friction losses.
- Install a foot valve with a strainer on the suction line if the pump is not self-priming or if there's a risk of debris.
- Ensure all connections are airtight to prevent air leaks, which can affect priming and performance.
- Support piping independently to avoid stressing the pump's connections.
- Install isolation valves on both suction and discharge lines for easier maintenance.
5.3. Konnessjoni Elettrika
- Ivverifika li l-provvista tal-enerġija voltage and frequency match the pump's specifications (220V, 50Hz).
- Qabbad il-pompa ma' ċirkwit dedikat protett minn apparat ta' kurrent residwu (RCD) u circuit breaker xieraq.
- Tiżgura ertjar xieraq tal-pompa.
- The single-phase motor includes integrated thermal protection. Do not bypass this safety feature.
5.4. L-Ipprajmar tal-Pompa
Before the first start-up, the pump body must be completely filled with the liquid to be pumped. Open the priming plug (if available) or slowly fill the suction line and pump casing until all air is expelled. Close the plug securely.
6. Operazzjoni
6.1. L-Ewwel Bidu
- Ensure the pump is properly primed (see Section 5.4).
- Open any isolation valves on the suction and discharge lines.
- Ixgħel il-provvista tal-enerġija għall-pompa.
- Monitor the pump for unusual noises or vibrations. If any occur, switch off immediately and investigate.
- Check for leaks at connections.
6.2. Operazzjoni Normali
- The pump is designed for continuous operation within its specified performance range.
- Avoid running the pump against a closed discharge valve for extended periods, as this can lead to overheating.
- Regularly check the pressure gauges (if installed) to ensure the pump is operating within expected parameters.
6.3. Shut-down
- Switch off the power supply to the pump.
- Close isolation valves if the system is to be drained or for maintenance.
7. Manutenzjoni
Regular maintenance ensures optimal performance and extends the pump's lifespan. Always disconnect power before performing any maintenance.
7.1. Routine Checks (Weekly/Monthly)
- Inspect for any visible leaks around the pump and piping connections.
- Listen for unusual noises or vibrations.
- Check the motor temperature; it should not be excessively hot to the touch.
- Ensure the ventilation openings are clear of debris.
7.2. Annual Maintenance
- Inspect the mechanical seal for wear or leaks. Replace if necessary (requires professional service).
- Check the impeller for any signs of corrosion or damage.
- Clean any strainers or filters in the suction line.
- Verify electrical connections are secure and free from corrosion.
7.3. Preparazzjoni għax-xitwa (jekk applikabbli)
If the pump is installed in an area subject to freezing temperatures and will not be used, it must be drained completely to prevent damage from ice expansion. Disconnect power, open drain plugs, and remove any remaining water from the pump casing and piping.
8 Issolvi l-problemi
This section provides solutions to common problems. For complex issues, contact a qualified technician.
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Il-pompa ma tibdax | Ebda provvista ta 'enerġija It-tagħbija żejda termali tilfet Ħsara fil-mutur | Iċċekkja l-konnessjoni tal-enerġija u s-circuit breaker Allow motor to cool, check for cause of overload Ikkuntattja tekniku kwalifikat |
| Pump runs but no water or low flow | Pompa mhux ipprajmata Tnixxija tal-arja fil-linja tal-ġbid Suction line blocked Impeller bil-ħsara Valv ta' skariku magħluq | Erġa' ipprajmja l-pompa Check all suction connections for leaks Imblukkar ċar Inspect/replace impeller (professional service) Open discharge valve |
| Ħsejjes jew vibrazzjonijiet eċċessivi | Cavitation (air in system) Allinjament ħażin Berings milbus Immuntar maħlul | Ensure proper priming, check for air leaks Check pump and motor alignment Ikkuntattja tekniku kwalifikat Issikka l-boltijiet tal-immuntar |
| Tnixxija tal-pompa | Konnessjonijiet sfużi Siġill mekkaniku milbus Cracked casing | Issikka l-konnessjonijiet Replace mechanical seal (professional service) Ikkuntattja tekniku kwalifikat |
9. Garanzija u Appoġġ
For warranty information, please refer to the documentation provided at the time of purchase or contact your authorized Pedrollo dealer. Keep your proof of purchase for warranty claims.
For technical support, spare parts, or service, please contact your local Pedrollo distributor or the seller from whom you purchased the pump. Provide the model number (CPM150) and serial number (if available) when seeking assistance.
Pedrollo S.p.A. is committed to continuous product improvement. Specifications are subject to change without notice.
