INFURIDER YF-770K TRMS 6000 Count Digital Multimeter User Manual

Introduzzjoni

Thank you for choosing the INFURIDER YF-770K TRMS 6000 Count Digital Multimeter. This device is a high-performance, auto-ranging multimeter designed for accurate measurements in various electrical and automotive applications. It features True RMS for precise readings of non-sinusoidal waveforms and a 6000-count display for enhanced resolution. This manual provides essential information for safe and effective use of your multimeter.

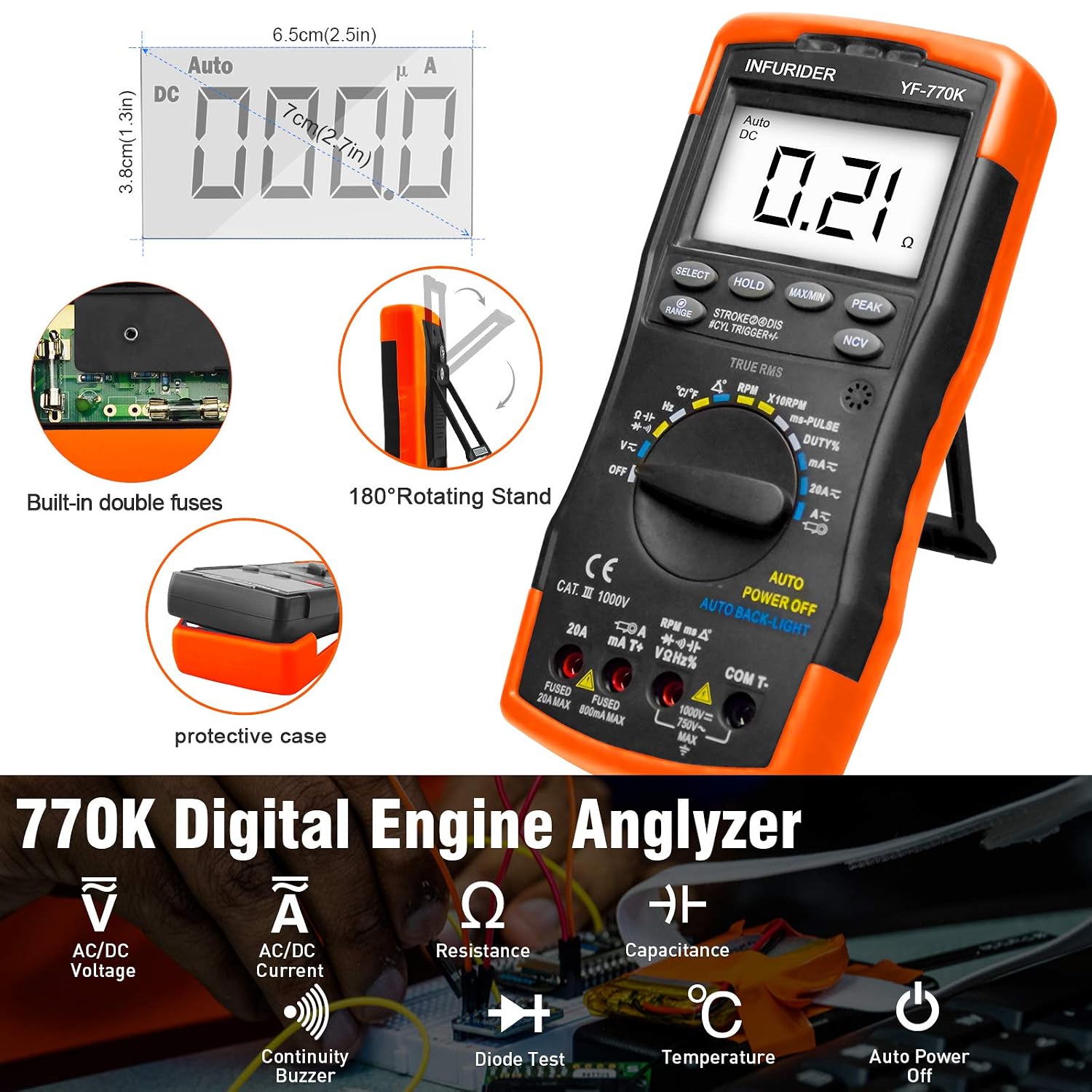

Figura 1: INFURIDER YF-770K Digital Multimeter. This image shows the front view of the multimeter, highlighting its large LCD display, rotary dial for function selection, input jacks, and a built-in rotating stand. Key features like built-in double fuses and a protective case are also indicated.

Informazzjoni dwar is-Sigurtà

To ensure safe operation, please read and understand all safety warnings and operating instructions before using this multimeter.

• Dejjem żomm mal-kodiċijiet tas-sigurtà lokali u nazzjonali.
• Applikax aktar mill-vol nominalitage, kif immarkat fuq il-miter, bejn it-terminals jew bejn kwalunkwe terminal u l-art.
• Oqgħod attent meta taħdem bil-voltag'il fuq minn 30V AC RMS, 42V peak, jew 60V DC. Dawn il-volumitages joħolqu periklu ta' xokk.
• Before making resistance, continuity, or diode measurements, disconnect power to the circuit and discharge all high-voltage capacitors.
• Ibdel il-batterija hekk kif jidher l-indikatur ta' batterija baxxa biex tevita qari żbaljat.
• Kun żgur li l-wajers tat-test huma f'kundizzjoni tajba, mingħajr ebda ħsara lill-insulazzjoni.
• The multimeter is equipped with a rubber protective shell and integrated fuses for overload protection. Do not bypass these safety features.

Karatteristiċi Ewlenin

• Kejl RMS Veru: Jipprovdi qari preċiż kemm għall-forom tal-mewġ AC sinusoidali kif ukoll għal dawk mhux sinusoidali.
• 6000 Count Display: Offers high resolution for precise measurements.
• Firxa Wiesgħa ta' Kejl: Miżuri AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Temperature, Frequency, Duty Cycle, Diode, and Continuity.
• Automotive Analysis Functions: Includes Dwell Angle, Pulse Width (0.1ms to 10.0ms), and Tachometer (600 to 12000 RPM) for engine diagnostics.
• Mhux Kuntatt VoltagSejbien ta' e (NCV): Jidentifika b'mod sigur il-volum tal-ACtage mingħajr kuntatt dirett.
• Disinn faċli għall-utent: Features a 3.0-inch LCD with automatic backlight, Data Hold, Max/Min value retention, Auto Power Off, and a 180° rotating stand for hands-free operation.
• Protezzjoni Robusta: Equipped with a durable rubber protective shell and built-in fuses for overload protection.
• Kejl tat-Temperatura: Switchable between Celsius (℃) and Fahrenheit (℉).
• Optional Current Clamp Kompatibilità: Can be used with the optional YF-605A AC/DC current clamp for measuring up to 600A without interrupting the circuit (clamp mhux inkluż).

Figura 2: Multimeter with its 3.0-inch LCD backlight and robust rubber protective shell. The image highlights the clear display and the protective casing.

Setup

1. Installazzjoni tal-batterija

1. Kun żgur li l-multimetru huwa mitfi.
2. Sib l-għatu tal-kompartiment tal-batterija fuq wara tal-unità.
3. Ħoll il-vit(i) taż-żamma u neħħi l-għatu.
4. Insert the required battery (typically a 9V battery, refer to specifications for exact type) observing the correct polarity.
5. Erġa’ poġġi l-għatu tal-kompartiment tal-batterija u waħħalha bil-vit(i).

2. Konnessjoni tal-wajers tat-test

• Daħħal il-wajer tat-test iswed fil-jack tad-dħul "COM" (komuni).
• Għal ħafna kejl (Voltage, Resistance, Capacitance, Frequency, Diode, Temperature), insert the red test lead into the "VΩHz" input jack.
• For current measurements up to 600mA, insert the red test lead into the "mA" input jack.
• For high current measurements up to 20A, insert the red test lead into the "20A" input jack.
• Always ensure test leads are fully inserted before taking measurements.

Figura 3: The INFURIDER YF-770K Multimeter with its included test leads and accessories. The image also illustrates common applications such as car repair, home appliance repair, electronic product testing, and fuel tank inspection.

Istruzzjonijiet Operattivi

Turn the rotary switch to the desired function. The multimeter will automatically select the appropriate range for most measurements (auto-ranging).

1. TitjiratagKejl elettroniku (AC/DC)

• Set the rotary switch to the "V~" for AC voltage or "V—" for DC voltage.
• Qabbad il-wajers tat-test b'mod parallel maċ-ċirkwit jew il-komponent li qed jiġi ttestjat.
• Aqra l-voltagIl-valur fuq il-wiri.

Figura 4: Demonstrating AC/DC voltage measurement. The image shows the multimeter's probes inserted into a wall outlet to measure voltage.

2. Kejl tar-Reżistenza

• Set the rotary switch to the "Ω" position.
• Ensure the circuit is de-energized before connecting the test leads across the component.
• Aqra l-valur tar-reżistenza fuq il-wiri.

Figura 5: Illustrating a resistance test. The multimeter's probes are connected to a large resistor to measure its resistance.

3. Mhux ta' Kuntatt Voltage (NCV) Sejbien

• Set the rotary switch to the "NCV" position.
• Move the top end of the multimeter near an AC voltage source (e.g., a live wire or outlet).
• The meter will emit an audible alarm and the NCV indicator light will flash when AC voltage jiġi skopert.

Figura 6: Mhux Kuntatt Voltage (NCV) testing. The image shows the multimeter detecting AC voltage from a power strip and adapter, indicating live and null wires.

4. Automotive Engine Analysis (Dwell Angle, Pulse Width, Tachometer)

• Refer to your vehicle's service manual for specific connection points for dwell angle, pulse width, and tachometer measurements.
• Set the rotary switch to the appropriate automotive function (e.g., "RPM" for tachometer, "ms-PULSE" for pulse width, "DUTY%" for duty cycle which can be related to dwell).
• Connect the test leads as instructed by the vehicle's manual and the multimeter's display prompts.
• Aqra l-kejl fuq il-wiri.

Figura 7: Multimeter in use for engine analysis. The image shows a user connecting the multimeter probes to a car engine for diagnostic purposes.

5. Funzjonijiet Speċjali

• ŻOMM: Agħfas il-buttuna "HOLD" biex tiffriża l-qari attwali fuq id-displej. Agħfas mill-ġdid biex tirrilaxxa.
• MAX / MIN: Press the "MAX/MIN" button to record the maximum or minimum value during a measurement session. Press repeatedly to cycle through MAX, MIN, and current readings.
• SELECT/RANGE: Use the "SELECT" button to switch between different measurement types within a single rotary switch position (e.g., AC/DC in voltage mode, or different functions like diode/continuity). The "RANGE" button allows manual range selection if auto-ranging is not desired.
• Dawl ta' wara: The LCD features an automatic backlight for visibility in dimly lit areas.
• Mitfi Awtomatiku: Il-multimetru jintefa awtomatikament wara perjodu ta' inattività biex jikkonserva l-ħajja tal-batterija.

Manutenzjoni

1. Tindif

• Imsaħ il-każ bl-adamp drapp u deterġent ħafif. Tużax abrażivi jew solventi.
• Keep the terminals free from dirt and moisture.

2. Sostituzzjoni tal-batterija

• When the low battery indicator appears on the display, replace the battery promptly to ensure accurate readings.
• Follow the steps outlined in the "Battery Installation" section under Setup.

3. Sostituzzjoni tal-fjus

• Jekk il-funzjoni tal-kejl tal-kurrent tieqaf taħdem, il-fjus jista' jkollu bżonn jinbidel.
• Kun żgur li l-multimetru jkun mitfi u skonnettja l-wajers tat-test kollha.
• Open the back cover (similar to battery replacement, but may involve more screws).
• Replace the blown fuse with a fuse of the exact same type and rating as specified in the specifications section (e.g., Fused 20A MAX, Fused 600mA MAX).
• Agħlaq sew il-qoxra ta 'wara.

Issolvi l-problemi

Speċifikazzjonijiet

Speċifikazzjonijiet Ġenerali

• Wiri: 6000 Counts, 3.0-inch LCD with automatic backlight
• Qawwa: (Typically 9V battery, specific type not provided in source)
• Mitfi Awtomatiku: Iva
• Dimensjonijiet: 23.4 x 13.3 x 6.4 cm (Package dimensions, actual device dimensions may vary)
• Piż: 630 grams (Package weight)
• Klassifikazzjoni tas-Sigurtà: CAT III 1000V
• Fjusis: Fused 20A MAX, Fused 600mA MAX

Informazzjoni dwar Garanzija

INFURIDER products are designed to be reliable and durable. Specific warranty details for the YF-770K Digital Multimeter are typically provided with the product packaging or on the official INFURIDER website. Please refer to these resources for information regarding warranty duration, coverage, and claims process. Keep your purchase receipt as proof of purchase.

Appoġġ għall-Klijent

For technical assistance, troubleshooting, or any questions regarding your INFURIDER YF-770K Digital Multimeter, please contact INFURIDER customer support.

• Websit: Visit the official INFURIDER website for FAQs, product information, and contact forms.
• Email: Irreferi għall-imballaġġ tal-prodott tiegħek jew għall-informazzjoni uffiċjali websit għal indirizzi tal-email tas-servizz tal-konsumatur.
• Telefon: Contact numbers may be available on the official websit għal appoġġ dirett.

When contacting support, please have your product model (YF-770K) and purchase details ready.
