Lionelo Ruben Motorized Baby Bouncer

Introduzzjoni

Thank you for choosing the Lionelo Ruben Motorized Baby Bouncer. This manual provides essential information for the safe and proper assembly, operation, and maintenance of your product. Please read these instructions carefully before use and keep them for future reference.

The Lionelo Ruben is designed to provide a comfortable and soothing environment for your baby from birth up to 9 kg (approximately 6 months, or until the child can sit up unaided).

Image: The Lionelo Ruben Motorized Baby Bouncer, suitable for babies from birth up to 9 kg. This electric bouncer offers comfort and entertainment.

Informazzjoni Importanti dwar is-Sigurtà

• TWISSIJA: Qatt tħalli lit-tifel waħdu.
• TWISSIJA: Tużax dan il-prodott ladarba t-tifel/tifla tiegħek ikun jista' joqogħdu bilqegħda mingħajr għajnuna jew jiżen aktar minn 9 kg.
• TWISSIJA: Dan il-prodott mhuwiex maħsub għal perjodi twal ta 'rqad.
• TWISSIJA: Dejjem uża s-sistema tat-trażżin.
• TWISSIJA: Tiċċaqlaqx jew tgħollix dan il-prodott bit-tarbija ġewwa.
• TWISSIJA: Tużax il-prodott jekk xi komponenti huma miksura jew nieqsa.
• Ensure all assembly steps are completed correctly before placing your child in the bouncer.
• Żomm il-partijiet żgħar fejn ma jintlaħqux mit-tfal waqt l-assemblaġġ.
• Only use accessories and replacement parts approved by the manufacturer.
• Place the bouncer on a flat, stable, and horizontal surface.
• Keep away from open flames and other sources of strong heat.
• Regularly check the product for wear and tear, loose fasteners, or damaged parts.

Kontenut tal-Pakkett

Before assembly, ensure all components are present and undamaged. If any parts are missing or damaged, do not use the product and contact customer support.

• Bouncer Frame (Metal)
• Seat Unit with Upholstery
• Ġugarelli Bar bil-Ġugarelli
• Kap Pillow
• Power Adapter (for mains operation)
• Manwal ta' Istruzzjoni

Note: Batteries (AA) for optional battery operation are not included.

Setup Istruzzjonijiet

While the product is largely pre-assembled, some minor setup is required to ensure proper function and safety.

1. Tiżvolġi l-Qafas

Carefully remove the bouncer from its packaging. Unfold the frame until it locks securely into place. Ensure all four legs are stable on the floor.

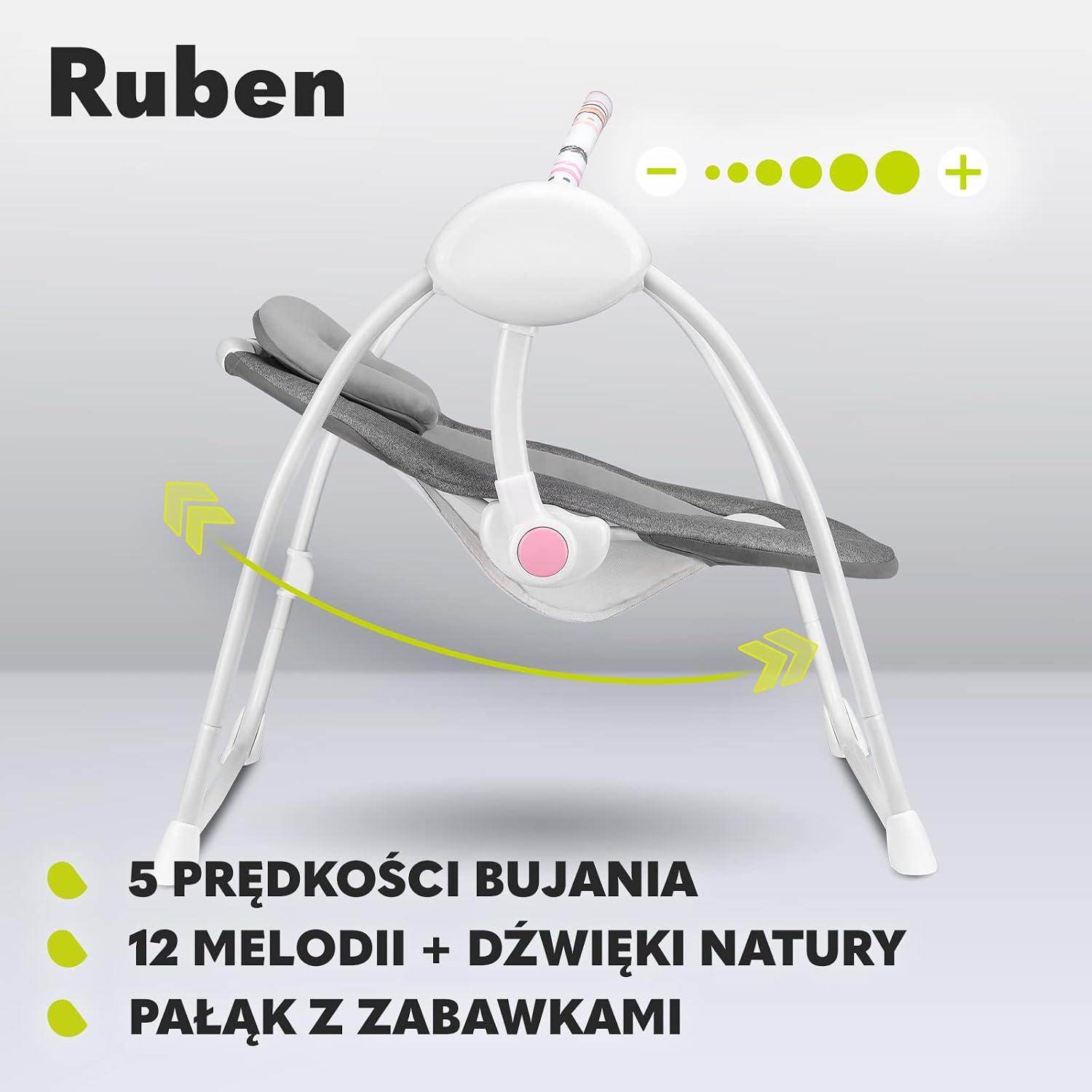

Image: The bouncer frame in its unfolded, ready-to-use position, illustrating the rocking mechanism.

2. Twaħħil tal-Unità tas-Sedil

Align the seat unit with the frame's attachment points and secure it firmly. Listen for a click to confirm it is properly locked.

3. Installing the Head Pillow

Place the soft contoured head pillow into the seat unit. Ensure it is positioned correctly to support the baby's head and neck.

Immaġni: Close-up view of the soft, contoured head pillow designed for infant comfort and support.

4. Attaching the Toy Bar

Insert the toy bar into the designated slots on the frame. Ensure it is securely attached and the toys are within reach but not obstructing the baby's face.

5. Powering the Bouncer

The bouncer can be powered by either the included mains adapter or 4x AA batteries (not included).

• Enerġija tal-Mejns: Connect the power adapter to the bouncer's power port and then to a suitable electrical outlet.
• Qawwa tal-batterija: Locate the battery compartment (usually on the control panel or underside of the seat). Insert 4x AA batteries, ensuring correct polarity.

Image: The bouncer highlighting its compact folded size for storage and the dual power options: mains or battery.

Istruzzjonijiet Operattivi

1. Is-Sigurtà ta' Wliedek

Always place your child in the bouncer and secure them using the 5-point adjustable safety harness. Adjust the straps snugly around your child without being too tight.

Immaġni: Dettaljata view of the 5-point adjustable safety harness and the mechanism for adjusting the backrest recline.

2. Adjusting Rocking Speed

The bouncer offers 5 rocking speeds. Use the control panel to select the desired speed. Start with a lower speed and adjust as needed for your child's comfort.

3. Music and Nature Sounds

Select from 12 melodies or nature sounds using the control panel. Adjust the volume to a comfortable level for your baby.

4. Funzjoni Timer

The bouncer features a timer function allowing you to set operation for 8, 15, or 30 minutes. This helps conserve power and ensures the bouncer does not run indefinitely.

Image: The bouncer in operation, emphasizing its silent function and the availability of 8, 15, or 30-minute timer settings.

5. Adjusting Backrest Recline

The backrest can be adjusted to different recline positions for your child's comfort, from a more reclined position for newborns to a more upright position as they grow.

Manutenzjoni

Tindif tal-Tapizzerija

The bouncer's upholstery is designed to be easy to clean. Refer to the care label for specific washing instructions. Typically, it can be removed and machine washed on a gentle cycle with mild detergent.

Image: The bouncer with an icon symbolizing a washing machine, indicating that the upholstery is easy to clean.

Frame and Plastic Parts

Imsaħ il-qafas u l-komponenti tal-plastik b'reklamaramp drapp u sapun ħafif. Tużax tindif jew solventi li joborxu.

Pads li ma jiżolqux

The bouncer is equipped with non-slip pads on its feet to prevent scratching floors. Keep these pads clean and free of debris to maintain their effectiveness.

Ħażna

When not in use, the bouncer can be folded into a compact size for easy storage. Store in a dry place away from direct sunlight.

Image: The bouncer shown in its folded configuration, demonstrating its compact size for convenient storage.

Issolvi l-problemi

Speċifikazzjonijiet

• Ditta: Lionelo
• Mudell: Ruben (LO-RUBEN STONE GREY ROSE)
• ASIN: B081TFW2KK
• Dimensjonijiet tal-Prodott (L x W x H): 69 x 62 x 75 ċm
• Piż tal-oġġett: 4.2 kg
• Rakkomandazzjoni tal-Piż Massimu: 9 kg
• Materjal tal-qafas: Metall
• Għażliet tal-Enerġija: Mains adapter (included) or 4x AA batteries (not included)
• Veloċitajiet tat-Tbandil: 5
• Melodiji: 12 + Nature Sounds
• Issettjar tat-Timer: 8, 15, 30 minuta
• Assemblaġġ Meħtieġa: Minor assembly
• Pajjiż ta' Oriġini: Iċ-Ċina

Image: Technical diagram illustrating the precise dimensions of the Lionelo Ruben bouncer in both unfolded and folded states.

Garanzija u Appoġġ

For warranty information, please refer to the warranty card included with your purchase or visit the official Lionelo website. If you encounter any issues or have questions not covered in this manual, please contact Lionelo customer support:

• Websit: www.lionelo.com (Jekk jogħġbok iċċekkja għar-reġjun tiegħek) websit)
• Email: Irreferi għal websit għad-dettalji ta' kuntatt
• Telefon: Irreferi għal websit għad-dettalji ta' kuntatt

Please have your product model number (LO-RUBEN STONE GREY ROSE) and ASIN (B081TFW2KK) ready when contacting support.
